Jitsie Race 35º Stem (with CNC Top Cap) Expand

Jitsie Race 35º Stem (with CNC Top Cap)

JITSIE JITSIE

New

53,72€

Length .
 150mm

 175mm

Ask a question
rating Ver la opinión
Valoración media: 10/10 - Nº valoraciones: 1

Description and materials
- Revolutionary, high quality Jitsie Race stem made by innovative Belgian brand Jitsie.
- Exclusive Jitsie Race design, with special orientation of both the handlebar and fork clamps.
- Features a sloping steerer clamp offset to the right, which allows the bolts to be integrated into the stem and prevent any impacts with the knees while riding.

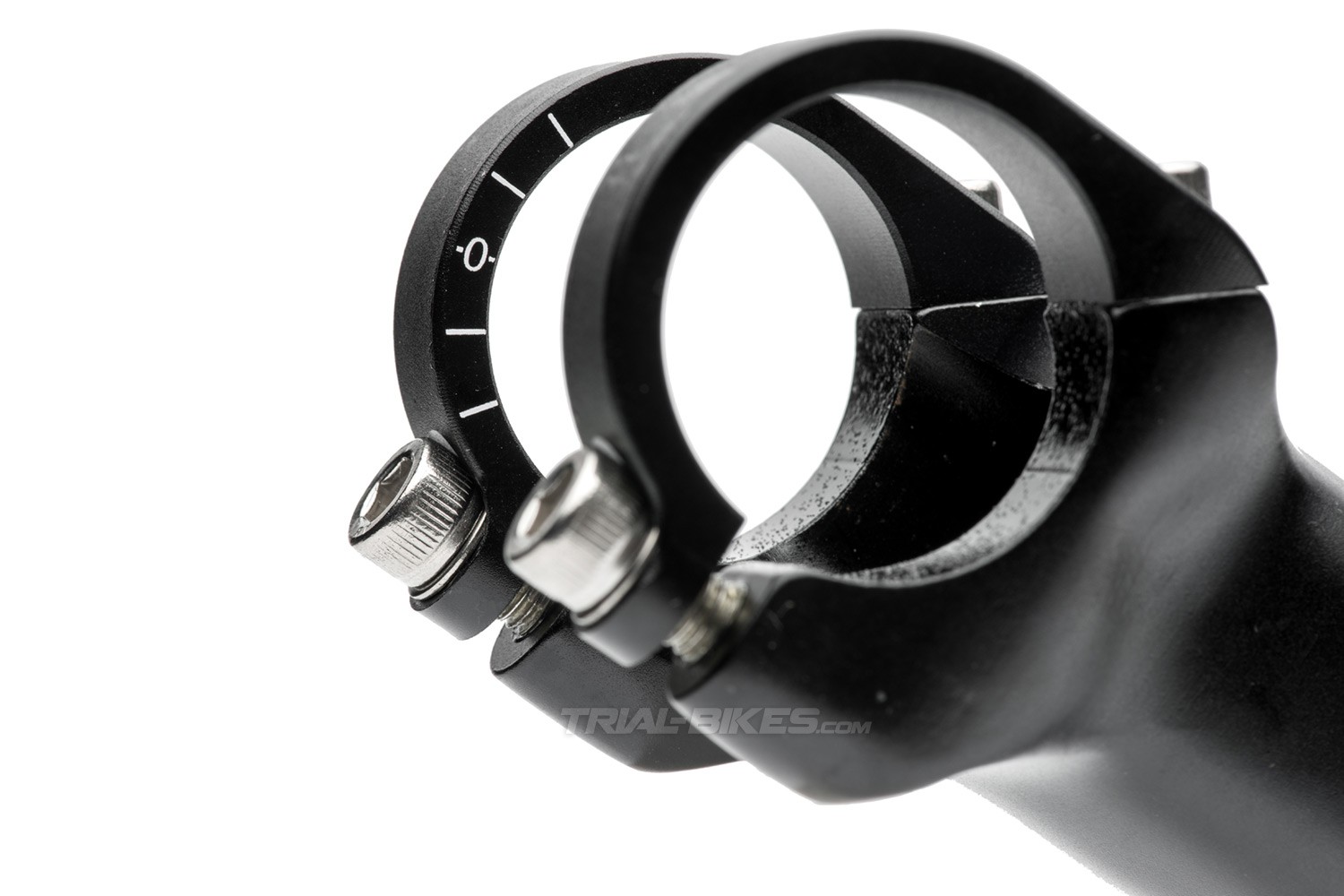

- The handlebar clamp also has a unique 4-bolt design (2x M5x10mm and 2x M6x10mm): the 2 top screws bolt vertically until the clamp makes contact with the body, whereas the 2 bottom screws must only be tightened until the handlebar is kept in place.
- Main body is 3D Forged from ultralight 7050-T6 aluminium alloy, with 7075-T6 handlebar clamps for the perfect strength to weight ratio.
- Compatible with any Oversized handlebars (Ø 31.8mm).
- The handlebar clamp area of the stem body has an anti-slip treatment to make sure the handlebar is kept in place.
- Supplied with an ultra-light Jitsie CNC top cap, with its own steel bolt.
- Available with 35º rise in two lengths: 150mm or 175mm long.

Length

- Length: 150mm or 175mm
- Rise: 35º
- Handlebar diameter: Ø 31.8mm

Handlebar clamp bolts: (2x M5x10mm and 2x M6x10mm)
Fork clamp bolts: 2x M6x18mm

Finishes
- Black with white laser etched Jitsie graphics.

Weight

- 222g (150mm x 35º version), 234g (175mm x 35º version), including steel bolts, plus top cap at 4g.

Additional Information

The 2 top screws in the handlebar clamp bolt vertically, until the clamp makes contact with the body, whereas the 2 bottom screws must only be smoothly tightened until the handlebar is kept in place.
Maximum torque is 4Nm. Any damage caused to the threads or clamps by over tightening the bolts won’t be covered under any warranty.

COLOR Black
LENGTH 120mm - 160mm
LENGTH Greater than 160mm
RISE Greater than 30º
