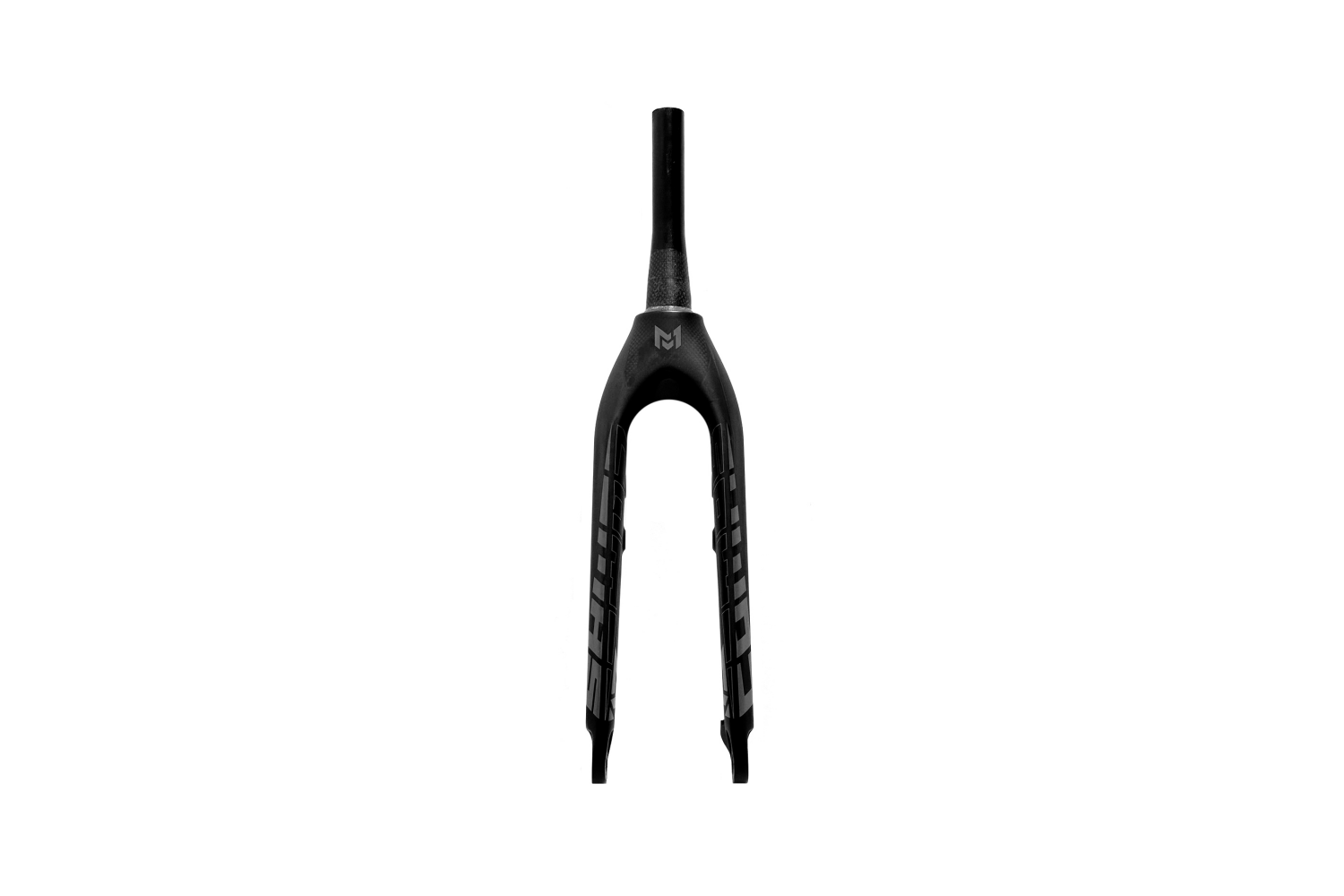

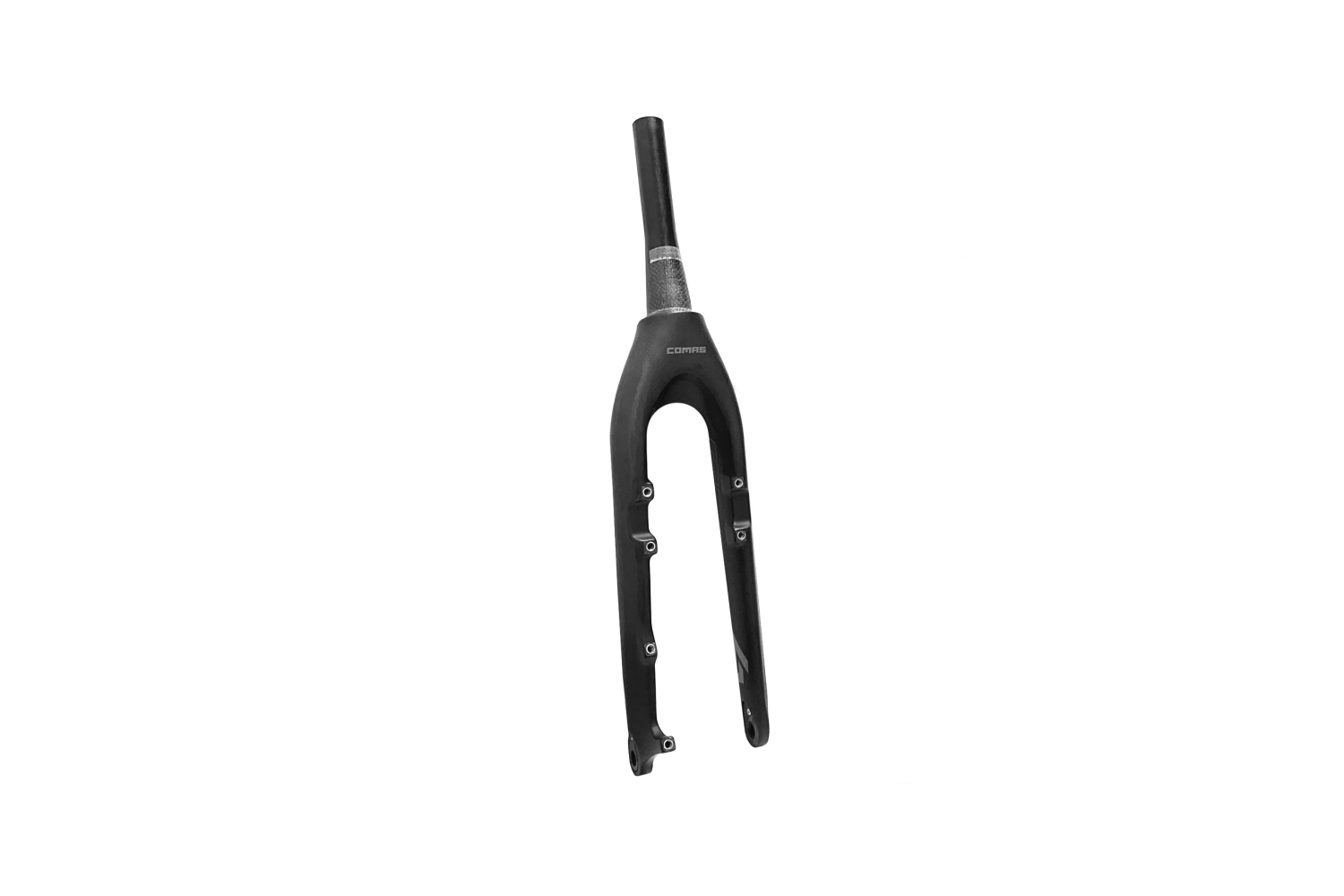

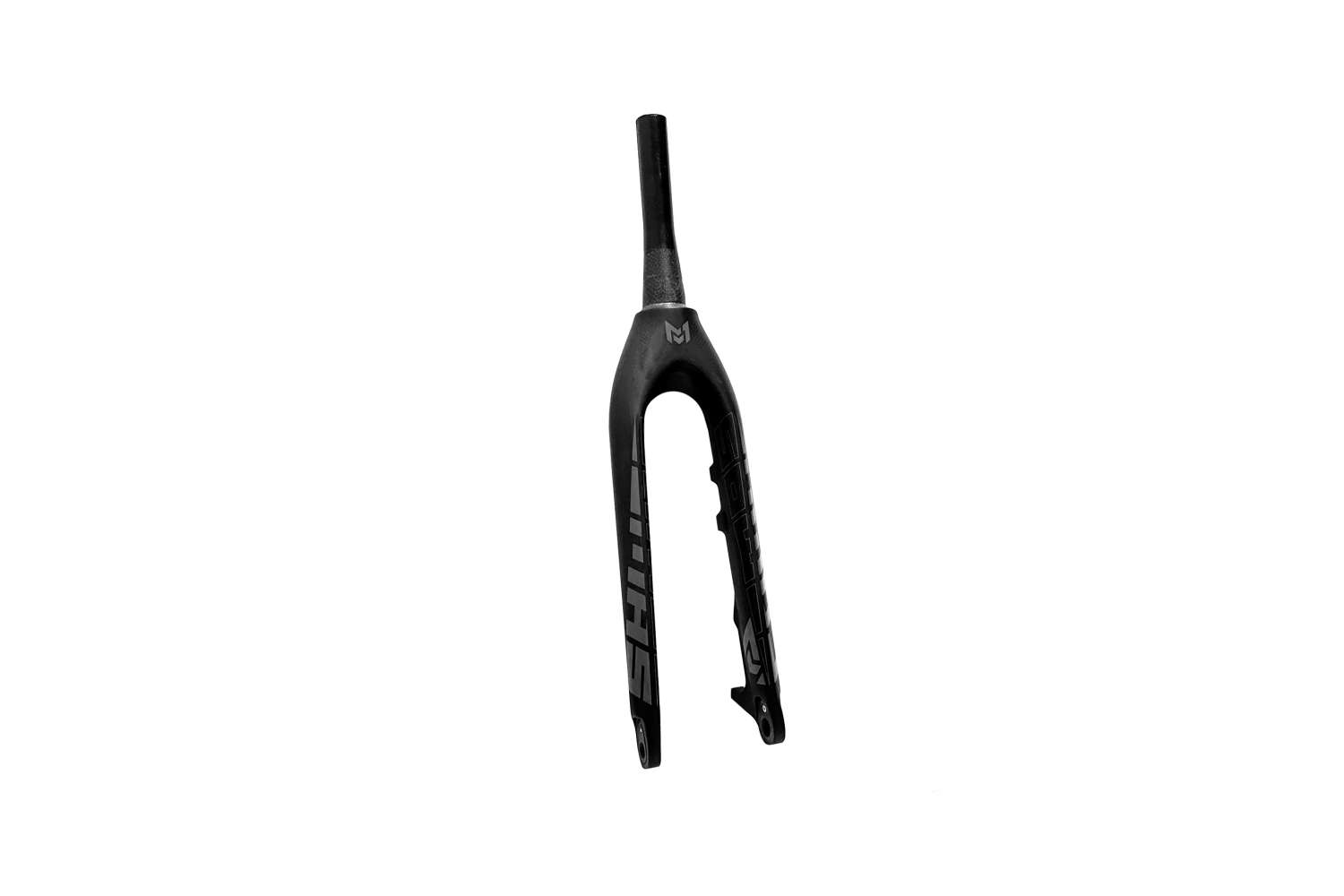

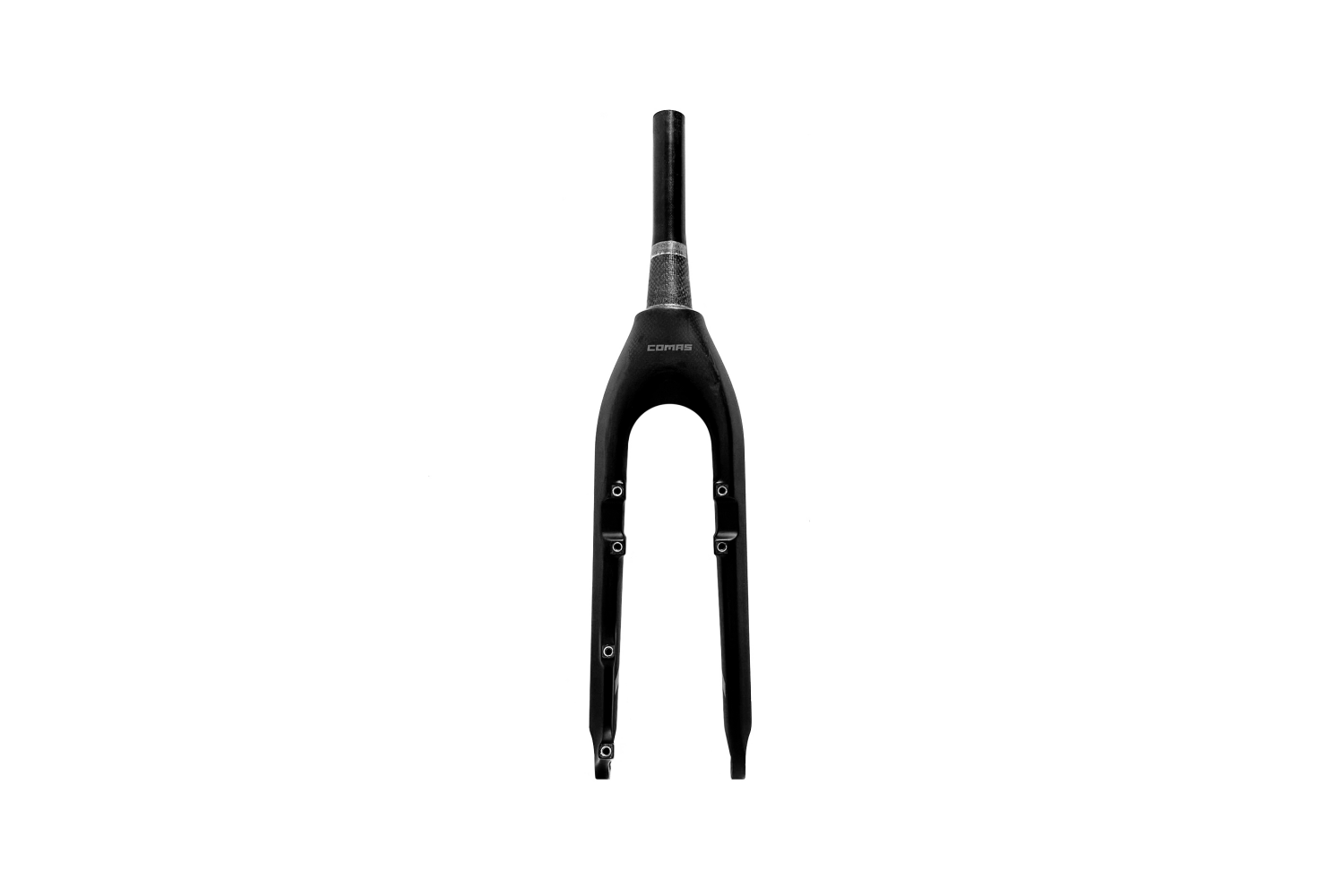

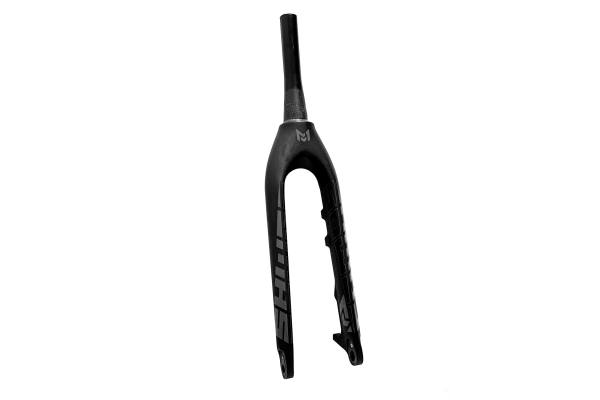

Comas Carbon 20" HS / Disc Fork

Comas Carbon 20" HS / Disc Fork

- New Comas Carbon 20" HS / Disc fork, an evolution of the previous version featuring a reinforced structure and a new integrated lower headset bearing seat.
- Manufactured from carbon fiber with a new layer distribution and orientation to improve stability and the overall performance of the fork.
- Features new internal linear reinforcements that increase structural stiffness and improve precision during sidehops, landings and technical movements.
- Built with more than 22 layers of carbon fiber to ensure an excellent combination of light weight, strength and stiffness.

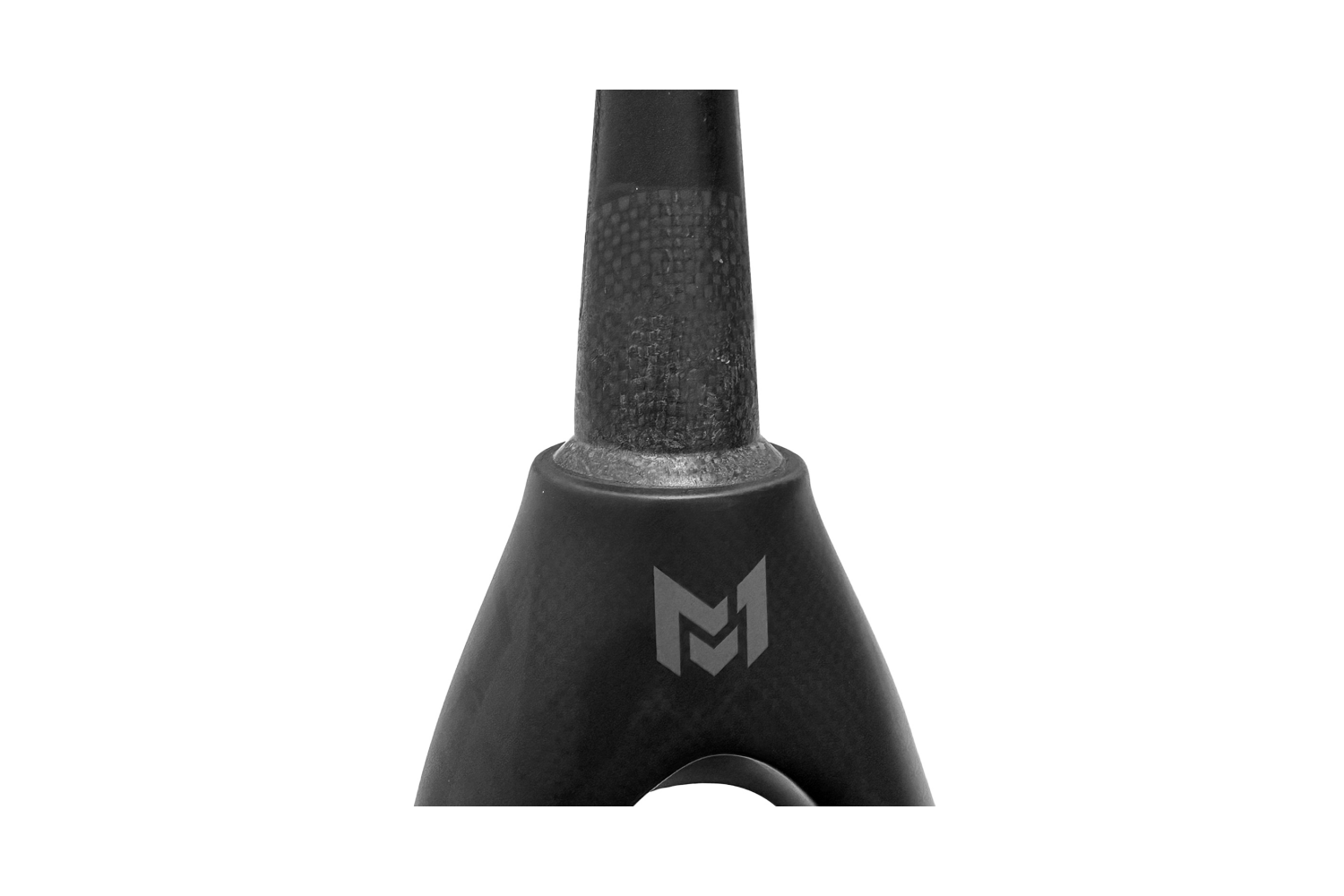

- New lower headset bearing seat, allowing direct installation onto the fork without the need for an additional crown race.
- Tapered steerer tube with a length of 185 mm, featuring a diameter of 1 1/8" at the top and 1.5" at the bottom.
- Includes a 150 mm internal aluminium insert to increase strength and reliability in the steerer tube area.
- Grooved inside steerer tube to facilitate the installation of the headset star nut.
- Designed for use with 100 mm front hubs equipped with a 12 mm thru axle, providing increased front-end stiffness.

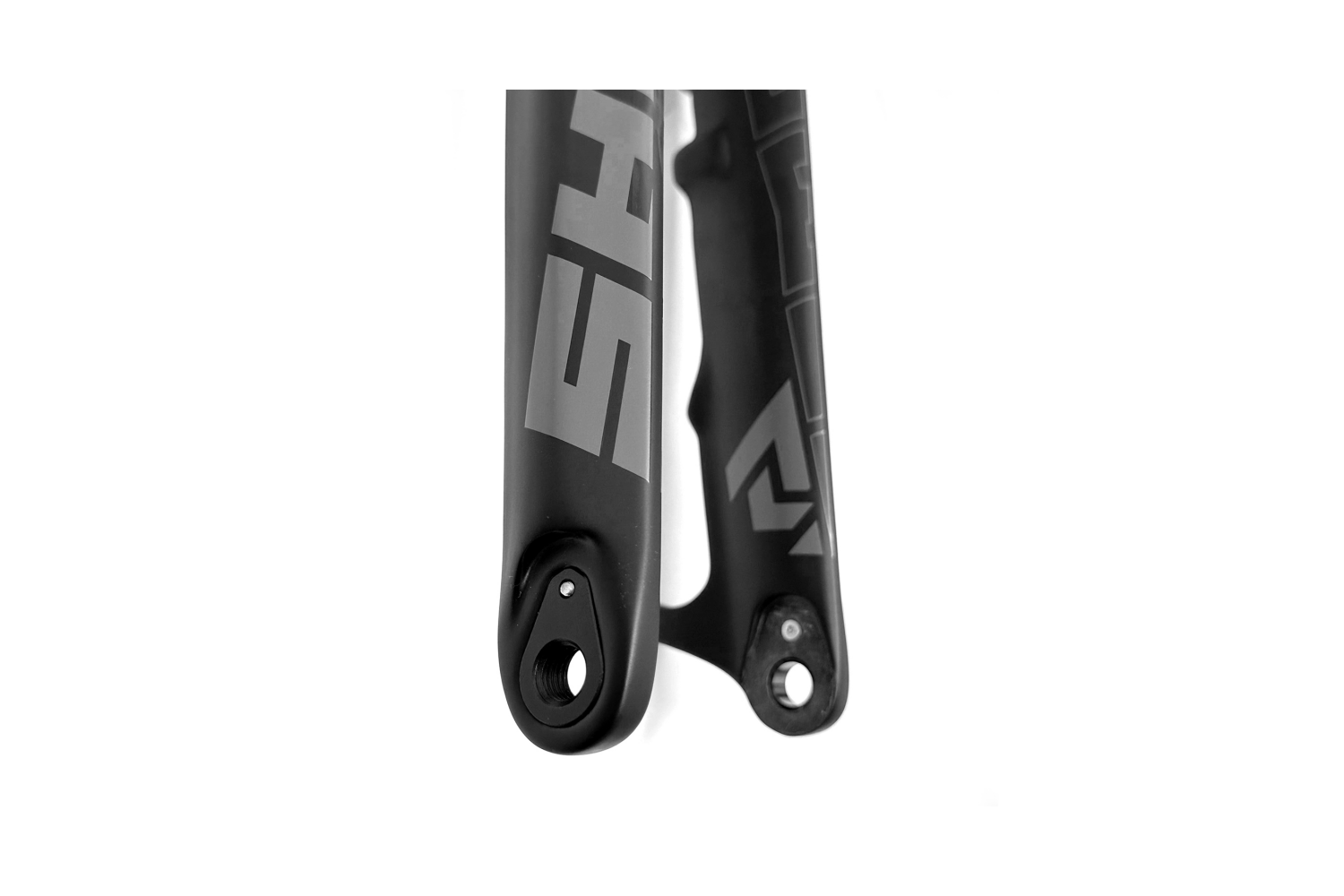

- Closed dropouts with CNC-machined 7075 aluminium inserts, exclusively compatible with 12 mm thru axles.

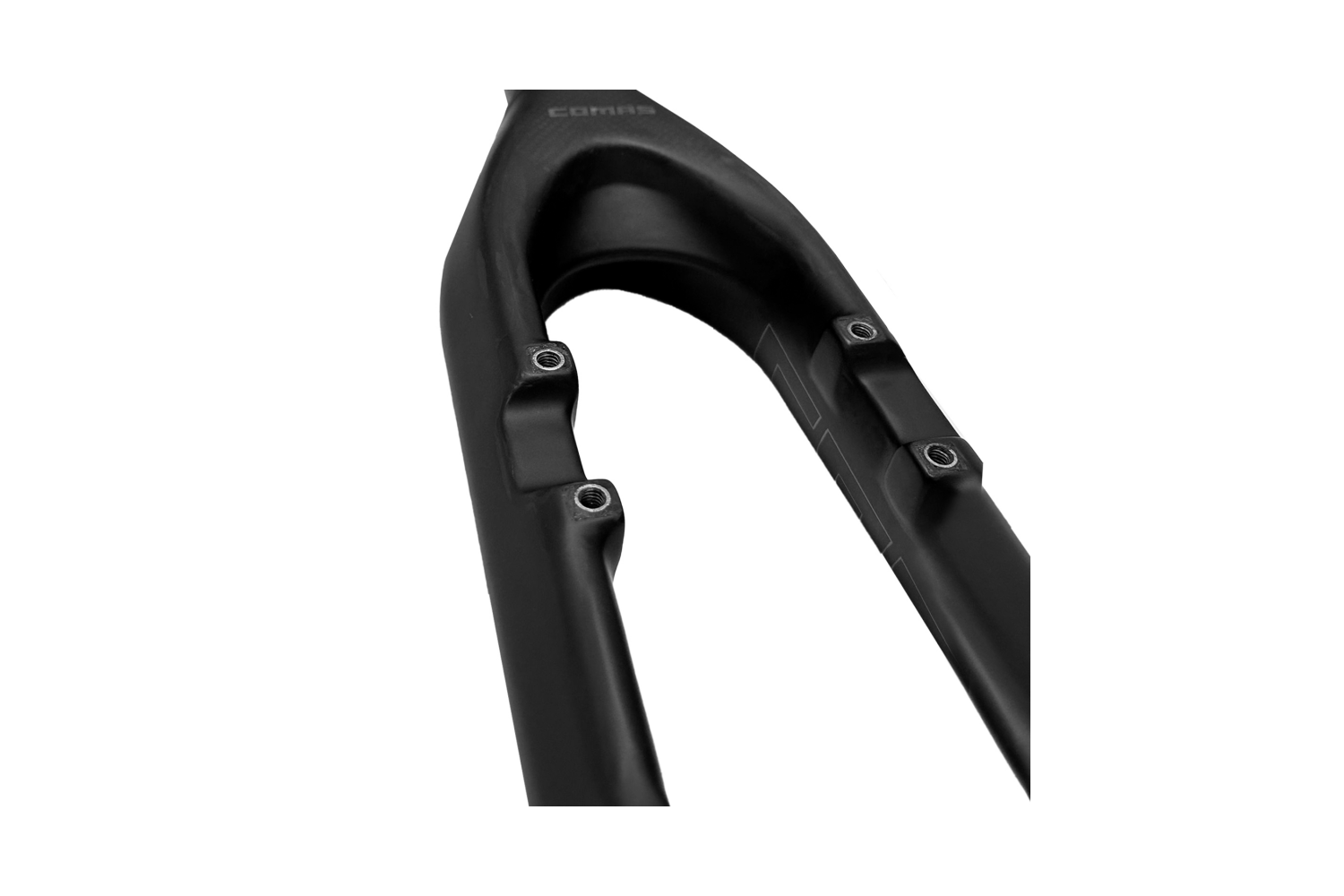

- Features mounts for Magura HS hydraulic rim brakes and Post Mount disc brakes.
- HS brake clamp mounts using M6 bolts, improving brake positioning and fixation.
- New exclusive Comas graphics for this generation.

Includes
- Comas Carbon 20" HS / Disc fork.
- 7075 aluminium inserts installed in the dropouts for a 12 mm thru axle.

Does not include
- HS brake clamps.
- 12 mm thru axle.
- Headset star nut.

Compatible with
- Frames with a tapered 1 1/8" – 1.5" head tube.
Note: if you want to install this fork on a frame with a 1 1/8" head tube, the corresponding adapter must be used.
- Comas M6 Brake Clamps and those that use M6 bolts.
- 100 mm spacing front hubs that use a 12 mm thru-axle.
- 12 mm thru-axle (diameter) x 122 mm in length.
- Tapered headset, 1 1/8" - 1.5.
- 18 mm headset star nut.

Dimensions

(1) Length: 370 mm.
-----------------------------------------------
(2) Offset: +40 mm.
-----------------------------------------------
(3) Steerer tube length: 185 mm.
-----------------------------------------------

- Width: 100 mm.
- Internal aluminium insert length: 150 mm.

Material
- Carbon fiber.
- Construction with more than 22 layers of carbon fiber.

Finishes
- Matte black with new Comas graphics.
- Black aluminium inserts.

Weight
- 595 g (+/- 10 g).
