Jitsie Varial Race 20" Carbon Fork

Jitsie Varial Race Carbon Fork 20"

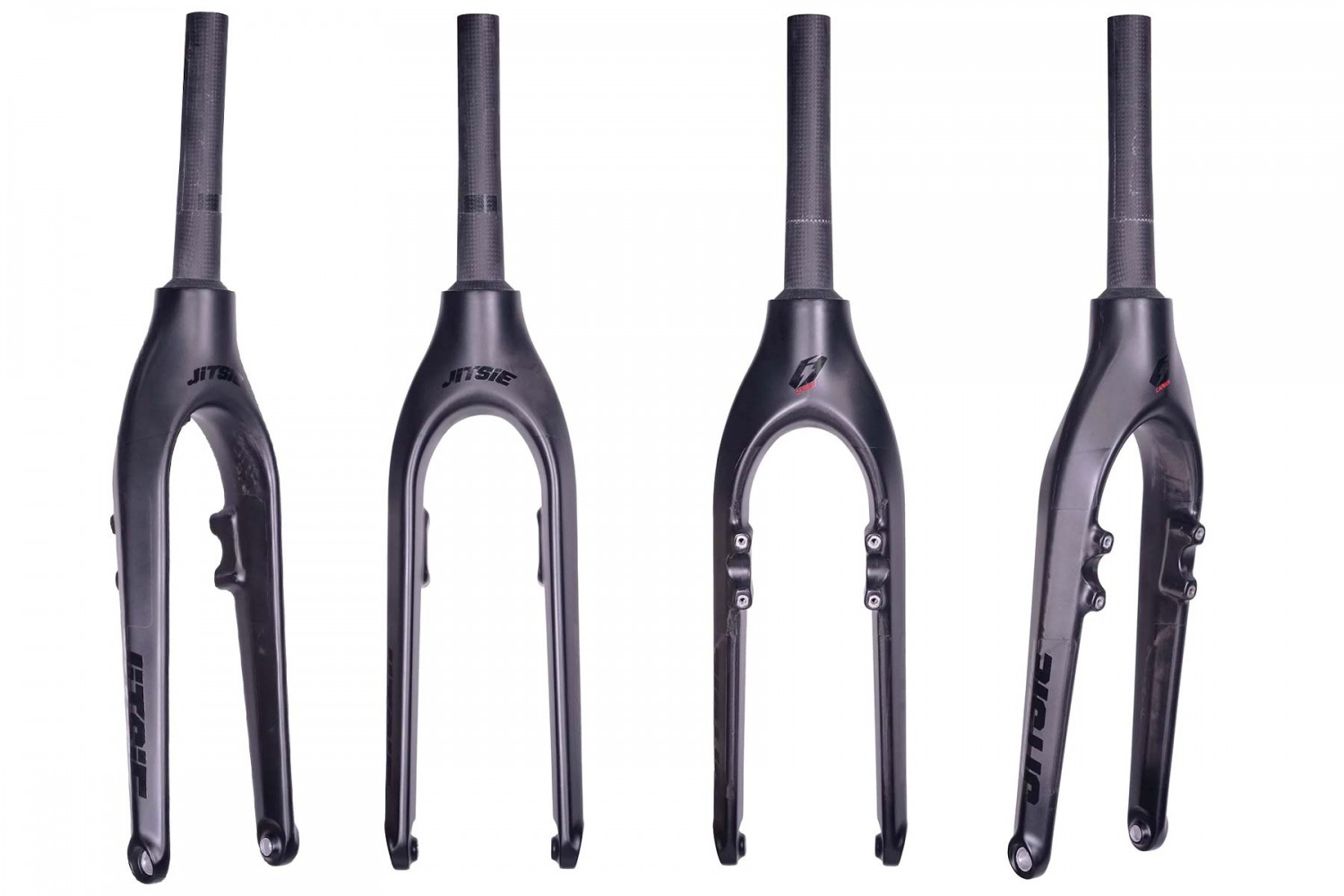

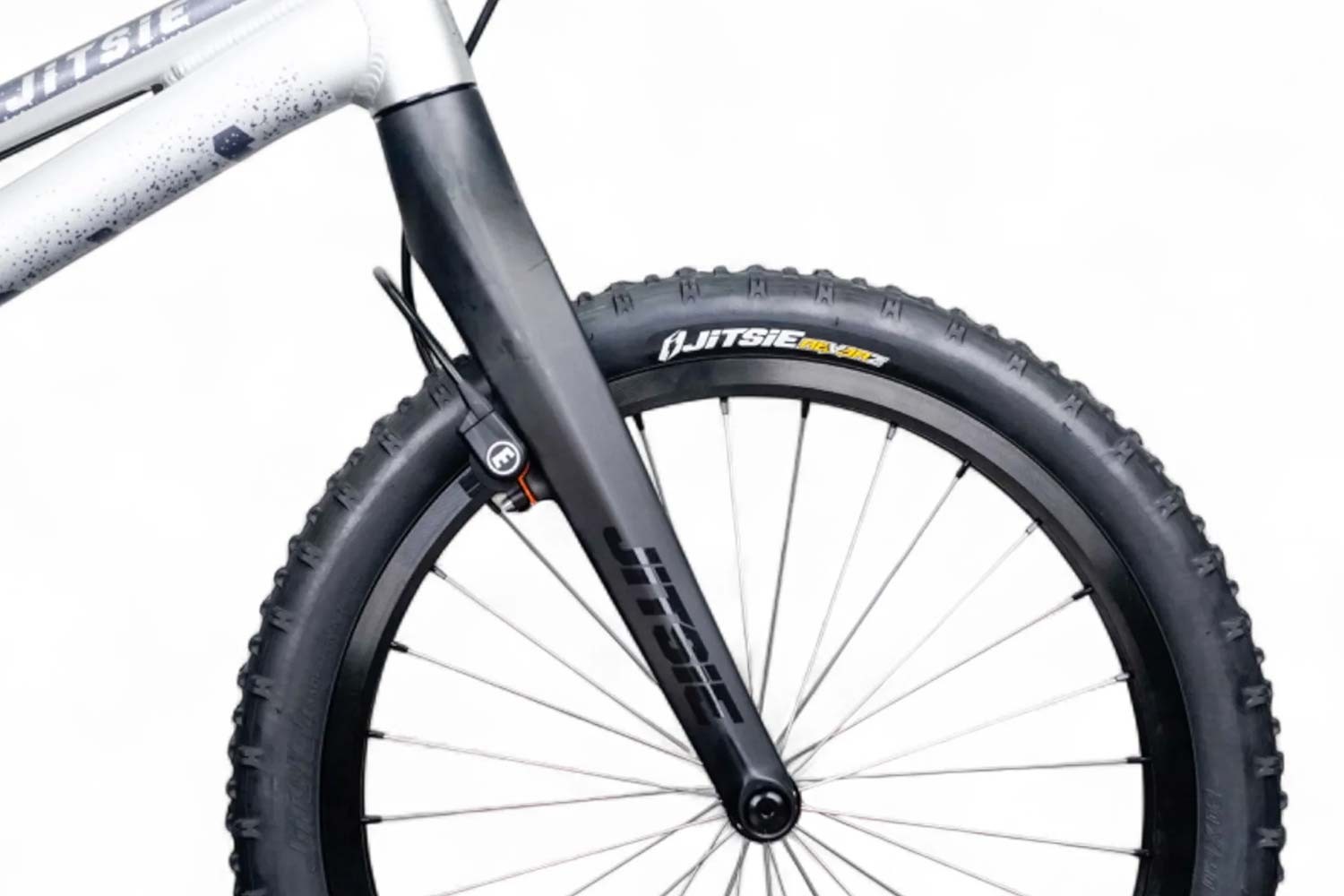

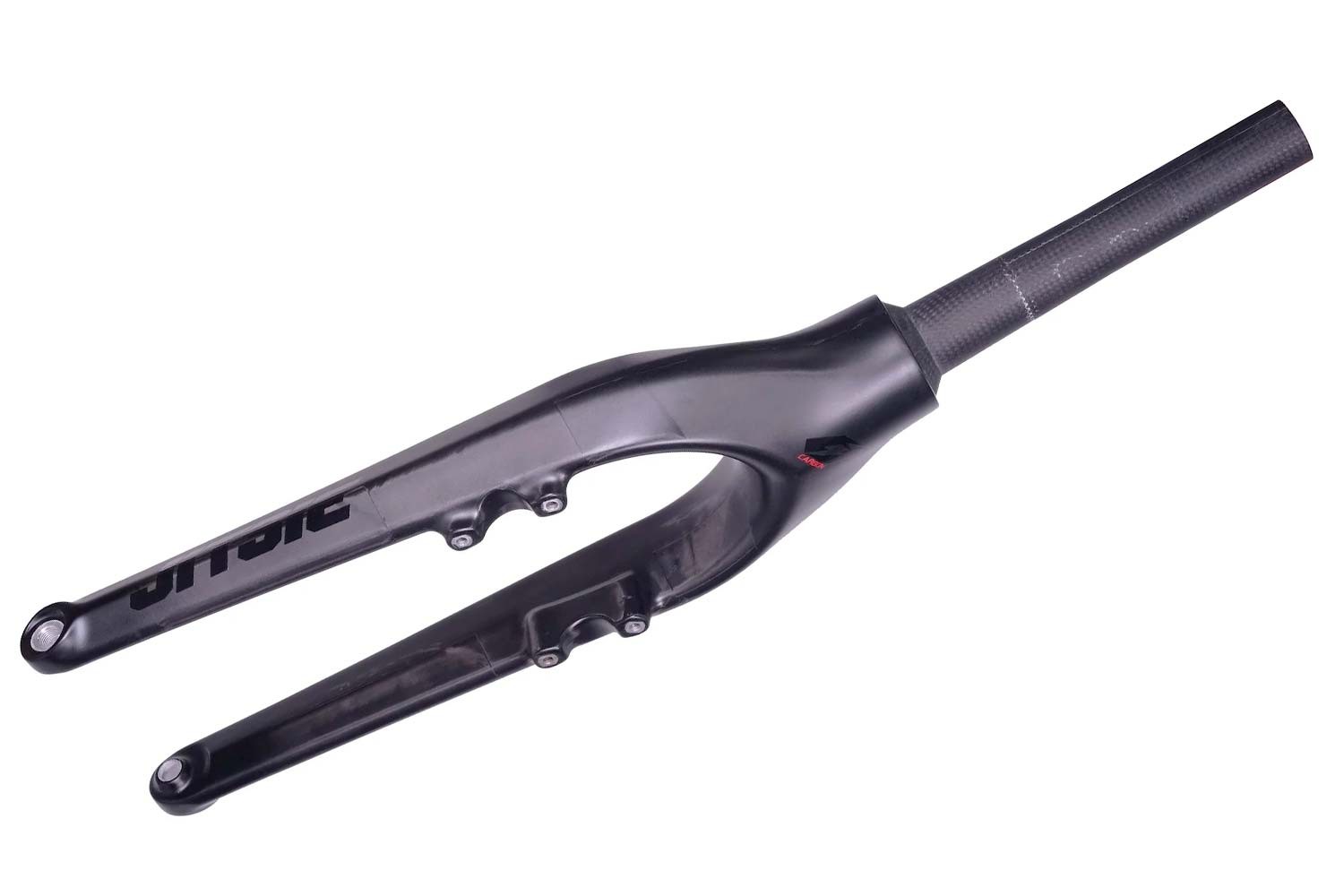

The Jitsie Varial Race Carbon 20" fork has been developed to deliver maximum precision, stiffness, and responsiveness for trials bikes. Fully manufactured from high-modulus carbon fiber, it combines very low weight with a direct front wheel response, providing exceptional control during technical and explosive trials movements.

Description and materials
- Jitsie Varial Race carbon fork specifically designed for 20" trials bikes.
- Full high-modulus carbon fiber construction offering an excellent balance between stiffness, responsiveness, and weight.
- Its rigid structure allows direct power transfer and precise front wheel control.
- Designed for 20" wheels with a 370 mm axle-to-crown length.

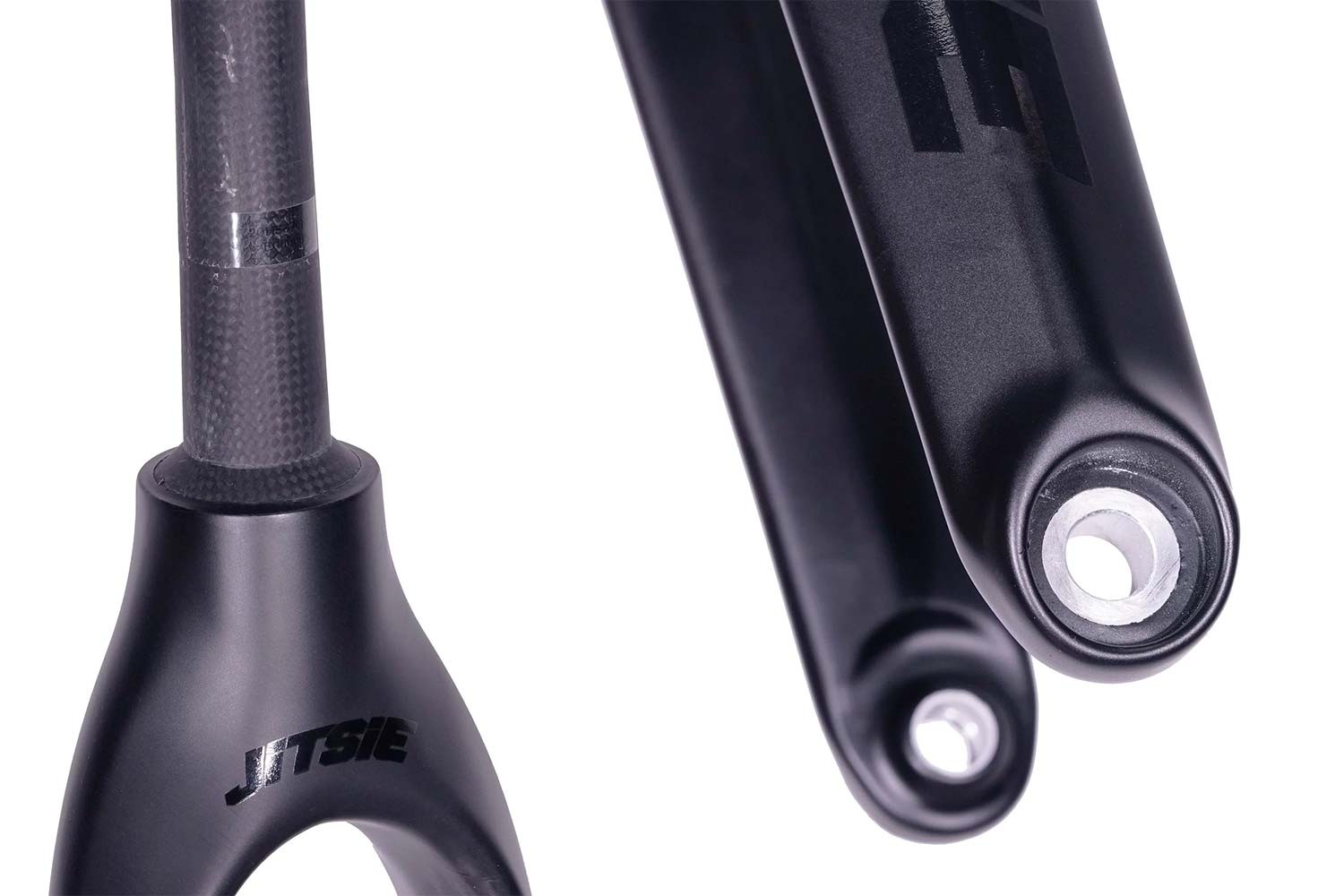

- Jitsie tapered steerer tube (1 1/8” – 1.4”) improving steering precision and front-end stability.
- Integrated crown race allowing direct contact with the lower headset bearing.
- Reinforced crown and dropout areas designed for increased resistance against impacts and intensive riding.
- 10 mm thru-axle system improving overall rigidity and safety.
- Designed for HS rim brake systems.
- Developed and tested through extensive sessions in elite-level competitions.
- Subtle Race finish with Jitsie graphics.

Includes
- Jitsie Varial Race Carbon 20" fork.
- Headset star nut, also available separately here (23 mm size).

Not included
- Thru-axle, also available separately here.
- Jitsie Race 2026 brake clamps.

Compatible with
- Frames with a Jitsie tapered head tube 1 1/8” – 1.4”, such as Jitsie Race or Breeth Carbon frames.
- 20" front wheels, such as the Jitsie Race wheel.
- Front hubs with 100 mm spacing using a 10 mm thru-axle.
- Jitsie Race 2026 brake clamps for HS rim brakes (sold separately here).

- Note: if you want to install this fork on a frame with a 1 1/8" – 1.5" head tube, the corresponding adapter must be used.

Dimensions

(1) Length: 370 mm.
-----------------------------------------------
(2) Offset: + 45 mm.
-----------------------------------------------
(3) Steerer tube: 180 mm.
-----------------------------------------------

- Steerer tube thickness: 3.5 mm.

Finish
- Matt black with Jitsie Race graphics.

Weight
- 610 g, without headset star nut.
