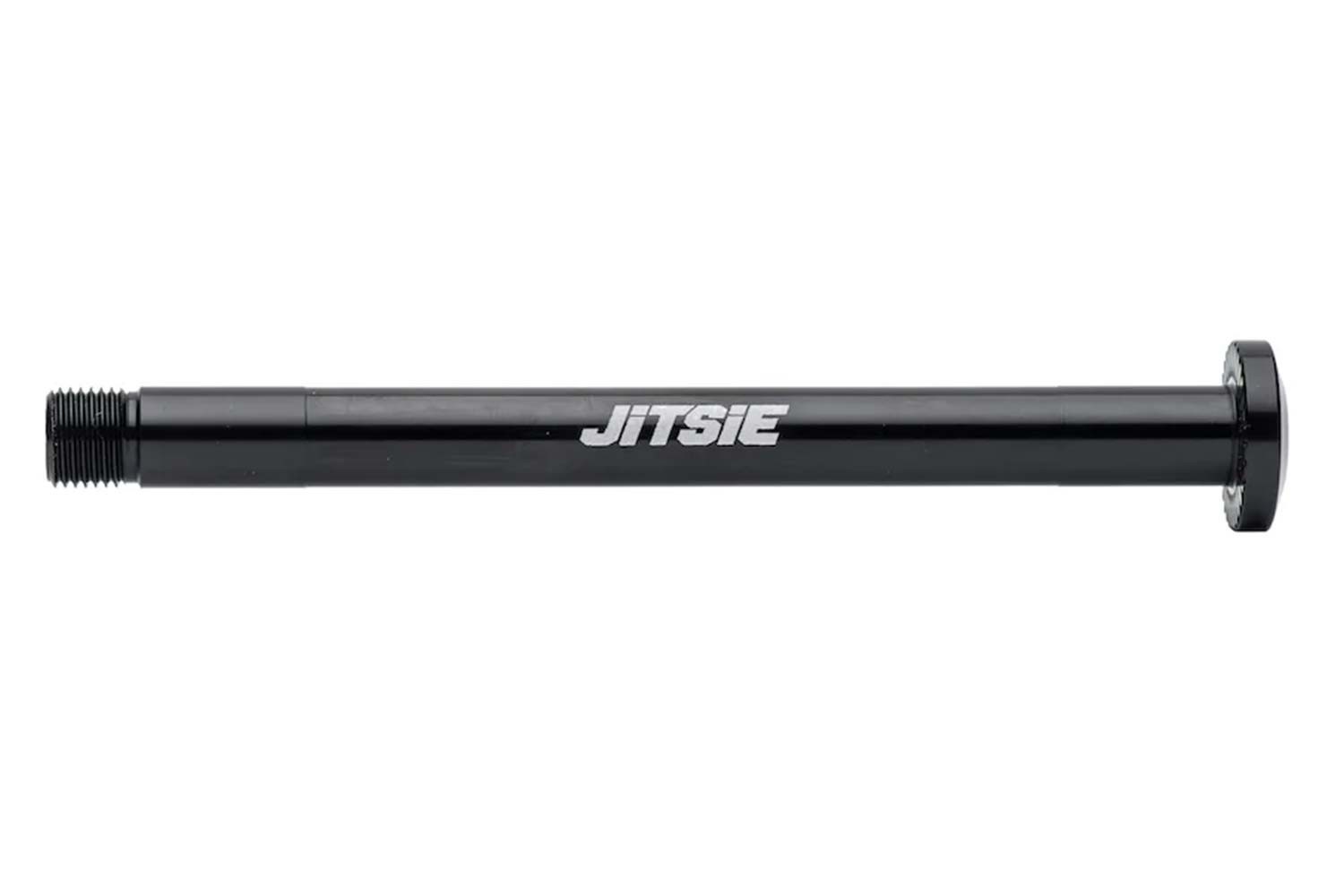

Jitsie Race 10 mm Hub Thru Axle

Jitsie Race 10 mm Hub Thru Axle

- Jitsie Race front thru axle specifically designed for mounting wheels on the Jitsie Varial Race tapered fork.
- CNC machined from 7075-T6 aluminium, offering an excellent balance of light weight and strength.
- Designed to provide a secure and precise wheel fixing for trials bikes.
- 10 mm thru-axle system that improves front-end stiffness and provides greater riding stability.
- Allows quick and easy wheel installation and removal.
- Black anodized finish with laser-etched Jitsie logo.
- Sold individually.

Compatible with:
- Jitsie Varial Race tapered fork (1 1/8” – 1.4”).
- Jitsie Race 10 mm thru axle front hub.
- Hubs and forks compatible with a 10 mm thru axle.

Dimensions
- Axle diameter: 10 mm.
- Axle length: 116 mm.

- Head width: 5 mm.
- Head outer diameter: 19 mm.
- Tightening with 5 mm Allen key.
- Axle diameter: 10 mm.

Finish
- Black anodized with Jitsie logo.

Weight
- 19 g.

Notes
It is recommended to apply a small amount of grease on the thread and on the bearing contact area during installation.

Manufacturer recommended torque: 9–13 N·m
