Crewkerz Guilty 24" Bike Expand

Crewkerz Guilty 24" Bike

538647

New

Warning: Last items in stock!

2 066,03€

Ask a question

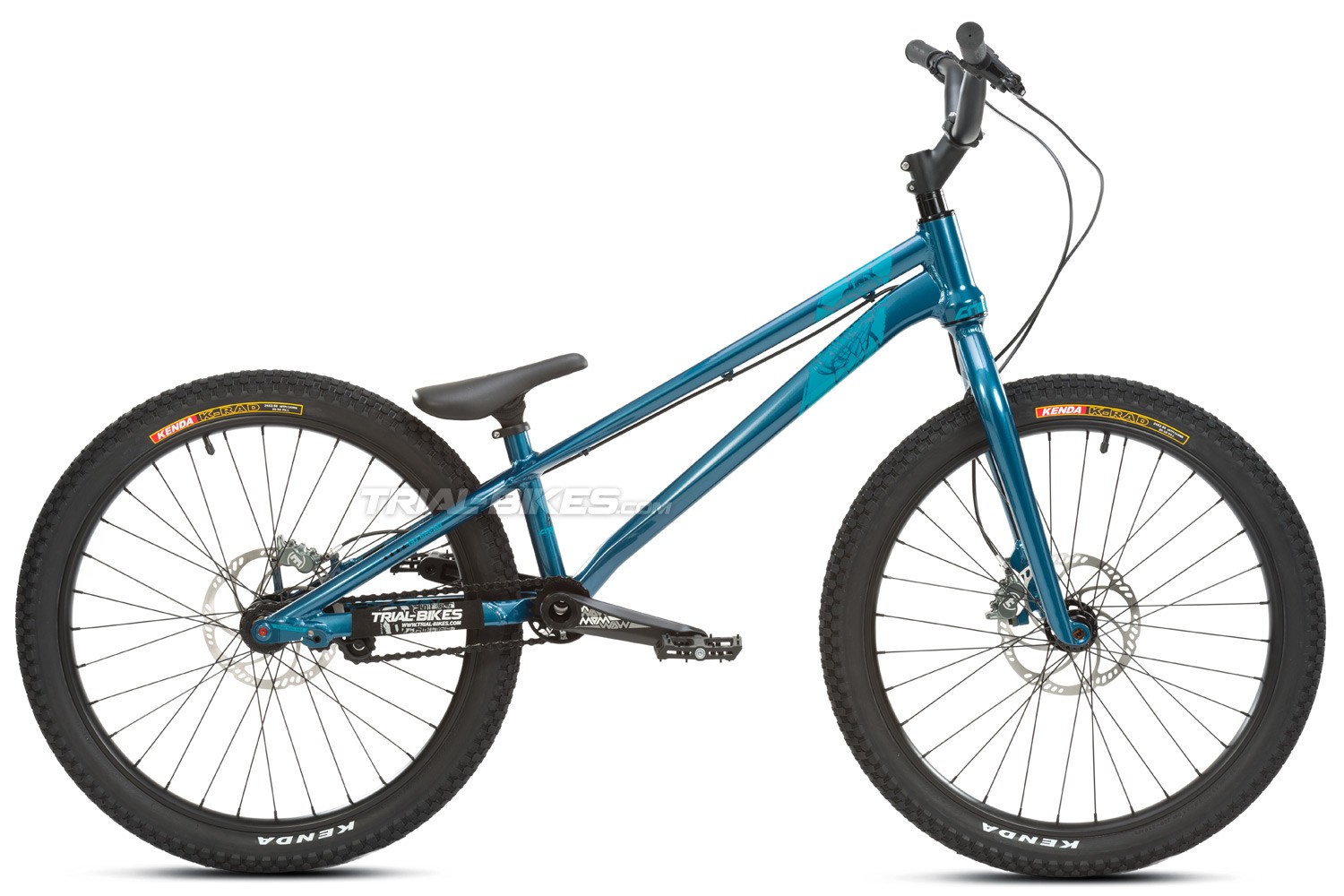

Crewkerz Guilty 24" Bike

Frame and Forks

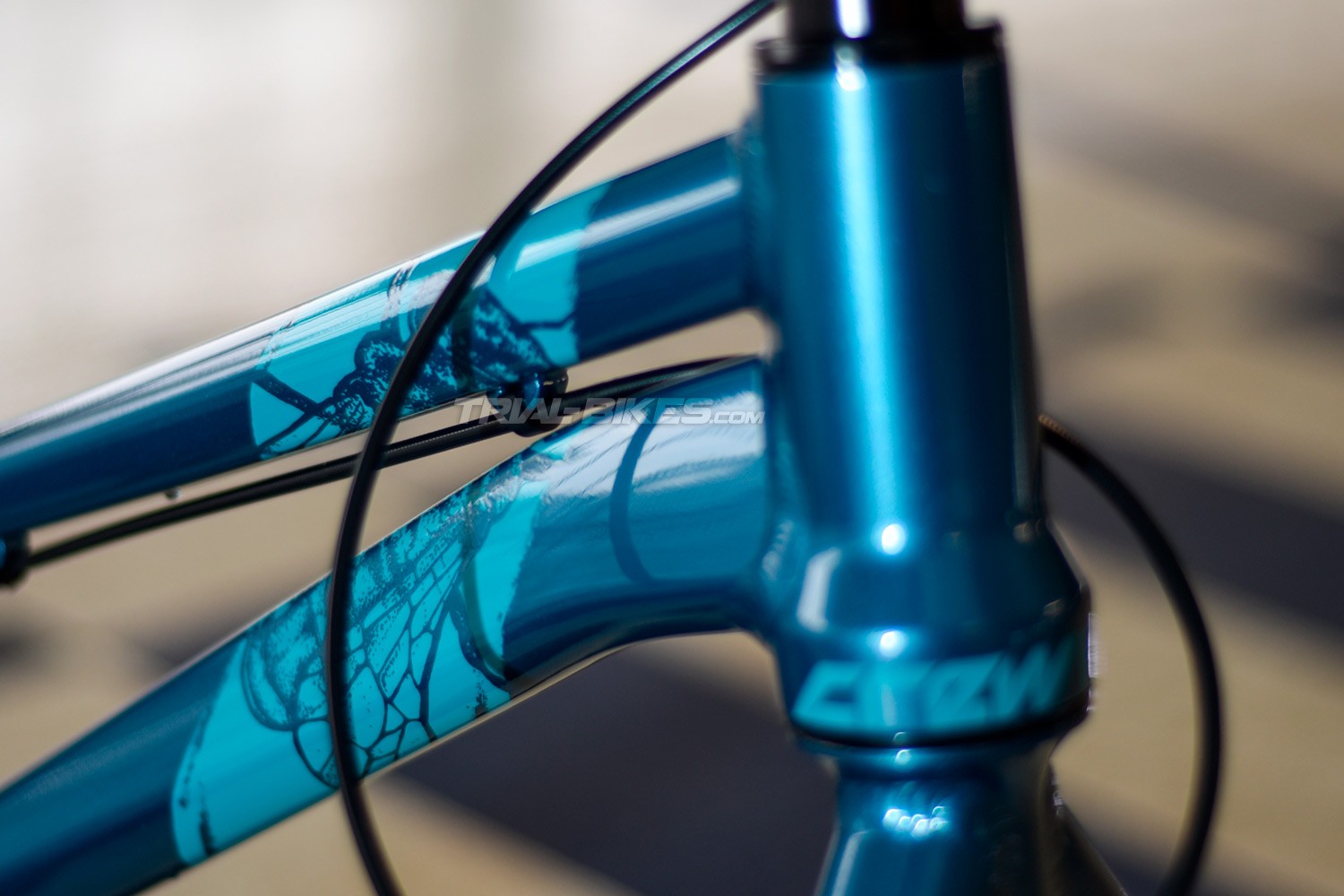

- Frame: Crewkerz Guilty, 12mm through axle, Post Mount disc mount for 180mm rotor.
- Forks: Crewkerz Guilty, 15mm through axle, Post Mount disc mount for 180mm rotor.

Wheels
- Front Hub: Crewkerz WAW, 32h
- Rear Hub: Crewkerz WAW, 32h
- Chain Tensioner: Crewkerz Sprung Tensioner
- Front Rim: Crewkerz WAW Street Double Wall, 32h
- Rear Rim: Crewkerz WAW Street Double Wall, 32h
- Spokes: Black
- Rim Tapes: Rubber
- Inner Tubes: Kenda
- Tyres: Kenda K-Rad, 24 x 2.5"

Brakes
- Front brake: Magura MT7 HC3
- Front brake rotor: Magura Storm HC, 180mm
- Rear brake: Magura MT7 HC3
- Rear brake rotor: Magura Storm HC, 180mm

Drivetrain
- Cranks: Crewkerz WAW AS30, Black, 170mm
- Bashring: Crewkerz WAW AS30
- Front Sprocket: Crewkerz, Steel, Splined, 18t
- Chain: KMC Z610 HX 3/32"
- Rear Sprocket: Crewkerz Splined 13t
- Pedals: Nylon, with metal pins
- Bottom Bracket: Crewkerz WAW AS30

Seating
- Saddle: Pivotal, padded
- Seatpost: Pivotal
- Seat Clamp: Black, Alloy

Steering
- Headset: Crewkerz Tapered Interal
- Stem: Crewkerz, Forged, 80mm x 40˚
- Grips: Rubber, Black
- Handlebars: Crewkerz WAW Street


Geometry:
- Wheelbase: 990mm
- Chainstay length: 362mm
- BB Height: +25mm
- Head Angle: 74°
- Centre of BB shell to centre top of head tube: 665mm

Weight
- 10.48kg (including pedals)

FRONT BRAKE Disc
REAR BRAKE Disc
