Inspired Flow XP 24" Bike Expand

Inspired Flow XP 24" Bike




1 731,40€

Ask a question

Inspired Flow XP 24" Bike 2022

The Flow XP combines the proven Inspired Flow 24" frame kit with parts from Inspired’s premium level Pro and Team spec bikes.

From the huge success of the Inspired Flow 24" bikes, British brand Inspired are launching their new Inspired Flow XP 24" bike, now built with parts from Inspired’s premium level Pro and Team spec bikes. The result is the most capable, highest-quality Inspired Flow bike ever produced.

Suggested rider height: 5ft 1in / 1.55 m and up.

Available with Magura MT7 brakes hydraulic disc brake, with Magura HC3 adjustable, aluminium blade and 180mm rotors.

Frame and Forks
- Frame: Inspired Flow 24", Goss Blue
- Forks: Inspired Flow 24", Alloy, Screw-In Top Cap, Gloss Blue

- Front hub: Trialtech Disc, 32h, 100 mm, Sealed Bearings, Black

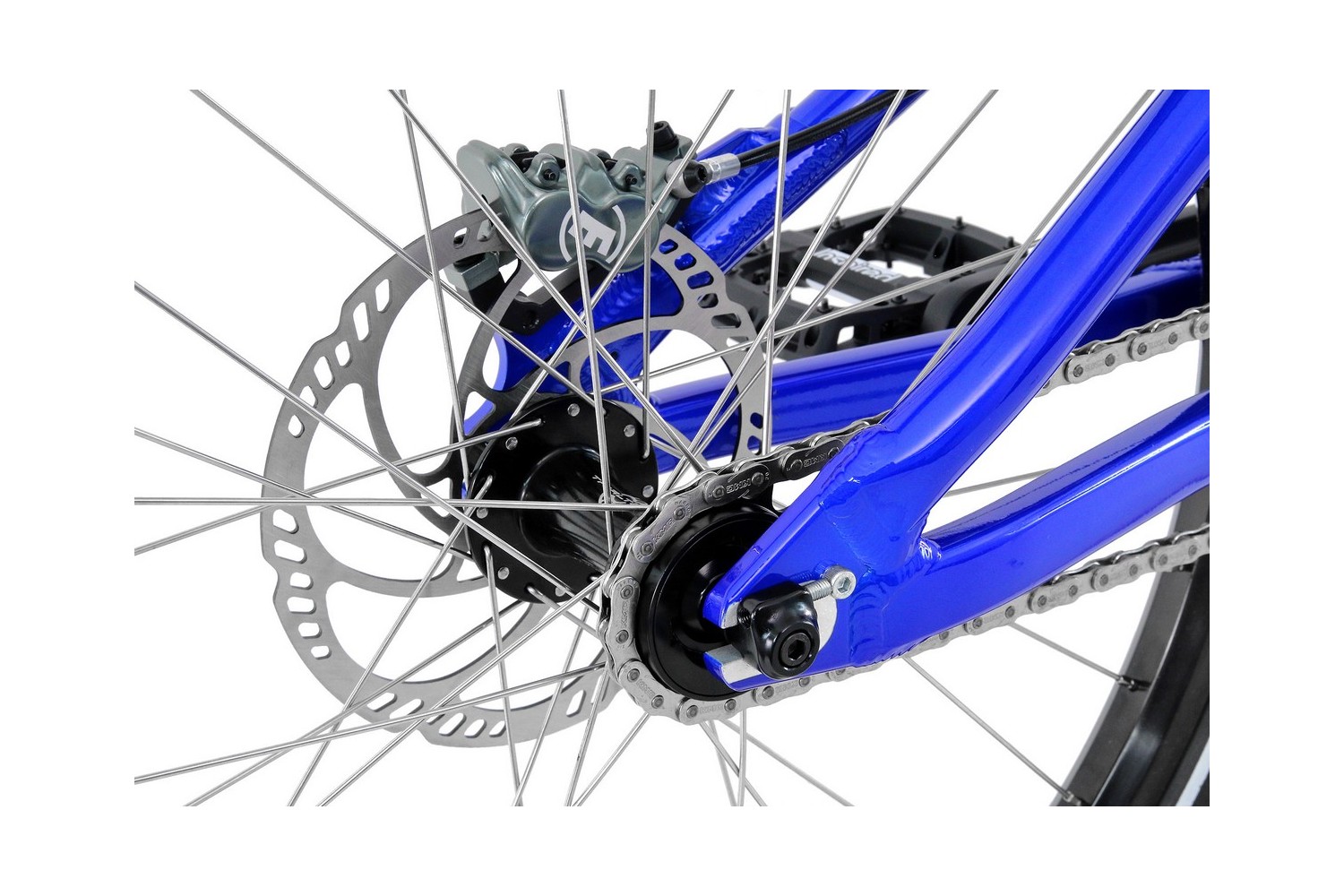

- Rear hub: Trialtech Disc, 32h, 135 mm, Sealed Bearings, Black
- Chain tensioner: Flow Chain Tug
- Front rim: Inspired Flow, 24", Gloss Black
- Rear rim: Inspired Flow, 24", Gloss Black
- Spokes: Stainless PG
- Inner tube (front): Kenda
- Inner tube (rear): Kenda
- Front tyre: Continental MacAskill 24" x 2.4"
- Rear tyre: Continental MacAskill 24" x 2.4"

- Magura MT7 brakes, with Magura HC3 adjustable, aluminium blade and 180mm rotors.

The brake hose is not routed through the steerer tube as standard, this is an additional cost which can be added here.

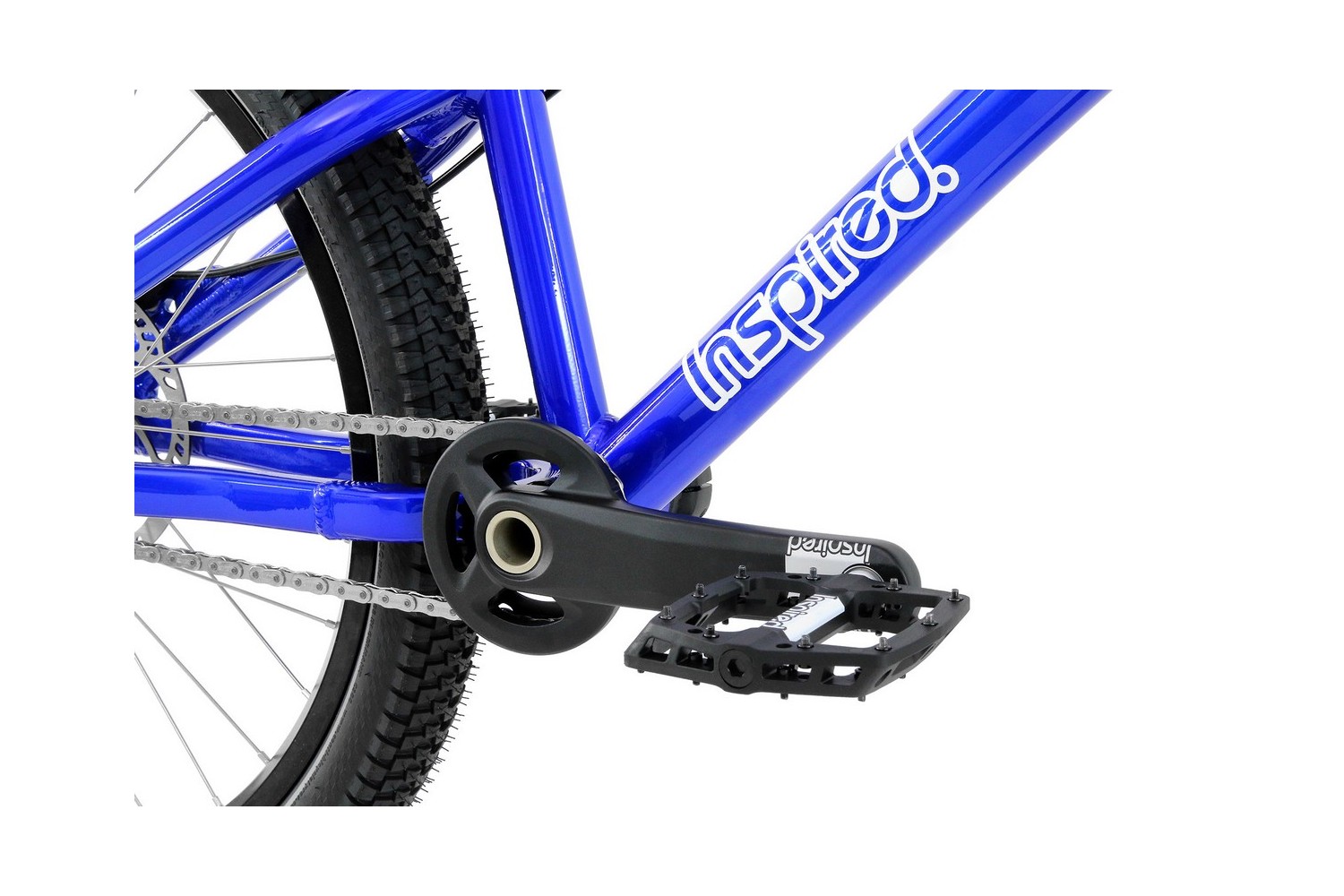

- Cranks: Inspired Pro Integrated 24 mm, 175 mm long, Satin Black
- Front Sprocket: Inspired Pro 22T Integrated, Black
- Chain: KMC Z1 eHX-N
- Freewheel: Trialtech Sport 16T, 72 engagement points
- Pedals: Inspired Pro Composite Sealed Bearing Platform, Black
- Bottom bracket: Inspired Pro 24 mm, Black
- Bashring: Inspired Pro Integrated, Satin Black

- Saddle: Inspired Integrated, Black
- Seatpost: Integrated Alloy
- Seat clamp: Inspired, 31.8 mm, Black

- Headset: Trialtech, 44 mm internal, 1-1/8", Black

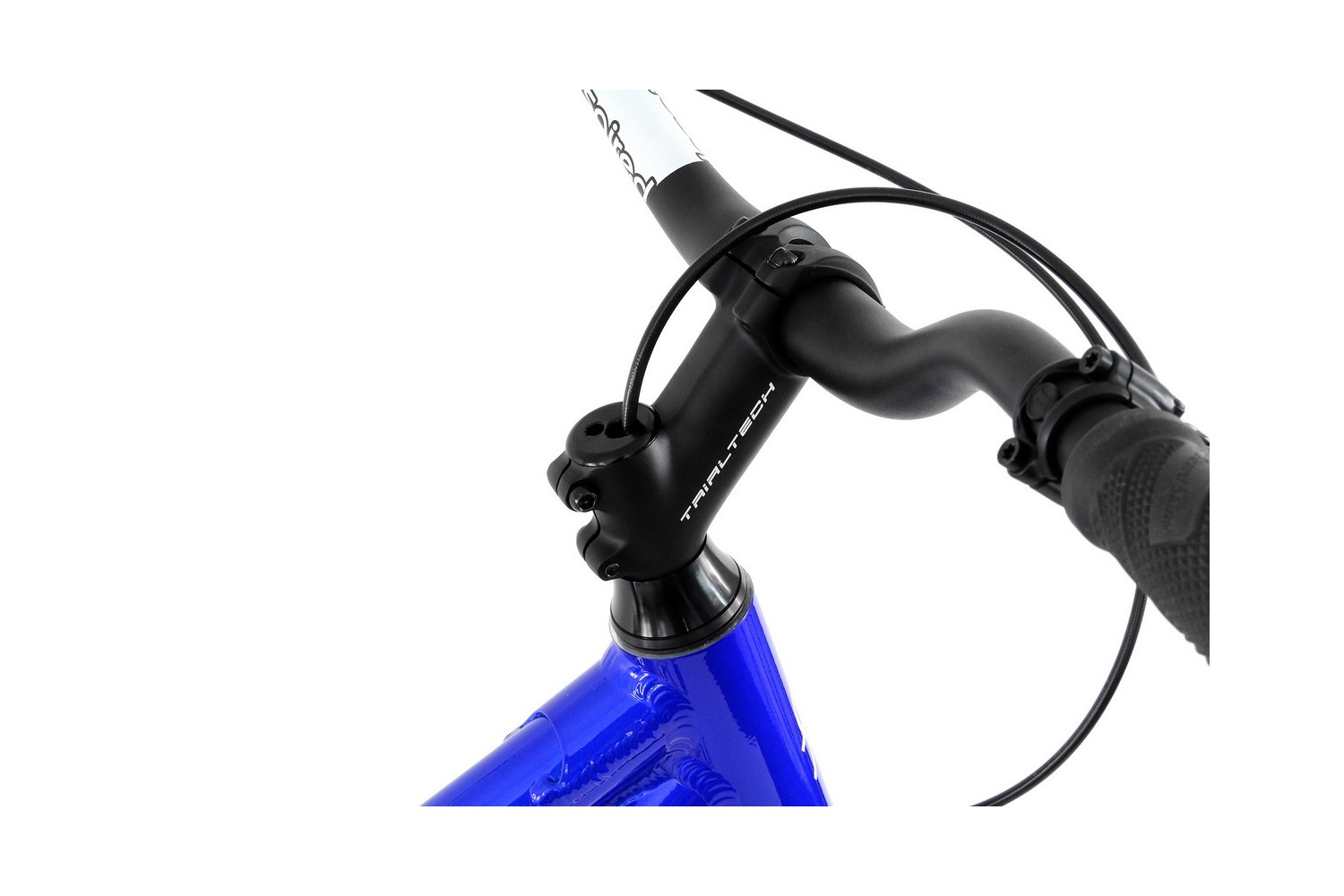

- Stem: Trialtech Sport, 90 mm x 35˚, Satin Black
- Grips: Lizard Skins ‘MacAskill’ Rubber Grips, Black

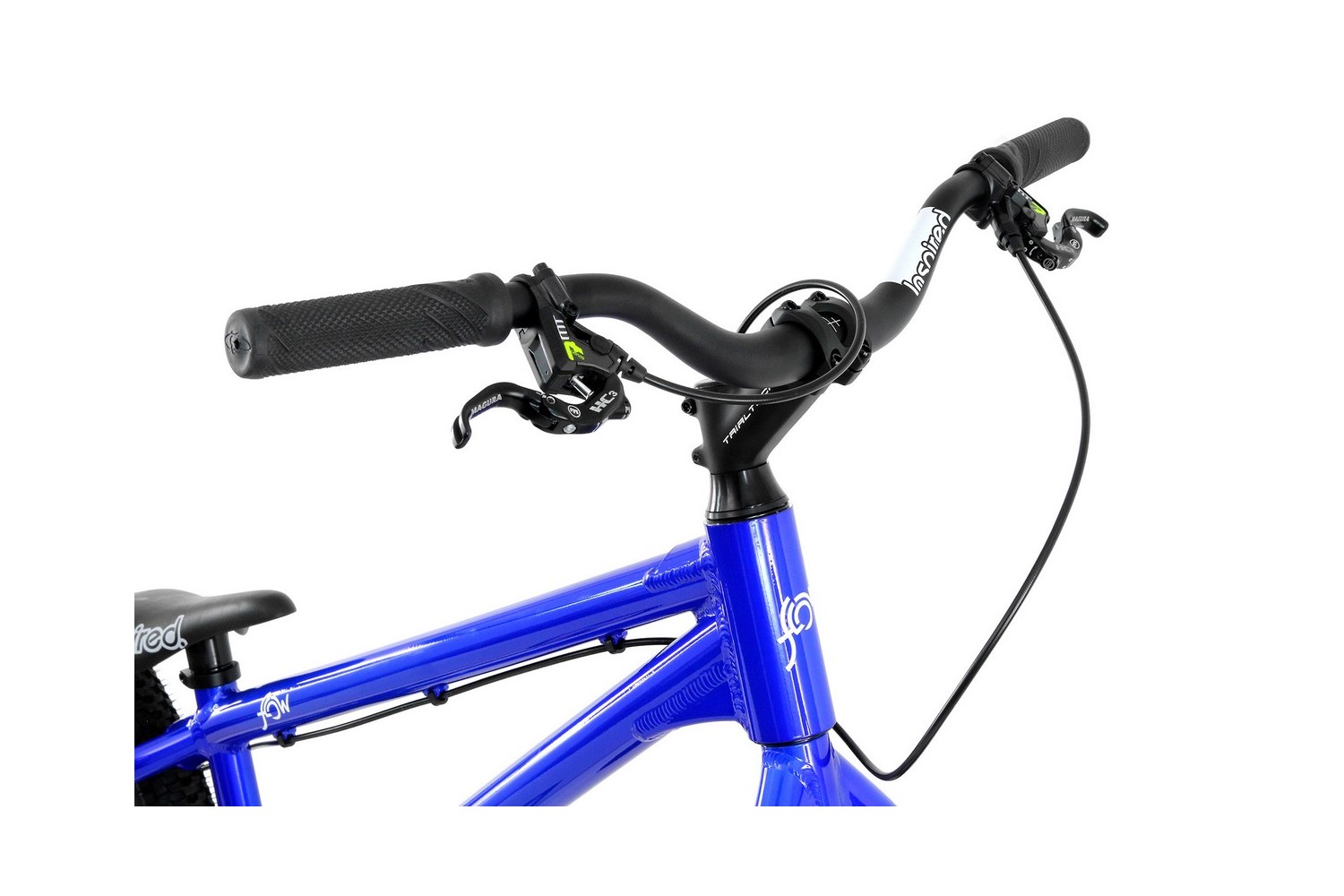

- Handlebars: Inspired Pro Riser, Satin Black


(1) Wheelbase: 110 mm
(2) Rear End: 375 mm
(3) Bottom Bracket Height: +15 mm.
(4) Head Angle: 73°.
(5) Centre of BB shell to centre top of head tube: 670 mm
(6) Reach: 437 mm
(7) Stack: 495 mm
Geometrias en bicicletas de Trial

Flow Tensioner Instructions (0.4MB)

- 11.52kg (including pedals, version with Magura MT7 brakes)

Additional information
This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance.

Some pictures may not match the item described, so please read the description carefully.

This bike is partially set up by our workshop. It will be necessary to place the handlebar, the 2 wheels, the chain and the pedals.
Handlebar, brake and chain tension adjustments will be made by the customer according to their preferences. You will need some tools (generally 4mm, 5mm, 6mm and 8mm Allen keys and a 15mm spanner).

If you have any doubts, please contact us on .
