Crewkerz Jealousy Tapered 20” Fork Expand

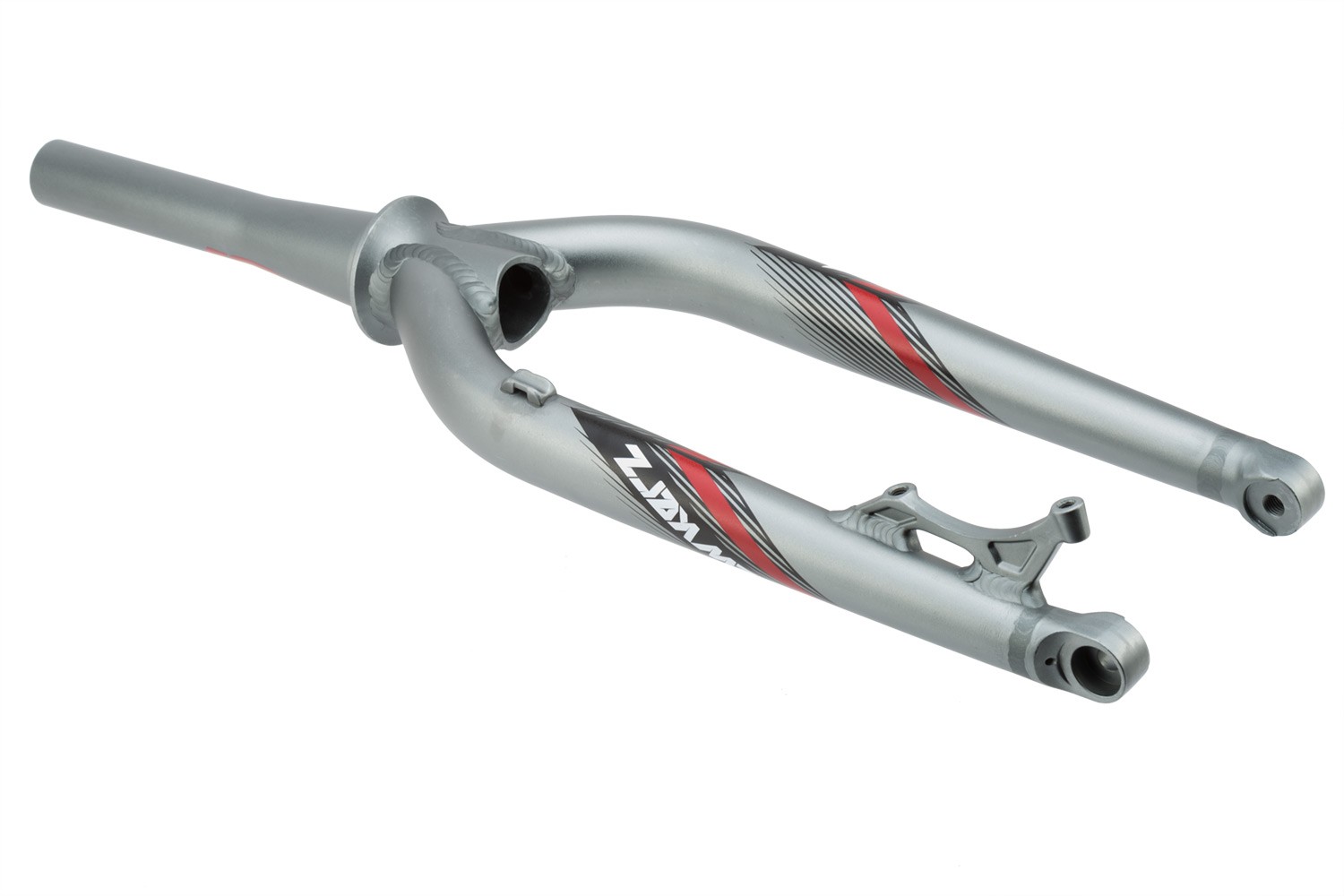

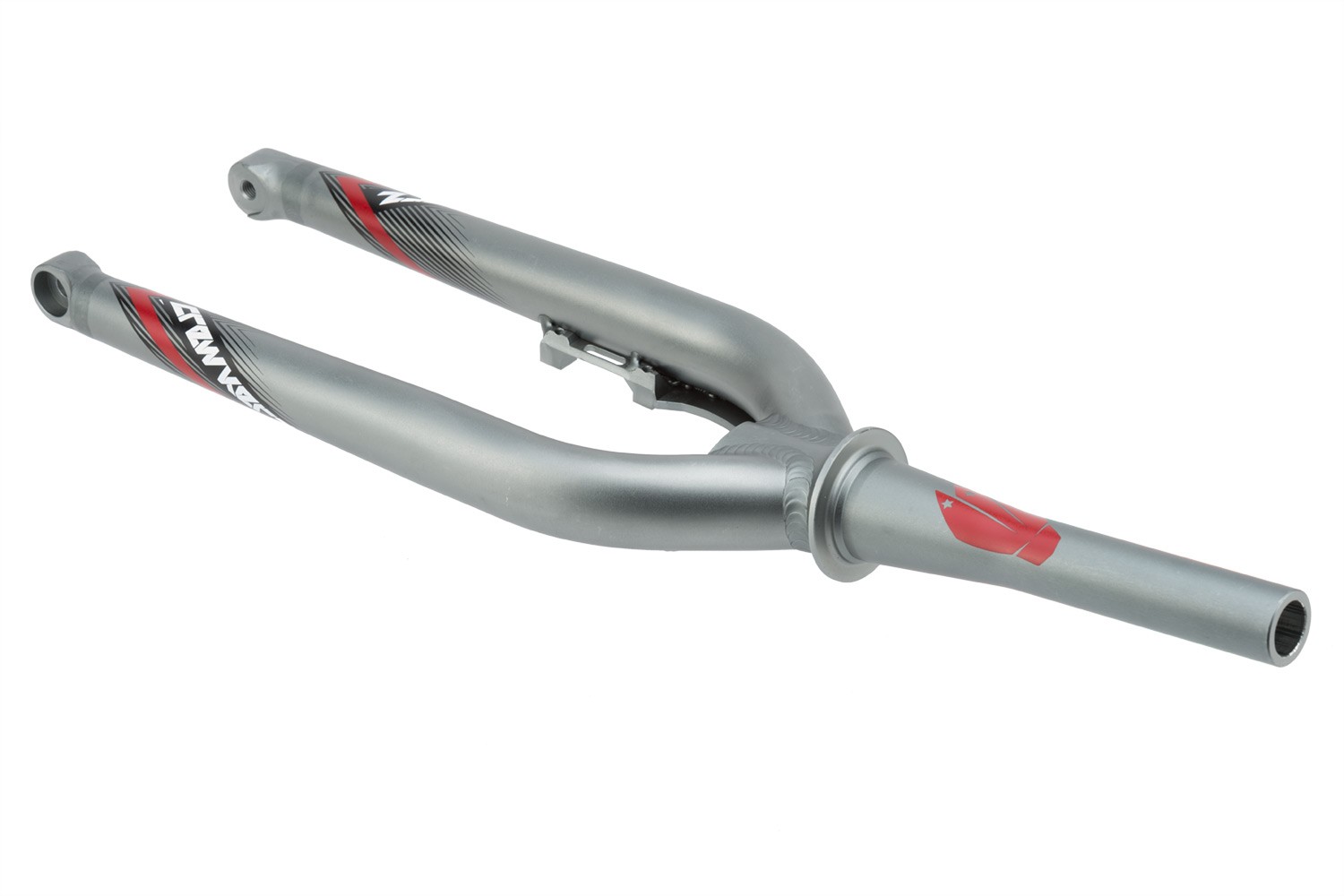

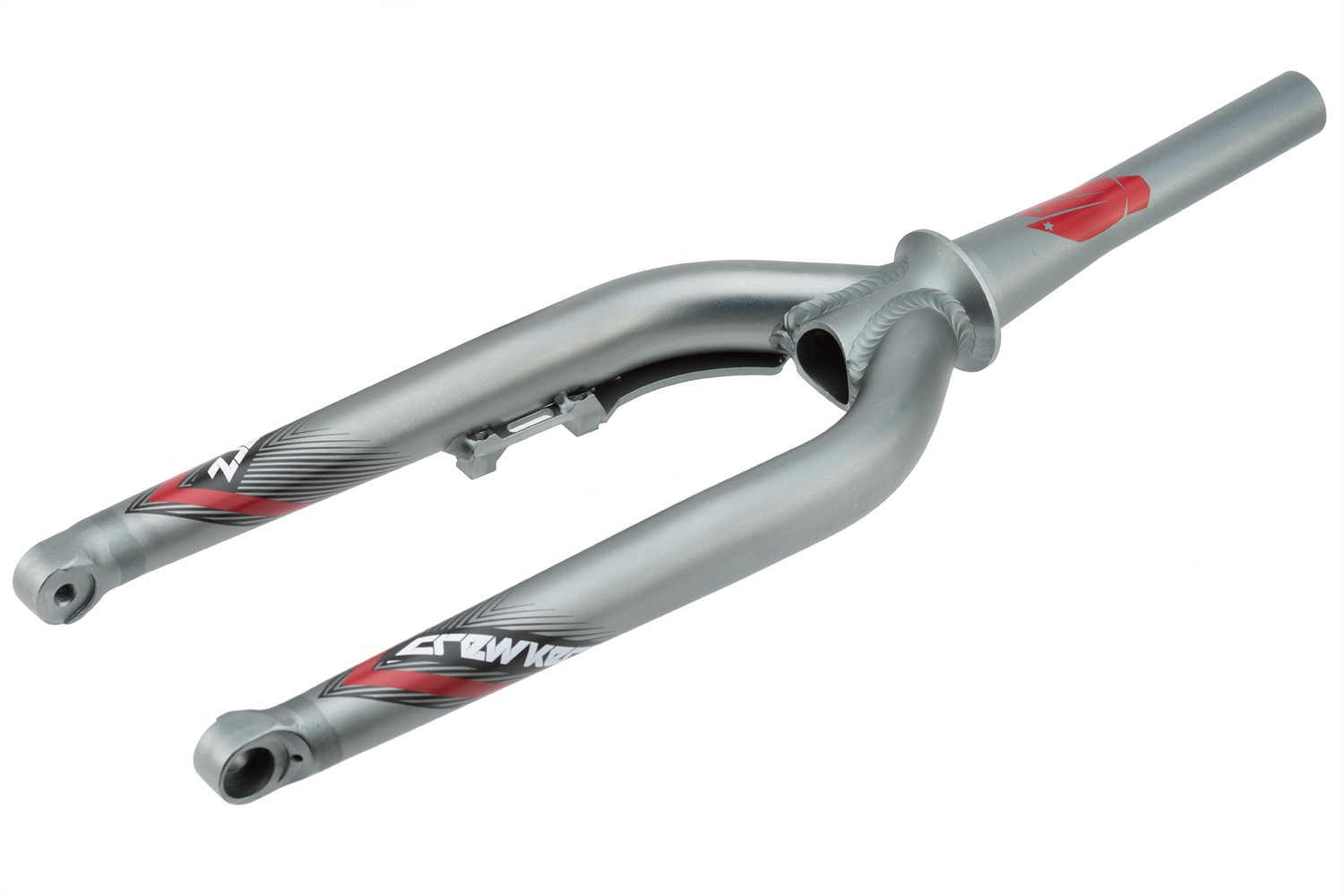

Crewkerz Jealousy Tapered 20” Fork



Crewkerz Jealousy Tapered 20” high-end trials fork. This fork is a pioneer in introducing the front thru-axle, apart from using state-of-the-art manufacturing technology to achieve the best performance: this is the most advanced aluminium trials fork in the world!

More details

  • Post Mount disc
  • HS


Fill in the quantity for the Versión / Color .
 Dark gray  Black
 Post Mount disc
Ask a question

Description and materials
- High-end Crewkerz Jealousy Tapered 20” bike trials fork, developed with state-of-the-art technology.
- 100% exclusive design by Crewkerz, featuring closed dropouts to fit a 9 mm diameter thru-axle.
- Made of high-strength, lightweight 6061-T6 aluminium alloy.
- Tapered, 4 mm-thick steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom.
- Robust construction, with the steerer tube machined in one piece to optimize stiffness.
- The steerer tube features a 45º integrated crown race recess, so there is no need to install one.
- Two versions available:
· With 4-bolt rim brake mounts.
· With Post Mount disc brake mounts.
- The 4-bolt version has the brake mounts integrated in a brake booster on the back of the legs, which helps dissipate stress and prevents cracking.
- The disc version has Post Mount disc brake mounts of minimalistic design, for 160 mm diameter rotor.
- Closed dropouts spaced at 100 mm, designed for a 9 mm diameter thru-axle.
- Sold singly (star nut already installed).

Compatible with:
- Frames with tapered 1 1/8” – 1.5” head tube.
- Front hubs with 9 mm diameter thru-axle and 100 mm spacing.
- 21 mm star nut.

- Note: in case you’d like to install this fork on a frame with 1 1/8” head tube, an adaptor must be used.


(1) Length: 370 mm.
(2) Offset: +35 mm.
(3) Steerer tube length: 190 mm.

- Steerer tube thickness: 4 mm.
- 4 bolts mounts spacing: 95 mm.

Geometrias horquillas de trial bici

- Anodized dark grey or black, with white, red and black Crewkerz graphics.

- 834.08 g (disc version), 846.42 g (HS version).

BRAKE MOUNTS Post Mount Disc
STEERER TUBE Tapered 1 1/8” - 1.5”
