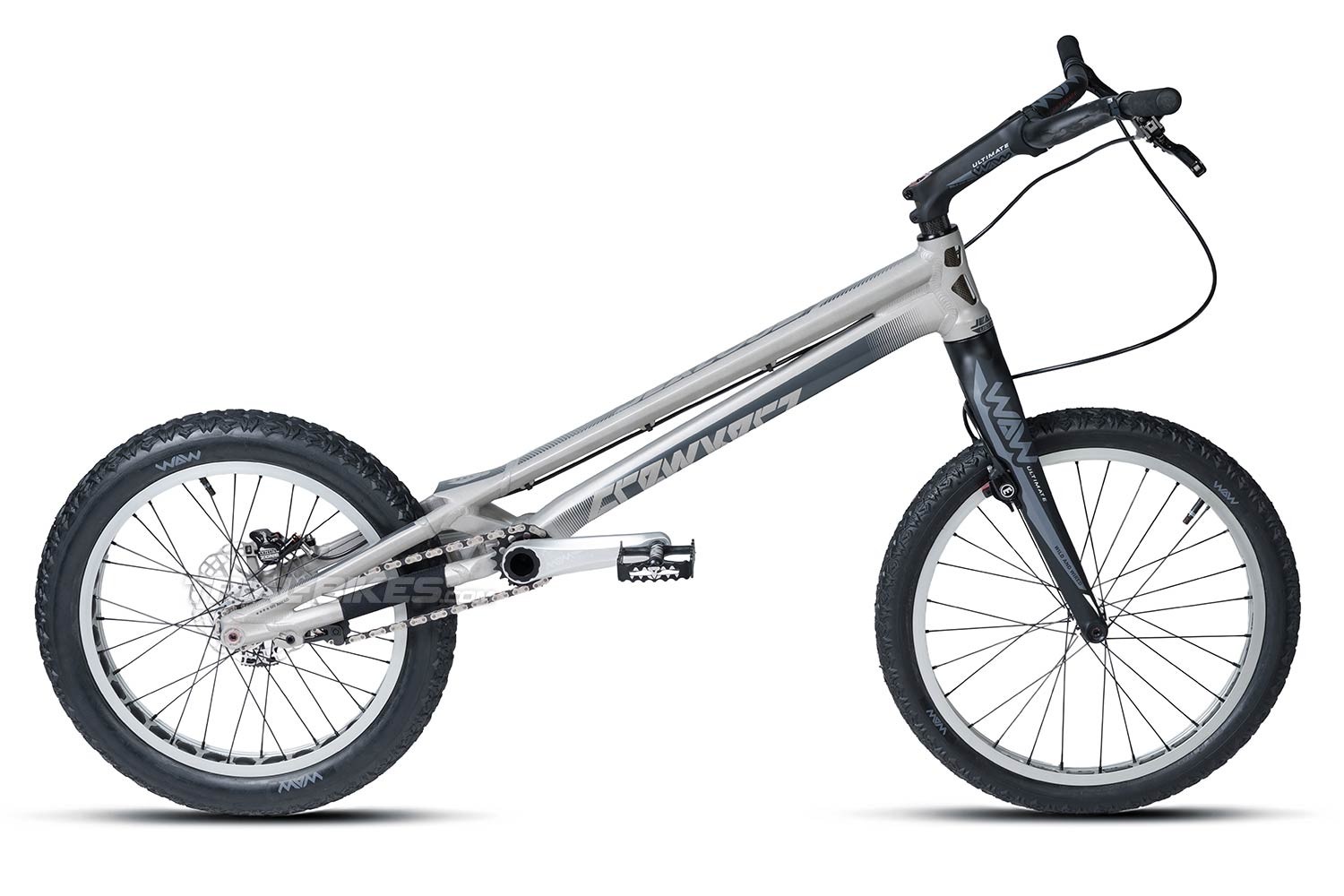

Crewkerz NextGen 20" Bike 995mm 2025

Crewkerz NextGen 20" Trials Bike 995mm 2025

In the following list, you can see the components of this bike:

Frame and Fork

• Frame: Crewkerz NextGen 20”, made from 6066-T6 aluminium, with tapered 1 1/8” – 1.5” head tube.
• Fork: Crewkerz Carbon 20”, tapered 1 1/8” – 1.5”.

Wheels

• Front hub: Crewkerz WAW 2025 Disc, 100 mm, 28 spokes, 9 mm thru-axle.

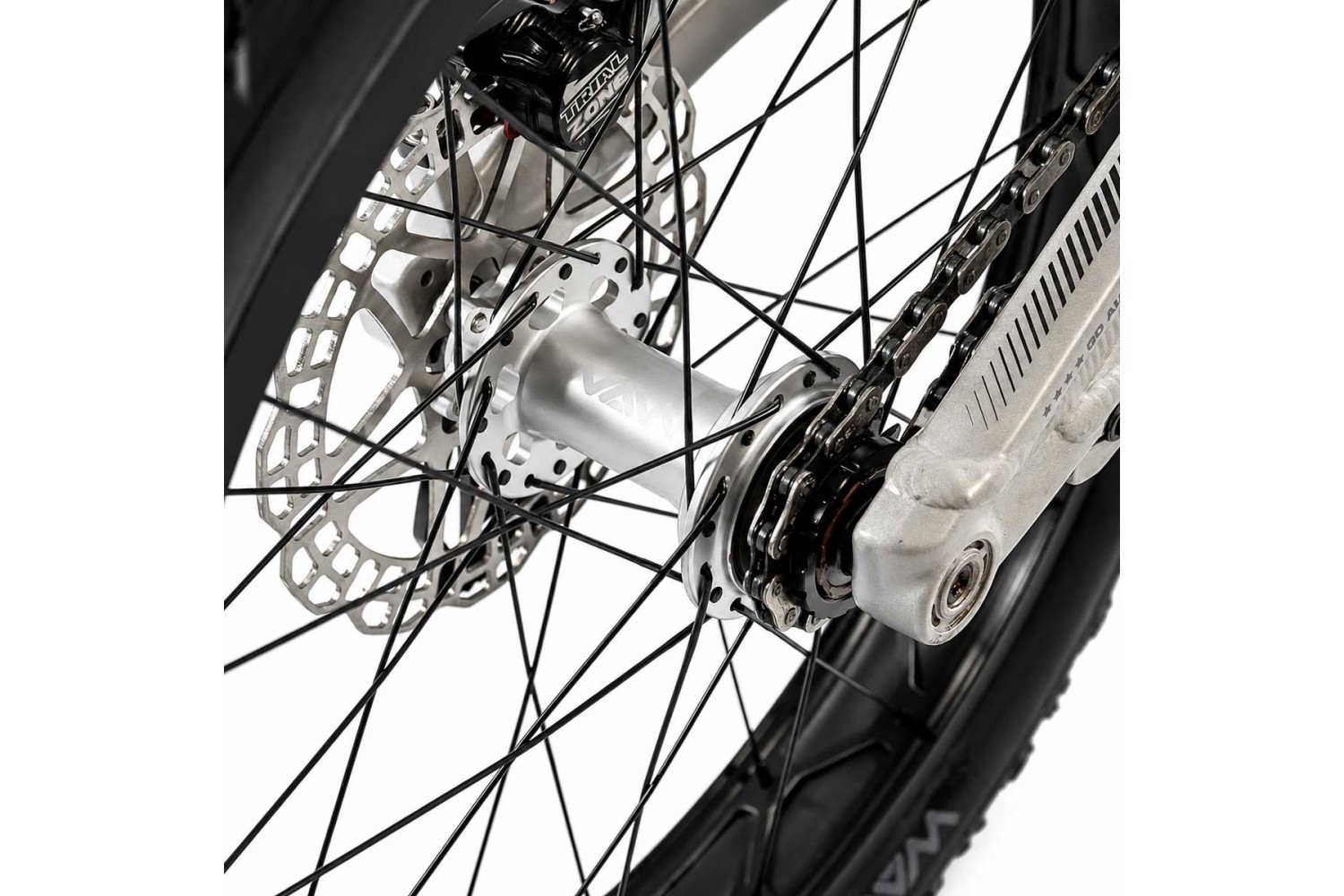

• Rear hub: Crewkerz WAW 2025 Freehub Disc, 135 mm, 32 spokes, 12 mm thru-axle.
• Chain tensioner: Crewkerz carbon, with two 9-tooth jockey wheels.
• Front rim: Hashtagg 20”, 28 holes, silver.
• Rear rim: Hashtagg 19”, 32 holes, silver.
• Spokes: Crewkerz 2.0/1.6/2.0 mm.
• Nipples: Aluminium, black.
• Rim tape: Crewkerz, black.
• Front tube: Crewkerz 20”.
• Rear tube: Crewkerz 20”.
• Front tyre: Crewkerz WAW 20” x 2.00”.
• Rear tyre: Crewkerz WAW 19” x 2.60”.

Brakes

• Front brake: Trialtech Carthy Signature Series lever with Magura HS33 slaves, or Hope Tech 4 Trial Zone Post Mount, black (depending on build option).
• Rear brake: Hope Tech 4 Trial Zone Post Mount, black.
• Brake rotors: Hope Trial V2 160 mm.

Drivetrain

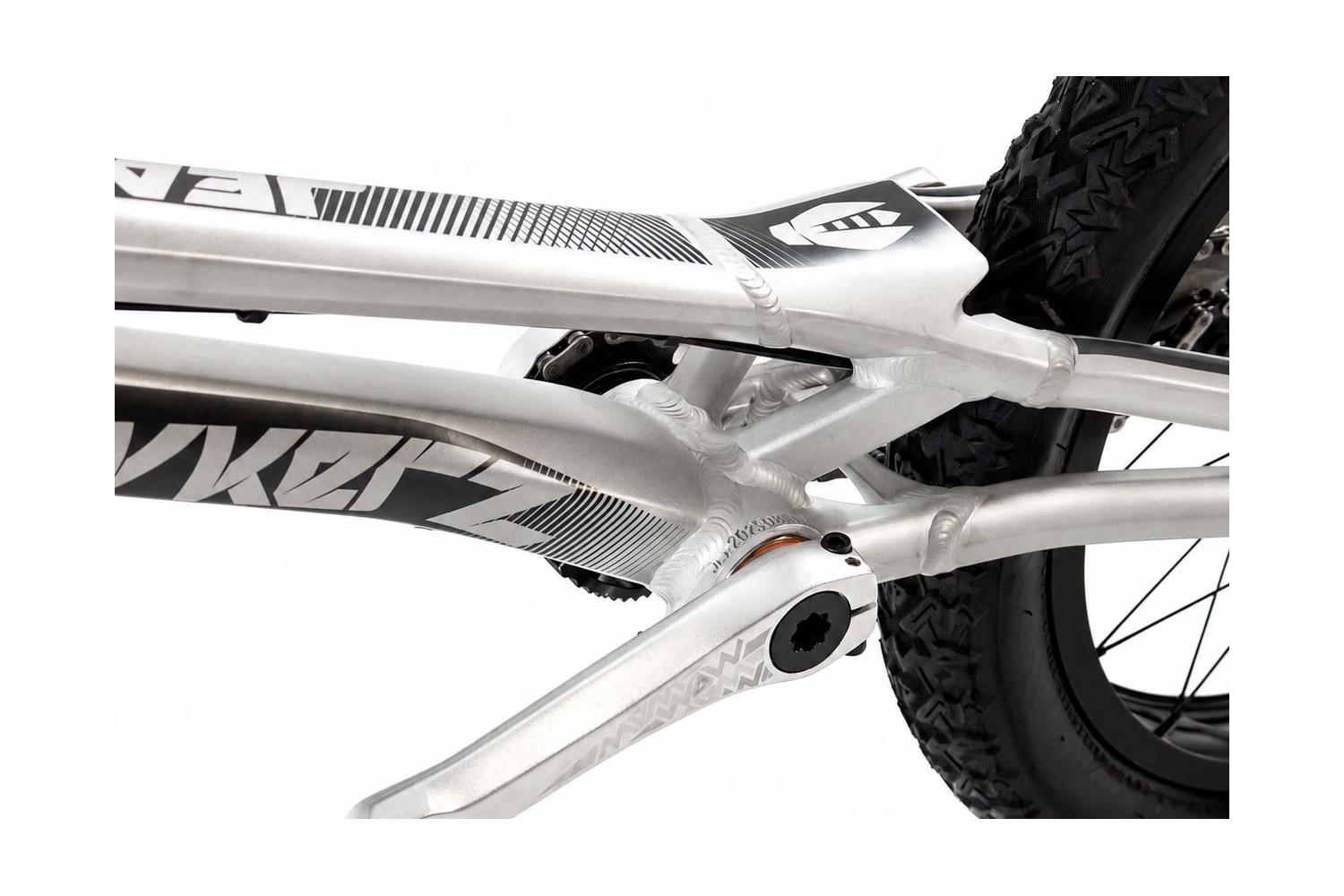

• Crankset: Crewkerz WAW 2-piece kit, AS30 BB, CNC-machined 7075-T6 aluminium. 160 mm cranks for Shimano HG-type cassette sprocket, black.
• Freewheel: Crewkerz splined sprocket, 18T.
• Chain: KMC Z1eHX, black.
• Sprocket: Crewkerz 12T splined, steel.
• Pedals: Crewkerz WAW Mono-Cage, 7075-T6.
• Bashring: Crewkerz WAW, black.

Steering

• Headset: Crewkerz Integrated Tapered 1 1/8” – 1.5”, black finish.
• Stem: Crewkerz WAW, 155 mm length, 20° rise.
• Top cap: Crewkerz WAW, red anodised.
• Grips: TrialBikes extra-thin foam, black.

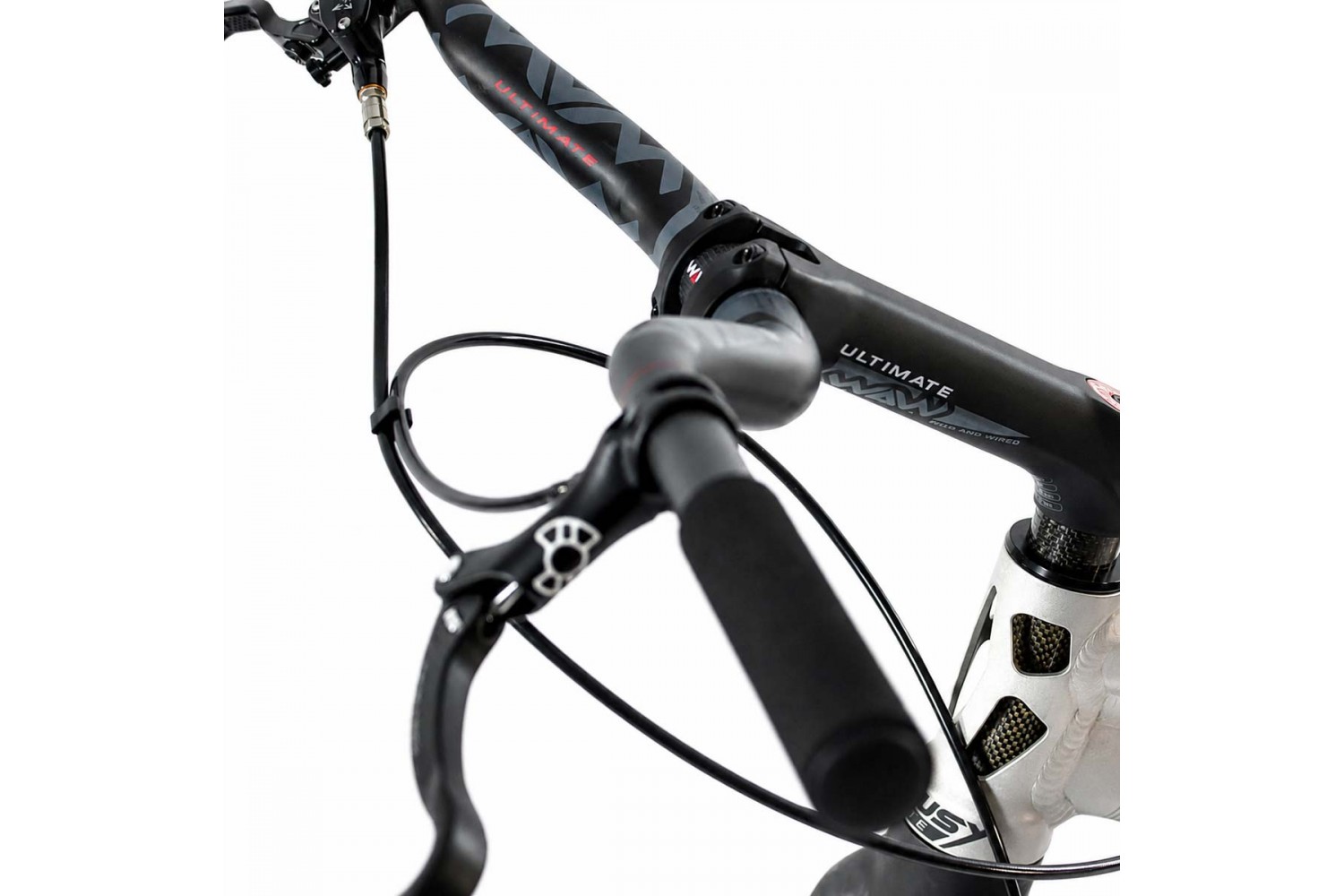

• Handlebar: Crewkerz Ultimate Carbon, 108 mm rise, 720 mm width.

Geometry

(1) Wheelbase: 995 mm
-----------------------------------------------
(2) Chainstay: 350 mm
-----------------------------------------------
(3) BB rise: +85 mm
-----------------------------------------------
(4) Head angle: 72°
-----------------------------------------------
(5) BB centre to upper head tube centre: 605 mm
-----------------------------------------------
(6) Reach: 471 mm
-----------------------------------------------
(7) Stack: 370 mm
-----------------------------------------------

Weight
- 8.101 Kg (verified by TrialBikes).

Additional information:
The listed component specification may be subject to change. Any modification to the listed components will be communicated to the customer prior to delivery and will always be replaced with parts of equal or higher quality.

Some images may not exactly match the product description; please read the specifications carefully.
This bike is supplied partially assembled; the customer only needs to fit the front wheel and cockpit.

For any questions or build changes, please contact us at info@trial-bikes.com.
