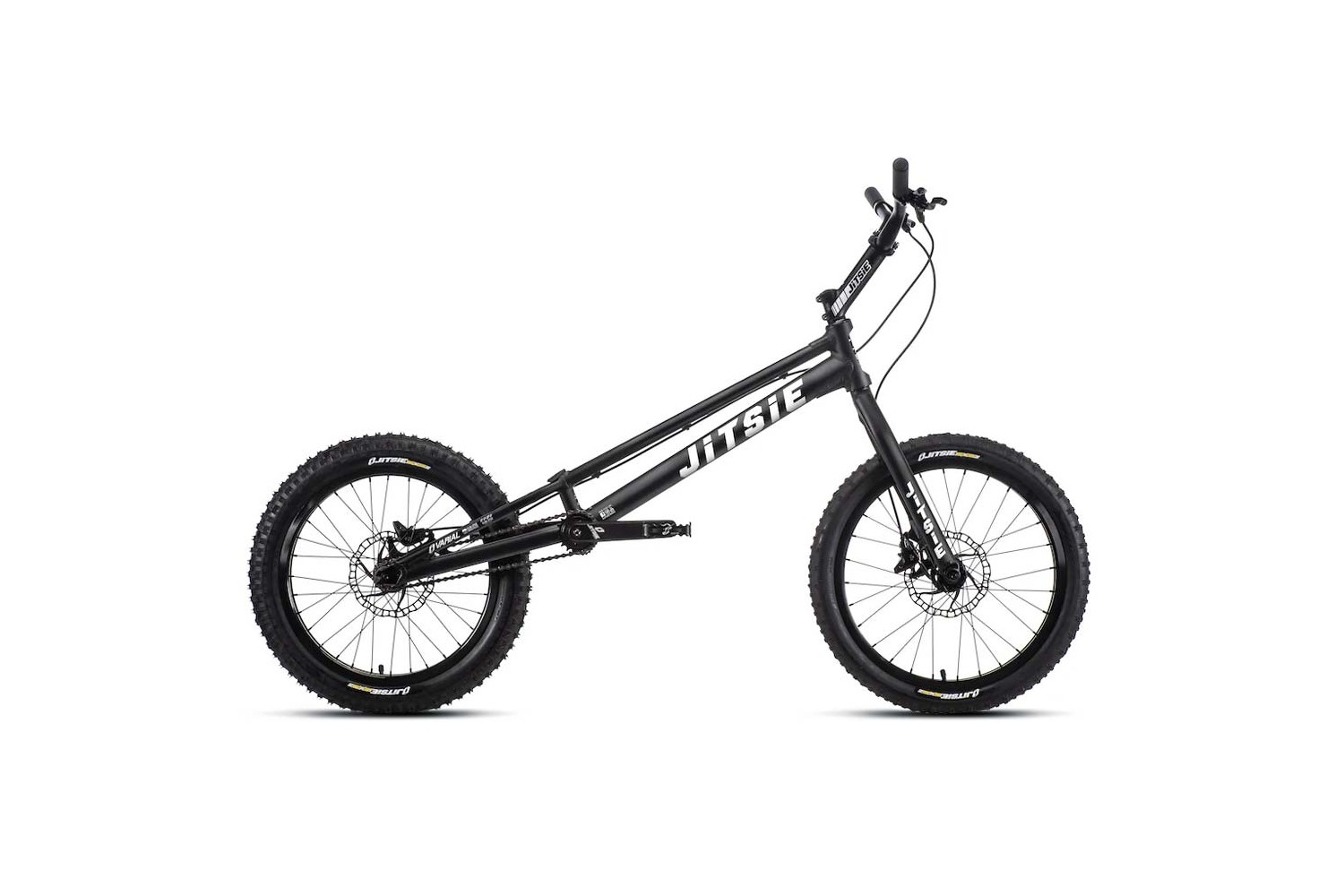

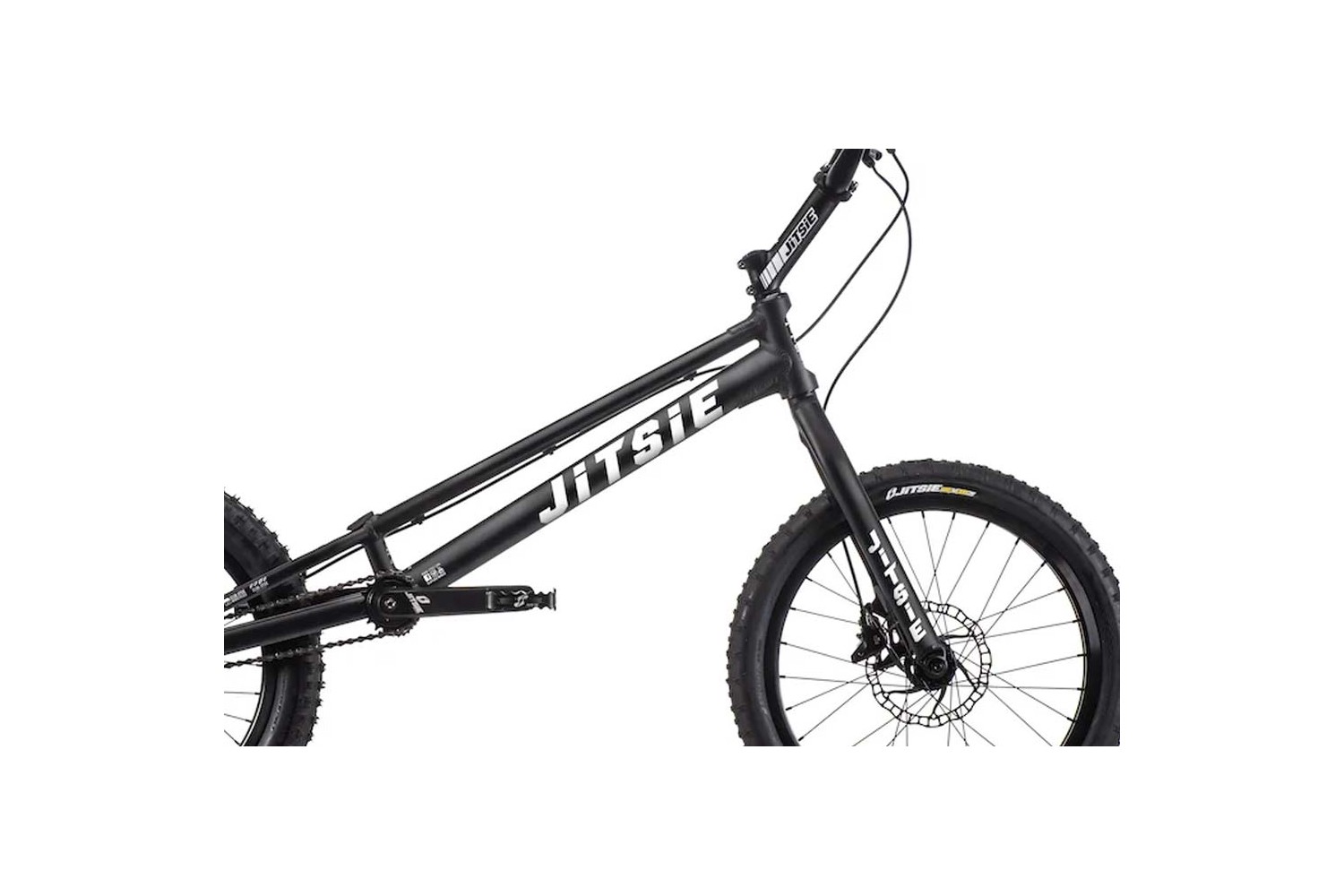

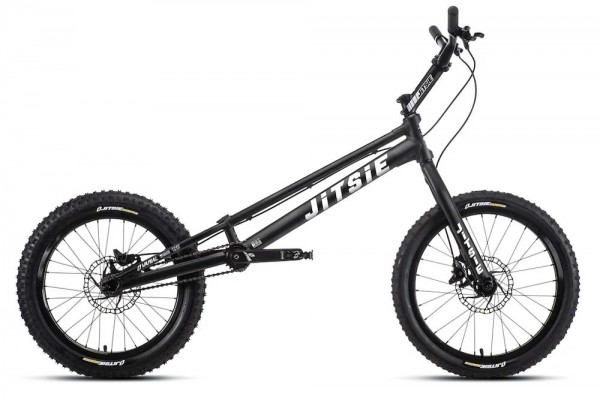

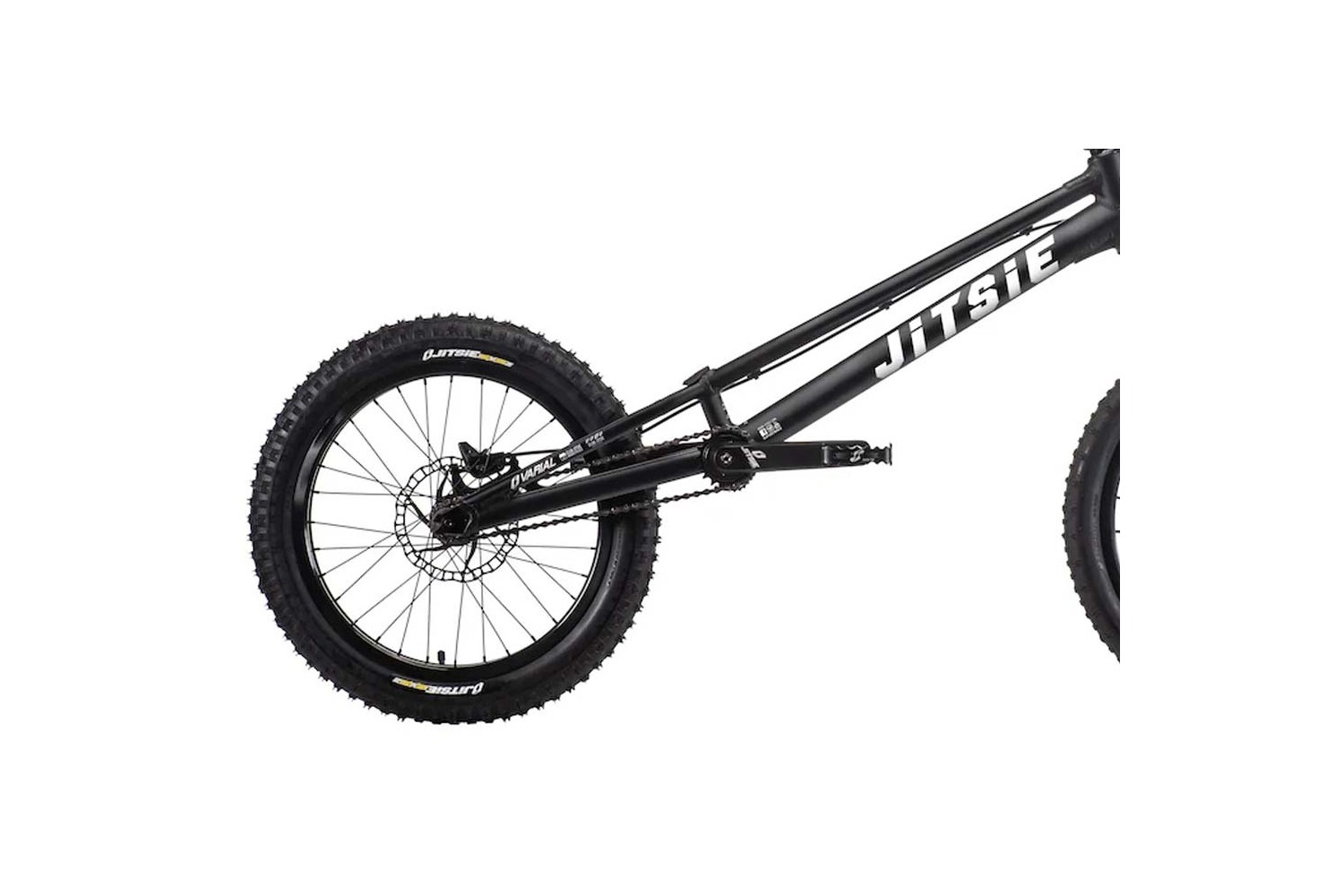

Jitsie Varial 1010mm Disc 20" Bike

Jitsie Varial 20" 1010 mm Trials Bike

The Jitsie Varial 20" 1010 mm offers the perfect balance of performance, reliability and control for both young and adult riders. Its minimalist and competition-proven design ensures precise and stable handling, combined with high-quality components that meet the demands of modern bike trial. Recommended for riders aged 15 and above or over 1.60 m tall.

. High-end components: Jitsie 108.9 18T freewheel, 160 mm forged cranks, Shimano hydraulic disc brakes, 155 mm x 25º forged stem, aluminium pedals, etc.

. Suitable for riders aged 15 and above or taller than 1.60 m.

Frame and Fork
- Frame: Jitsie Varial 20” 1010 mm, made from 6061-T6 aluminium alloy, Post Mount disc brake fitting, black finish with yellow and grey Jitsie Varial decals
- Fork: Jitsie Varial 20” 370 mm, Post Mount disc brake fitting, black finish with yellow and grey Jitsie graphics.

Wheels
- Front hub: Jitsie ST 28 holes, disc mount, 100 mm wide, black anodised
- Rear hub: Jitsie ST 32 holes, disc mount, 116 mm wide, black anodised
- Chain tensioner: Jitsie snail cam, black
- Front rim: Jitsie 20", single-wall lightweight design, 32 mm wide, 28 holes, black anodised finish
- Rear rim: Jitsie 19'', single-wall lightweight design, 48 mm wide, 32 holes, black anodised finish
- Spokes: Jitsie 1.8 mm steel, black
- Rim tape: Jitsie, black
- Front tube: Jitsie Light 0.9 mm 20”
- Rear tube: Jitsie Light 0.9 mm 20”
- Front tyre: Jitsie Reverz 20”x2.00”
- Rear tyre: Jitsie Reverz 19”x2.60”

Brakes
- Front brake: Shimano MT400
- Rear brake: Shimano MT400
- Brake rotors: Shimano SM-RT56 160 mm

Drivetrain
- Cranks: Jitsie ISIS 7075, 160 mm long, black with white Jitsie graphics
- Bottom bracket: Jitsie ISIS, 118 mm wide, steel
- Freewheel: Jitsie 108.9 18T, 108 engagement points, 9 pawls and 18 teeth, black
- Chain: KMC X9-73, silver
- Fixed sprocket: Jitsie 12T threaded, steel, silver
- Pedals: Aluminium 7075 cage type
- Bashplate: Jitsie mini protector, black anodised

Steering Set
- Headset: Jitsie semi-integrated 1 1/8”, sealed bearings, 5 mm aluminium spacer, black finish
- Stem: Jitsie 155 mm length, 25º angle, Oversized 31.8 mm handlebar clamp, black with white Jitsie graphics
- Grips: Jitsie foam grips, black
- Handlebar: Jitsie 7075, 730 mm wide, 110 mm rise, Oversized 31.8 mm diameter, black with white Jitsie graphics

Geometry (measured with Jitsie Varial 370 mm fork and +45 mm offset)

(1) Wheelbase: 1010 mm.
-----------------------------------------------
(2) Chainstay length: 350 mm.
-----------------------------------------------
(3) Bottom bracket height: +80 mm.
-----------------------------------------------
(4) Head angle: 71.5°.
-----------------------------------------------

Weight
- 8.06 Kg (with aluminium pedals)

Additional information:
Some images may not exactly match the product description. Please read the technical details carefully before purchasing.

⚠️This bike is assembled and fully checked in our warehouse before shipping, so please allow an additional 3 to 5 working days for preparation.

If you prefer to receive it unassembled, we offer a €50 discount. In this case, the bike will be shipped with the bottom bracket and headset cups already installed. To request this option, please contact us at info@trial-bikes.com.

Please note that this bike is shipped without the decals applied; a Jitsie sticker kit is included so that each rider can apply them as preferred.

This bike is supplied partially assembled; the customer only needs to fit the front wheel and handlebar set.

For any further questions or custom setup requests, please contact us at info@trial-bikes.com.
