Crewkerz Nextgen 26" Bike

Crewkerz Nextgen 26" Bike

The new Crewkerz Nextgen 26” 2025 represents the latest evolution of the legendary Jealousy model, now featuring a redesigned 6066 T6/T7 aluminium frame for maximum strength. Already successfully used by UCI Trials World Champion Jack Carthy and Oliver Weightman in the first international competitions of the 2025 season.

Frame and Fork

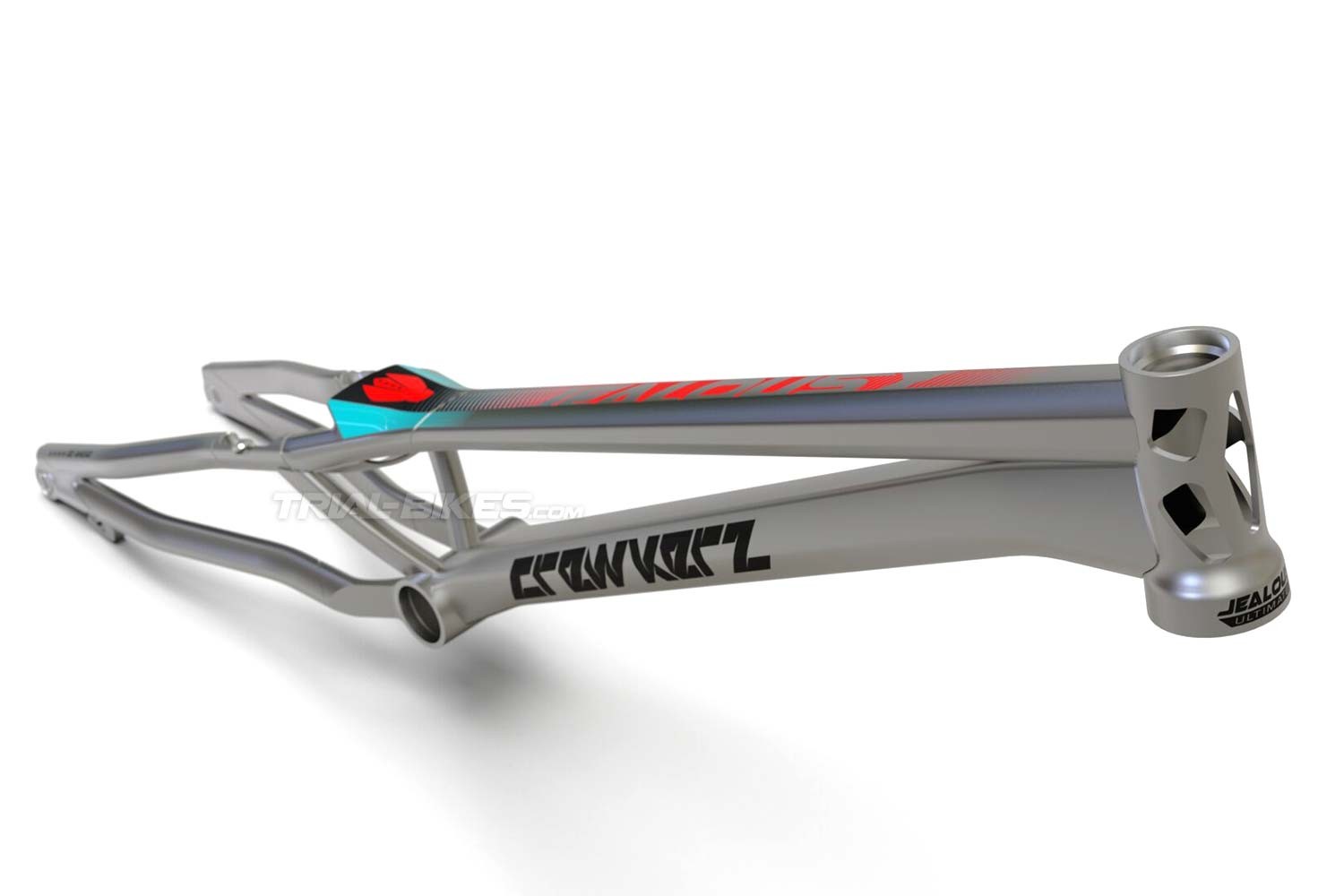

• Frame: Crewkerz Nextgen 26” made from 6066 T6/T7 alloy, 1 1/8” – 1.5” tapered.
• Fork: Crewkerz Carbon 26”, with 1 1/8” – 1.5” tapered steerer tube.

Wheels

• Front hub: New Crewkerz Waw HS 100 mm HS 32H, with 9 mm thru-axle.
• Rear hub: New Crewkerz Waw HS (135 mm ), 32H, with 12 mm thru-axle.
• Chain tensioner: Crewkerz WAW Carbon Chain Tensioner, with two 9T wheels.
• Front rim: Hashtagg 26” 28H, 32 mm wide.
• Rear rim: Hashtagg 26" 32H, 47 mm wide.
• Spokes: Sapim Laser Superlight.
• Spoke nipples: Aluminium, black.
• Rim tape: Ultralight, black.
• Front inner tube: Crewkerz 26”.
• Rear inner tube: Crewkerz 26”.
• Front tyre: Vee Rubber Waw Kevlar Edition 26" x 2.0 Tyre.
• Rear tyre: Vee Rubber 26'' Kevlar Tech Rear Tyre.

Brakes

• Front brake: Trialtech Sport lever, Magura HS33 slave cylinders.
• Rear brake: Trialtech Sport lever, Magura HS33 slave cylinders.
• Brake pads: Crewkerz, red.
• Brake clamps: Crewkerz WaW, black.

Drivetrain

• Crankset: New Crewkerz WAW AS30 crankset, CNC machined from 7075-T6 aluminium alloy. Includes 170 mm cranks and Shimano HG splines, Silver.
• Freewheel: Crewkerz 135.9 Splined Sprocket For BB30, 18 teeth.
• Rear sprocket: Crewkerz 15T splined, steel.
• Chain: KMC Z1eHX, silver.
• Pedals: Crewkerz WAW Single-cage, 7075-T6.
• Bashring: Crewkerz WAW, black.

Steering

• Headset: Crewkerz Internal Tapered 1 1/8” – 1.5”, anodized black.
• Stem: Crewkerz WAW Ultimate 145 mm x 20º.
• Grips: TrialBikes super-thin foam, black.
• Handlebar: Crewkerz Waw Carbon, 102 mm high, 720 mm long.



Geometry Size S

• Wheelbase: 1060 mm.
• Rear End: 380 mm.
• Bottom Bracket Height: +65 mm.
• Head Angle: 72°.
• Centre of BB shell to centre top of head tube: 650 mm.
• Reach: 487 mm.
• Stack: 436 mm.

Geometry Size M

• Wheelbase: 1070 mm.
• Rear End: 380 mm.
• Bottom Bracket Height: +65 mm.
• Head Angle: 72°.
• Centre of BB shell to centre top of head tube: 657 mm.
• Reach: 597 mm.
• Stack: 436 mm.

Geometry Size L

• Wheelbase: 1080 mm.
• Rear End: 380 mm.
• Bottom Bracket Height: +65 mm.
• Head Angle: 72°.
• Centre of BB shell to centre top of head tube: 664 mm.
• Reach: 507 mm.
• Stack: 436 mm.

Weight

• 9.00 kg (M version, standard rear hub) and 9.170 kg (M version, free-hub), verified by TrialBikes!

Additional Information

• The parts listed may be subject to change. Any changes will be notified to the customer before delivery, and replacement parts will always be of the same or superior quality.
• Some pictures may not match the description. Please read the specifications carefully.
• This bike is partially assembled; the customer only needs to fit the front wheel and headset.
• If you have any doubts, please contact us at info@trial-bikes.com.
