Reduced price! CSC X-66 Hydraulic Rim Brake Expand

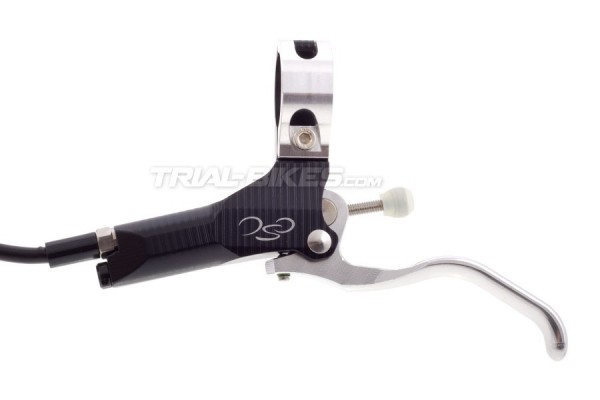

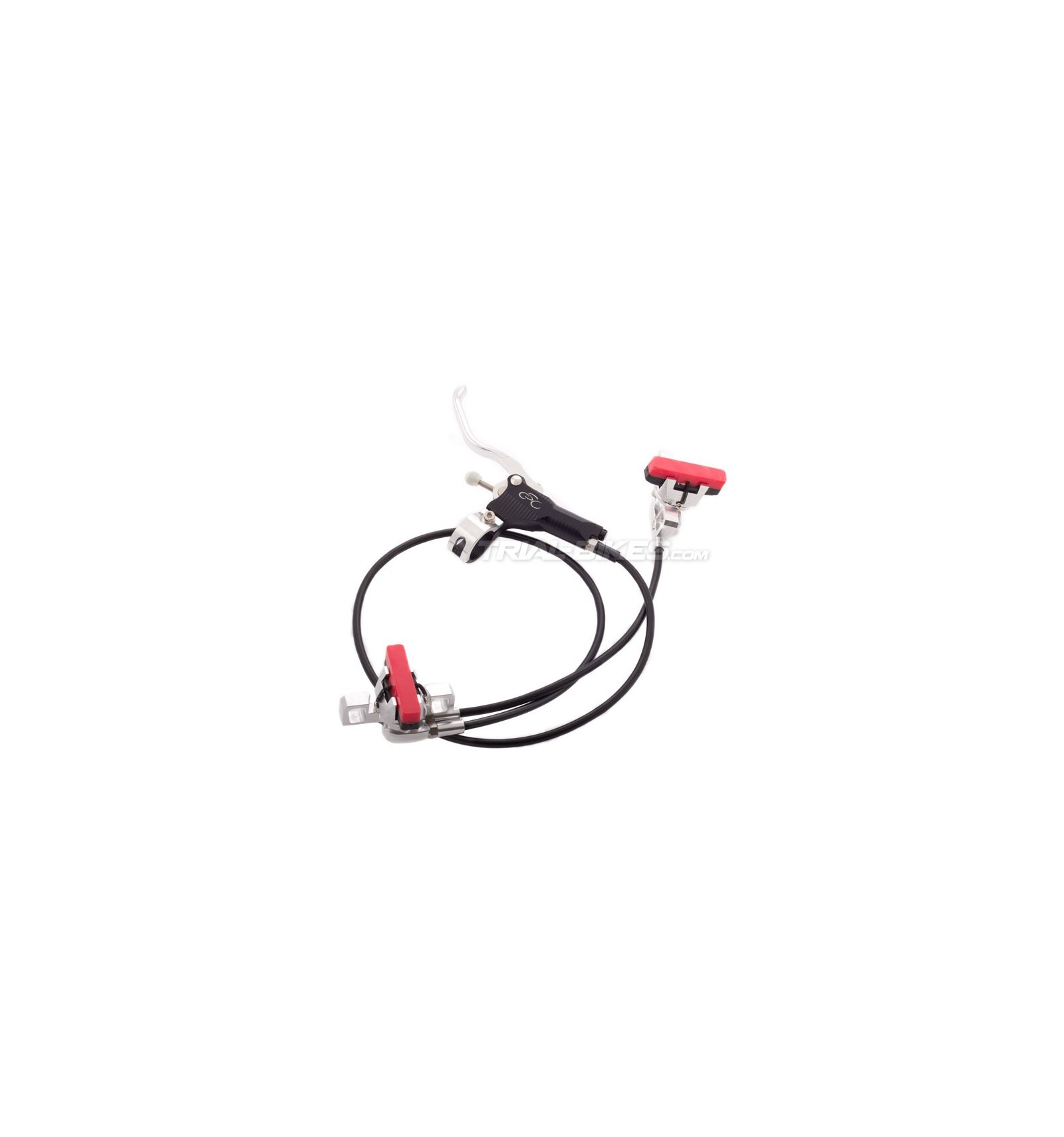

CSC X-66 Hydraulic Rim Brake



Description and materials

More details

This product is no longer in stock




Model .
 Front - Left Hand
 Rear - Right Hand
Ask a question
rating Ver la opinión
Valoración media: 10/10 - Nº valoraciones: 1

Description and materials
- New hydraulic rim brake CSC X-66, the new creation from the young Asian brand CSC.
- Suitable for 38-48mm rims.
- This is a new concept of hydraulic rim brake, which mixes the technology of a disc brake, with the amazing performance of a rim brake.

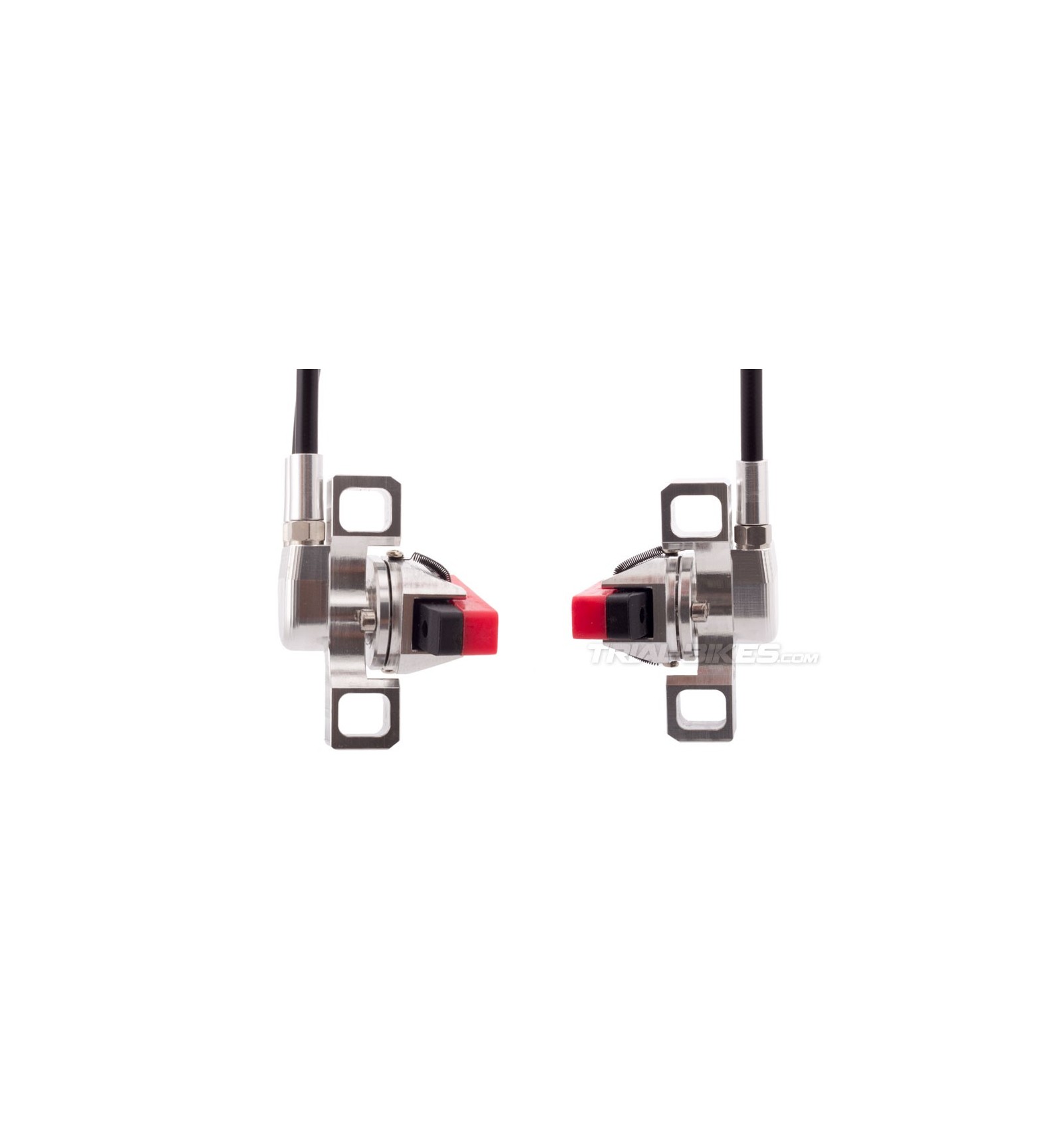

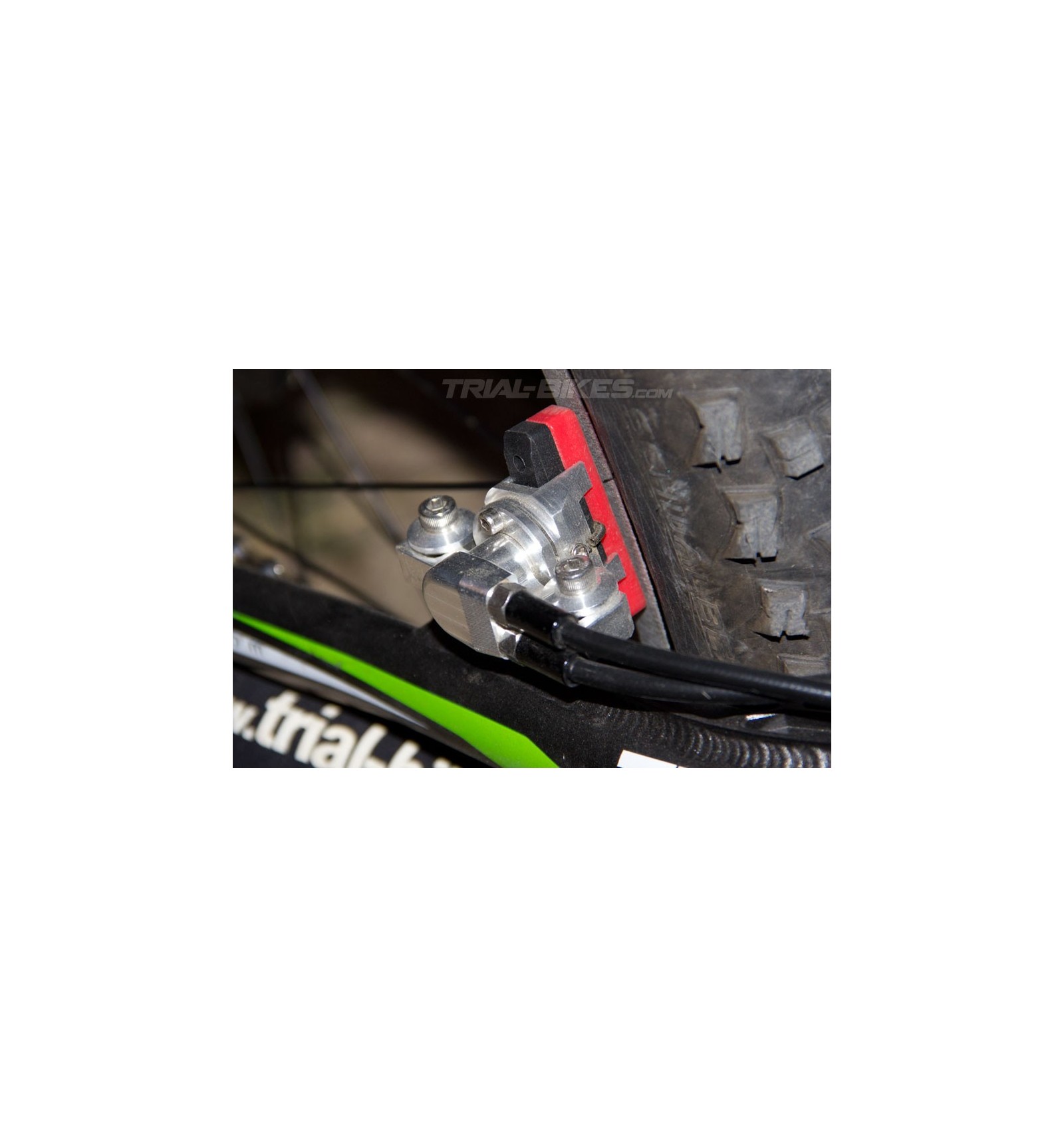

- Features completely re-designed slave cylinders, that now integrate the 4-bolt mounts in a single-piece of 2014 T6 aluminium, to directly screw the cylinders to the forks/frame. This means now it’s way easier than before to set up the brake.
- This new design allows you to rotate the cylinder in order to get the desired pad setup, and then tighten it easily with 2 small Allen bolts.
- Each slave cylinder includes a little spring that ensures a fast pad response, going through the pad and fitting again to the slave cylinder.
- Lever body made from high quality 2014 T6 aluminium.
- 2- finger lever blade (75mm), with a minimalist, much more ergonomic design which ensures a comfortable position for the finger.
- Symmetric lever body means it can be used for both the front or rear brake.
- An Allen bolt allows you to adjust the pad-rim distance, as seen in the TPA of a Magura HS33.
- Now you can adjust the lever reach with an Allen bolt located at the front of the lever body.
- Built-in handlebar clamp, with only one bolt.
- New bleed port system features a port located on the front of the brake lever, above the main hose.
- 116mm (rear brake) or 71mm (front brake) hose.
- Includes aluminium cylinders to protect the hoses at the cylinder/lever joint.
- CSC Red pads supplied with the brake.
- Comes bled with high quality mineral oil.
- Available with anodized black lever body and silver lever blade and cylinders.

- Available with anodized black lever body and silver lever blade and cylinders.

- 220g (front) and 233g

- CSC X-66 brake bleeding video tutorial here.
- Video of one of our riders testing the brake here.

Additional information
Special note: Do not push the lever until the brake is installed on the bike, since the piston could come off, so please be very careful!

WEIGHT 0.220
estoy buscando unos frenos para un niño de 7 años, lleva los magura hs33 pero la maneta le queda muy separada del manillar para su mano, estos me irian bien o cual e recomiendas?, aunque bastaria la bomba, estos estan muy bien de precio
Solo usuarios registrados pueden responder preguntas
Tu respuesta ha sido enviada para su moderación. Gracias por responder.
Página: 1
Ask a question
Tu pregunta ha sido envia para moderar. Gracias por preguntar!
Ask a question
Código de validación
¿Puede leer la imagen? Click aquí para cambiar
  Ask a question

Haz clic aquí para dar tu opinión

Ismael g. el día 2017-01-26 Un freno muy bueno, llevo unos meses usandolo, y es increible. El metodo que tiene para mover las pastillas hace que se pueda ajustar perfectamente, tuve que taladrar las pastillas para pasar el muelle, y tener que enganchar el muelle es algo tedioso, pero vale la pena, la maneta igual no tiene el mejor diseño pero es muy comoda al tacto.
