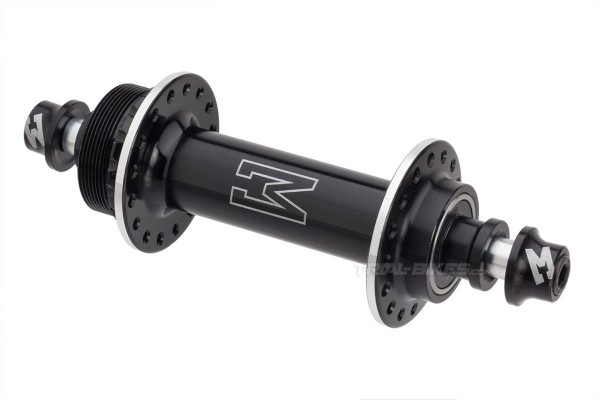

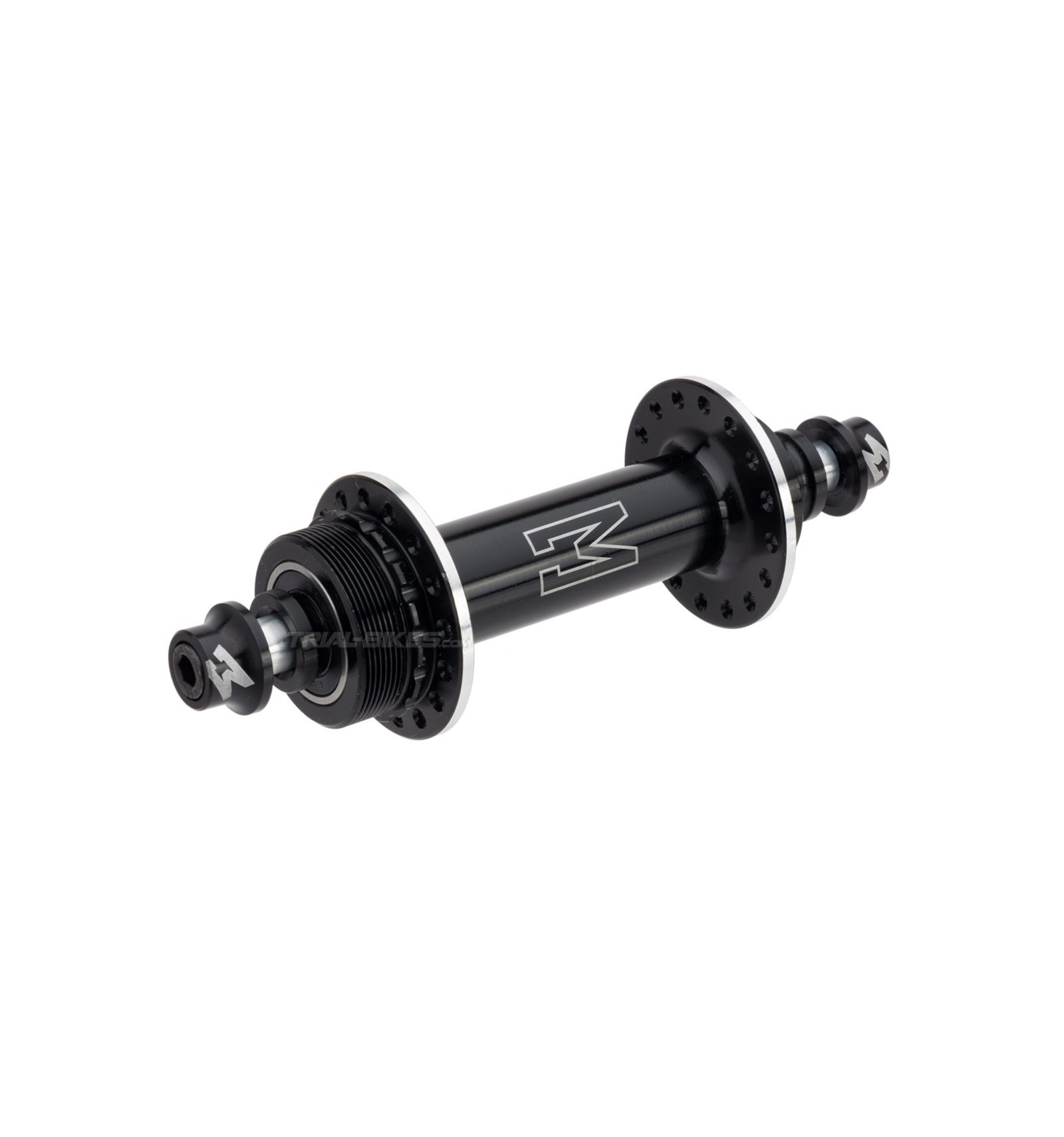

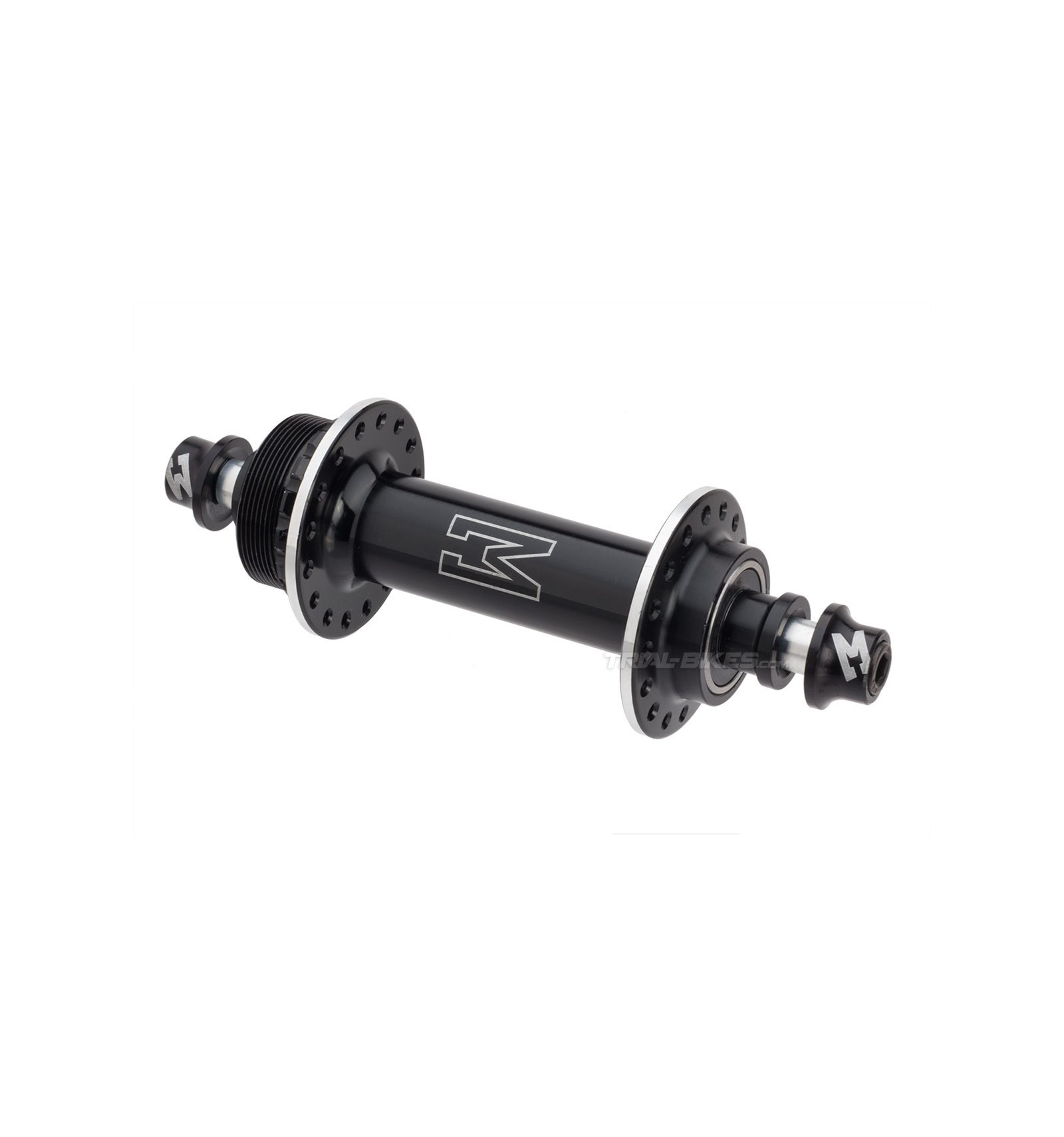

Echo TR 2015 Rear Hub Expand

Echo TR 2015 Rear Hub

ECHO ECHO

537401

New

Description and materials

More details

49,00€

tax incl.

Ask a question


Description and materials
- New high quality  Echo TR  rear non-disc hub.
- Hub shell is mechanized from 2014 aluminium.
- Ø 10mm, 116mm long Aluminium 7075-T6 axle, suitable for the new Zoo! and Echo frames, which feature an integrated chain tensioner.
- 6-Bolt IS (International Standard) bolt mounts.
- Sealed bearings keep out all the mud and water, and offer a smooth running.
- Standard 1,37 "x 24 tpi thread, suitable for screw-on sprockets.
- M6x30mm Bolts and washers included.
- 32 holes only.
- Sprocket and snail cams not included.
- Note: the spacing on this hub is 116mm instead of the usual 110mm. This is due to Echo frames having an integrated tensioner and not needing 3mm snail cams.
- Suitable for other frames by shortening 3mm each spacer in order to use 3mm snail cams.
- Available en black.

Sizes
- Length: 116mm spacing
- 32 holes

Finishes

- Anodised black
- Grey laser etched Echo logo

Weight
- 149g (+ bolts and washers at 22g).

Additional information
Make sure your rim has 32 holes to fit this hub. If you have any questions, contact us.


WEIGHT0.149
WEIGHT0.149
WEIGHT0.149
WEIGHT0.149
COLORBlack
SPOKE HOLES32 spokes
BRAKE MOUNTSNon disc
