Jitsie 20” 32mm 32H Front/Rear Rim Expand

Jitsie 20” 32mm 32H Front/Rear Rim




Description and materials

More details


Ask a question

Description and materials

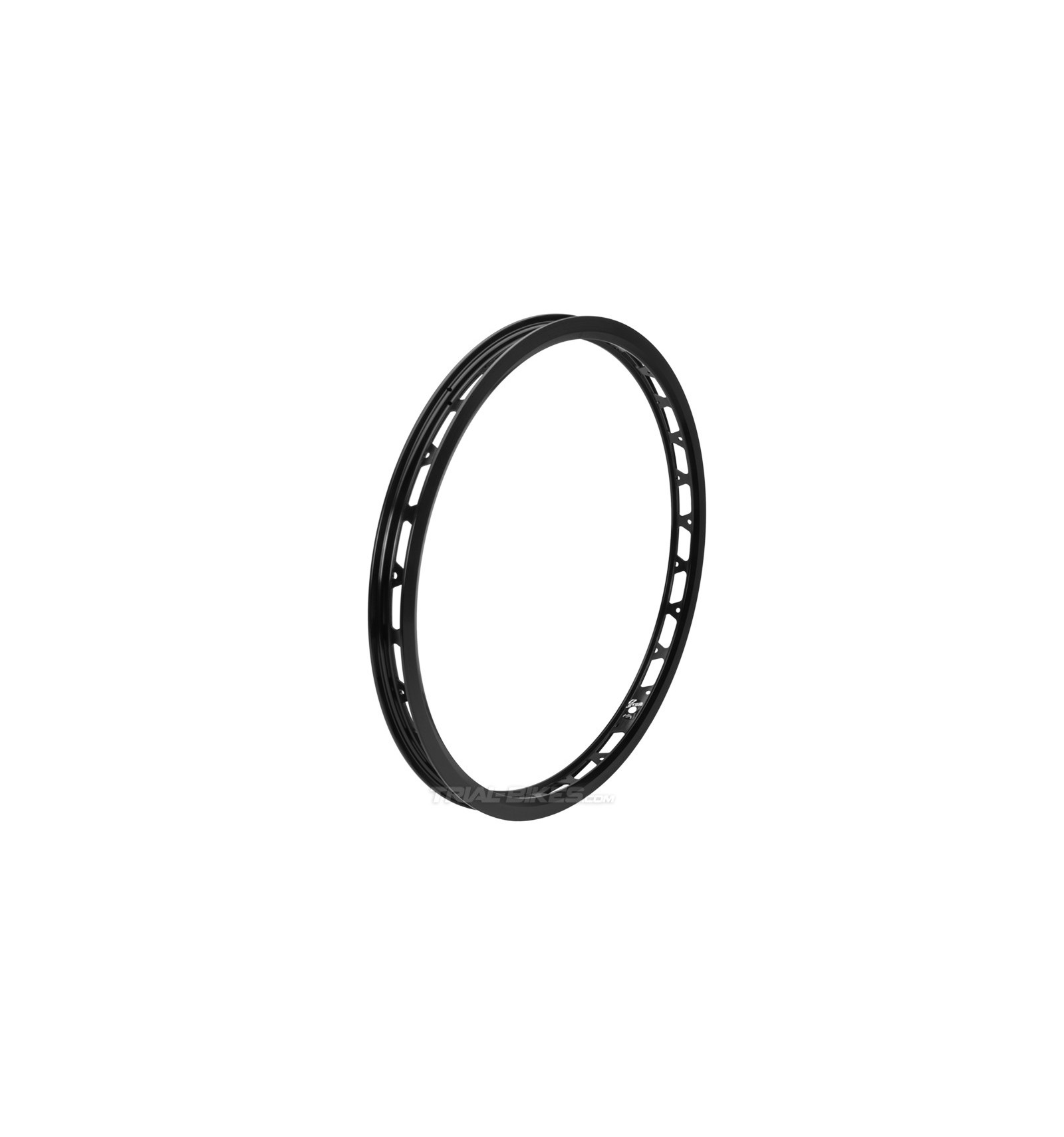

- New single-walled 20” front rim developed by innovative Belgian brand Jitsie, specialized in bike and moto trials components.
- This is a new rim based on the successful Jitsie front rim, but now with 32 spoke holes instead of 28. This allows this rim to be used both as a front and rear rim.
- Therefore, this rim is ideal to be used as a rear rim on kids bikes, where weight saving is essential.
- It can also be used normally as a front rim, installing a 32H front hub.
- Completely made from 6061-T6 aluminium alloy, which provides exceptional properties for a durable, reliable rim.
- Deep I-beam extrusion increases sidewall stiffness considerably while braking.
- Larger sidewalls and superior stiffness ensure top braking performance when used with rim brakes.
- 32mm wide, which guarantees unmatchable stability, even at the lowest pressures.
- Super light single-walled construction, with customized CNC-machined holes that help save a good few grams without compromising its strength.
- Large sidewalls (12mm) ensure more than enough room for the pad and offer a better braking performance.
- Features a special heat treatment that improves braking performance, so it’s ideal for using with rim brakes.
- This rim has 32 spoke holes orientated on the rim sides, great to use shorter spokes and therefore make an easier, stronger and stiffer wheel build.

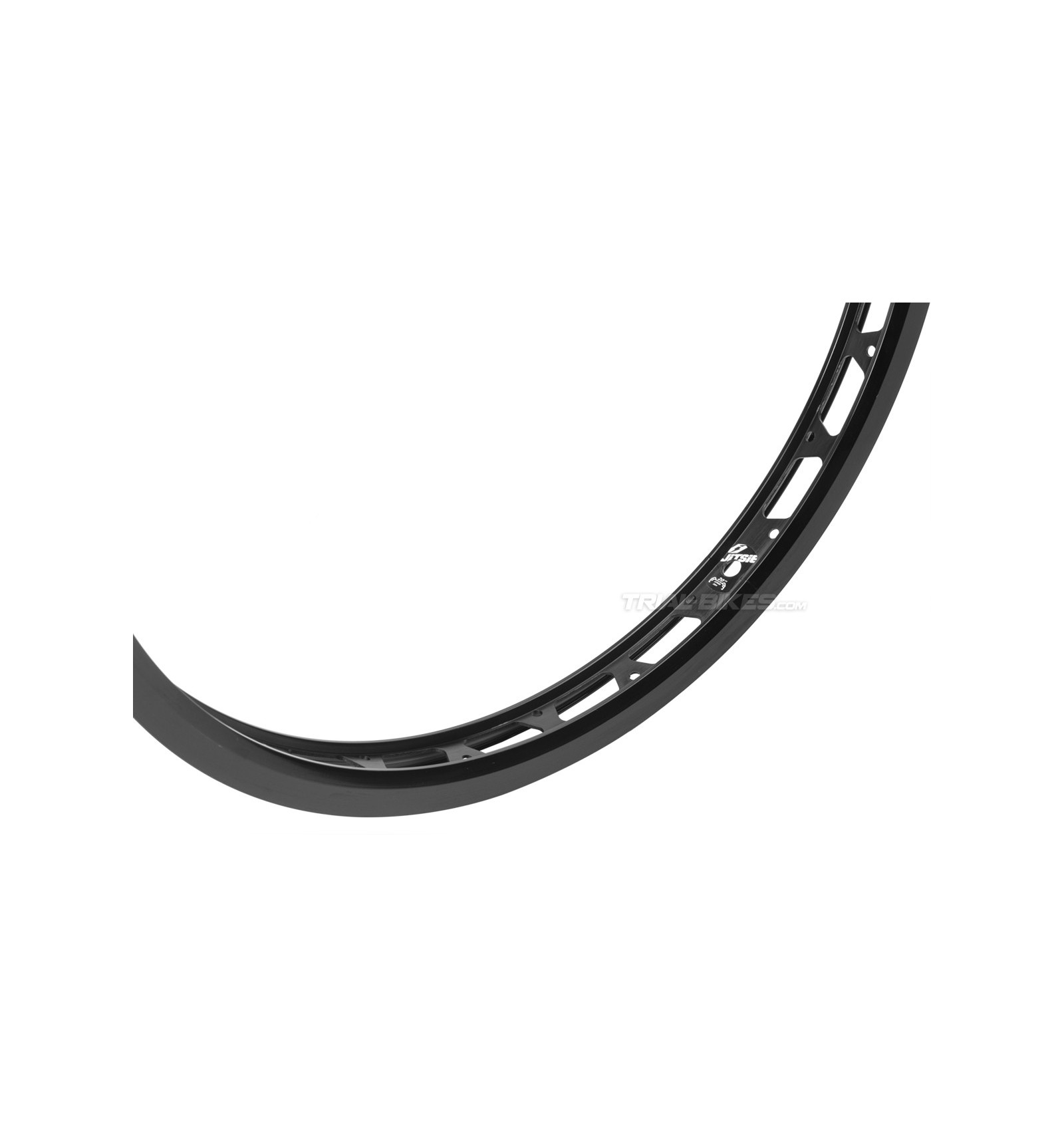

- Available in anodized black finish, with silver Jitsie sticker artwork around the valve hole.

- This rim has 32 spoke holes, therefore it must be used with a hub that also has 32 spoke holes.
- In case you want to use this rim as a rear rim for rim brakes, it’s essential to check the 4-bolt mounts on the frame are compatible with 20” rims (instead of 19”). Most frames have 4-bolt rim brake mounts that are only compatible with 19” rims, but not 20”, in which case this rim would not be compatible.

- 20 inches
- 32mm wide
- Ø 396mm in internal diameter(ERD)
- 32 spoke holes

- Available in anodized black finish, with silver Jitsie sticker artwork around the valve hole.

- 341.72g

WEIGHT 0.341
SPOKE HOLES 32 spokes
