Jitsie ISIS 7075 Cranks Expand

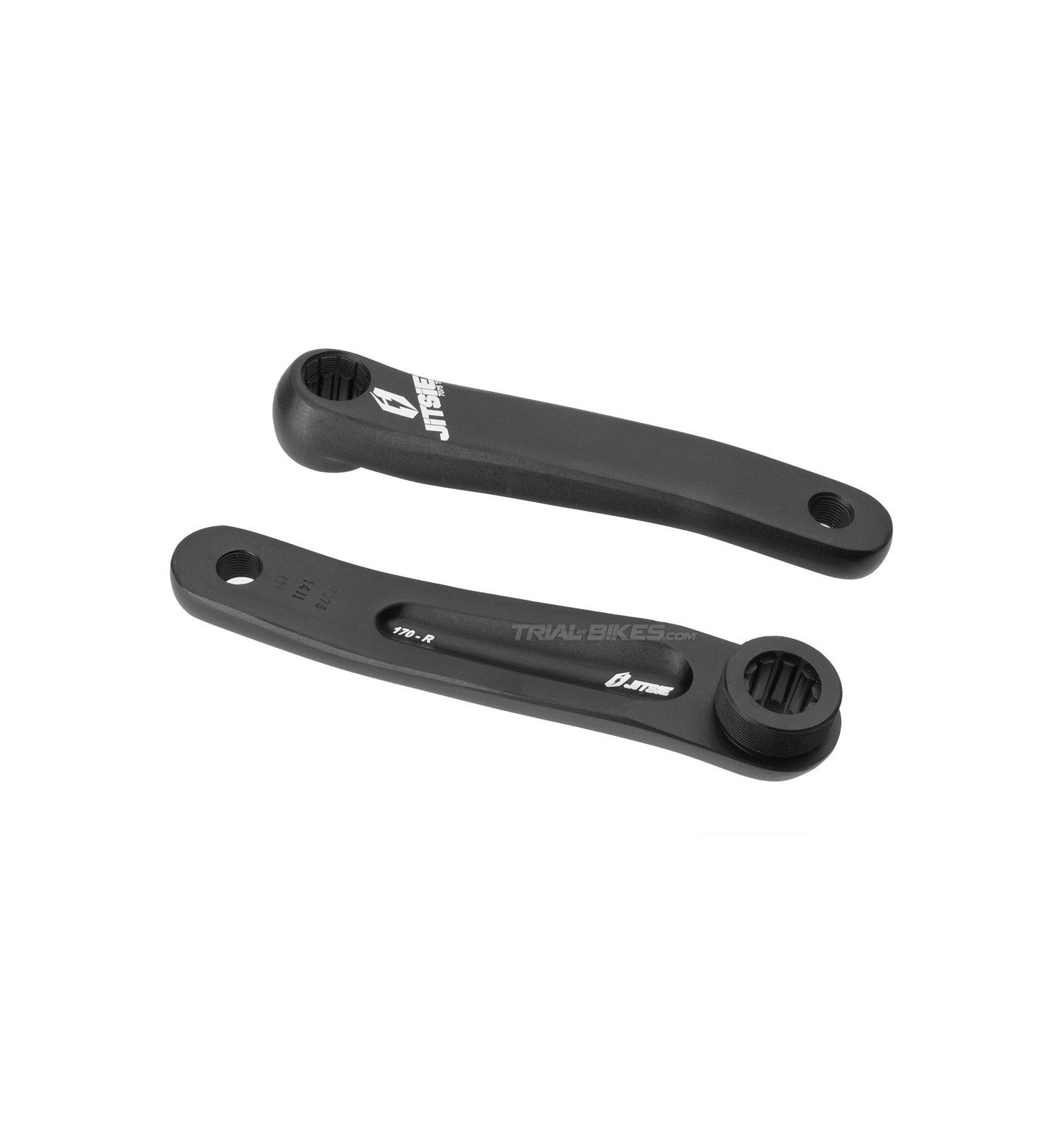

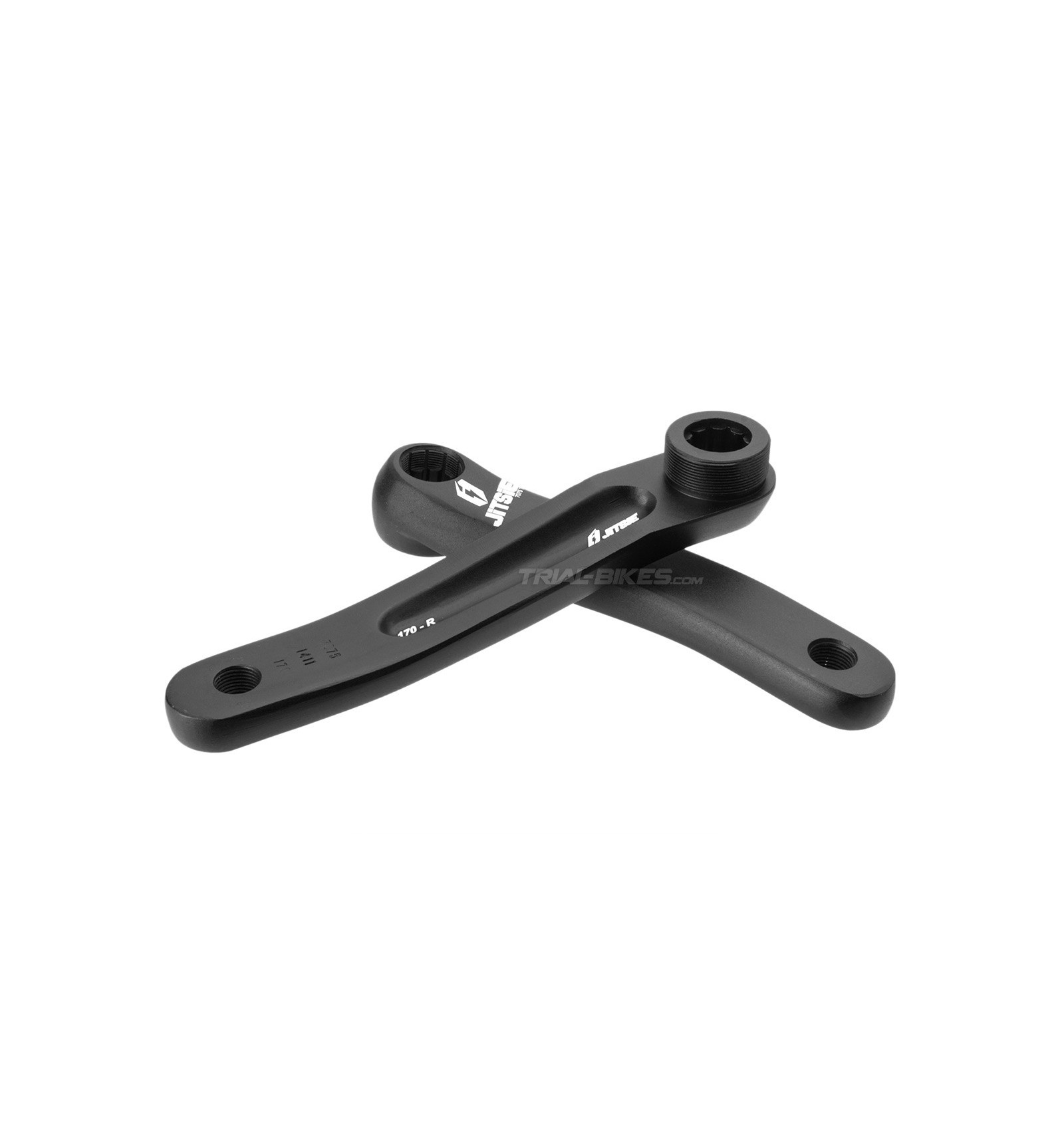

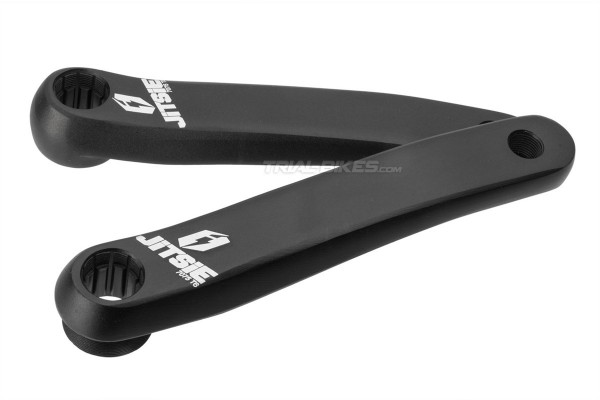

Jitsie ISIS 7075 Cranks

JITSIE JITSIE

New

New high quality ISIS cranks from Belgian brand Jitsie.
Available in 150mm, 160mm, 165mm, 170mm or 175mm long.

More details

41,32€

Length .
 150mm

 160mm

 165mm

 170mm

 175mm

Ask a question

Description and materials
- New high quality ISIS cranks from Belgian brand Jitsie.
- Developed and tested for months by the Jitsie Team riders Rick Koekoek, Dani Comas, etc.
- Traditional design is stiff and strong, with a recess at the back of the arms that helps save unnecessary weight.
- Standard 1.37”x 24tpi thread, suitable for most  freewheels and sprockets.
- Wide threaded section (13mm) allows you to run a bashring together with the freewheel/sprocket.
- Suitable for most ISIS bottom brackets.
- An offset of 33mm provides enough clearance to avoid rubbing the stays or brake cylinders.
- Anodized matt black with white laser etched Jitsie graphics.
- Available in 150mm, 160mm, 165mm, 170mm or 175mm long.

Sizes
- Length: 150mm, 160mm, 165mm, 170mm or 175mm
- Offset: 33mm

Finishes
- Anodized matt black
- White laser etched Jitsie graphics

Weight
- 482g (150mm), 515g (160mm),  524g (165mm), 547g (170mm ) and 547g (175mm)

Additional information
- Please bear in mind that there must be at least a 7mm thread in contact between freewheel and crank. Furthermore, a 1.37” freewheel/sprocket must be used with a maximum internal diameter of 33.8mm (and not the 1.375” ones). Not following these instructions may lead to thread damage (not covered under warranty).

WEIGHT0.515
LENGTH160mm
LENGTH170mm
LENGTH165mm
LENGTH175mm
538159Choose model: 160mm
