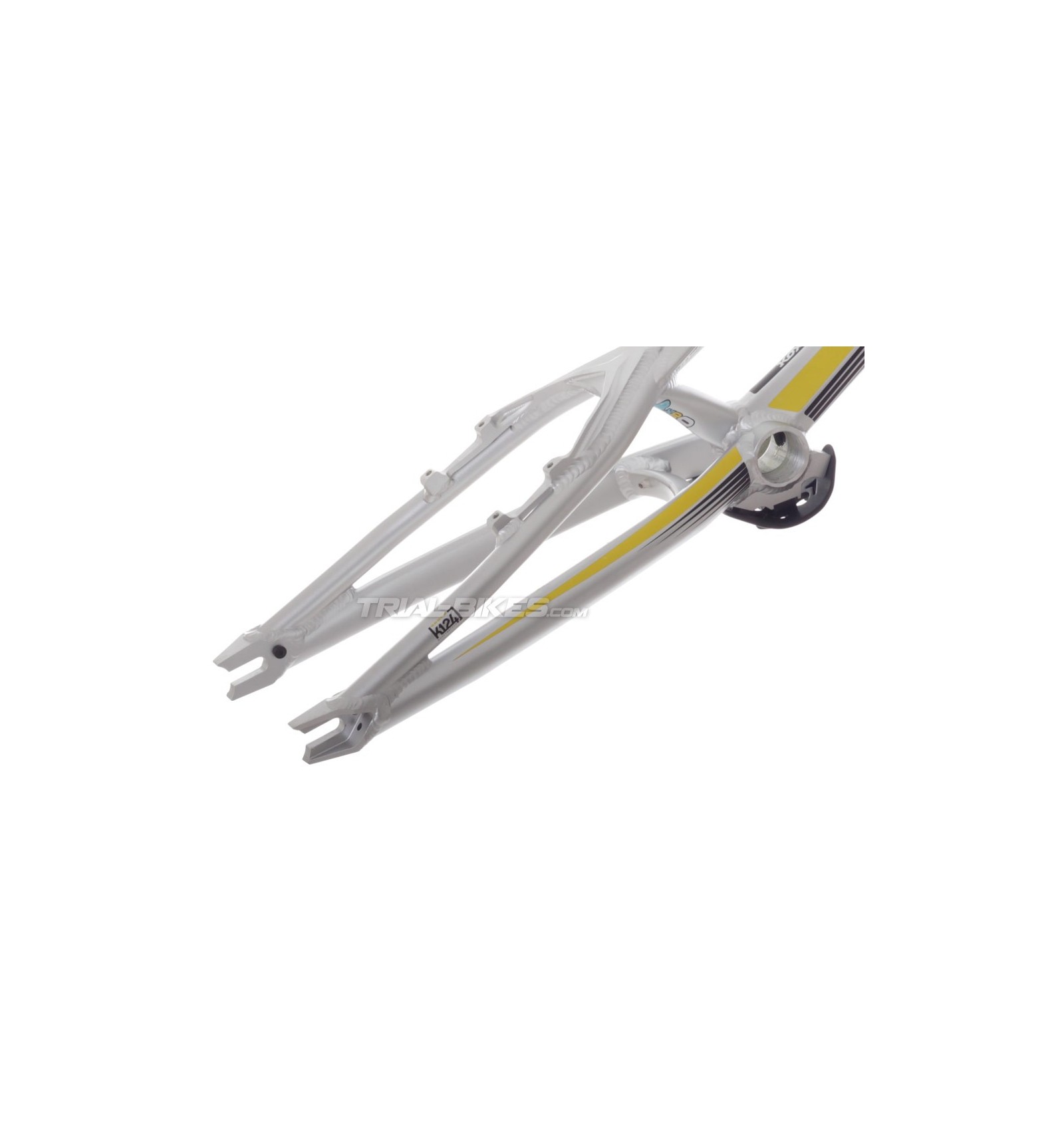

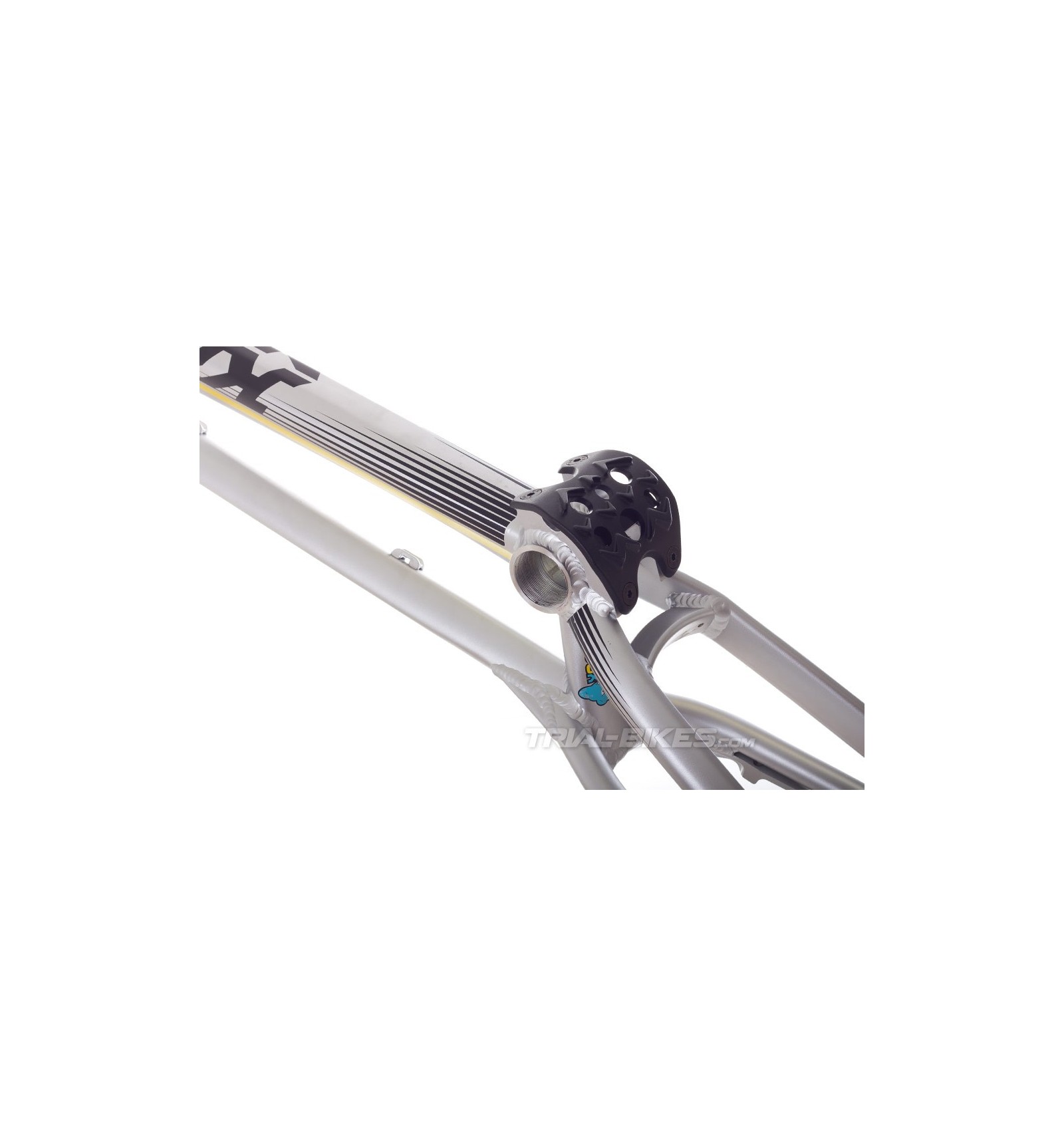

Koxx Kloud 20" HS33 Frame (With Headset)

KOXX KOXX

536878

New

Description and materials

More details

This product is no longer in stock

177,69€

577,69€

-400,00€

Ask a question

Description and materials
- New superlight 20’’ Kloud frame from French manufacturer Koxx, brand new into Koxx’s range.
- Its neutral geo, with a medium-high BB rise is great for riders who usually ride both competitions, rocks and street.
- Made from high quality 7005 T6 aluminium.
- The head tube is gusseted to the top tube to increase its strength.
- Hydro-formed down tube features a noticeable curve that helps gain weld contact area.
- 135mm CNC’d head tube, designed to use an internal headset (supplied with the frame), with a large hole at the front to save weight.
- 68mm bottom bracket shell, suitable for all 128mm bottom brackets.
- CNC machined dropouts spaced at 116mm, designed to use snail cams.
- Designed for 116mm hubs.
- 4-bolt mounts spaced at 101mm with an integrated CNC brake booster, to improve braking performance.
- New bashplate design (supplied with the frame), now more compact, and with a 4-bolt mounting system unique to Koxx.
- 4-bolt version version only.
- High quality shot-blasted and then anodized finish.

Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 135mm

- Wheelbase: 1015mm
- BB Rise: 70mm
- Head Angle: 71.5º

Finishes
- Natural anodized finish
- Black and yellow Koxx Kloud graphics

Weight
-1621g

Additional information
This frame comes with 12 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com


WEIGHT 1.621
BRAKE MOUNTS HS
TYPE OF HEADSET Standard 1 1/8"
