Ozonys Curve V3 Frame 24''

OZONYS OZONYS

New

Description and materials

More details

This product is no longer in stock

  • Post Mount disc
  • HS

186,19€

537,19€

-351,00€

Versión .
 HS

 Post Mount disc

Ask a question

Description and materials

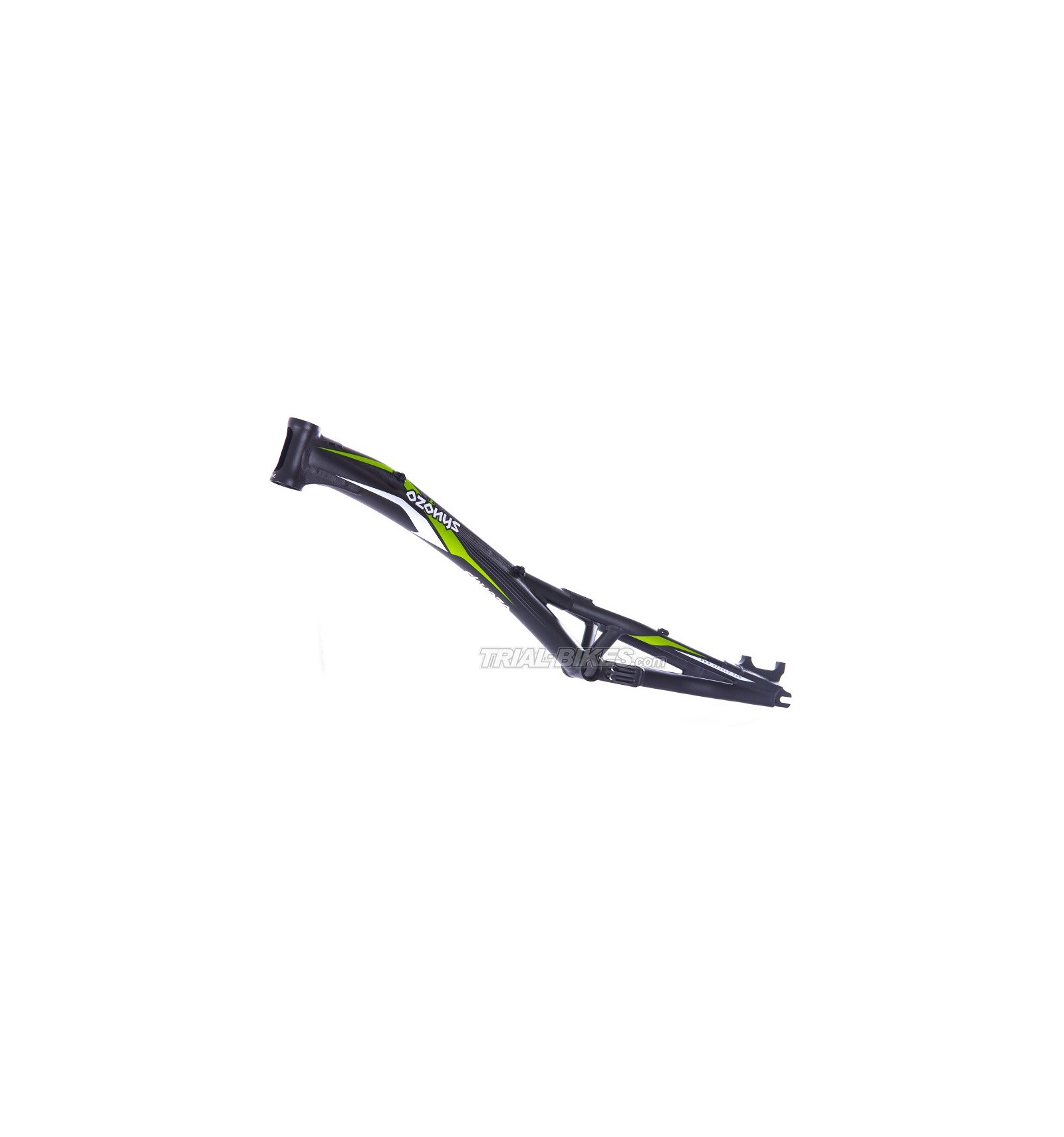

- New Ozonys Curve v3 24" superlight frame for 2012, based on the successful 20” and 26” editions.
- Made from high quality 6061 T6 aluminium.
- Again, the frame features unique top and down tube arrangement, if we cut it we would see an "8" with empty holes and a re-designed tubing thickness saving weight but without compromising resistance.
- 100mm long, 1 1/8 head tube is made from CNC aluminium, suitable for all internal headtubes.
- New reinforcement gussets where the top and down tubes join the headtube, which increase strength and overall stiffness.
- Flat dropouts for a perfect chain tension, avoiding any chain rubbing.

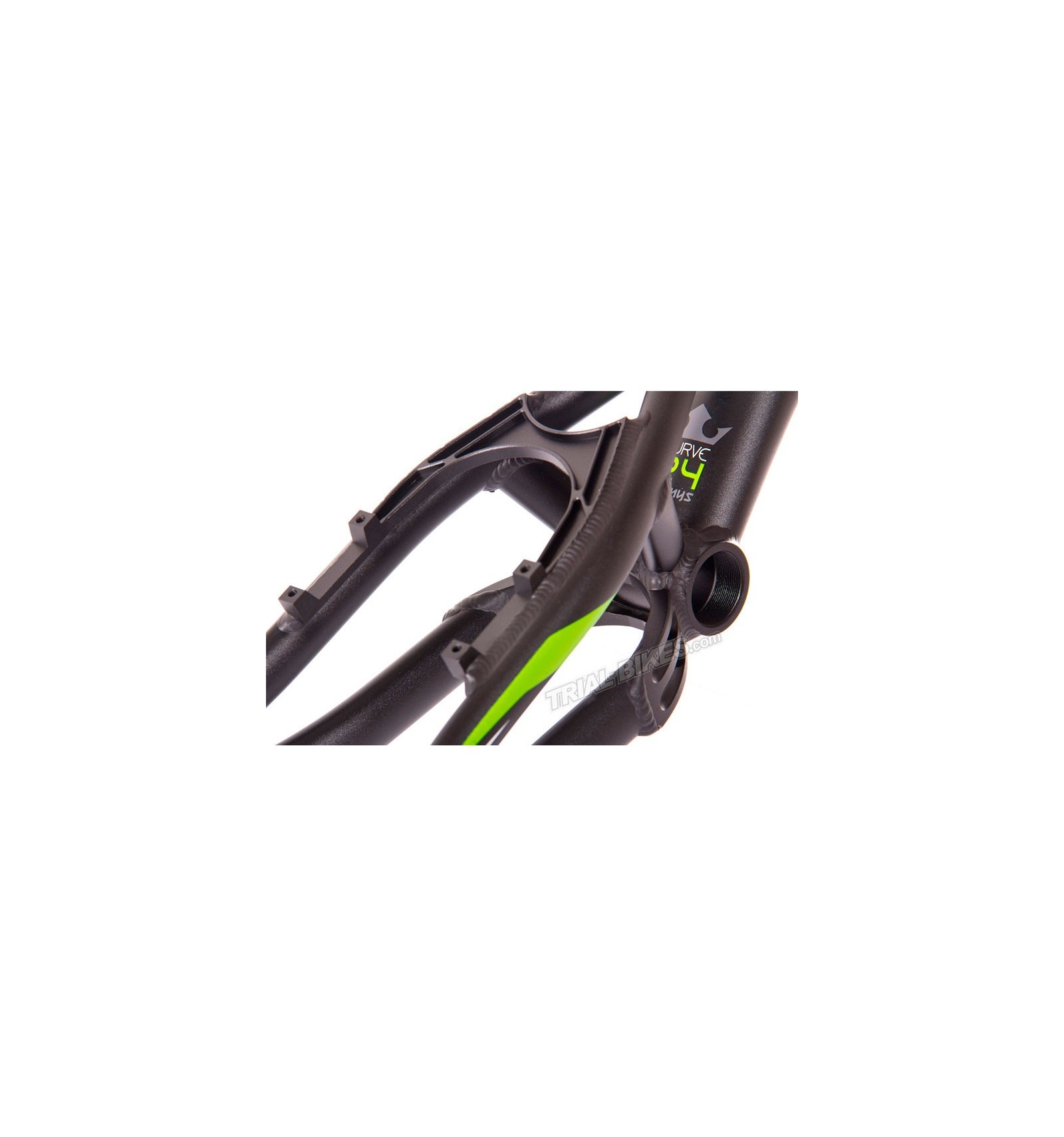

- 68mm bottom bracket shell is suitable for 128mm bottom brackets.
- 135mm horizontal dropouts, suitable for all 135mm hubs.
- Features new 2012 design, in black anodized colour with white, grey and green graphics.

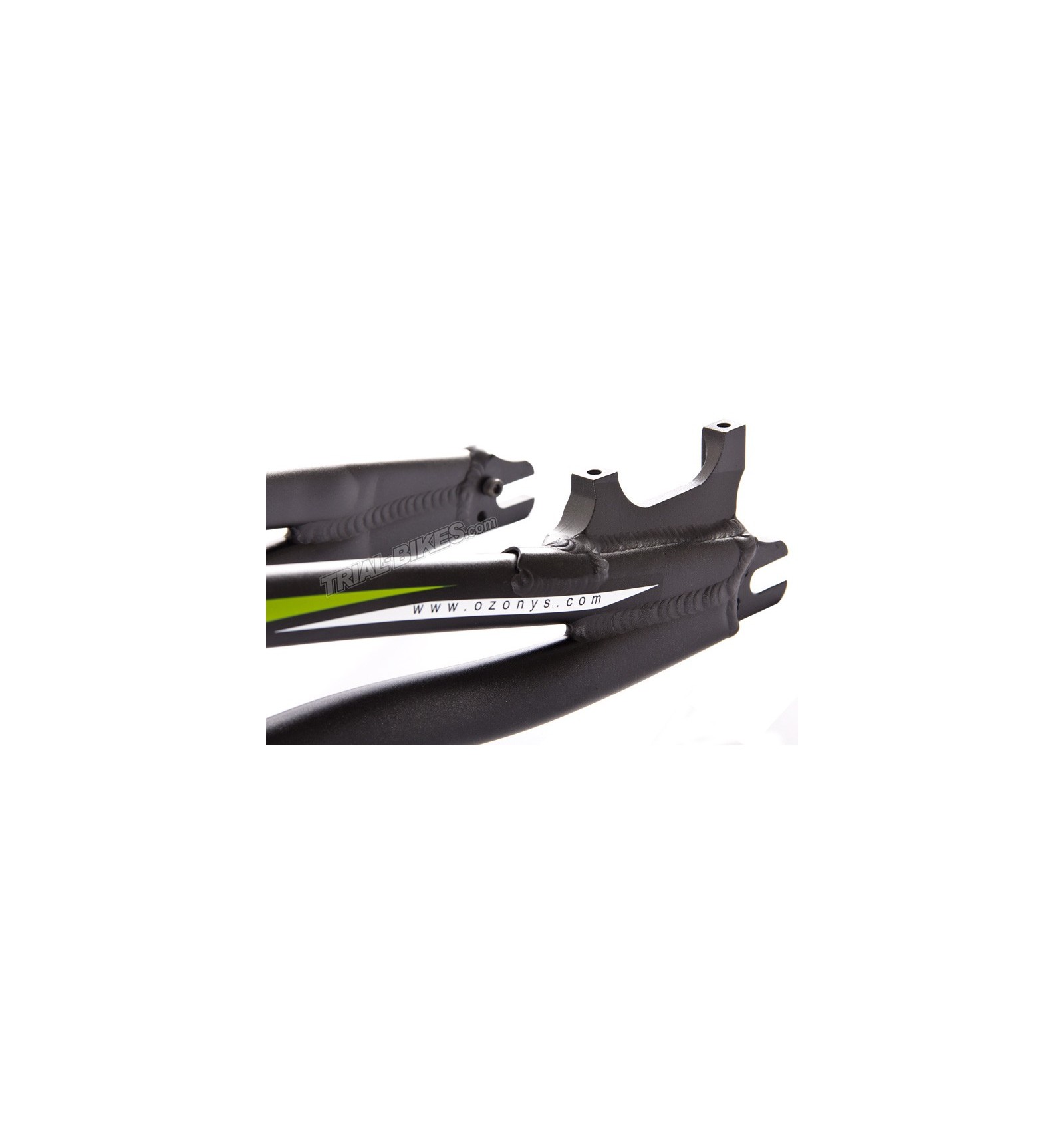

- 100mm spaced 4-bolt brake mounts, with CNC built in brake booster for a better brake performance.
- Also, the frame comes with +20mm Post-Mount disc brake mounts, for 180mm rotors.

Geometry
- Space between dropouts: 135mm
- Bottom bracket shell: 68mm
- Head tube: 100mm, 1 1/8"
- Wheelbase: 1050mm
- Chainstay Length: 360mm
- BB Rise: 70mm
- Head Angle: 72 º

Finishes
- Anodised black.
- Green/grey/white Ozonys graphics.

Weight
- 1428g

Additional information
 This frame comes with 1 year warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
 If you have any doubts, please contact us on info@trial-bikes.com


WEIGHT 1.428
BRAKE MOUNTS Post Mount Disc
TYPE OF HEADSET Standard 1 1/8"
