Description and materials

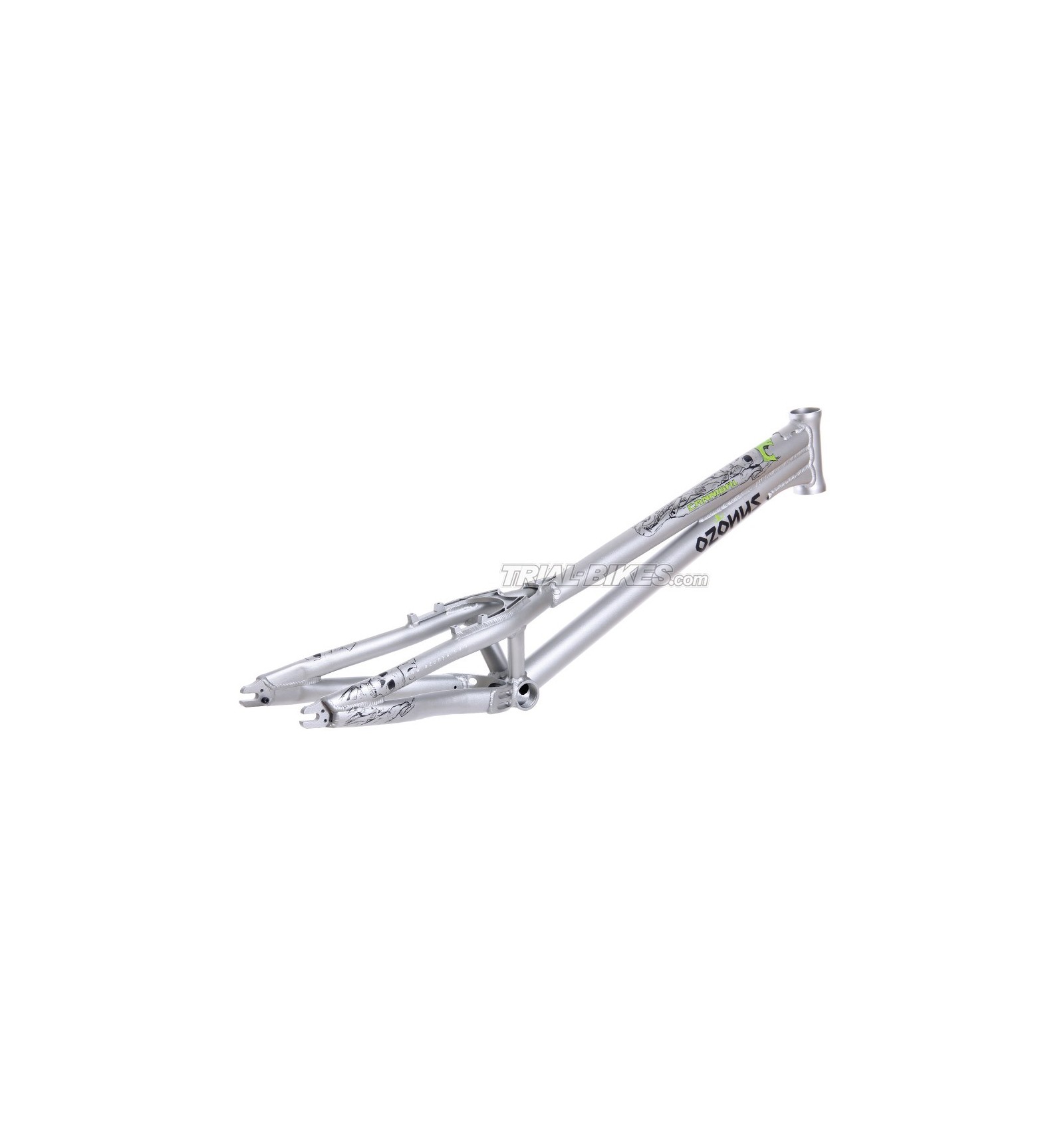

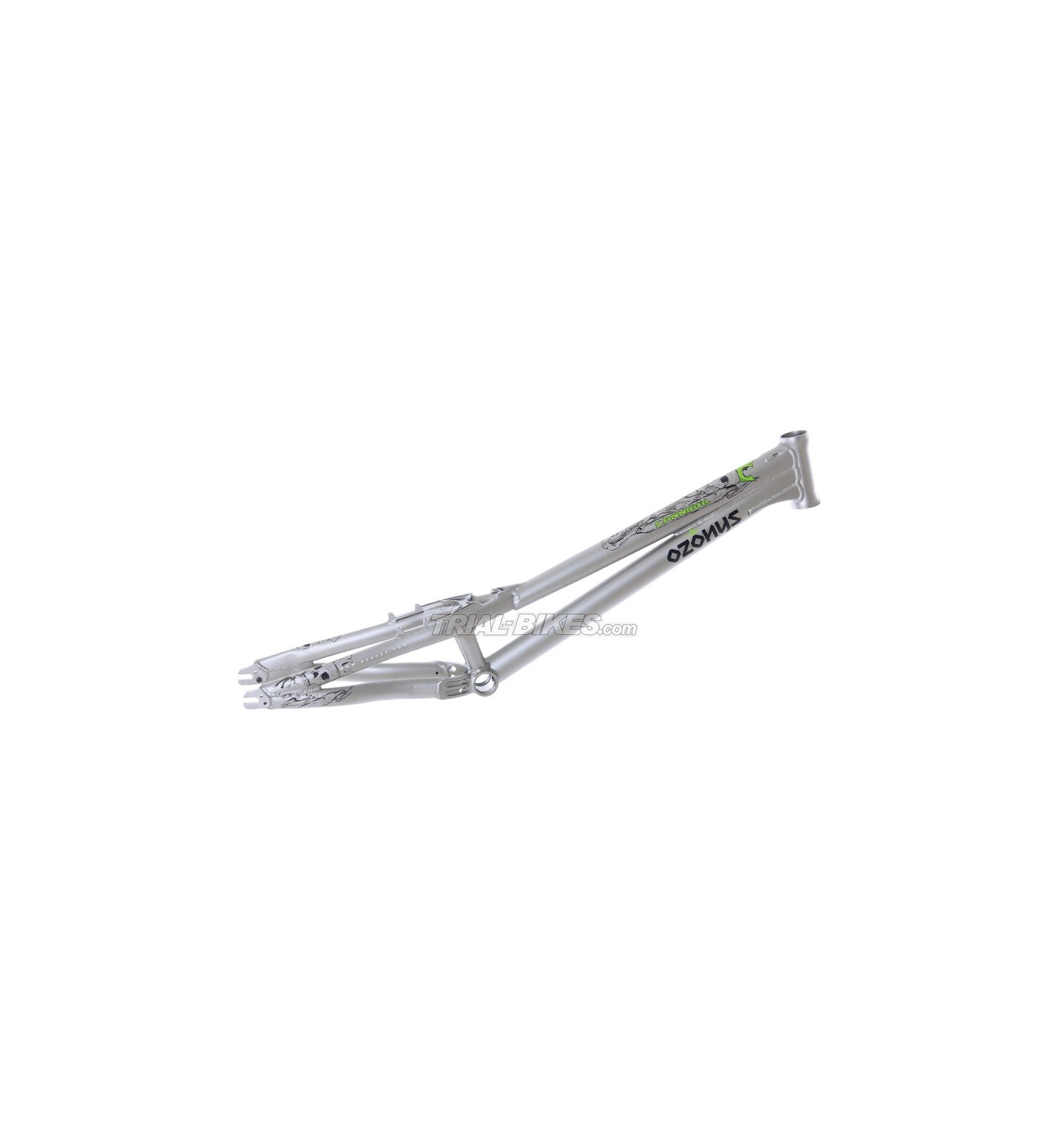

- New Ozonys Cannibal V4 26’’ frame.
- Made from high quality 6061 T6 aluminium.

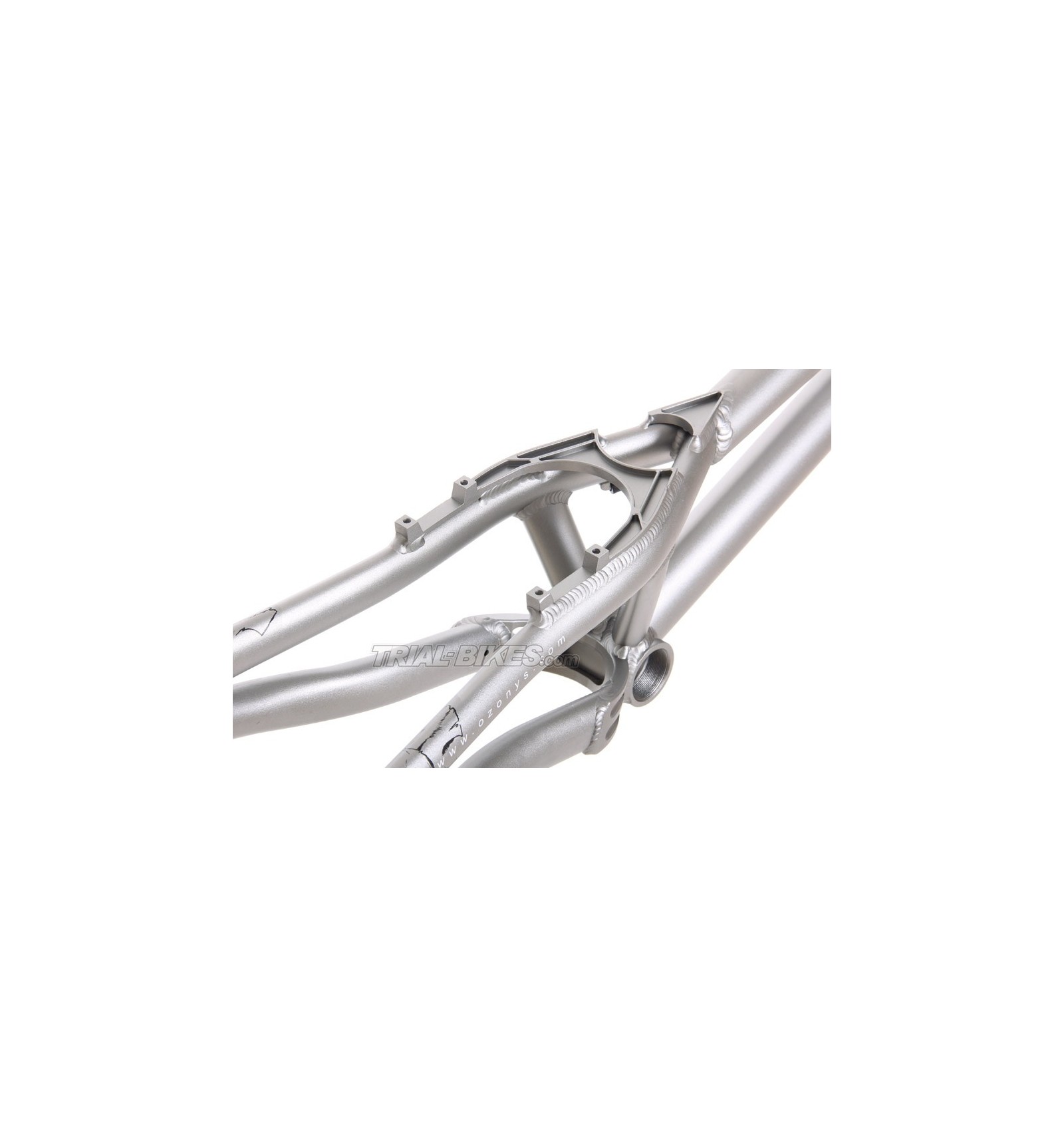

- Twin seat tubes help stiffen the rear end of the frame, as seen on the previous V2 version.
- 100mm spaced 4-bolt brake mounts, with CNC built in brake booster for a better brake performance.
- 68mm bottom bracket shell with a double seat tube, suitable for all 128mm bottom brackets, which gives a huge stiffness when pedalling.
- 135mm horizontal dropouts, suitable for all 135mm hubs.
- Stunning matt grey finish, with black graphics and a nice little fluro-green touch, which is cool!
- HS33 mounts only.

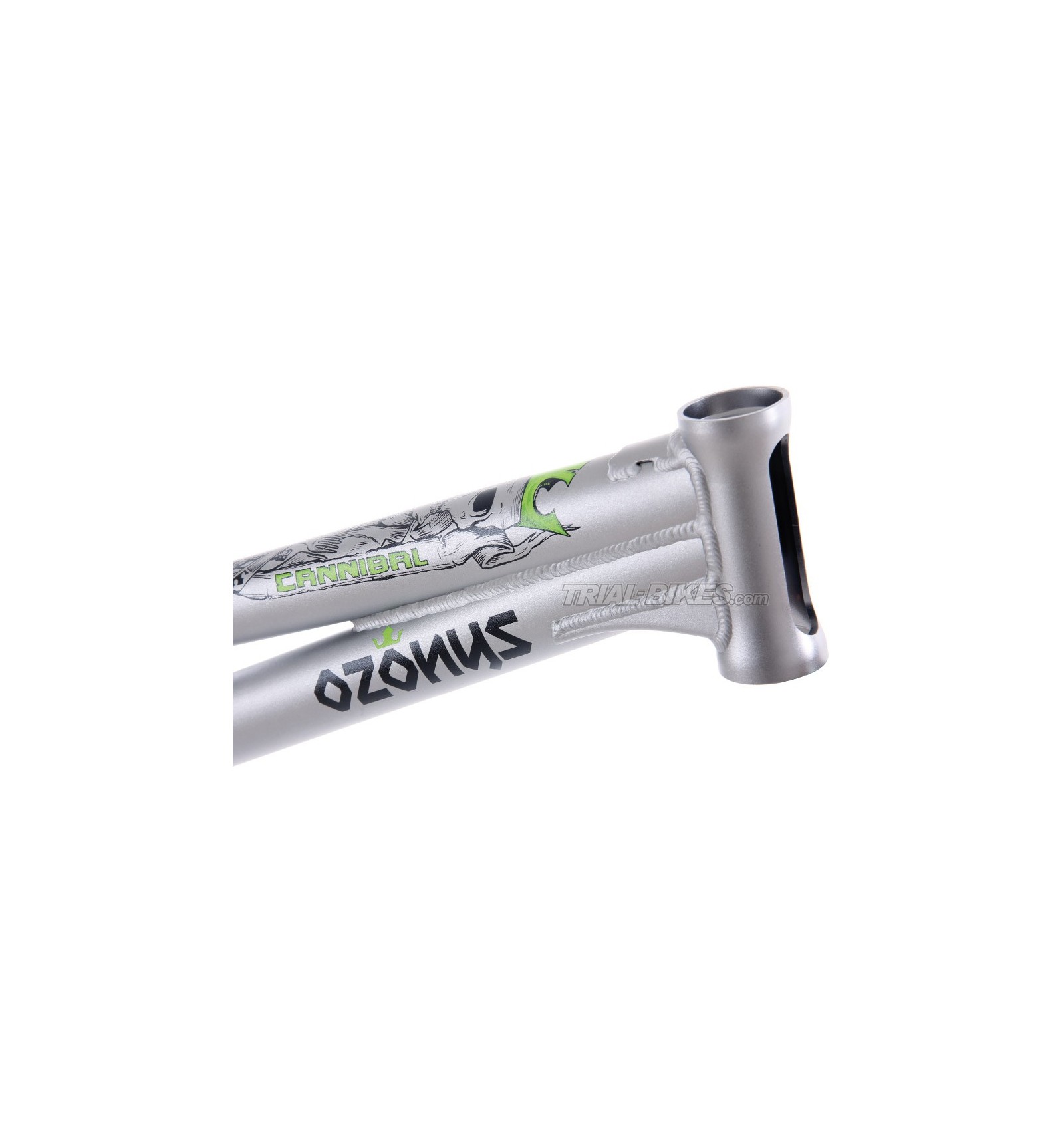

- 125mm, 1 1/8 head tube (44mm), with a big hole at the front which saves a good few grams.
- Machined gussets at the top and down tubes, to help strengthen the head tube area.
Geometry
- Space between dropouts: 135mm
- Bottom bracket shell: 68mm
- Head tube: 125mm, 1 1/8" (44mm)
- Wheelbase: 1075mm
- Chainstay Length: 378mm
- BB Rise: 40mm
- Head Angle: 71,5º
Finishes
- Matt anodised grey.
- Black and green Ozonys graphics.
Weight
- 1640g
Additional information
This frame comes with 1 year warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com
| WEIGHT | 1.640 |
| TYPE OF HEADSET | Standard 1 1/8" |
