Reduced price! Ozonys Curve Hyd v5 2014 24'' Frame Expand

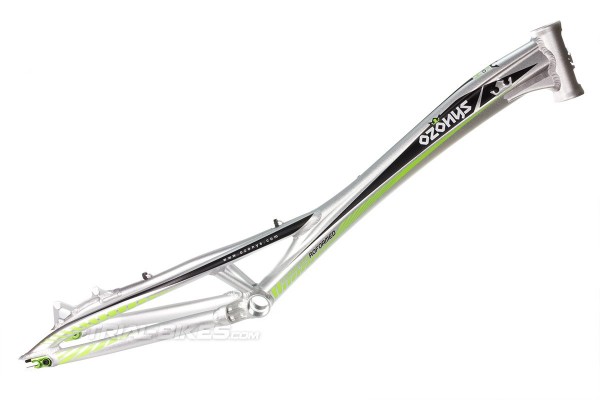

Ozonys Curve Hyd v5 2014 24'' Frame

OZONYS OZONYS

New

Description and materials

More details

This product is no longer in stock

  • Post Mount disc
  • HS

270,25€

570,25€

-300,00€

Versión .
 HS

 Post Mount disc

Ask a question

Description and materials

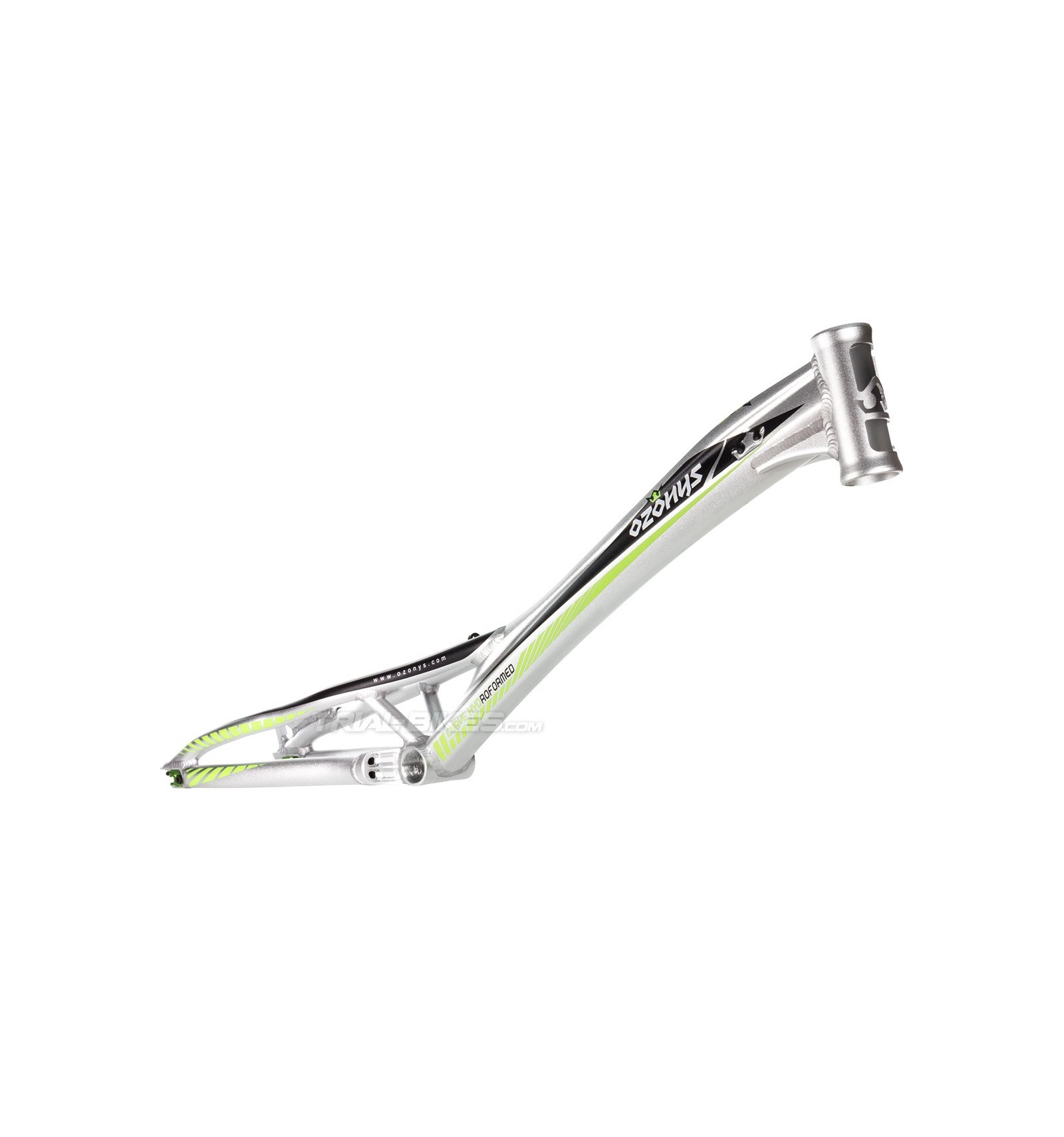

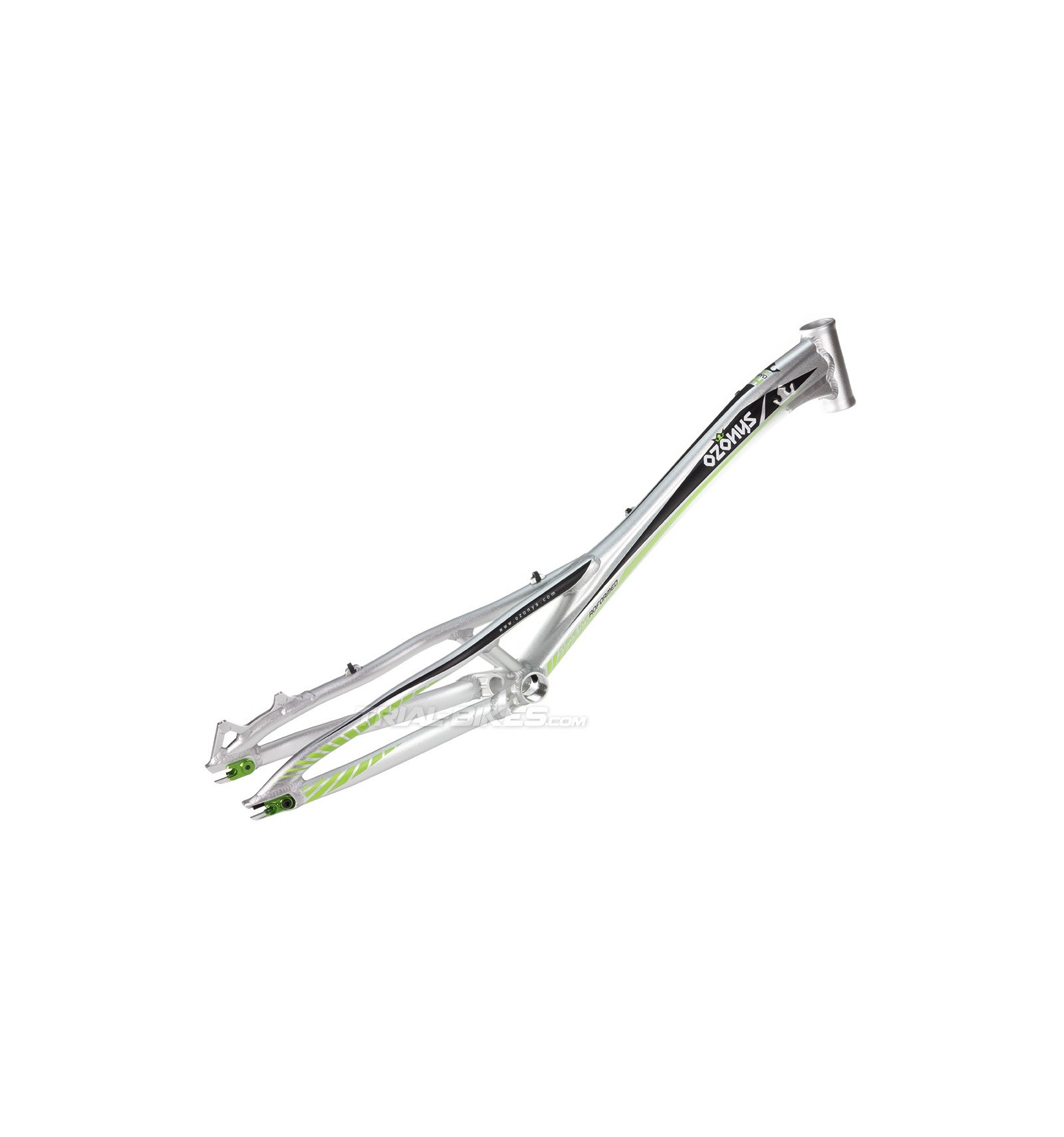

- New Ozonys Curve HYD v5 2014 24” frame, a step forward in the Curve frames evolution.
- This v5 version follows the lines of the v4 HYD frame, which successfully introduced the hydro forming technique, improving overall strength and stiffness of the frame.
- Made from high quality 6061-T6 aluminium.
- This frame keeps the unique Ozonys Curve design, but now with smaller-curvature tubes thanks to the hydro forming technique, which helps improve strength and stiffness while saving weight since less tube length is needed.

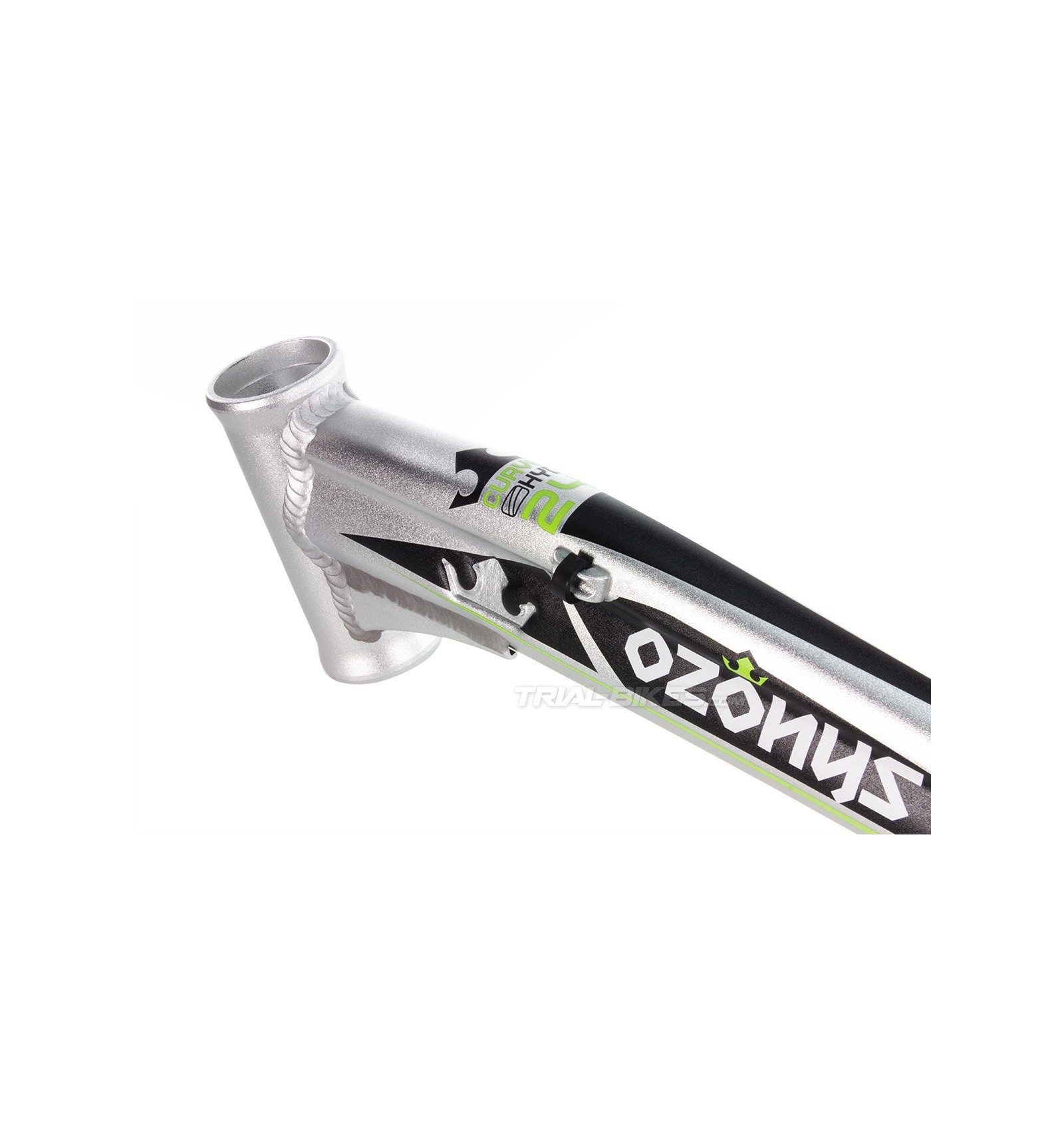

- The head tube has reinforcement gussets at the top and down tube joints, to ensure maximum strength.

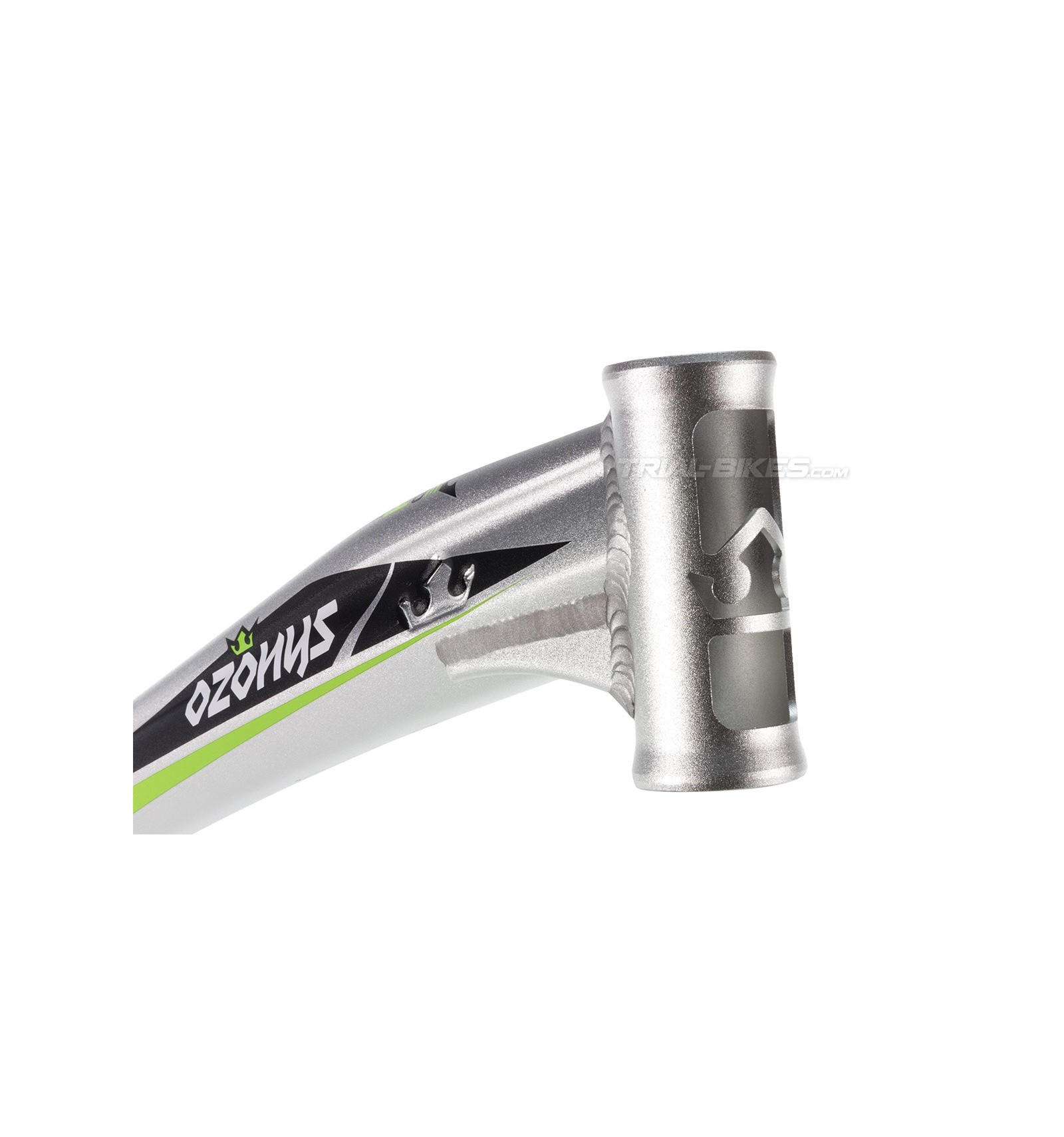

- 125mm, 1 1/8 CNC’d  head tube, designed to use an integrated headset.
- Designed to use with 135mm rear hubs.

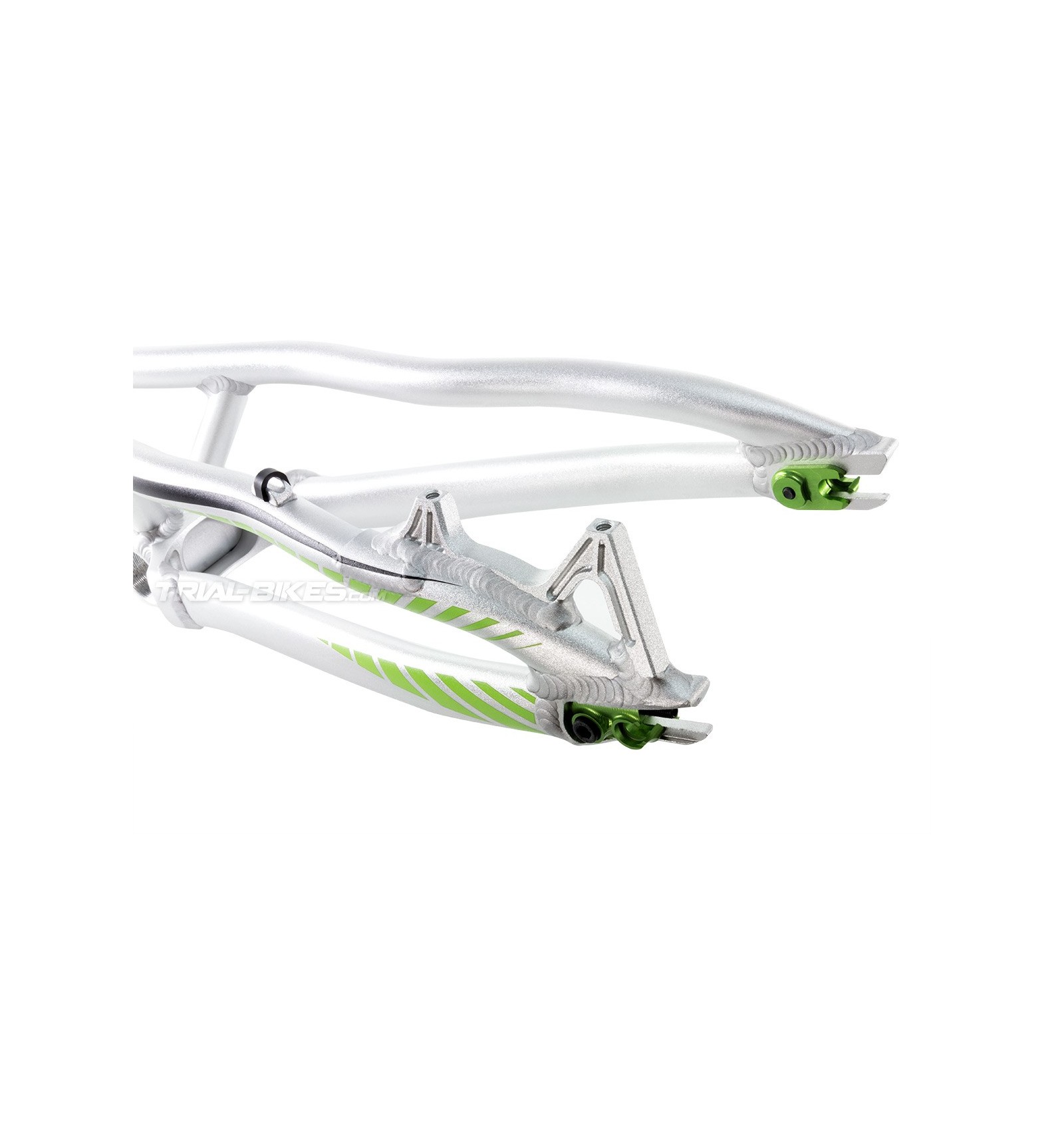

- An important novelty sees the frame now featuring integrated chain tensioner, so snail cams are no longer needed.
- To tension the chain, once the axle bolts are loose, undo the M6 bolt a bit. Now you can adjust the chain tension by using the M5 rear bolt. Afterwards, tighten the M6 bolt and the axle bolt to keep everything in place.
- Twin seat tubes design, creating a triangular-shaped structure over the bottom bracket, achieving the stiffest tube arrangement possible.
- These tubes join the main tube with a gusset to ensure everything is kept in place.
- Contoured seat and chainstays to guarantee more than enough clearance.
- Anodized silver finish, with Ozonys Curve v5 black/green/white graphics.

Versions
- Two versions available: for 180mm Post Mount disc brakes or with 4-bolt mounts for rim brakes.
- The 180mm Post Mount disc version features a CNC mechanized disc mount, with a large gusset to reinforce this hugely important area.

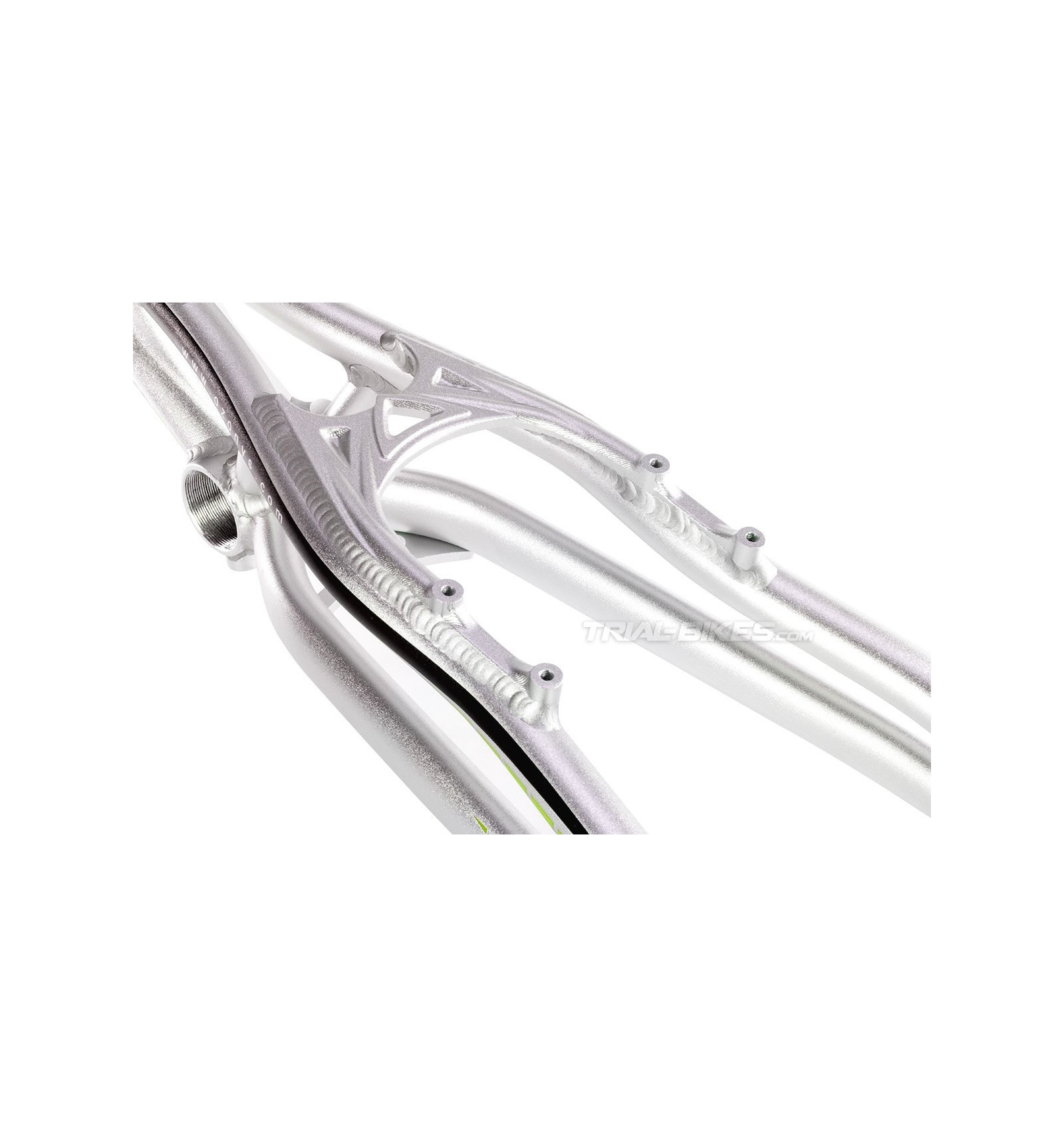

- The 4-bolt mount rim brake version features a 100mm, CNC mechanized, built-in brake booster which improves stiffness and strength considerably, thus improving braking performance.

Geometry (measured with a 400mm x 35mm fork)
- Space between dropouts: 135mm
- Bottom bracket shell: 68mm
- Head tube: 125mm, 1 1/8’’

- Wheelbase: 1055mm
- Chain stay length: 369mm
- BB Rise: +60mm
- Head Angle: 71.5º

Finishes
- Anodized silver finish
- Ozonys Curve v5 black/green/white graphics

Weight
- 1.515kg (disc version) and 1.599kg (4-bolt version), including chain tensioners

Additional information
This frame comes with a 1 year  warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com


WEIGHT1.515
BRAKE MOUNTSHS
BRAKE MOUNTSPost Mount Disc
TYPE OF HEADSETStandard 1 1/8"
es
Este cuadro versus el Echo mark IV? En resistencia y durabilidad?
