Racing Line Nano28 2016 Rim Brake Expand

Racing Line Nano28 2016 Rim Brake



Description and materials

More details

This product is no longer in stock


Color .
Ask a question

Description and materials
- New edition of the popular Racing Line Nano28# rim brake.
- This is a new version that solves the problems of the previous edition, with a completely re-designed lever body (which allows for up to 40g weight saving!) and new, higher quality O-rings as main updates.
- Being the Nano28# version, it features a smaller (13mm diameter) piston than most brakes, which helps achieve up to 20% increased braking power, so it’s ideal for the front brake.
- High quality construction from CNC machined 6061-T6 aluminium alloy, which provides a great balance between low weight, stiffness and strength.
- Each side of the lever body has a machined recess with a 3K carbon fibre inlay, that helps save unnecessary weight.
- Now, the brake hose port on the lever is orientated parallel to the handlebar, so the hose is more protected from getting stuck with obstacles.
- All O-rings have been replaced by some higher quality ones, made in Italy, to ensure optimum sealing and durability.
- Flip-flop design means it can be used as a right hand or left hand brake (features logos on both sides).
- 4-finger lever blade (122mm long), now stiffer and more comfortable than before, which increases braking power by 10% when compared to standard lever blades.
- The handlebar clamp now requires just one bolt, which helps avoid leg damage when riding and also allows you to remove the brake without needing to pull out the grips.
- The lever reach can be adjusted thanks to a bolt located at the front of the lever blade, using an Allen key.
- 13mm diameter piston (with 4 O-rings), TPA pin and adjuster are all made from high quality CNC 6061-T6 aluminium alloy.
- The bleeding ports on the lever and cylinder have also been updated, and now feature a nylon washer to guarantee a better sealing.
- 1250mm long main hose, easy to shorten without having to re-bleed the system. If you want us to shorten your hose to an specific length just let us know in the comments section (the order might be delayed 24/48 hours).

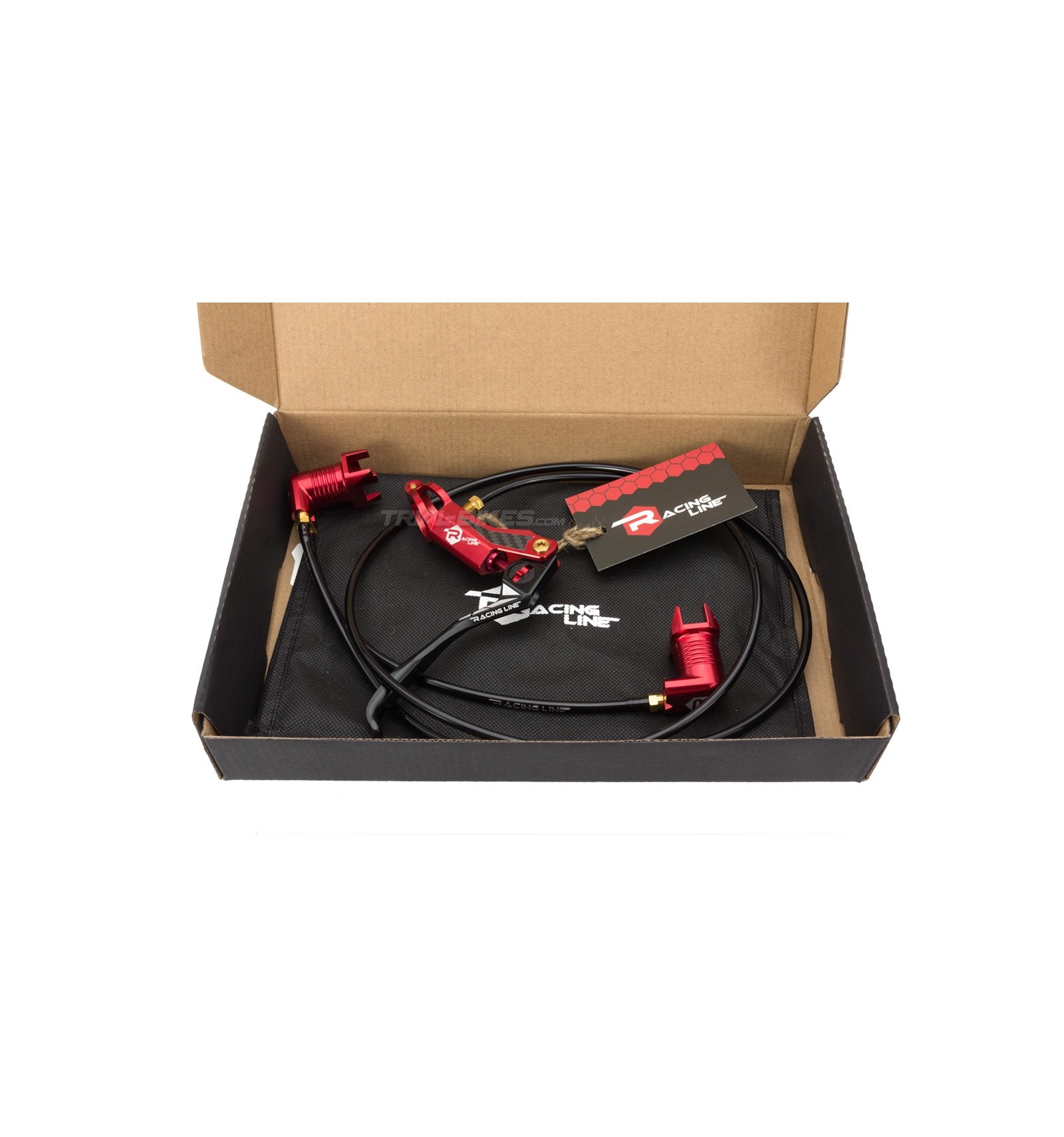

- The brake comes fully bled with mineral oil, packed in a handy fabric bag (brake pads not included).
- Available in red or black.
- Sold individually.

- Two options available:

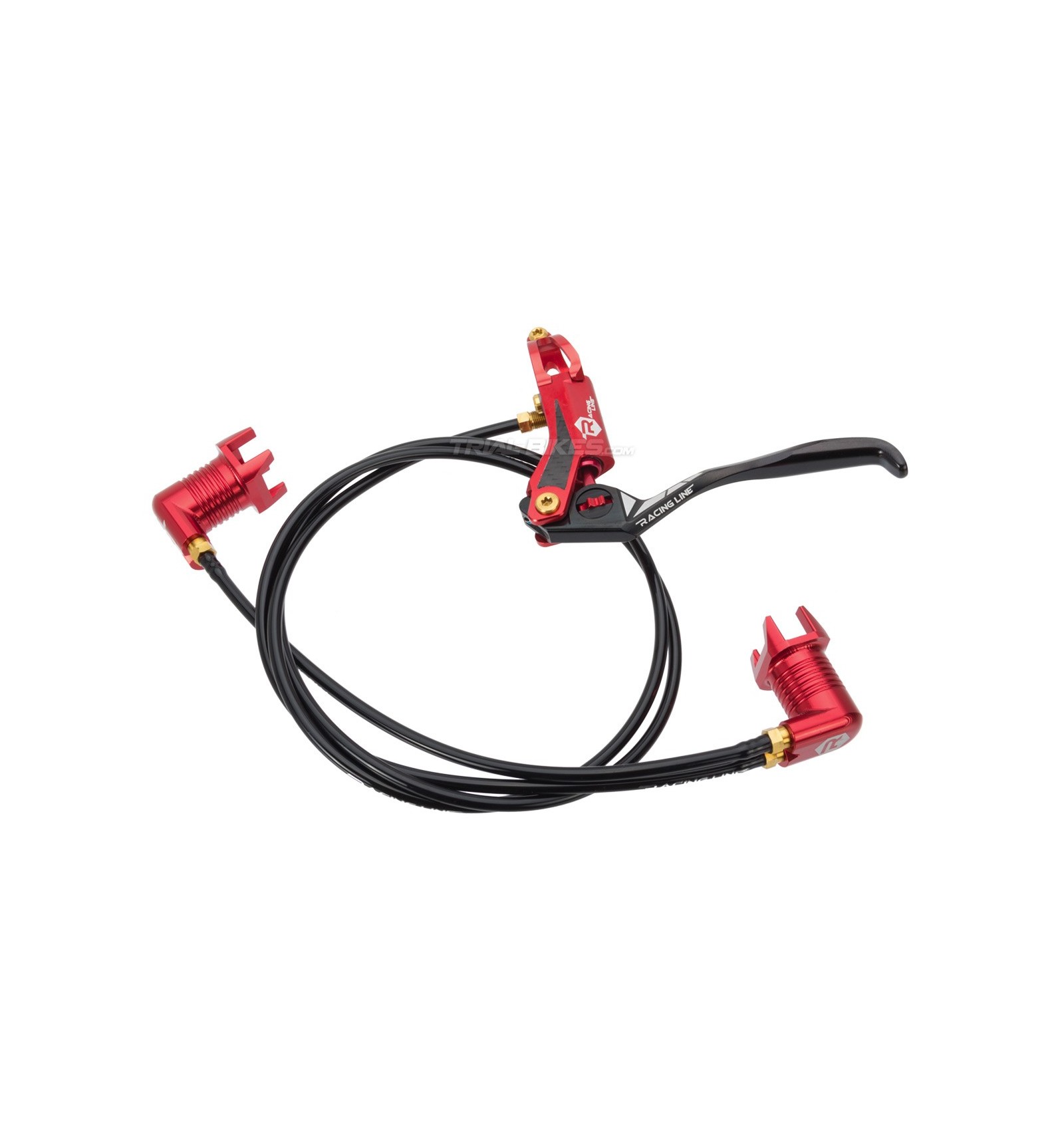

         • Anodized red lever and cylinders, anodized black lever blade and gold Ti fittings and hardware.
         • Anodized black lever and cylinders, anodized black lever blade and gold Ti fittings and hardware.
- Both versions feature Racing Line graphics on the hoses and laser etched on the lever body and blade, in silver.

- Only 190g!

Additional Information
When bleeding the brake, it’s important not to use DOT brake oil. Mineral oil must be used, and it’s highly recommended to follow the steps provided by the manufacturer, as shown in this video:

WEIGHT 0.190
