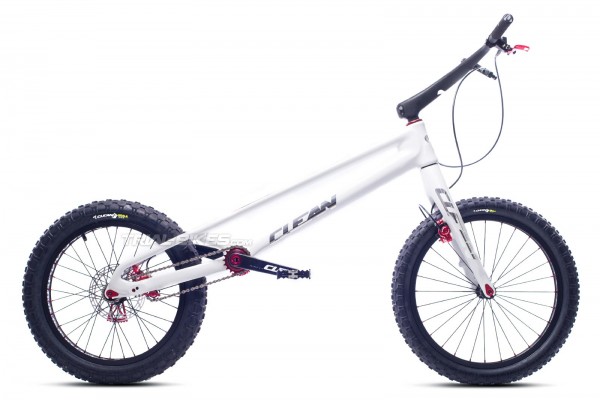

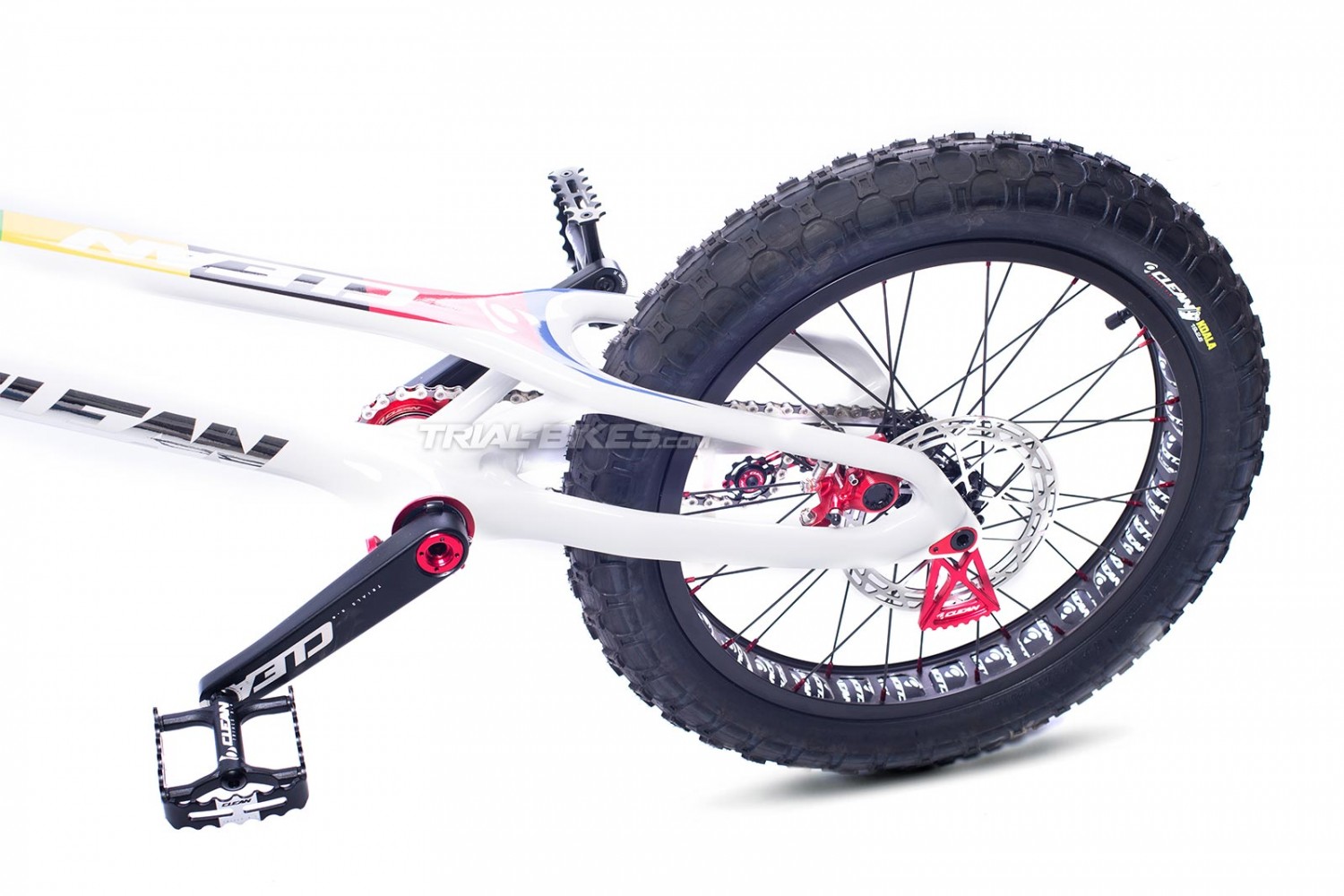

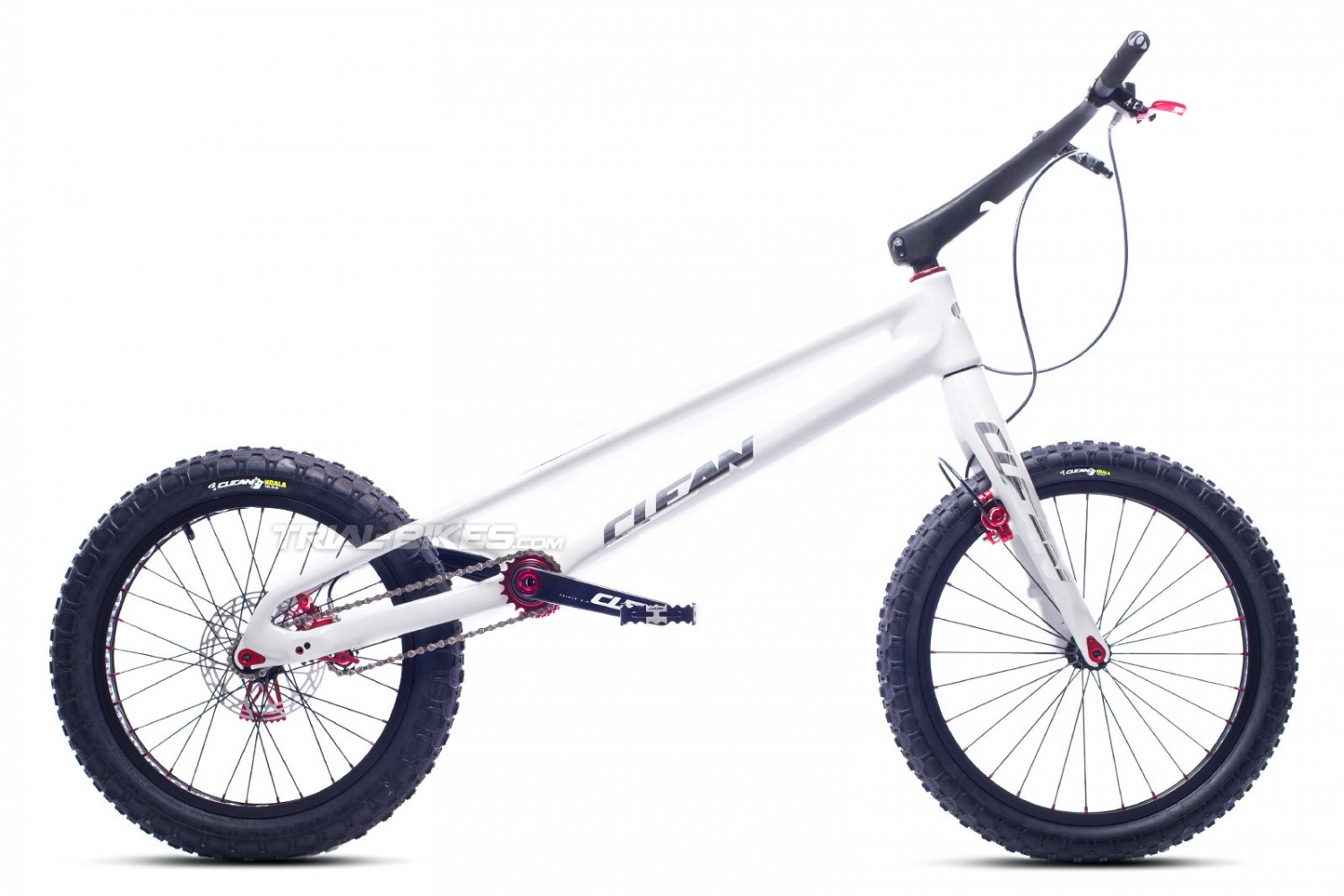

Clean K1 WC Borja Conejos Edition 20" Bike

Clean K1 WC Borja Conejos Edition 20" Bike

LIMITED EDITION 100 units production of this bike to celebrate Borja´s titles. It´s a copy of the bike he has used during the last seasson

Frame and fork
- Frame: Clean K1 Borja Conejos Edition20”, made of high-modulus carbon fibre, with Post Mount disc brake mounts and exchangeable dropout inserts

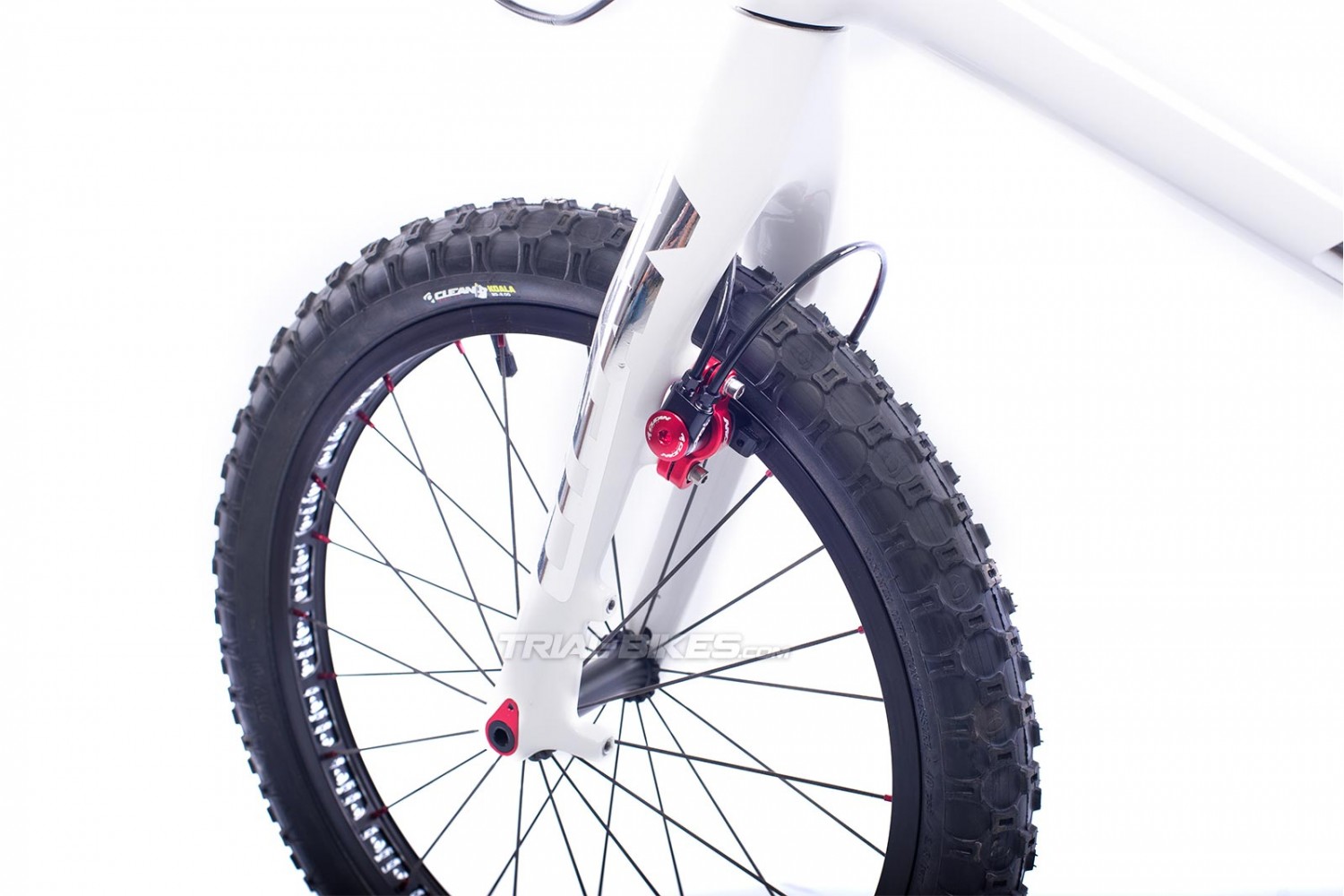

- Forks: Clean K1 Borja Conejos Edition 20” Carbon tapered 1 1/8” – 1.5”, made of carbon fibre, with Post Mount disc brake mounts, 4-bolt rim brake mounts and exchangeable dropout inserts

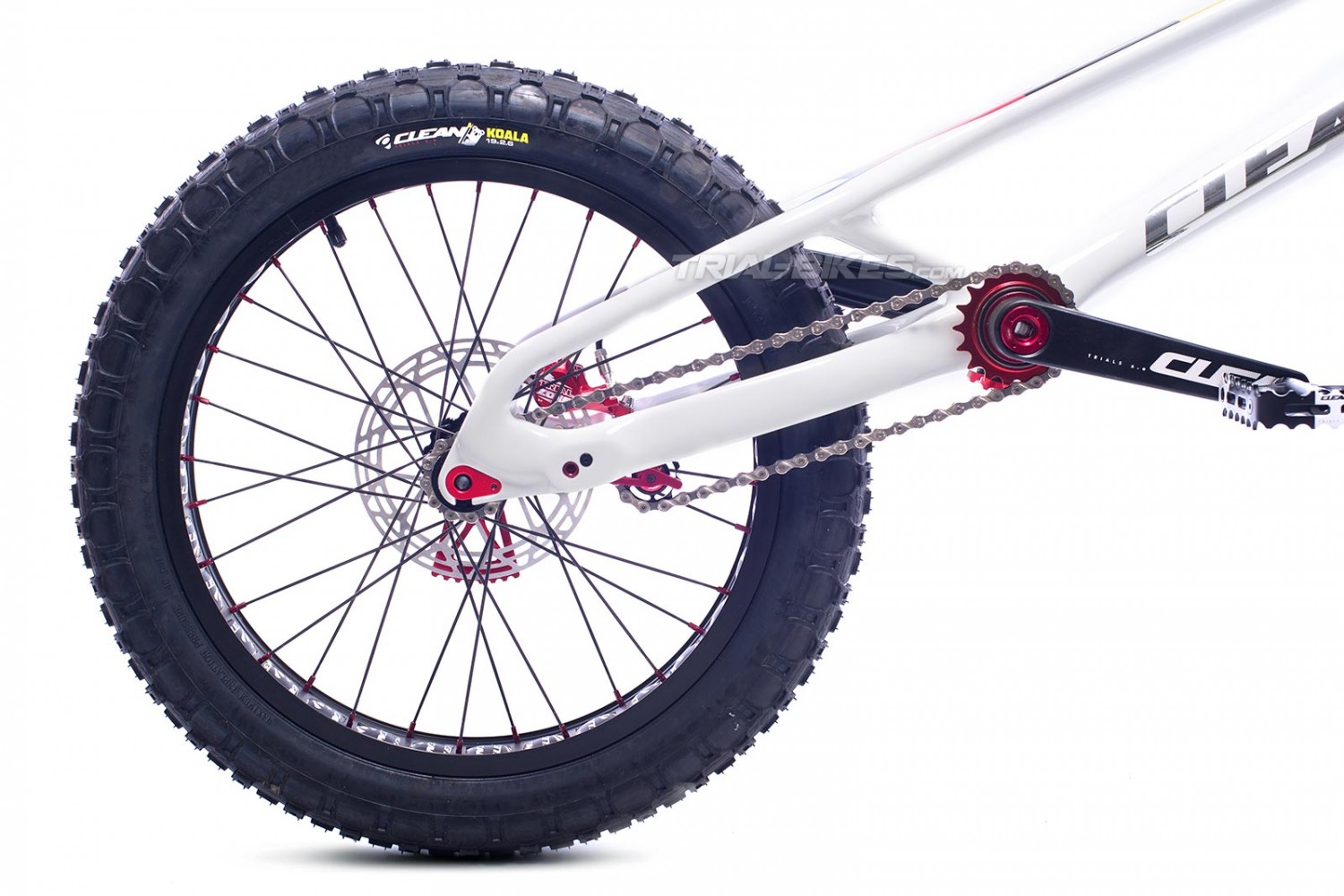

Wheels
- Front hub: Clean X3 28 spoke holes, 12mm through-axle, 104mm spacing
- Rear hub: Clean X3 32 spoke holes, 12mm through-axle and rotor mounts, 120mm spacing, Shimano HG splines.
- Chain tensioner: Clean X2 PRO integrated, with two 10T jockey wheels made of 7075 T6 aluminium
- Front rim: Clean V2 20", single wall, 34mm wide, 28 spoke holes, anodized black
- Rear rim: Clean Trials PRO 19”, single wall, 48mm wide, 32 spoke holes, anodized black
- Spokes: Aero Ultra light spokes, black
- Rim tape: Clean, black
- Front inner tube: Clean 20"
- Rear inner tube: Clean 20"
- Front tyre: Clean Koala 20” x 2.00”
- Rear tyre: Clean Koala 19” x 2.60”

Brakes
- Front brake: Hope Tech 4 Trial Zone or Clean HS rim brake (depending on brakes choice)
- Rear brake: Hope Tech 4 Trial Zone
- Rotors: Clean RS, 160mm
- Disc protector: Clean
- Rim brake pads: Magura HS black
- Brake clamps: Clean X2 Washerless

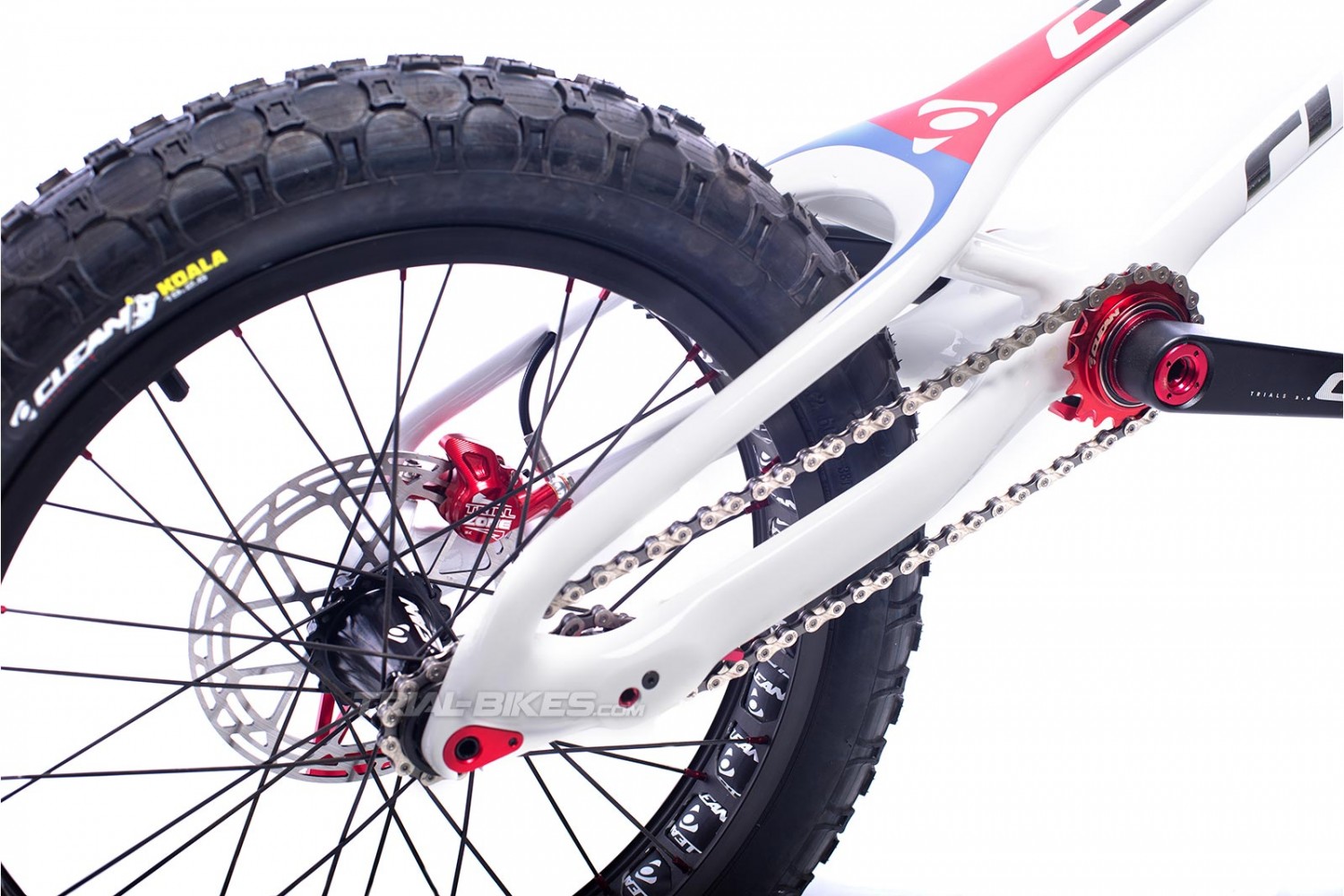

Drivetrain
- Crankset: New Clean X2 3-piece set, with Press Fit BB30 30mm diameter BB axle, CNC machined, with a new adjustment system. 160mm long cranks, for Shimano HG-splined freewheel, available in black with Clean silver graphics
- Freewheel: Clean X2 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, red
- Chain: KMC X9, silver
- Rear sprocket: Clean 12T splined, made from 7075-T6 aluminium alloy, anodized black
- Pedals: Clean single cage, 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red

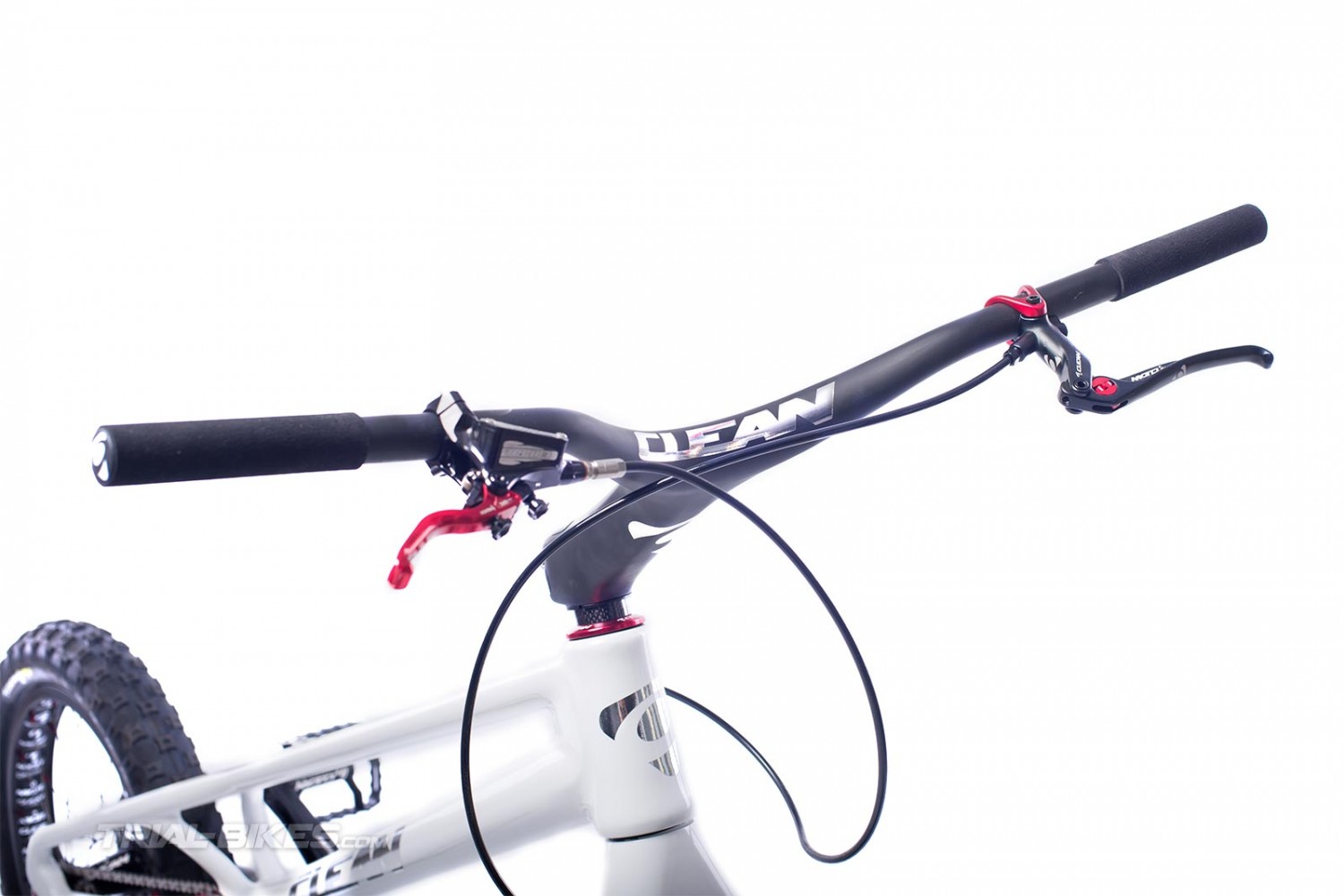

Steering
- Headset: Clean Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Grips: Extra-thin Clean foam, black
- Stem: Clean Trials Pro, 145mm x 24º or Combo V2 carbon fibre (depending on version choice) .
- Handlebar: Clean X3 103mm carbon fibre, silver or Combo V2 carbon fibre (depending on version choice) .

Geometry

(1) Wheelbase: 1005 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +87 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 610 mm
-----------------------------------------------
(6) Reach: 469 mm
-----------------------------------------------
(7) Stack: 373 mm
-----------------------------------------------

Weight
- 7.240Kg (Disc version)

Additional information:
The list of components may change. Any changes on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.
Some pictures may not match the item described, so please read the description carefully.
Dispatch time for this bike might be delayed up to 5 days: it is partially set up at our workshop, so the customer will only have to install the front wheel and setup the headset.
