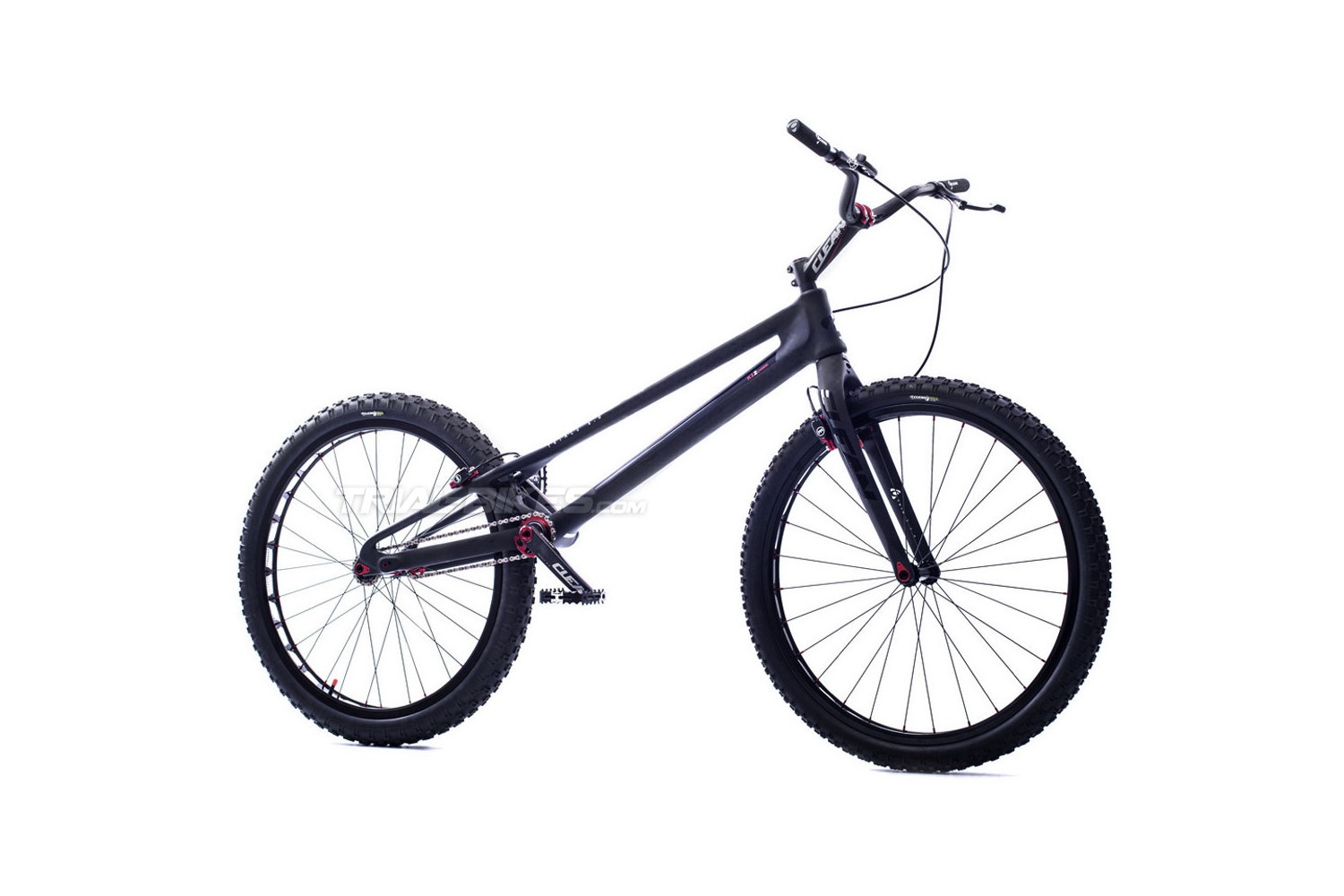

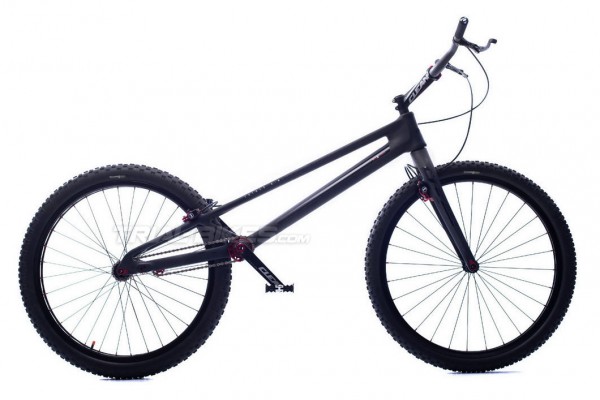

Clean K1.2 26" Carbon Bike

The Clean K1.2 26 bike is the new version of the revolutionary Clean K1 26 bike, now featuring traditional upwards-facing 4-bolt rim brake mounts to improve braking performance!
Moreover, it comes with Clean X3 wheels, which include 12mm through-axles and dropouts inserts for the frame and fork, which allow the use of traditional axle wheels. All this with a new 12K carbon finish!

Frame and fork
- Frame: Clean K1.2 26”, made of high-modulus carbon fibre, tapered 1 1/8” – 1.5”, with 4-bolt rim brake mounts and 12K carbon finish
- Forks: Clean K1.2 26”, made of high-modulus carbon fibre, tapered 1 1/8” – 1.5”, with 4-bolt rim brake mounts and 12K carbon finish

Wheels
- Front hub: Clean X3, 12mm through-axle, 28 spoke holes, without rotor mounts, 104mm spacing, anodized black
- Rear hub: Clean X3, 12mm through-axle, 32 spoke holes, without rotor mounts, 120mm spacing, anodized black
- Chain tensioner: Clean X2 integrated, with two 10T aluminium jockey wheels
- Front rim: Clean X2 High Profile 26”, single wall, 31mm wide, 28 spoke holes, anodized black
- Rear rim: Clean X2 High Profile 26”, single wall, 49mm wide, 32 spoke holes, anodized black
- Spokes: Stainless lightweight spokes, black
- Rim tape: Clean
- Front inner tube: Maxxis Extra Light
- Rear inner tube: Maxxis Extra Light
- Front tyre: Clean Koala, 26" x 2.0"
- Rear tyre: Clean Koala, 26" x 2.5"

Brakes

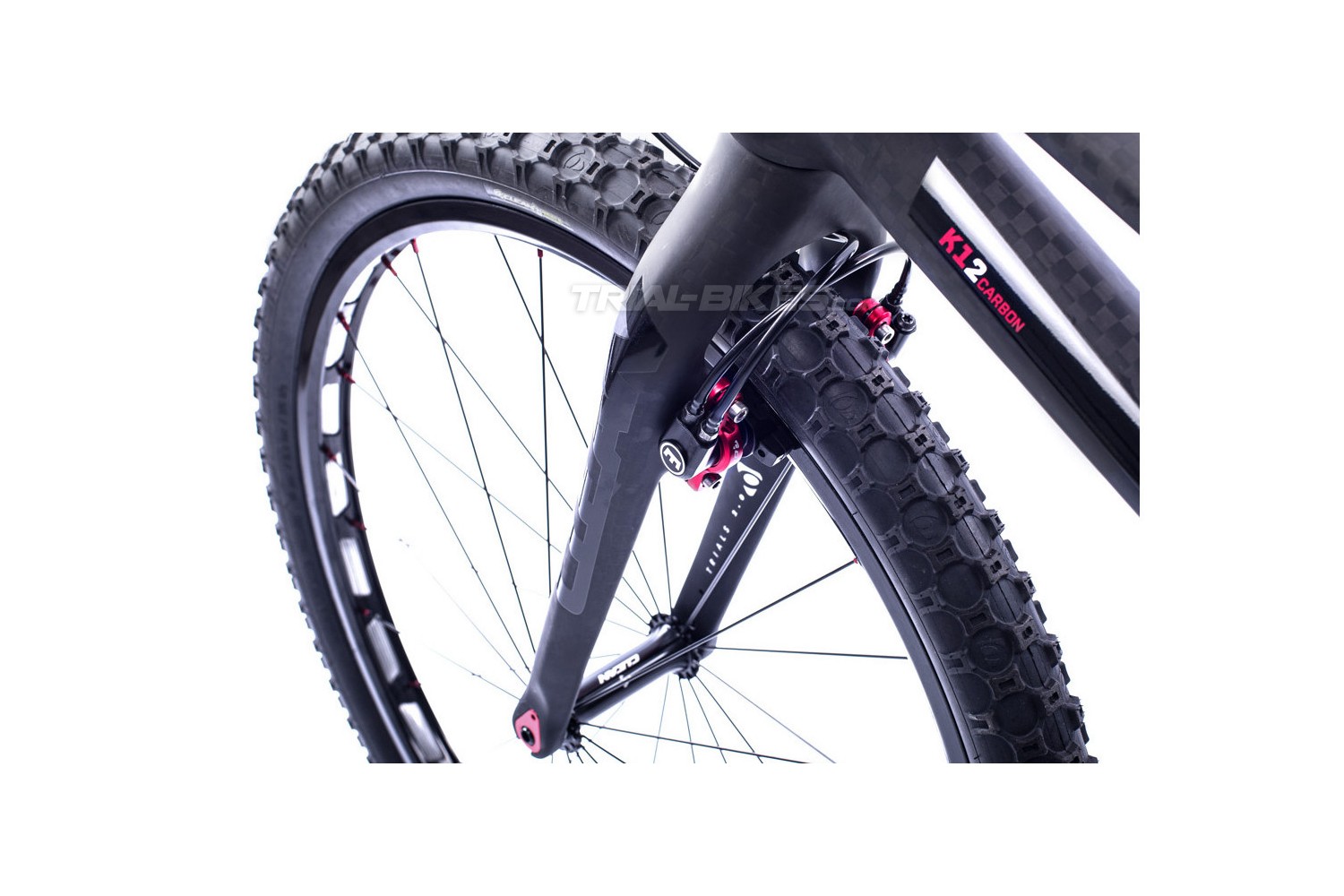

- Front brake: Trialtech Sport Rim Brake Lever, HS33 calipers
- Rear brake: Trialtech Sport Rim Brake Lever, HS33 calipers

- Rim brake pads: Clean X2
- Brake clamps: Clean X2 Washerless

Drivetrain
- Crankset: Clean X2 3-piece set, with Press Fit BB30 30mm diameter BB axle, CNC machine, new adjustment system, 170mm long cranks, for Cassette Shimano HG-type freewheel
- Freewheel: Clean X2 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, red
- Chain: KMC X9, silver
- Rear sprocket: Clean 15T Shimano HG splined, made of 7075-T6 aluminium alloy, anodized black
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashring: Clean Ring, anodized red

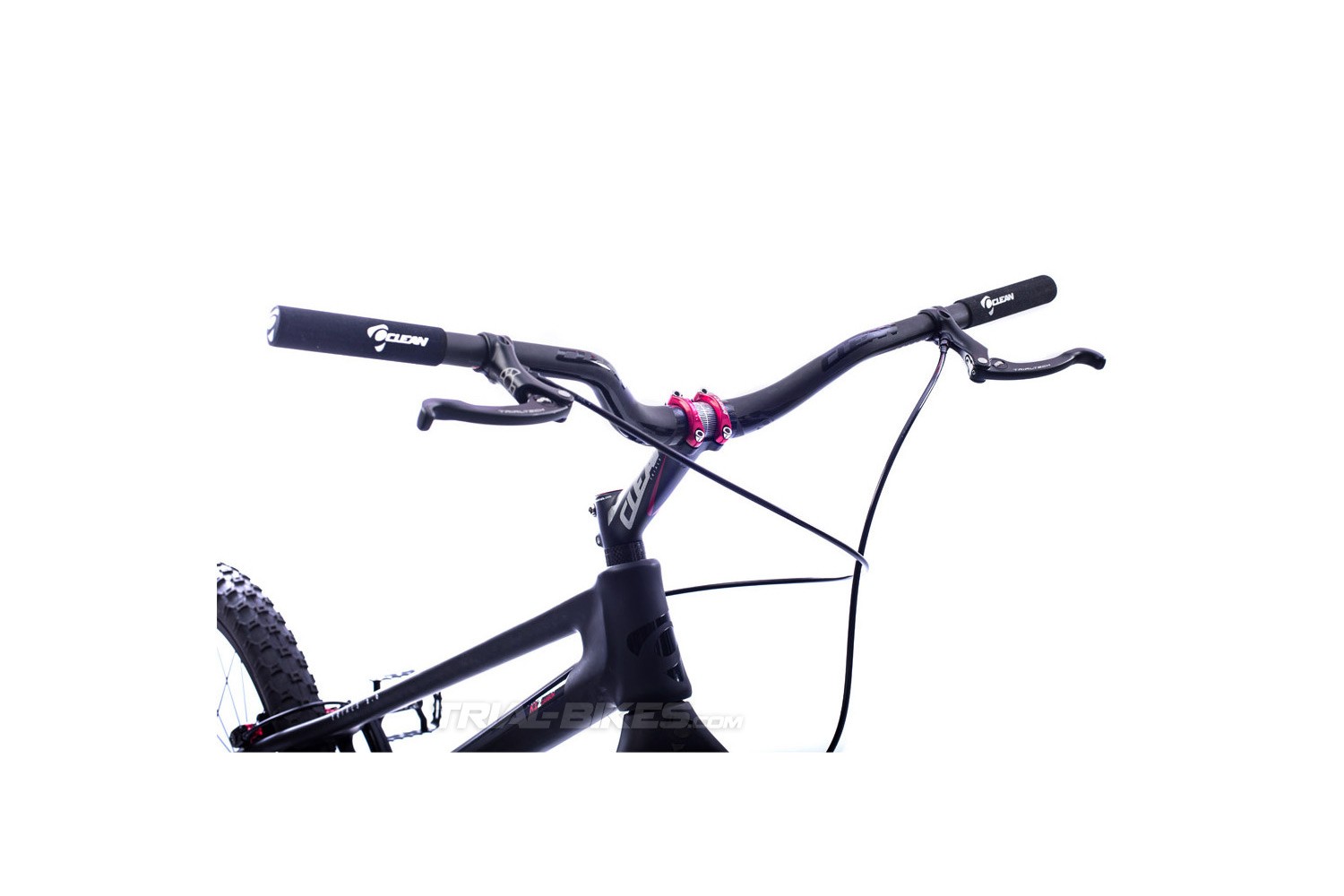

Steering
- Headset: Clean Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Stem: Clean 145mm x 25°, 31.8mm Oversized handlebar diameter
- Grips: Clean foam, black
- Handlebar: Clean X2 107mm carbon fibre, 730mm long, 31.8mm Oversized handlebar diameter, 12K carbon finish

Geometry:
- Wheelbase: 1090mm
- Chainstay length: 380mm
- Bottom bracket rise: +67mm
- Head angle: 72º

Weight
- 8.05Kg

Additional information:
The list of components may change. Any change on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com.
