Crewkerz LAB 20" 920mm Disc Bike

Crewkerz LAB 20" 920mm Disc Bike

The new Crewkerz LAB 20” 920mm is the ideal bike for a smooth transition between kids and adults bikes! Its 920mm length works perfectly during growth years (120-140cm / 3.9-4.6ft), and it’s also built with hand-picked components with Clean’s quality guarantee and the best value for money!

Frame and fork
- Frame: Crewkerz LAB 20” 920mm, with disc brake mounts.
- Forks: Crewkerz LAB 20”, made of CroMoly, with disc brake mounts.

Wheels
- Front hub: 100mm 28H.
- Rear hub: 116mm 28H, 10mm screw-on axle, 1.37”x24T.
- Chain tensioner: Crewkerz 7075-T6 snail cams.
- Front rim: Crewkerz 20”, 30mm wide, single-wall design, 28H.
- Rear rim: Crewkerz 20”, 32mm special width for bike trials, single-wall design, 28H.
- Spokes: Steel 2mm.
- Spoke nipples: Steel.
- Inner tubes: Crewkerz 20”.
- Tyres: Innova trial 20” x 2.0”.

Brakes
- Brakes: Alhonga disc brakes, 80mm Alu, 2-finger levers.

Drivetrain
- Cranks: Crewkerz square taper crankset, 152mm long, for screw-on freewheel.
- Freewheel: Crewkerz 30.6, 30 engagement points, 6 pawls, 18 teeth.
- Chain: YBN s20 1/2'' x 3/32”.
- Rear sprocket: Crewkerz 14T screw-on.
- Pedals: Plastic pedals, standard 9/16” thread.
- Bottom bracket: Crewkerz JIS, CrMoly, sealed bearings, 124.5mm long

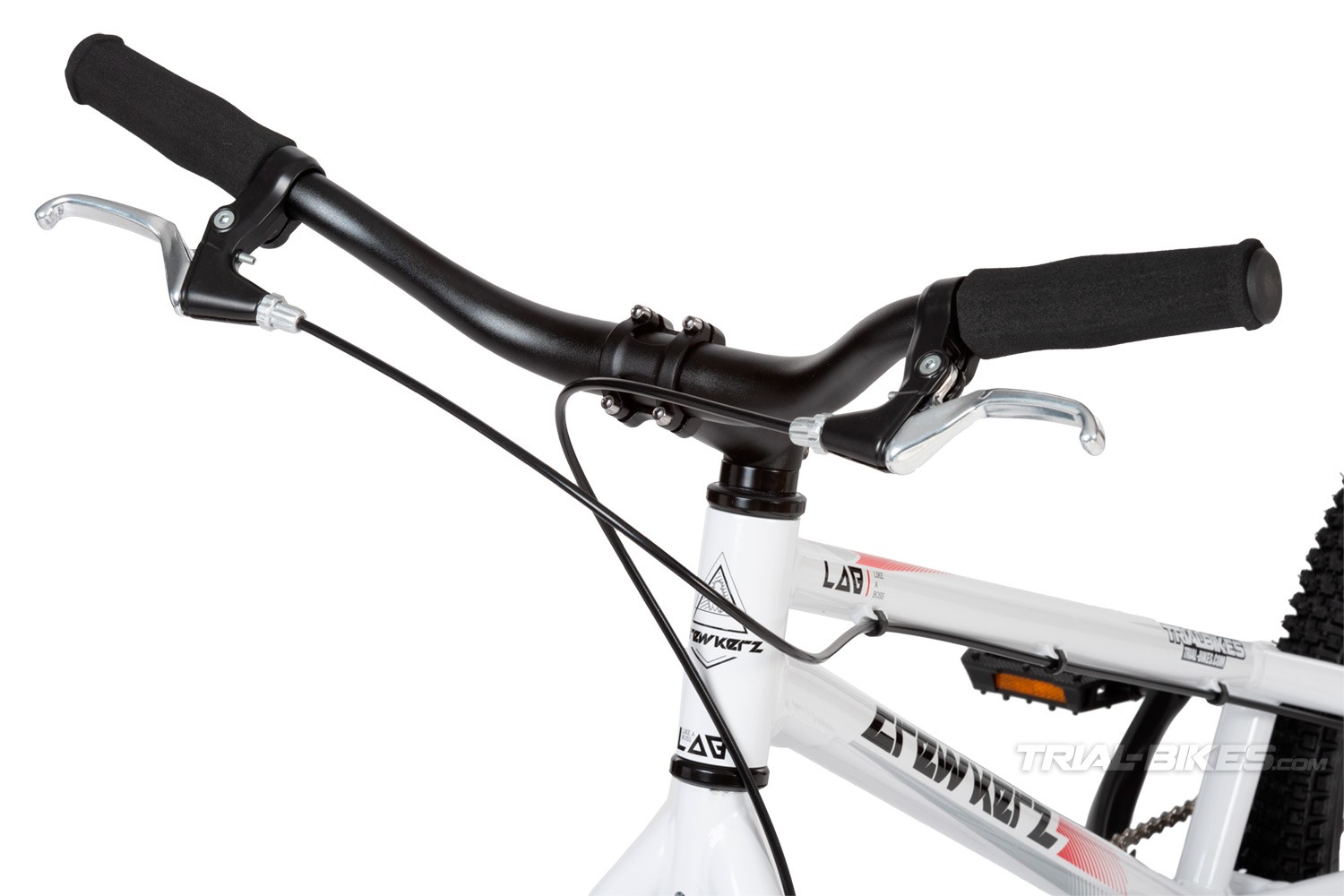

Steering
- Headset: Crewkerz external 1 1/8”.
- Stem: Crewkerz, 75mm x 25º.
- Grips: Crewkerz rubber grips.
- Handlebar: Crewkerz 7075-T6 aluminium, 105mm high-rise, 580mm long

Geometry
- Wheelbase: 920mm
- Chainstay length: 350mm
- Bottom bracket rise: +40mm
- Head angle: 71.5º

Colours
- White, with red and black Crewkerzs graphics.

Weight
- 9.66Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.

This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.

If you have any doubts, please contact to info@trial-bikes.com.
