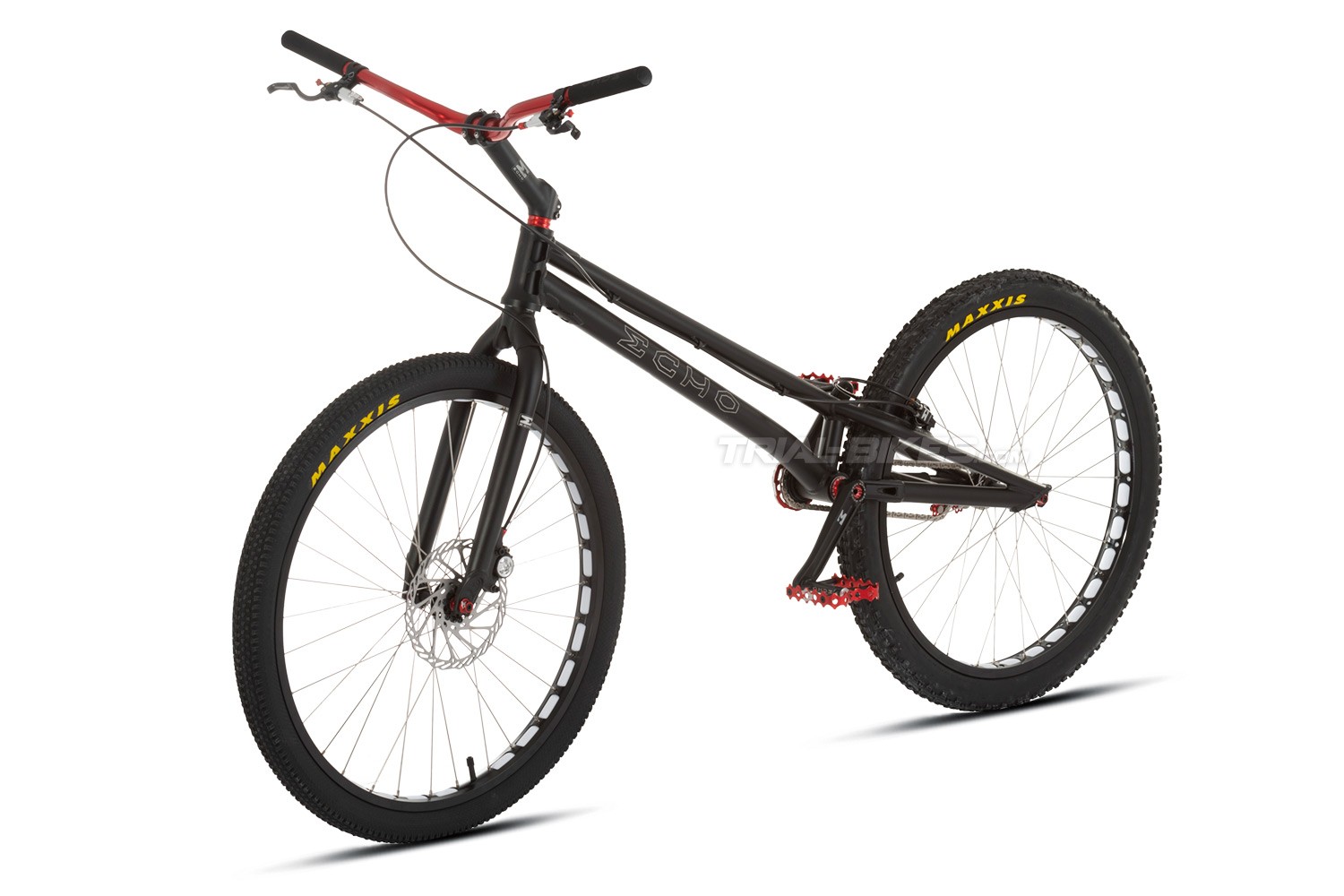

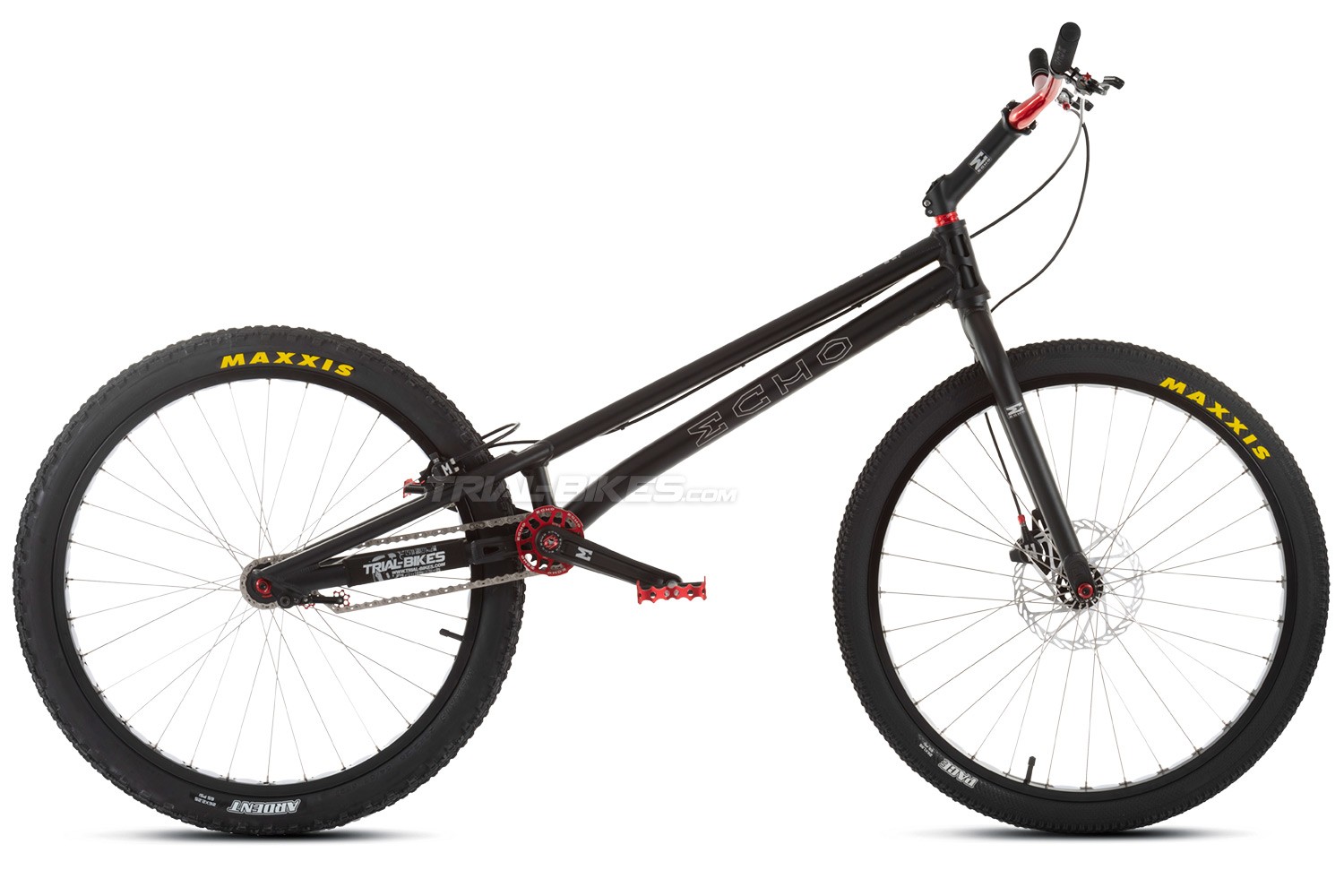

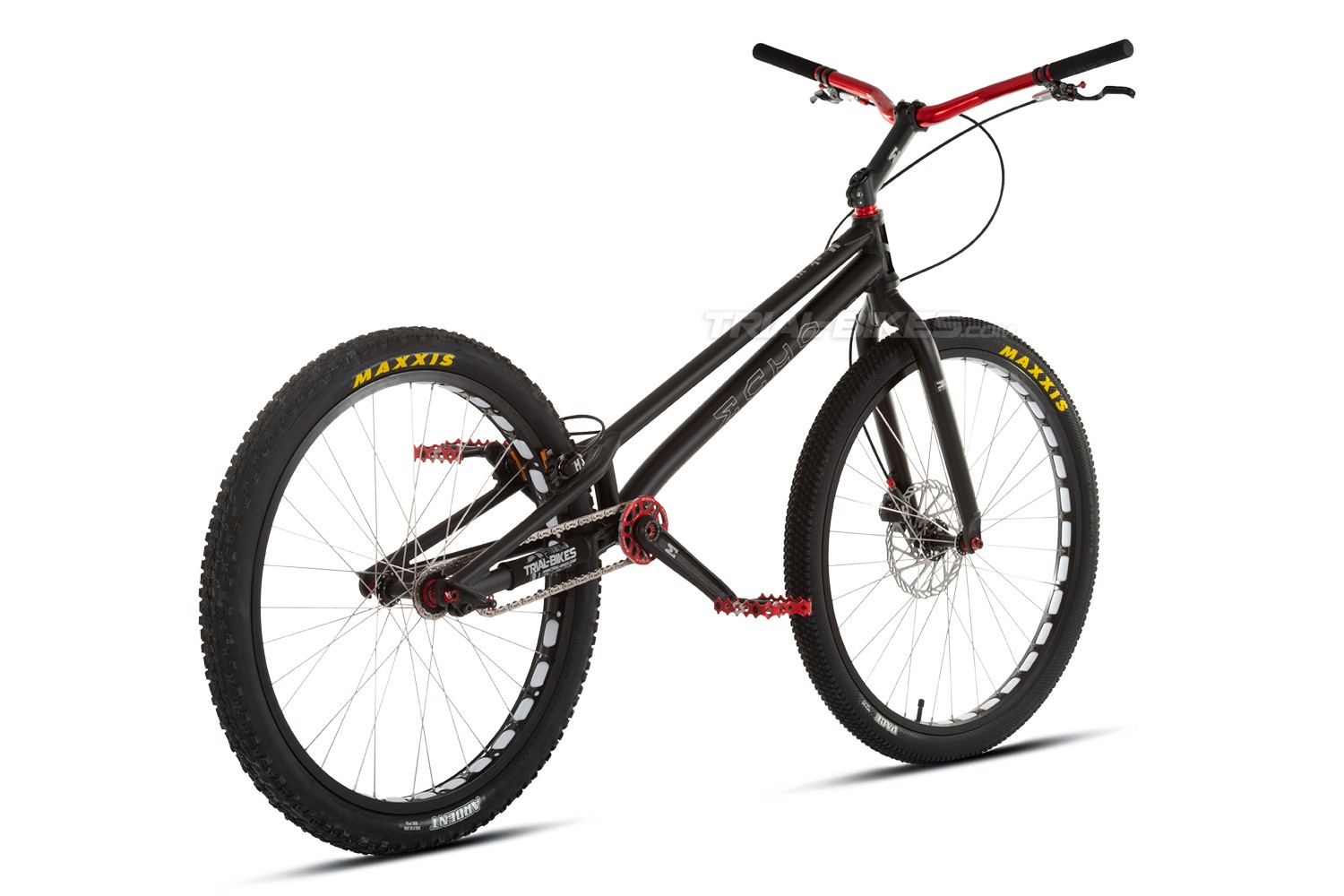

Echo Mk6 Plus 26" Bike

Echo Mk6 Plus 26" Bike

The new Echo Lite Mk6 Plus 26” bike delivers the best value for money of the market. Featuring a new tapered head tube, sprung tensioner, built-in CNC brake booster and reliable, lightweight parts. This is a versatile, affordable bike ideal for beginners as well as experienced riders.

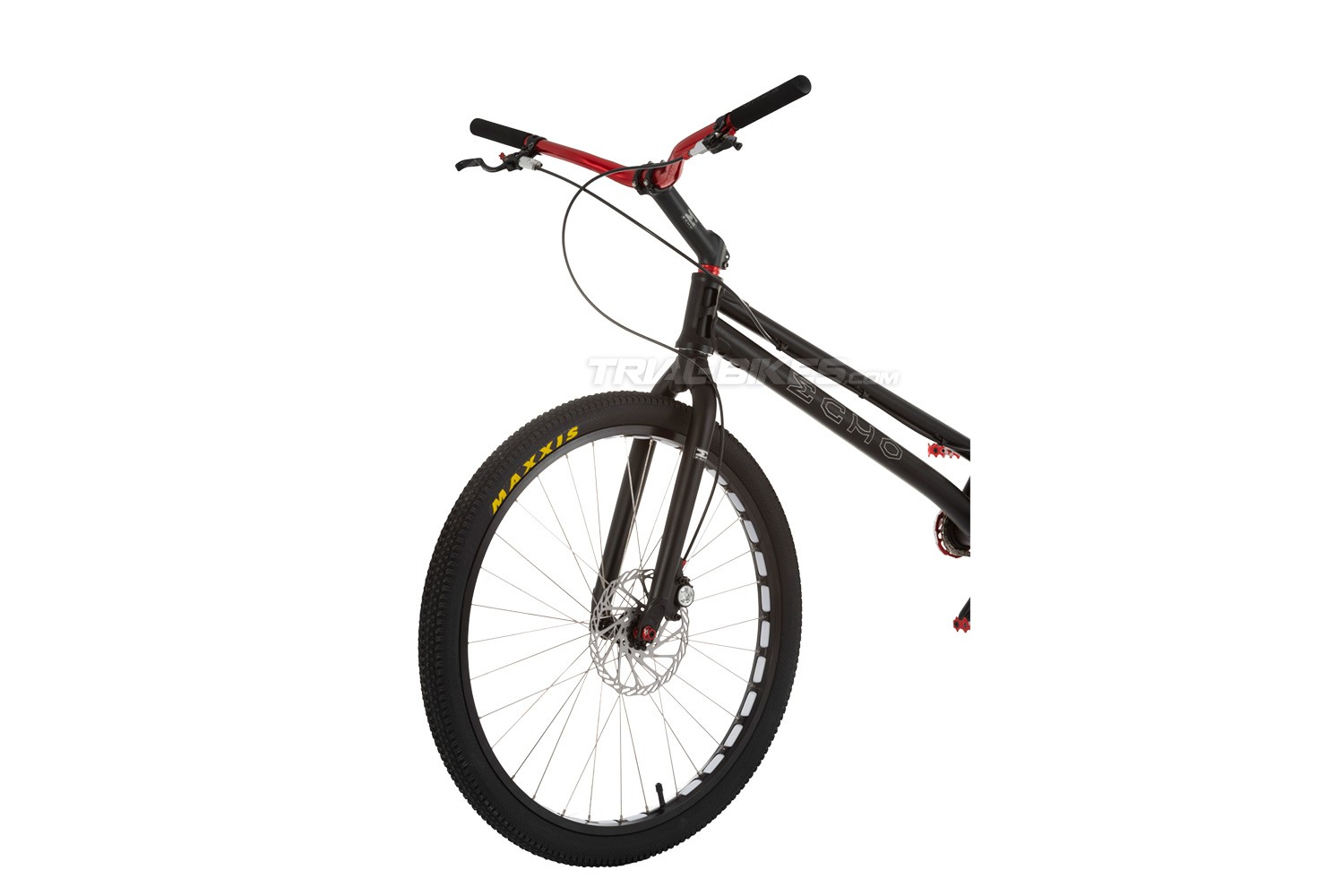

Frame and fork
- Frame: Echo Mk6 26”, aluminium alloy, with 4-bolt rim brake mounts and built-in CNC brake booster
- Forks: Echo Urban 26”, made of aluminium, with a 1 1/8”-1.5” tapered steerer tube and IS disc brake mounts

Wheels
- Front hub: Echo 32 spoke holes, with rotor mounts, 100mm spacing, anodized black
- Rear hub: Echo 32 spoke holes, 135mm spacing, anodized black
- Chain tensioner: Echo integrated
- Front rim: Echo SL 26”, single wall, 37mm wide, 32 spoke holes, anodized black
- Rear rim: Echo SL 26”, single wall, 45mm wide, 32 spoke holes, anodized black
- Spokes: Echo, silver
- Rim tape: Echo, white
- Front inner tube: Echo
- Rear inner tube: Echo
- Front tyre: Maxxis Pace 26”x1.95”
- Rear tyre: Maxxis Ardent 26”x2.35”

Brakes
- Front brake: Echo TR hydraulic disc brake
- Rear brake: Echo TR hydraulic rim brake
- Front brake rotor: Echo 180mm

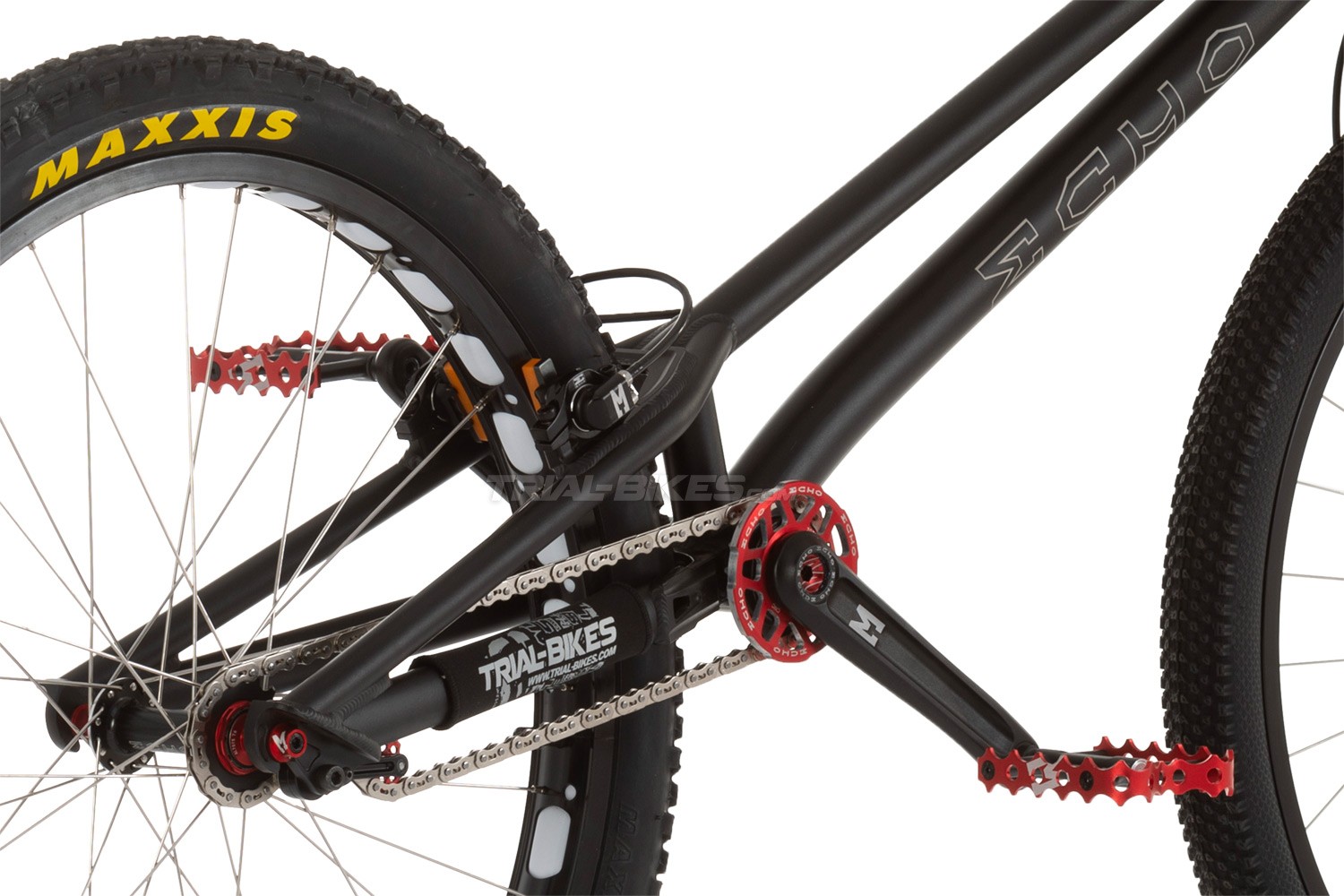

Drivetrain
- Cranks: Echo TR Splined, 170mm, ISIS, Echo splines, anodized black
- Bottom Bracket: Echo Spanish, for ISIS cranks
- Freewheel: Echo TR Splined, 108.9 18T, Echo splines, black
- Chain: Echo 1/8”, silver
- Rear sprocket: Echo 15T Splined, made of steel, Echo splines, black
- Pedals: Echo TR Curved, single-caged, anodized red
- Bashplate: Echo Urban 7075 bashring, anodized red

Steering
- Headset: Echo Integrated Tapered 1 1/8” - 1.5”, without cups, with sealed bearings
- Stem: Echo TR Forged, 150mm x 30º, 31.8mm Oversized handlebar diameter, anodized black with silver Echo graphics
- Grips: Echo foam, black
- Handlebar: Echo 7075-T6 High Rise, 740mm long, 31.8mm Oversized handlebar diameter, red finish with white Echo graphics

Geometry:
- Wheelbase: 1080mm
- Chainstay length: 380mm
- Bottom bracket rise: +65mm
- Head angle: 73º

Weight
- 8.90Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.

This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
