Reduced price! Ozonys Curve Hyd 20'' Bike Expand

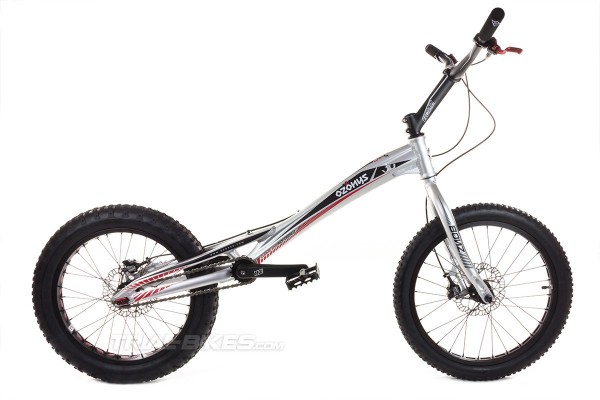

Ozonys Curve Hyd 20'' Bike

OZONYS OZONYS

537052

New

Frame and fork

More details

This product is no longer in stock

1 363,64€

1 809,92€

-446,28€

Ask a question

Frame and fork
- Frame: Ozonys Curve v5 20" Al6061 T6, anodized silver
- Forks: Bonz Pro Light 2014, Al7075, for rim brake or 160mm disc brake

Wheels
- Front hub: Bonz Pro Light, 28H, black
- Rear hub: BONZ Pro Light 32H 116mm, black
- Chain tensioner: BONZ Pro Light
- Front rim: BONZ Pro Light 20'' 32mm 28H
- Rear rim: BONZ Pro Light 19'' 47mm 32H
- Spokes: Bonz 2/1.6/2mm Inox, black
- Rim tape: Bonz, black
- Front inner tube: Maxxis
- Rear inner tube: Maxxis
- Front tyre: Monty Pro Race 20”
- Rear tyre: Monty Pro Race 19”

Brakes
- Front brake: Magura Hs33 2014 or Hope Trial Zone
- Rear brake: Magura Hs33 2014 or Hope Trial Zone
- Brake clamps (HS version): Magura
- Brake pads (HS version): Bonz Trial

Drivetrain
- Cranks: Bonz Expert 165mm (ISIS)
- Freewheel: Bonz Pro Light 18T 108.9
- Chain: Trial BONZ Pro Light
- Rear sprocket: Bonz Racing 12 teeth
- Pedals: Bonz Pro Light Simple Cage CNC, black
- Bottom bracket: BONZ Pro Light ISIS 128mm
- Bashring: Bonz Pro Light 18T bashring, black

Steering
- Headset: Bonz Pro light internal 1 1/8”, black
- Stem: Bonz Pro Light 175 mm / 35 ° / 31,8 mm, black
- Grips: Bonz foam, black
- Handlebar: Bonz Pro Light 720mm

Geometry:
- Wheelbase: 1010mm or 970mm
- Chainstay length: 350mm
- Bottom bracket rise: +80mm
- Head angle: 71,5º

Options available
- Three options available: HS33+HS33, HS33+disc, disc+disc, disc+HS33


Finishes
- Anodized silver finish
- White/red/black Ozonys Curve v5 graphics

Weight
- 7.8kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com.

WEIGHT 7.800
FRONT BRAKE Disc
REAR BRAKE Disc
