Ozonys Curve V9 20" Full Disc Bike Expand

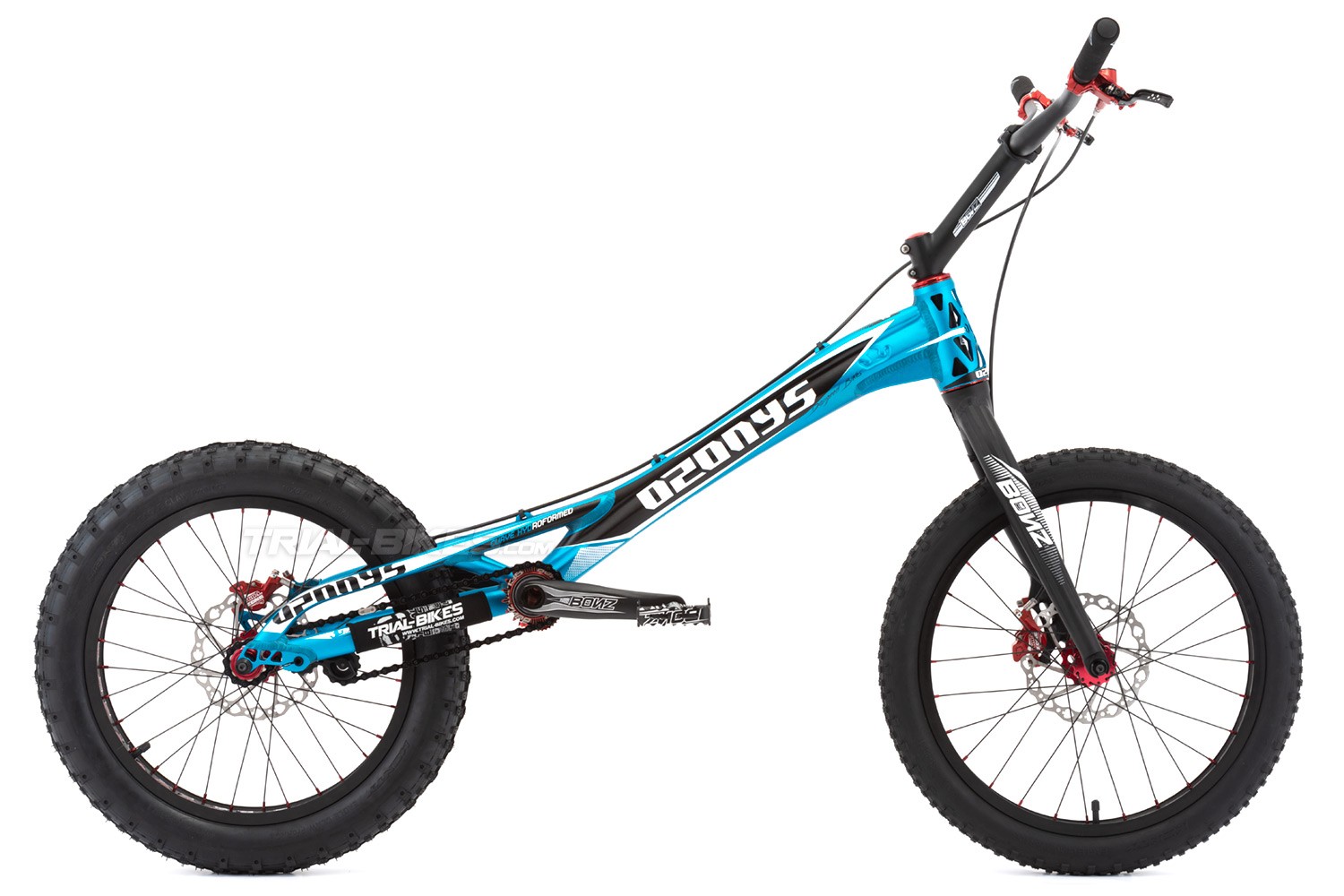

Ozonys Curve V9 20" Full Disc Bike

OZONYS OZONYS

538254

New

Ozonys Curve V9 20” Full Disc high-end, ultralight trials bike, ideal for competition! Built with high-quality parts: Hope Tech 3 Trial Zone disc brakes, Bonz Power-H hubs, Bonz BB24 crankset, etc.

More details

This product is no longer in stock

1 892,56€

Ask a question

Ozonys Curve V9 20" Full Disc Bike

Ozonys Curve V9 20” Full Disc high-end, ultralight trials bike, ideal for competition! Built with high-quality parts: Hope Tech 3 Trial Zone disc brakes, Bonz Power-H hubs, Bonz BB24 crankset, etc.

Frame and fork
- Frame: Ozonys Curve Hyd V9 20”, with Post Mount disc brake mounts, sky blue
- Forks: Bonz Pro Light tapered 1 1/8” – 1.5”, made of aluminium, with Post Mount disc brake mounts

Wheels
- Front hub: Bonz Power-H 28 spoke holes, with rotor mounts, 100mm spacing, anodized red
- Rear hub: Bonz Power-H 28 spoke holes, with rotor mounts, 116mm spacing, anodized red
- Chain tensioner: Clean X2 integrated, with two 11T jockey wheels made of plastic, black
- Front rim: Hashtagg 20”, single wall, 32mm wide, 28 spoke holes, black
- Rear rim: Hashtagg 19”, single wall, 47mm wide, 32 spoke holes, black
- Spokes: 1.8mm, black
- Spoke nipples: Alu 14G, anodized red
- Rim tape: TrialBikes Reinforced Ultralight
- Front inner tube: Jitsie Race Ultralight 20”
- Rear inner tube: Jitsie Race Ultralight 20”
- Front tyre: Monty Pro Race V2 20”x2.00”
- Rear tyre: Monty Pro Race V2 19”x2.60”

Brakes
- Front brake: Hope Tech 3 Trial Zone Post Mount, anodized red
- Rear brake: Hope Tech 3 Trial Zone Post Mount, anodized red

- Rotors: Bonz 165 Rotors

Drivetrain
- Crankset: Bonz Pro Light BB24 crankset, 24mm diameter BB axle, CNC machined. 165mm long cranks, for Cassette Shimano HG-type freewheel, black
- Freewheel: Bonz 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, red
- Chain: KMC 610HX, black
- Rear sprocket: Bonz 12T Cassette, made from 7075-T6 aluminium alloy, silver
- Pedals: Bonz single cage, made from 7075-T6 aluminium alloy, anodized red
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red

Steering
- Headset: Bonz Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Stem: Bonz Forged 175mm x 35º, 31.8mm Oversized handlebar diameter, black
- Grips: Bonz foam, black
- Handlebar: Clean 7075 high-rise, 720mm long, 31.8mm Oversized handlebar diameter, black with white and red Clean graphics

Geometry:
- Wheelbase: 1010mm
- Chainstay length: 350mm
- Bottom bracket rise: +83mm
- Head angle: 72º

Weight
- 8.12Kg

Additional information:
This bike is supplied with white vinyl installed on the Ozonys logos of the main tube (which originally come in blue), for free. It’s easily removable in case you’d like to replace or simply remove them.

Some pictures may not match the item described, so please read the description carefully. This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com.

FRONT BRAKE Disc
REAR BRAKE Disc
