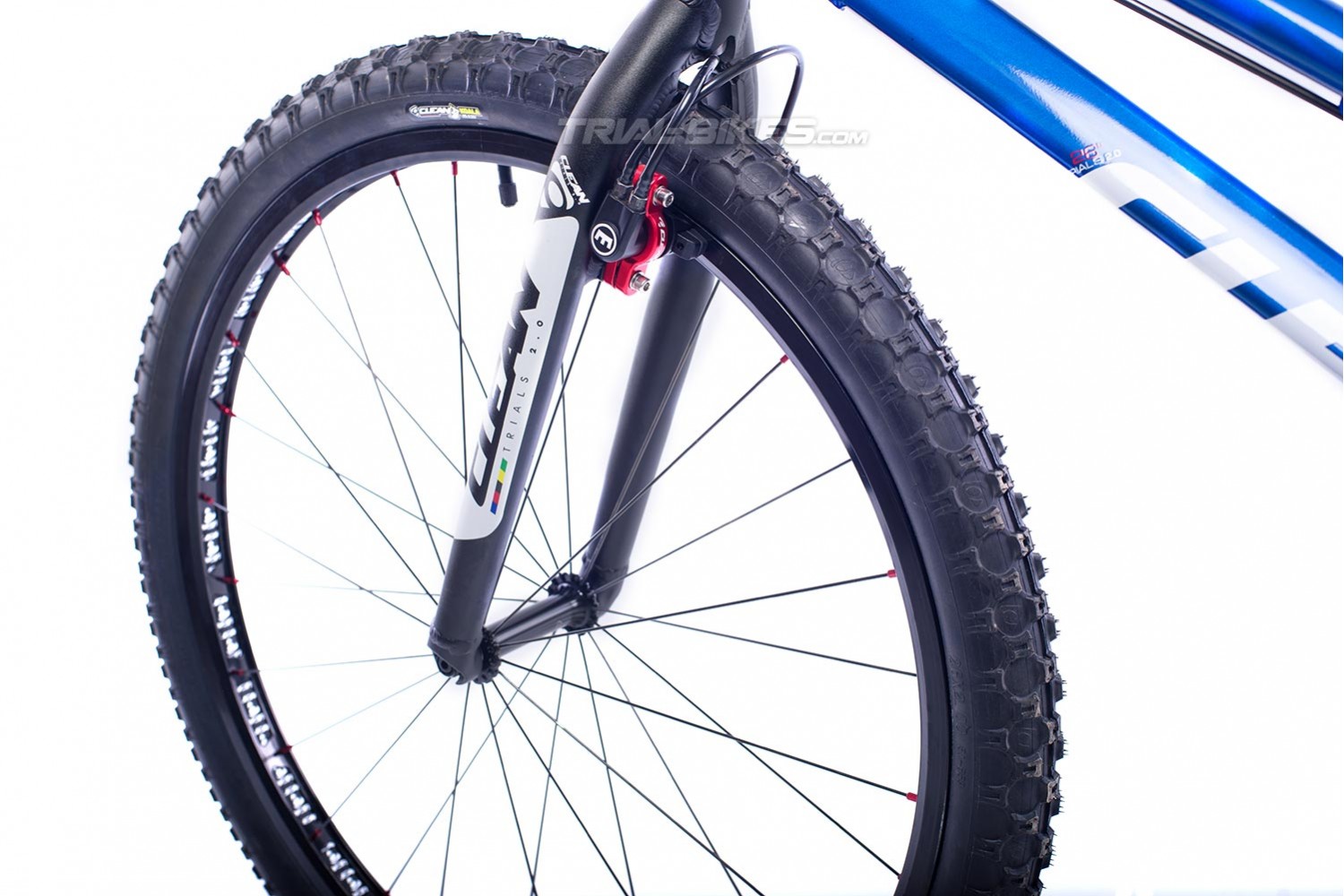

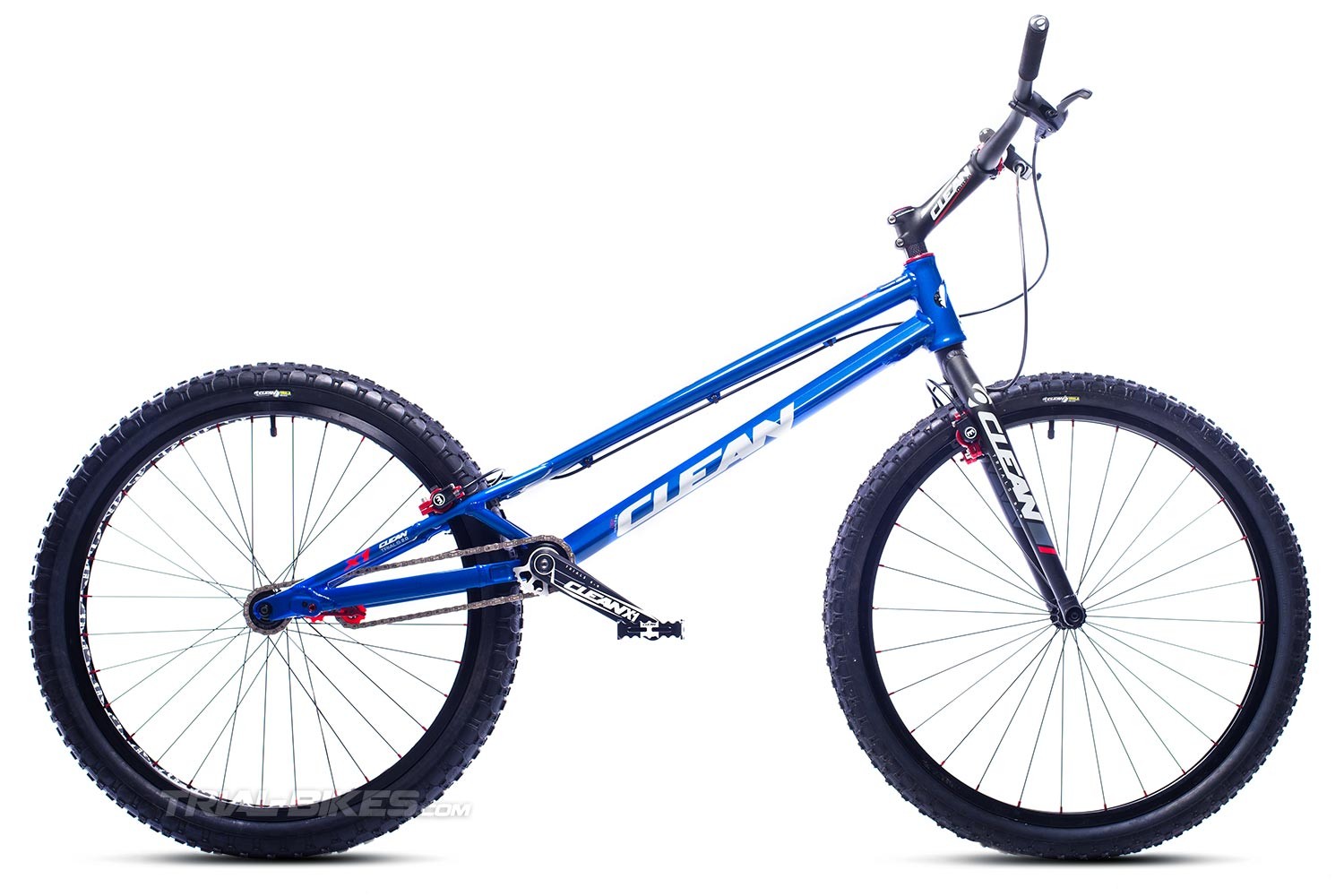

Frame and Fork
- Frame: Clean X1 26", made of 6061-T6 + 7075-T6 aluminum alloy, with 4-bolt rim brake mount.
- Fork: Clean X2 26", made of 7005-T6 aluminum alloy, with tapered design 1 1/8" - 1.5", with bracket for Post Mount disc brake or 4 bolt rim brake.

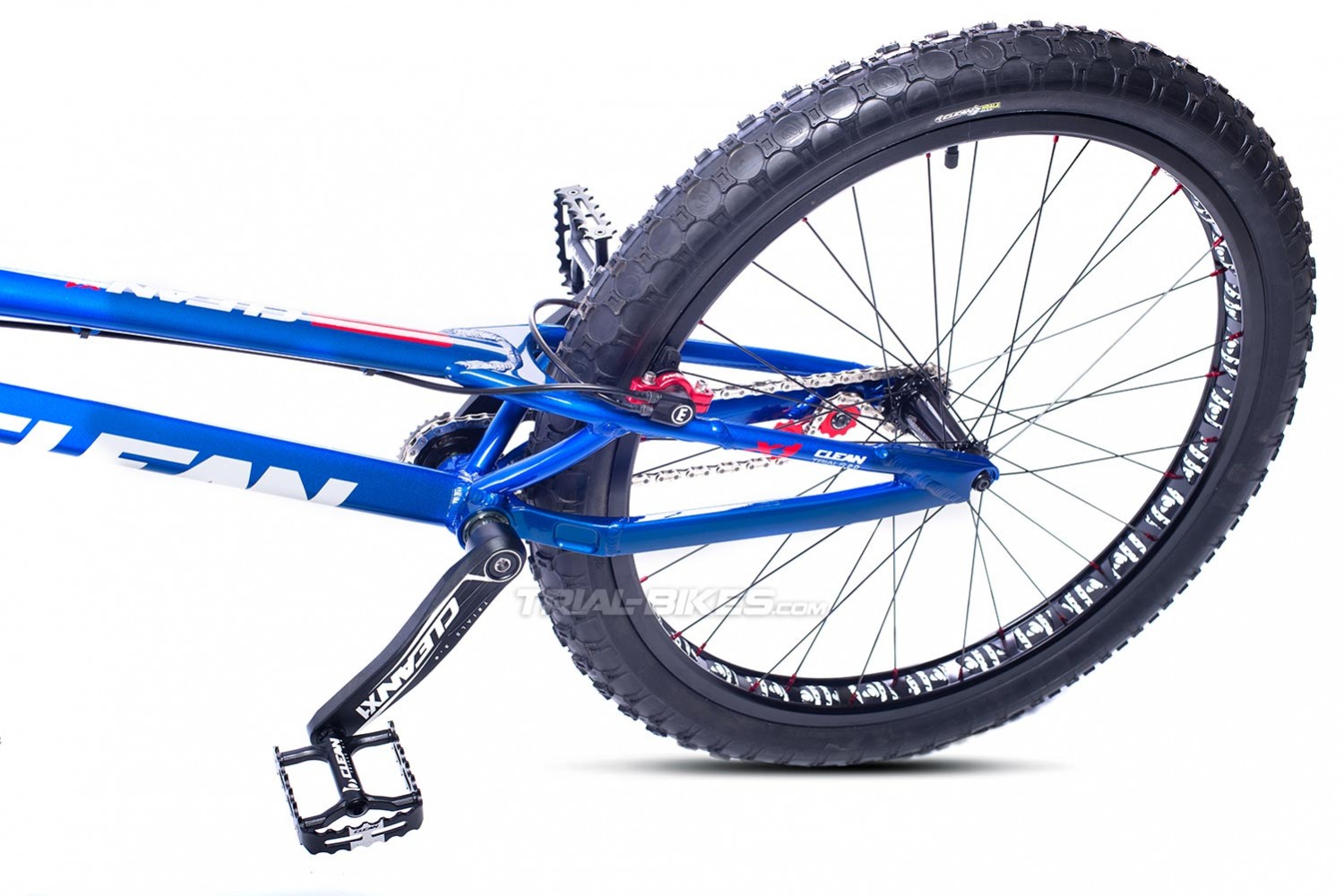

Wheels
- Front hub: Clean X2, with 10 mm axle, 28 spokes, without disc mounts, 100 mm wide, black anodized
- Rear hub: Clean X2, with 10 mm axle, 32 spokes, without disc mountings, 116 mm wide, black anodized
- Chain tensioner: Clean X2 Integrated tensioner, with two 10-tooth plastic wheels.
- Front rim: Clean 26", lightened single-ply design, 34mm wide, 28 spoke holes, black anodized finish.
- Rear rim: Clean 26'', with lightened single-layer design, 48 mm width, 32 spoke holes, black anodized finish.
- Spokes: 1.8 mm spokes, black color
- Rim tape: Clean
- Front tube: Clean 26
- Rear tube: Clean 26
- Front Tire: Clean Koala 26 "x2.00"
- Rear Tire: Clean Koala 26 "x2.50"
Brakes
- Front brake: Magura HS11
- Rear brake: Magura HS11
- Rim brake pads: Magura, black
- Rim brake mounts: Magura

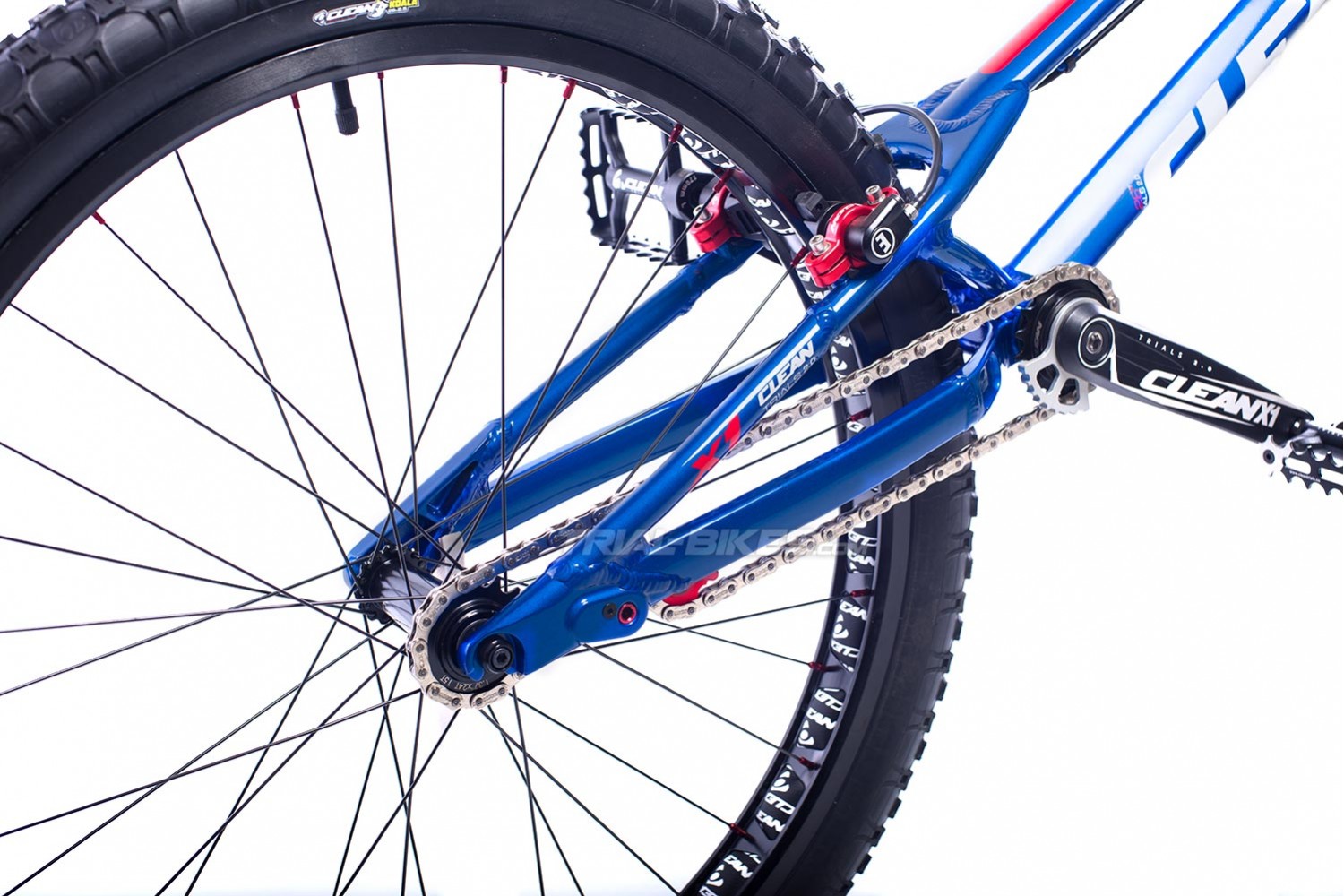

Drivetrain
- Bottom bracket: Clean ISIS 128 mm
- Crankset: Clean X1 ISIS, 170 mm long.
- Freewheel: Clean 108.9 18T, with 108 points of engagement, black finish.
- Chain: KMC Z1eHX, silver.
- Fixed sprocket: Clean 15T, Shimano HG cassette type.
- Pedals: Clean Mono-cage, 7075-T6, black anodized
- Protector: Clean Ring, anodized in silver color

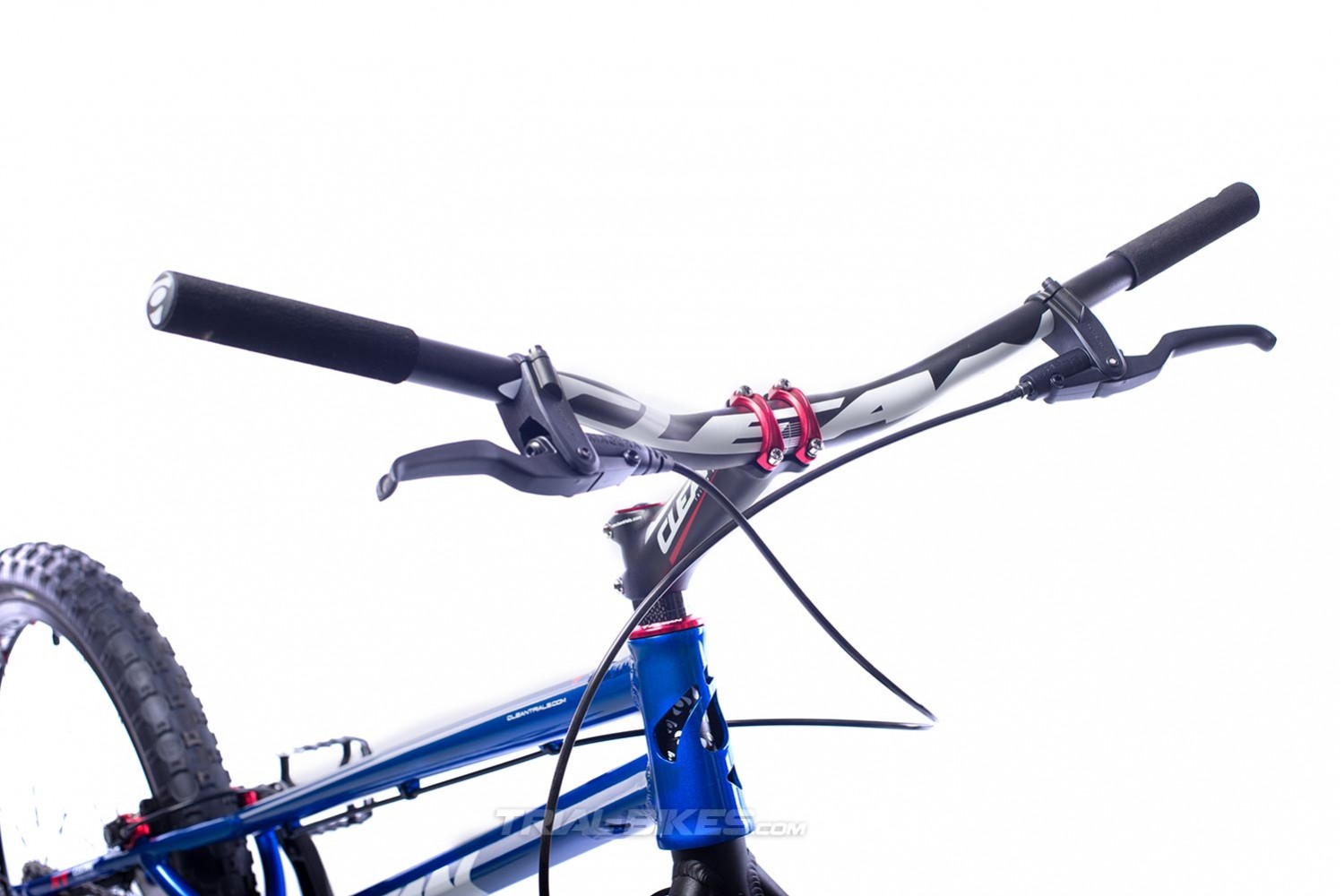

Steering
- Headset: Clean internal Tapered 1 1 1/8" - 1.5", with 7075-T6 aluminum cups. Sealed bearings, red finish.
- Stem: Clean 155 mm x 25°, 31.8 mm Oversized handlebar diameter, with two bolt clamp.
- Grips: Clean foam grips, black color.
- Handlebars: Clean 7075 Double Height 103 mm made of aluminum, 720 mm long, 31.8 mm Oversized diameter, matte black finish with Clean logos.
Geometry
(1) Wheelbase: 1083 mm
-----------------------------------------------
(2) Rear End: 380 mm
-----------------------------------------------
(3) Bottom Bracket Height: +68 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
Weight
-Â 9.26 kg, verified by TrialBikes.
| FRONT BRAKE | HS |
| REAR BRAKE | HS |
