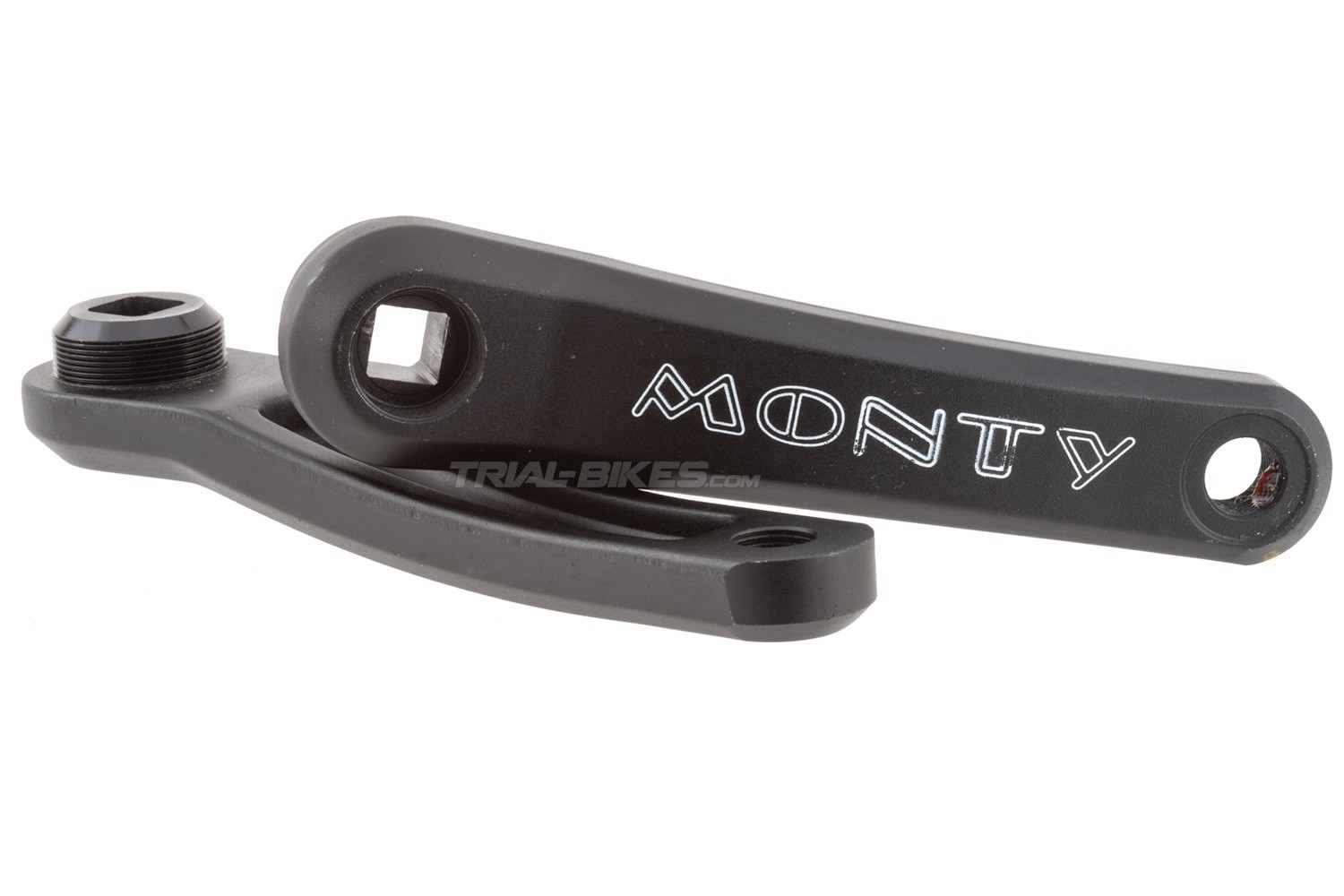

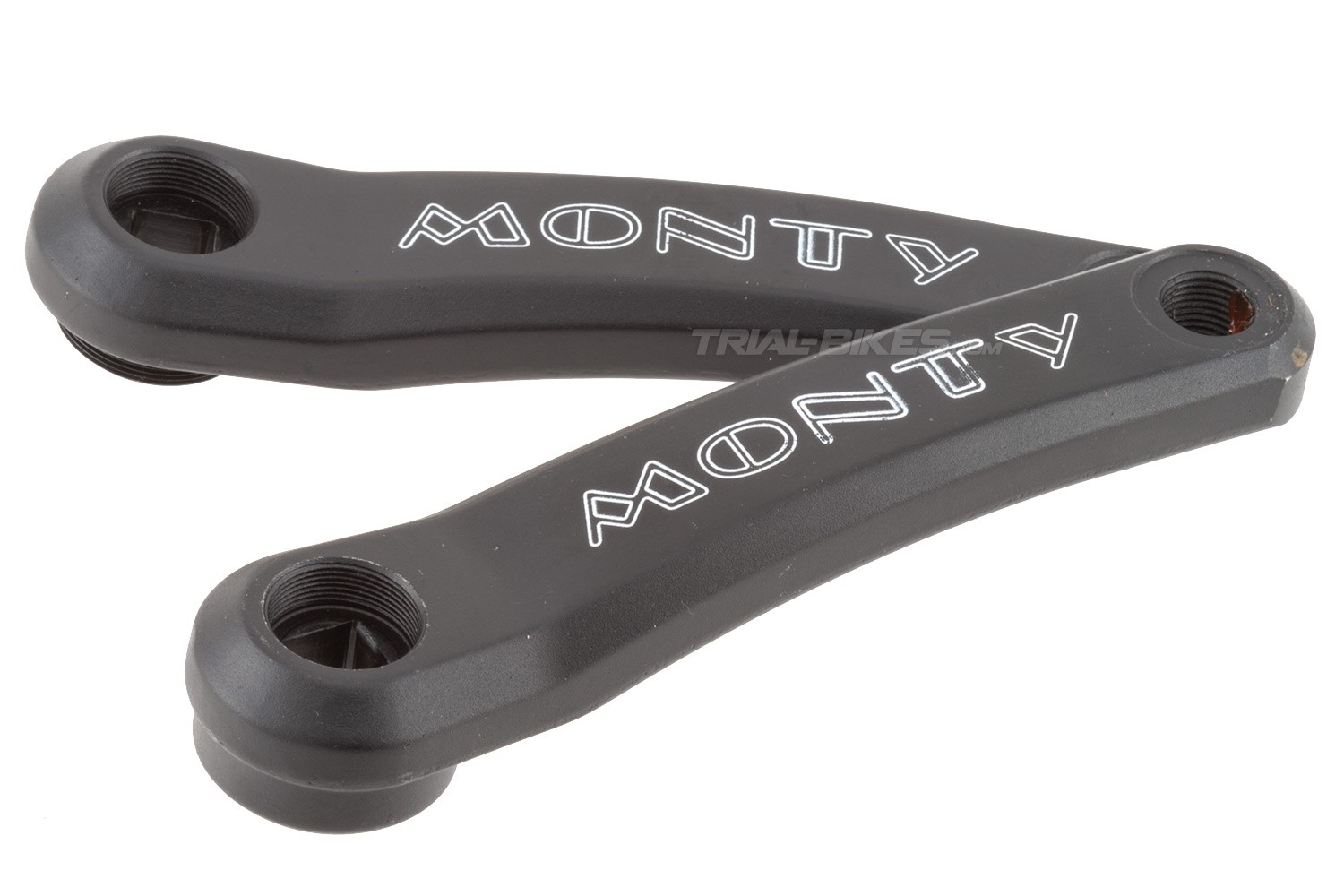

Monty 140mm JIS Cranks

Description and materials
- New square taper (JIS) cranks manufactured by Spanish brand Monty.
- Each crank has been forged from 6061-T6 aluminium alloy.
- The pedals and BB threads are made on a high-accuracy CNC machine, in order to ensure a high quality standard.

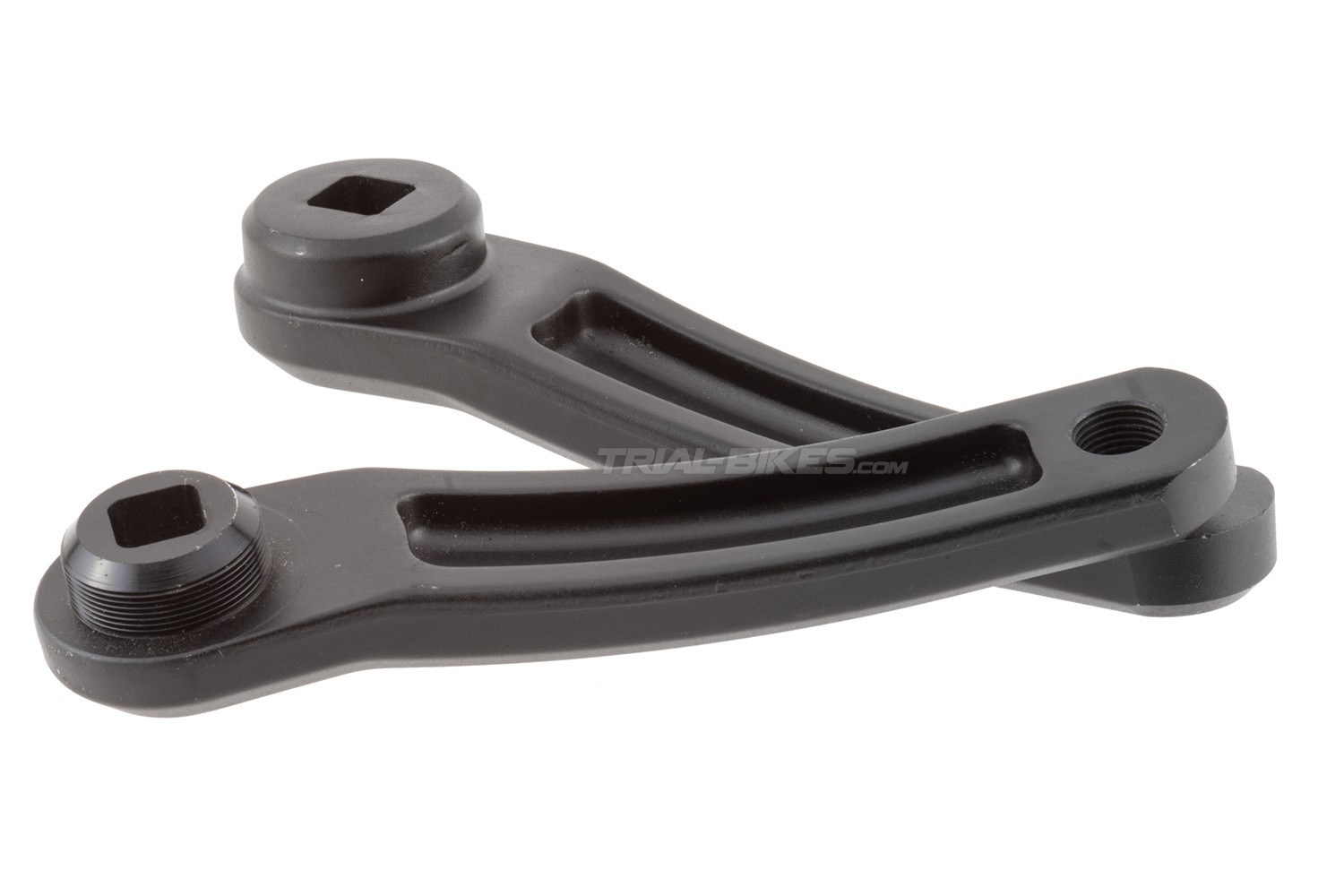

- Each crank features a recess on the inside in order to remove any excess material.
- 8mm wide threaded base, with standard 1.37”x24tpi thread.
- Standard JIS (square taper) BB interface.
- These cranks have a 24mm offset, which helps prevent them from rubbing against the seat stays or rim brake cylinders.
- Only available in 140mm size.

Compatible with:
- Sprockets and freewheels with 30mm diameter thread.
- Pedals with standard 9/16’’ thread.
- JIS bottom brackets.

Dimensions
- Length: 140mm
- Offset: 24mm

Finishes
- Black, with white Monty logo.

Weight
- 384.52g
