Reduced price! B1k3 Eklipse 26'' Frame Expand

B1k3 Eklipse 26'' Frame

B1K3 B1K3

New

Description and materials

More details

Warning: Last items in stock!

238,68€

314,05€

-24%

Length .
 1080mm

 1095mm

Ask a question

Description and materials

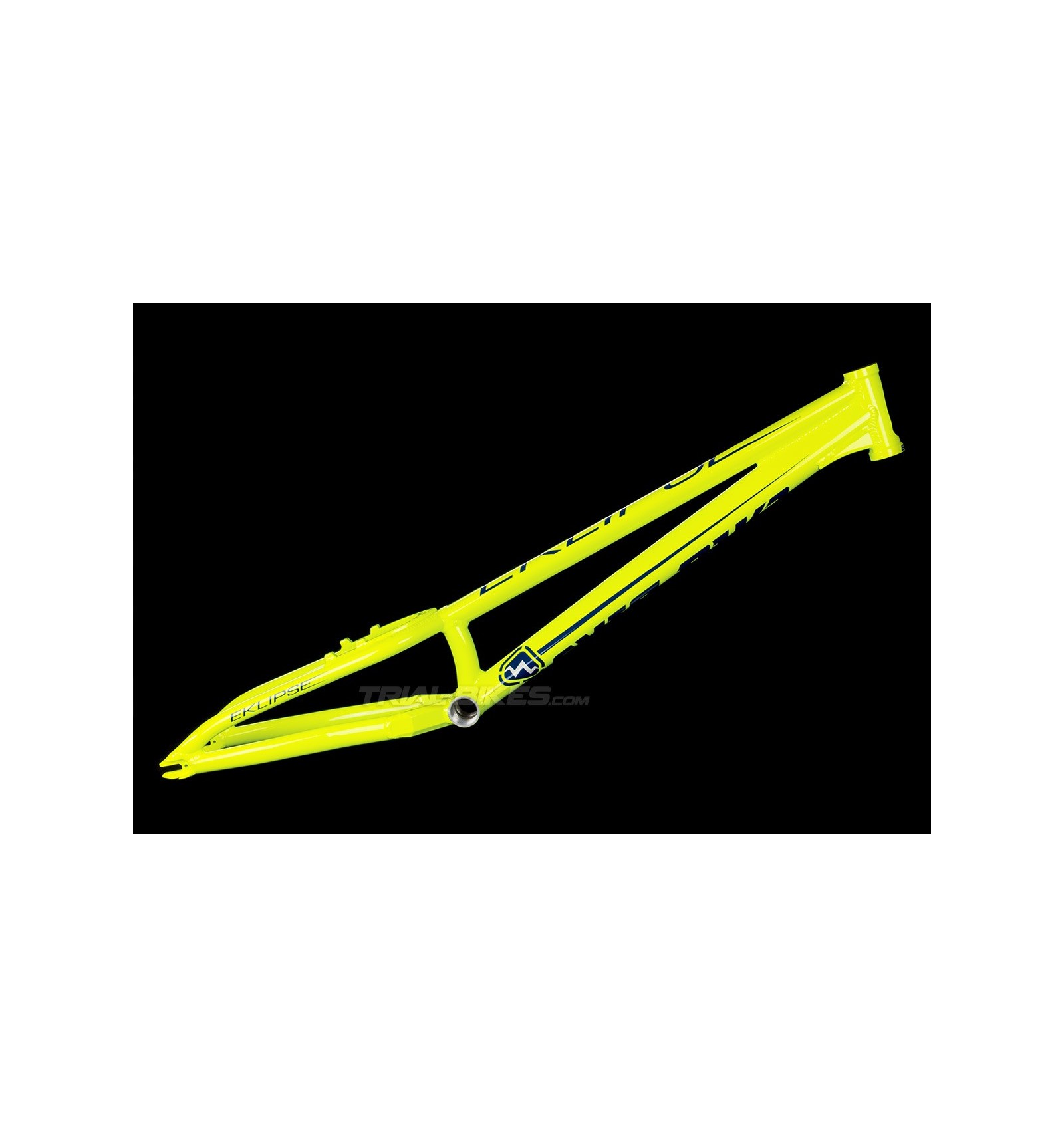

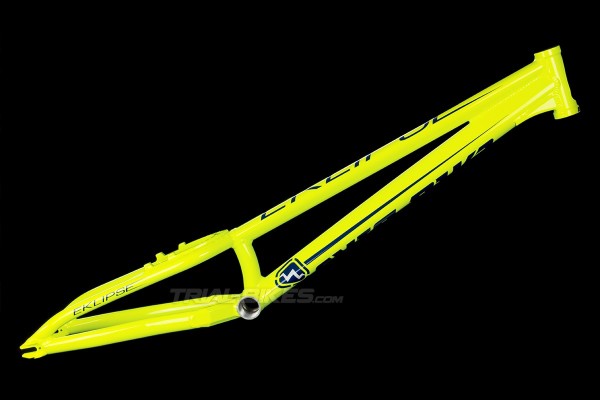

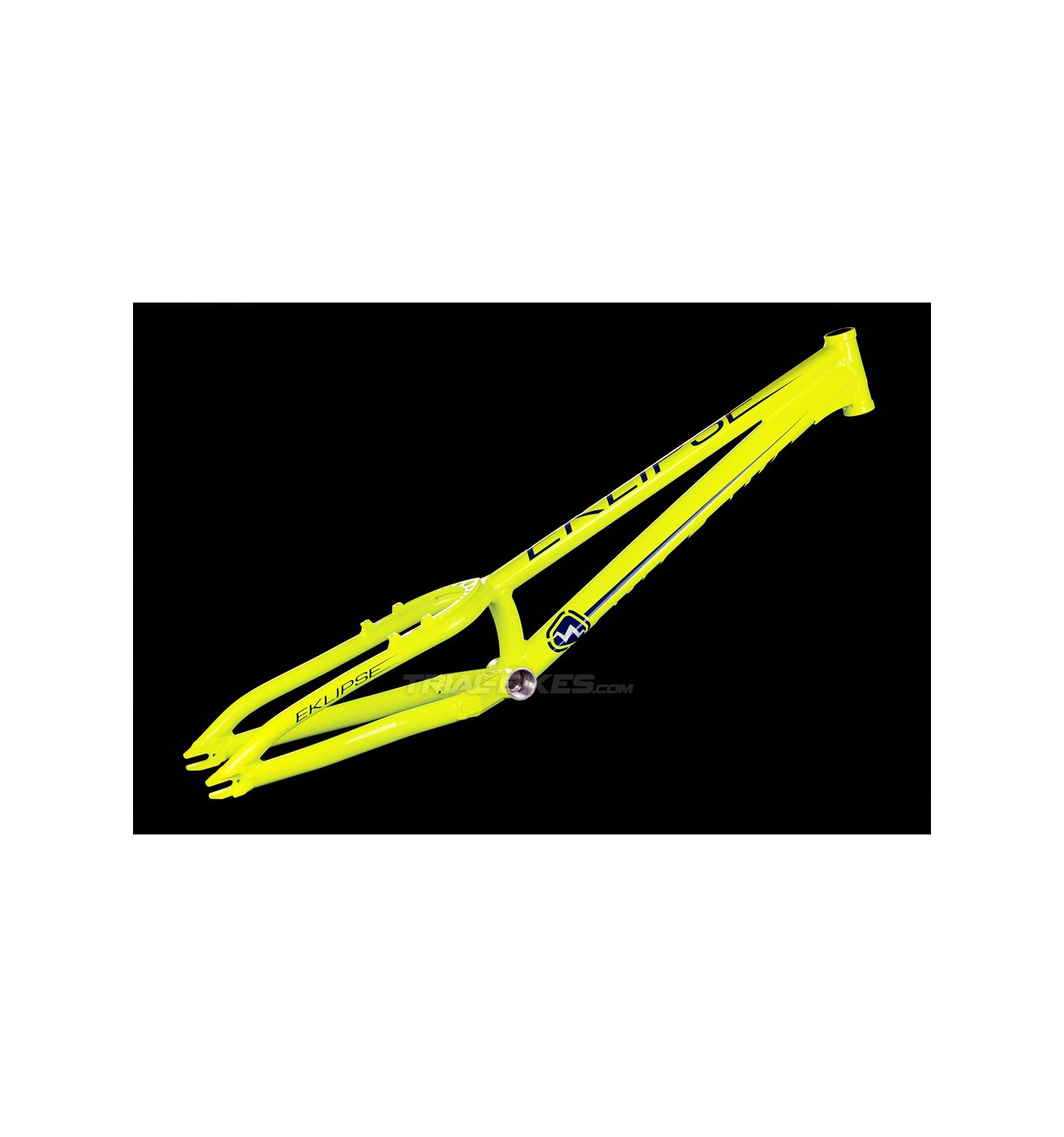

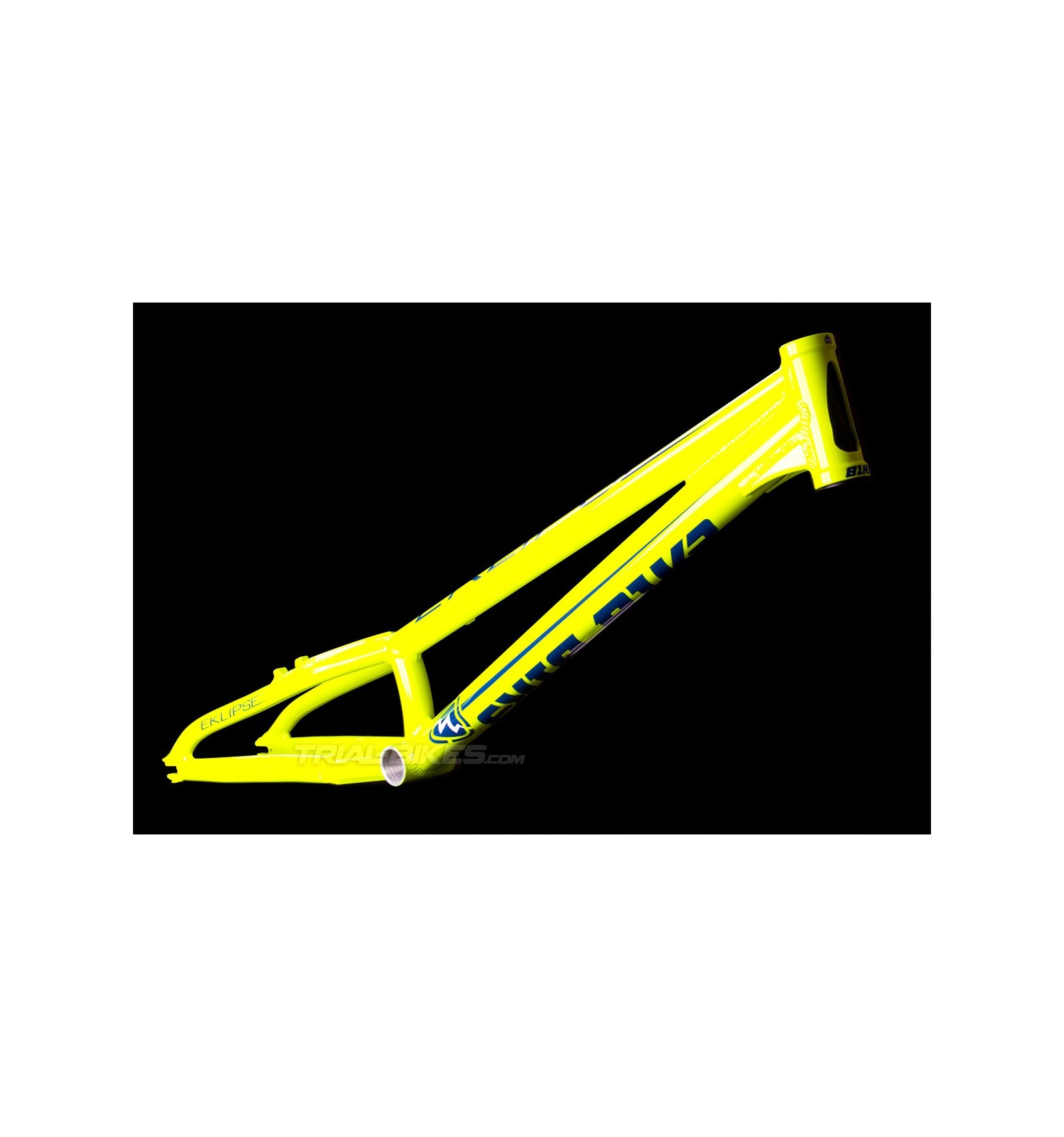

- New B1k3 Eklipse 26” 2014 frame, the first 26” frame of this newly created French brand for 2014 as the little sister of Ozonys.
- Tested for months and currently used by the France Champion Kevin Aglaé.
- Unique design introduces Hydro-forming, with two different geometries available.
- Its clever design means it keeps the weight down (only weighs 1.59Kg) with a simple, classic design, reinforced at key areas and with outstanding, unique graphics.
- Made from a high quality 7075 T6 aluminum alloy, as in many top-quality frames.

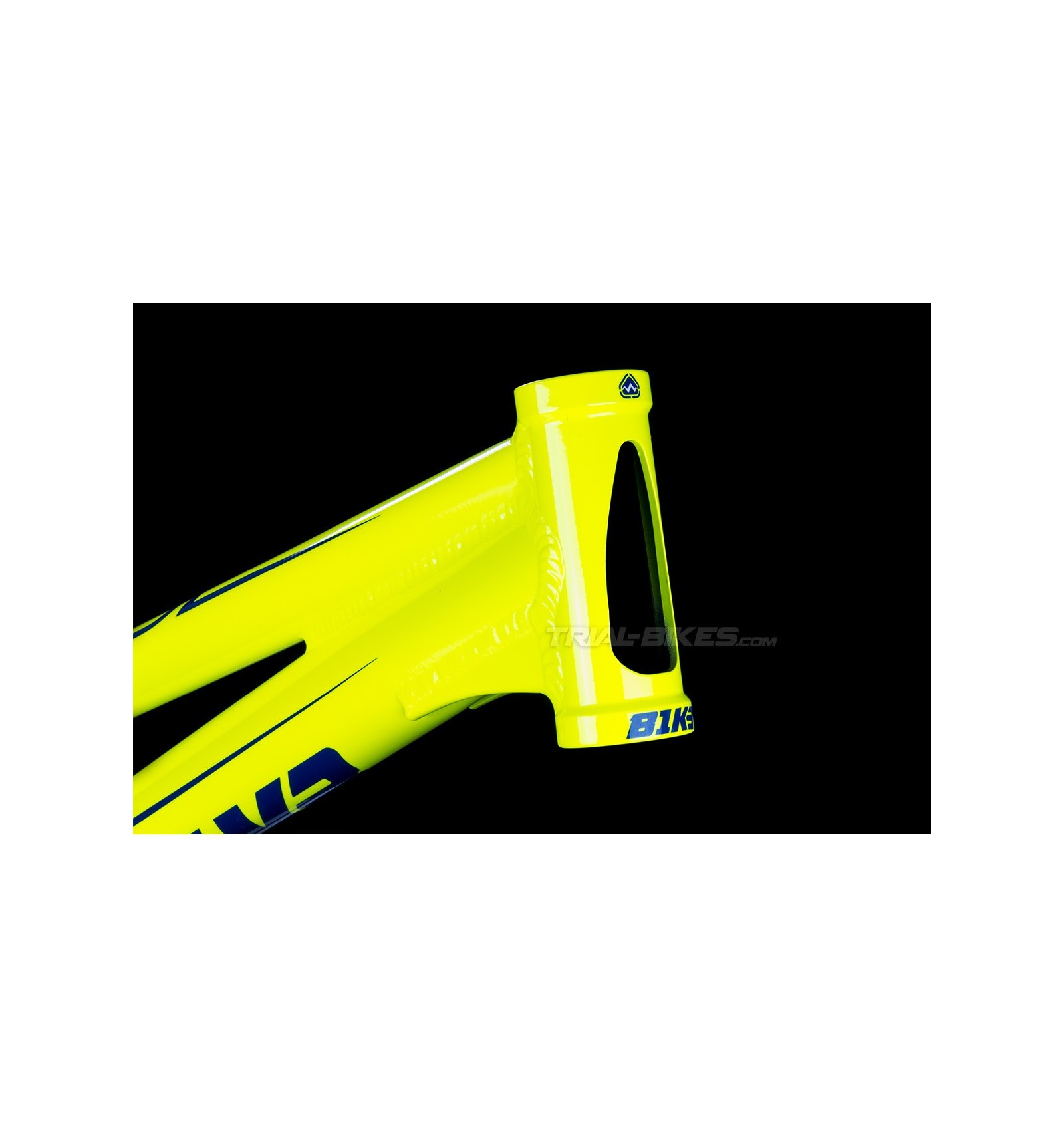

- The head tube is gusseted to the top and down tubes to increase its strength.
- 115mm head tube (for external headsets), with a large hole to help save weight.
- 4-bolt mounts spaced at 100mm with an integrated CNC brake booster, to improve braking performance.

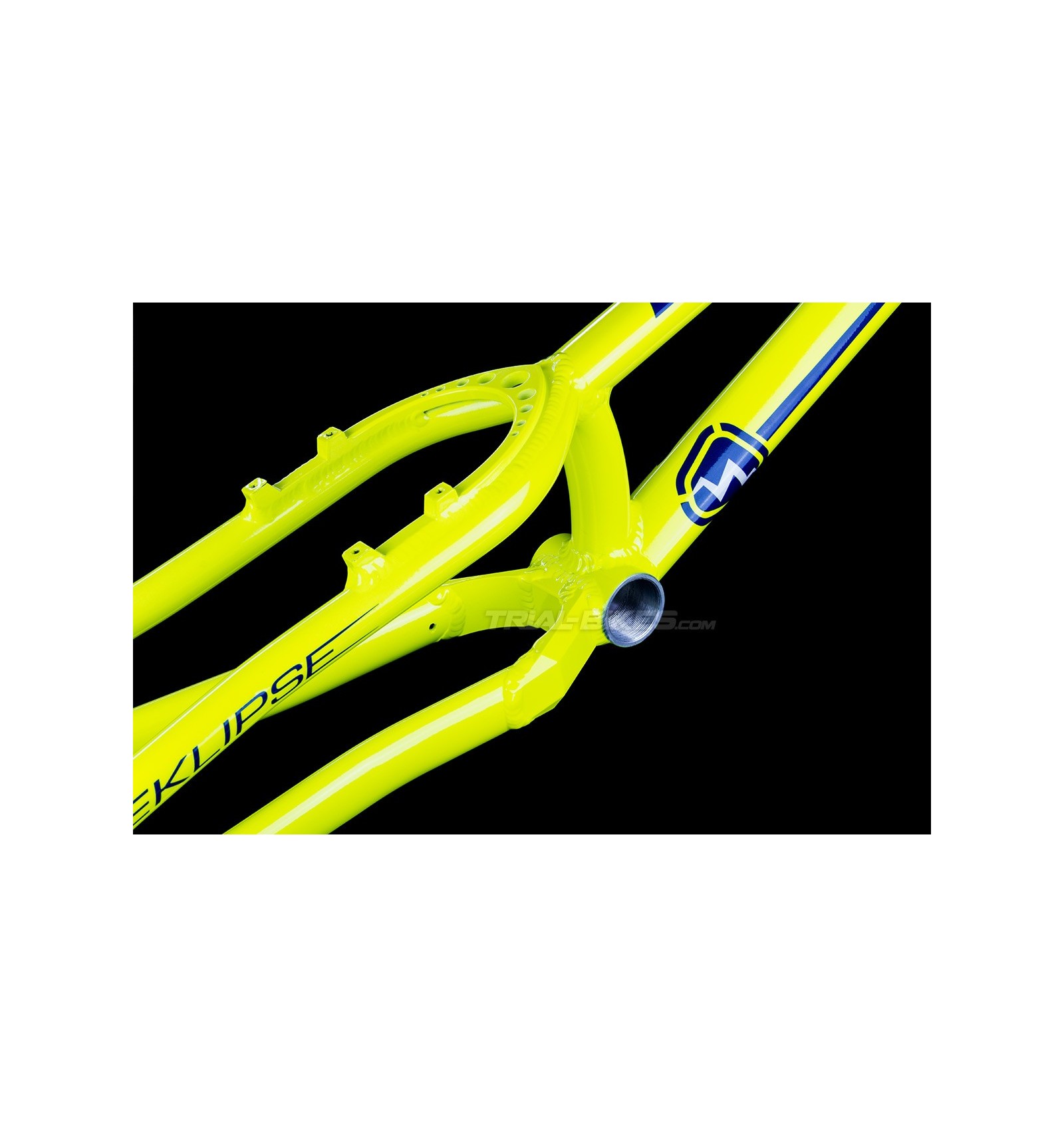

- 68mm bottom bracket shell, suitable for 128mm bottom brackets.
- CNC machined dropouts, designed to use with snail cams.
- Designed for 116mm rear hubs.
- High quality fluro-yellow finish, with white and blue B1k3 Eklipse graphics.
- Also available in our catalogue, the B1k3 Eklipse fork, ideal to match this frame.

Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 115mm

- Wheelbase: 1080mm (short version) and 1095mm (long version)
- Chainstay Length: 380mm
- BB Rise: +60mm (short version) and +70mm (long version)
- Head Angle: 71.5º

Finishes
- Fluro yellow
- White and blue B1k3 Eklipse graphics.

Weight
- 1636g (1080mm) and 1642g (1090mm)

Additional information
This frame comes with 12 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com .

WEIGHT 1.636
TYPE OF HEADSET Standard 1 1/8"
