Echo SL Titanium ISIS BB

Echo SL Titanium ISIS BB Expand

Echo SL Titanium ISIS BB

ECHO ECHO

New

Description and materials

More details

78,51€

Color .

 Gold


 Titanium

Ask a question

Description and materials

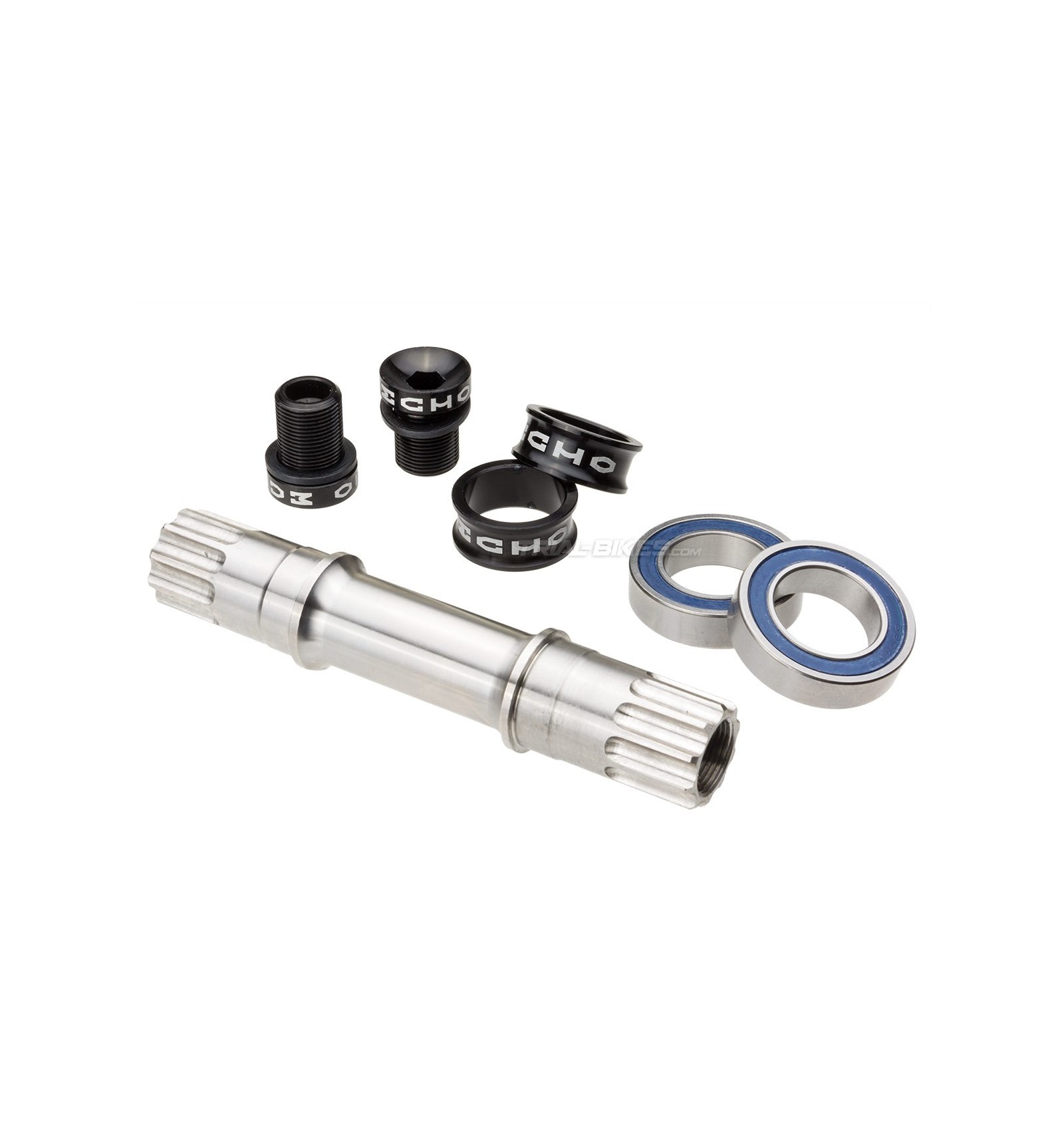

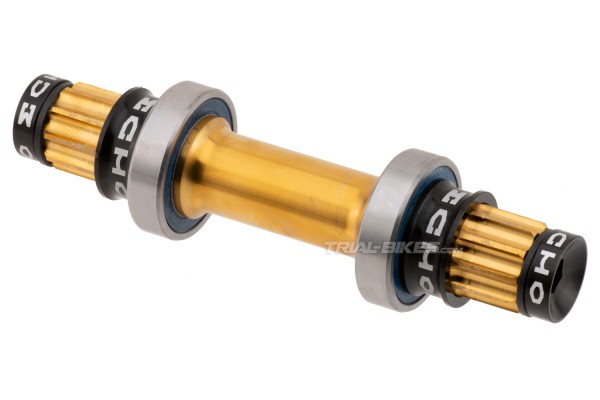

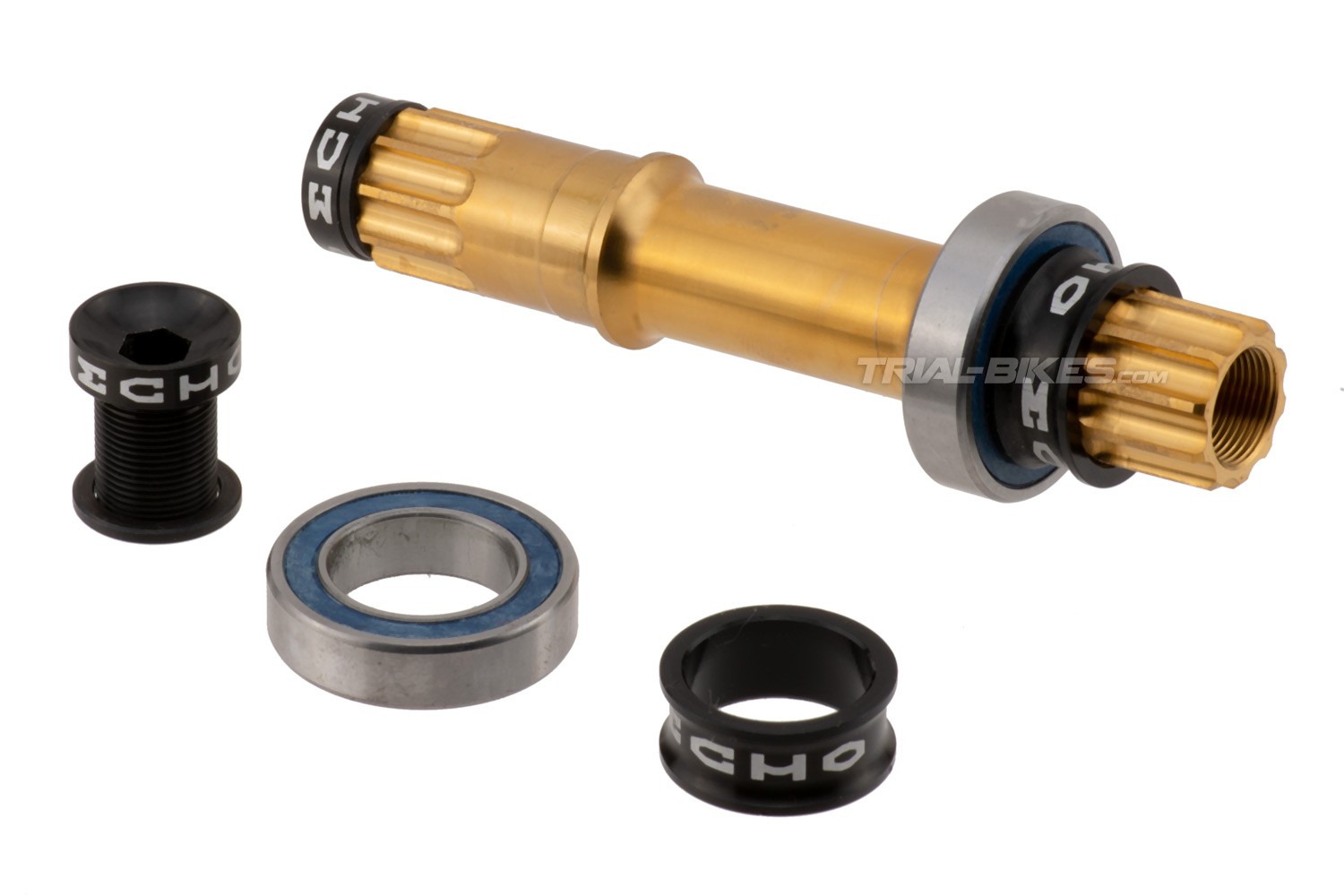

- New system Echo Spanish 2014 ISIS bottom bracket, now featuring the Spanish BB system instead of traditional ISIS bottom brackets.
- Uses press-fit bearings without threads, as used in BMX, which helps save unnecessary weight.
- Furthermore, this allows larger bearings than usual (37mm outside diameter), therefore making it spin for longer.
- Ultra-light hollow axle is made from high quality grade-5 6Al4V titanium, which provides more strength with a reduced weight.
- High quality sealed bearings for a smooth running.
- Includes aluminium spacers and M15 bolts, in black anodized finish.
- Available in 124mm long.
- Suitable for all ISIS cranks available.
- Please note: this bottom bracket will only fit Echo, GU or Zoo! frames from 2011 onwards, as well as the Play KII 2014 frame and all those trials frames with press in bearing system.

Dimensions
- 124mm long
- M15 aluminium bolts

Finishes
- Axle comes in titanium color
- Anodized aluminium bolts and spacers, both in black finish

Weight
- 168.6g (+M15 bolts and spacers at 28.4g)

Additional information
If you have any doubts, please contact us.

WEIGHT 0.168
TYPE Spanish
LENGTH AXLE 124mm
en
Dear sir or madam, I have a simple question to ask. The lenght of 124,5 mm is the overall lenght of the bb, or is it from the end of one bearing to the end of the other? Kind regards,
