Jitsie Race 20" 1010mm Disc Bike

Reference: 538561

Condition: New

✅ 1 1/8" – 1.4" tapered fork head tube
✅ 10mm through-axle front hub
✅ New Jitsie Race Disc brakes
✅ Titanium bottom bracket

More details

This product is no longer in stock

Notify me when available

Ask a question

Ver la opinión

Valoración media: 10/10 - Nº valoraciones: 1

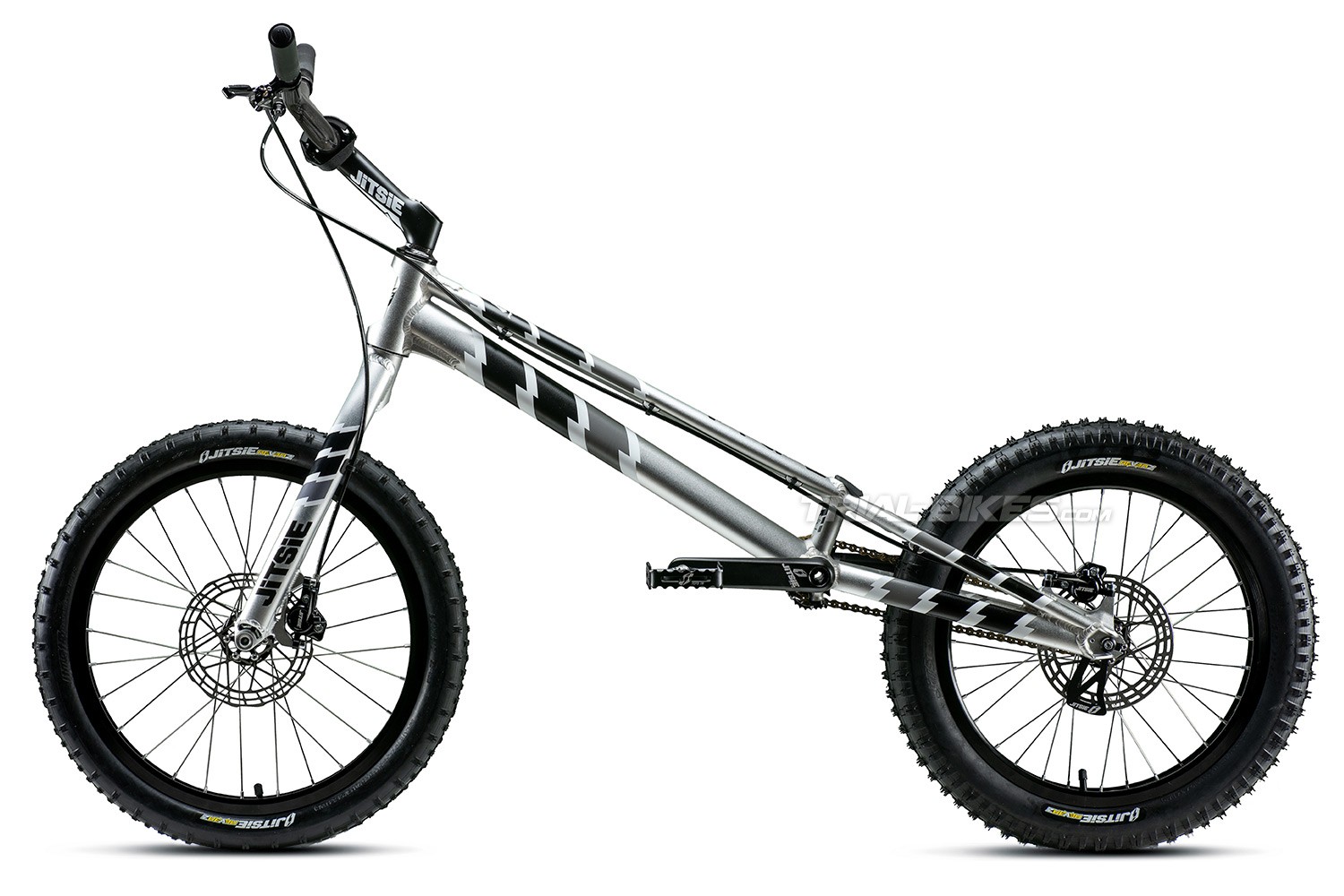

Jitsie Race 20" 1010mm Disc Bike

The new Jitsie Race 20" trials bike introduces multiple updates: now featuring a tapered frame and fork, front through-axle. This is a top-of-the-range bike with a lightweight, compact setup that has been developed and tested by Alejandro Montalvo and Adam Morewood.

Frame and fork
- Frame: Jitsie Varial 20" 1010mm, made from 6061-T6 aluminium alloy, with 1 1/8" – 1.4" tapered head tube, Post Mount disc brake mounts, silver with grey Jitsie graphics
- Forks: Jitsie Varial 370mm, 1 1/8" – 1.4" tapered steerer tube, Post Mount disc brake mounts, silver with grey Jitsie graphics

Wheels

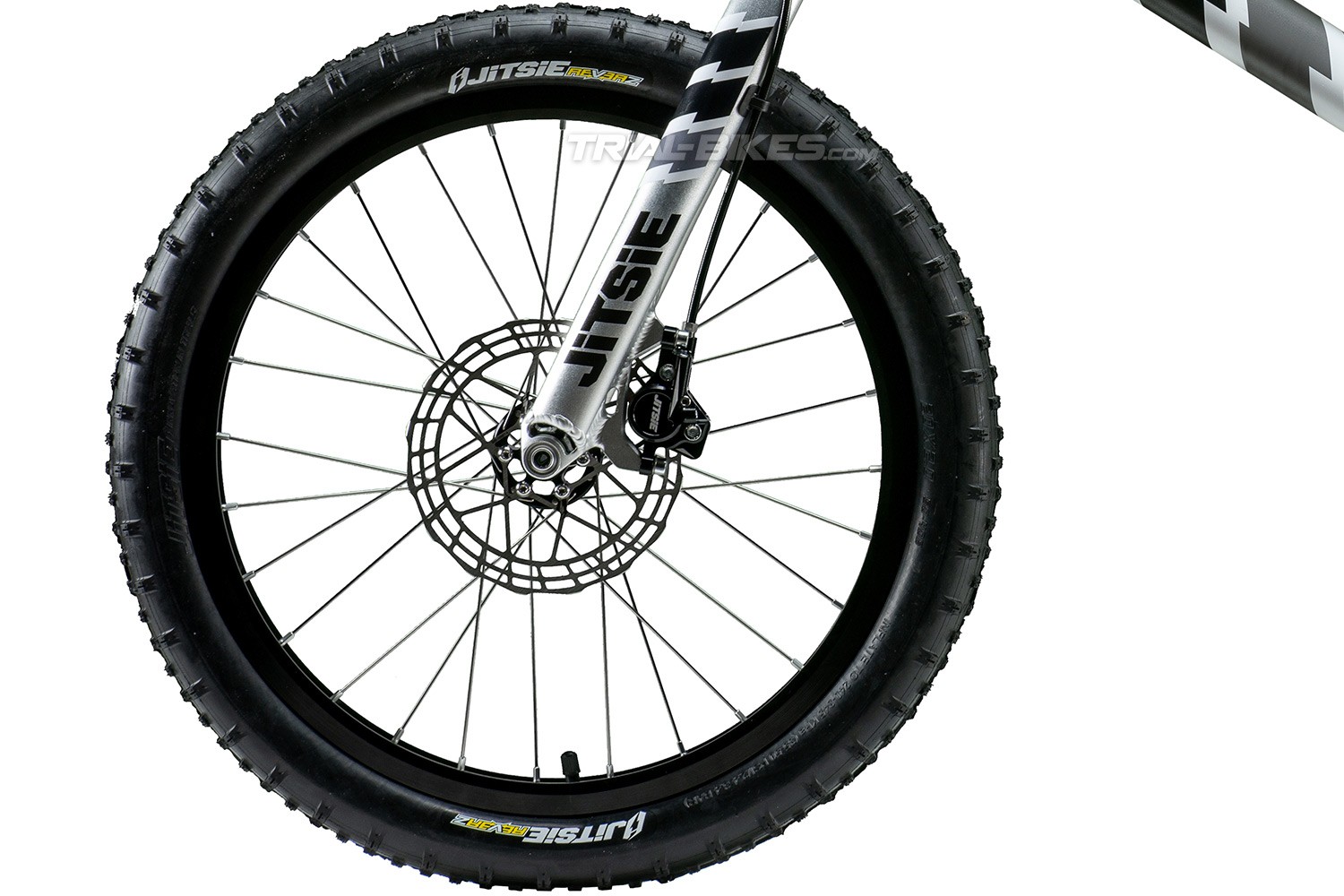

- Front hub: Jitsie D100, 28 spoke holes, with rotor mounts, 100mm spacing, 10mm through-axle, anodized black
- Rear hub: Jitsie D116, 32 spoke holes, with rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Jitsie snail cams
- Front rim: Jitsie 20", single wall, 32mm wide, 28 spoke holes, anodized black
- Rear rim: Jitsie 19", single wall, 48mm wide, 32 spoke holes, anodized black
- Spokes: Jitsie 1.8mm, made of steel, black
- Spoke nipples: Jitsie alloy
- Rim tape: Jitsie Ultralight
- Front inner tube: Jitsie Light 0.9mm 20"
- Rear inner tube: Jitsie Light 0.9mm 20"
- Front tyre: Jitsie Reverz 20"x2.00"
- Rear tyre: Jitsie Reverz 19"x2.60"

Brakes
- Front brake: Jitsie Race Disc
- Rear brake: Jitsie Race Disc

- Rotors: Jitsie 160mm (front), Jitsie 162mm (rear)
- Disc protector: Jitsie

Drivetrain
- Cranks: Jitsie ISIS 7075, 160mm long, black with white Jitsie graphics
- Bottom bracket: Jitsie ISIS, 123mm axle
- Freewheel: Jitsie 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth
- Chain: KMC K1SL, gold
- Rear sprocket: Jitsie 12T Screw-on, made of steel, silver
- Pedals: Jitsie Single caged Pedals
- Bashplate: Jitsie mini-bashplate, anodized black

Steering
- Headset: Jitsie 1 1/8" – 1.4" tapered internal headset, with sealed bearings, 5mm carbon spacer
- Stem: Jitsie Race 150mm x 35º, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics
- Grips: Jitsie foam, black with white Jitsie graphics
- Handlebar: Jitsie 7075, 730mm long, 110mm rise, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics

Geometry (based on a fork of 370mm and +45mm offset)

(1) Wheelbase: 1010 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +80 mm.
-----------------------------------------------
(4) Head Angle: 71.5°.
-----------------------------------------------
Geometrias en bicicletas de Trial

Weight
- 7.9Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com .
