Ozonys Curve 2026 20" Frame

Ozonys Curve 20" Frame 2026

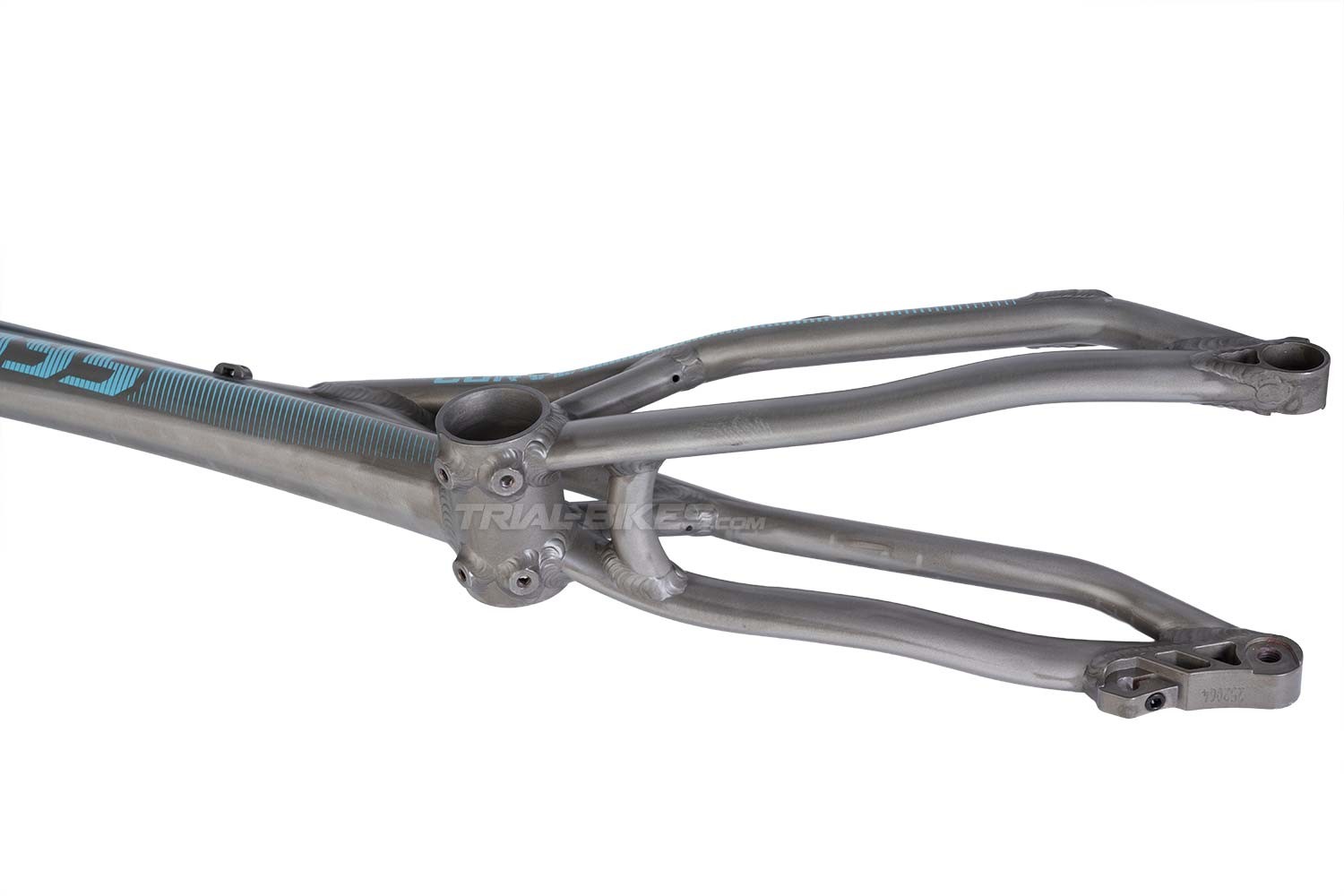

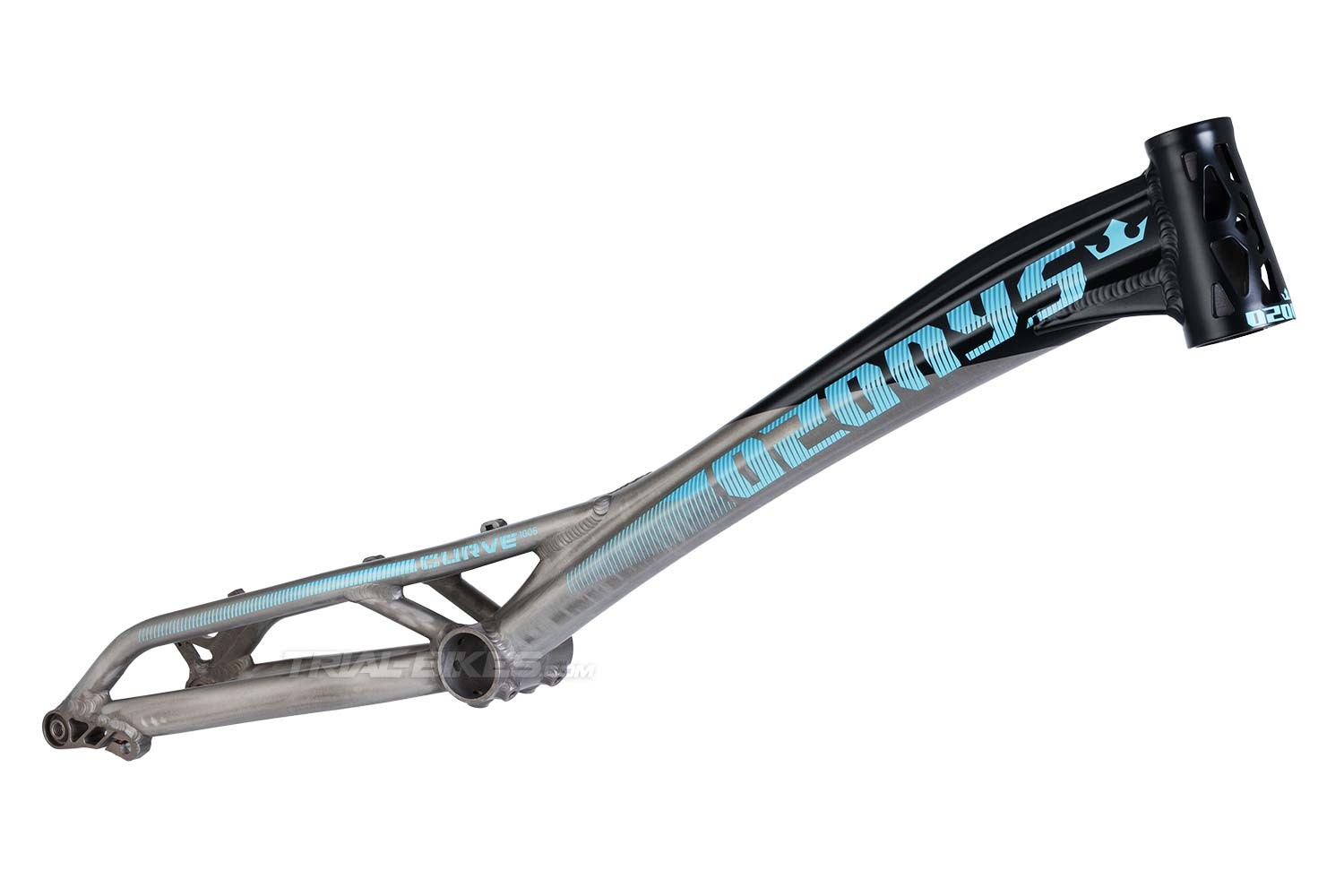

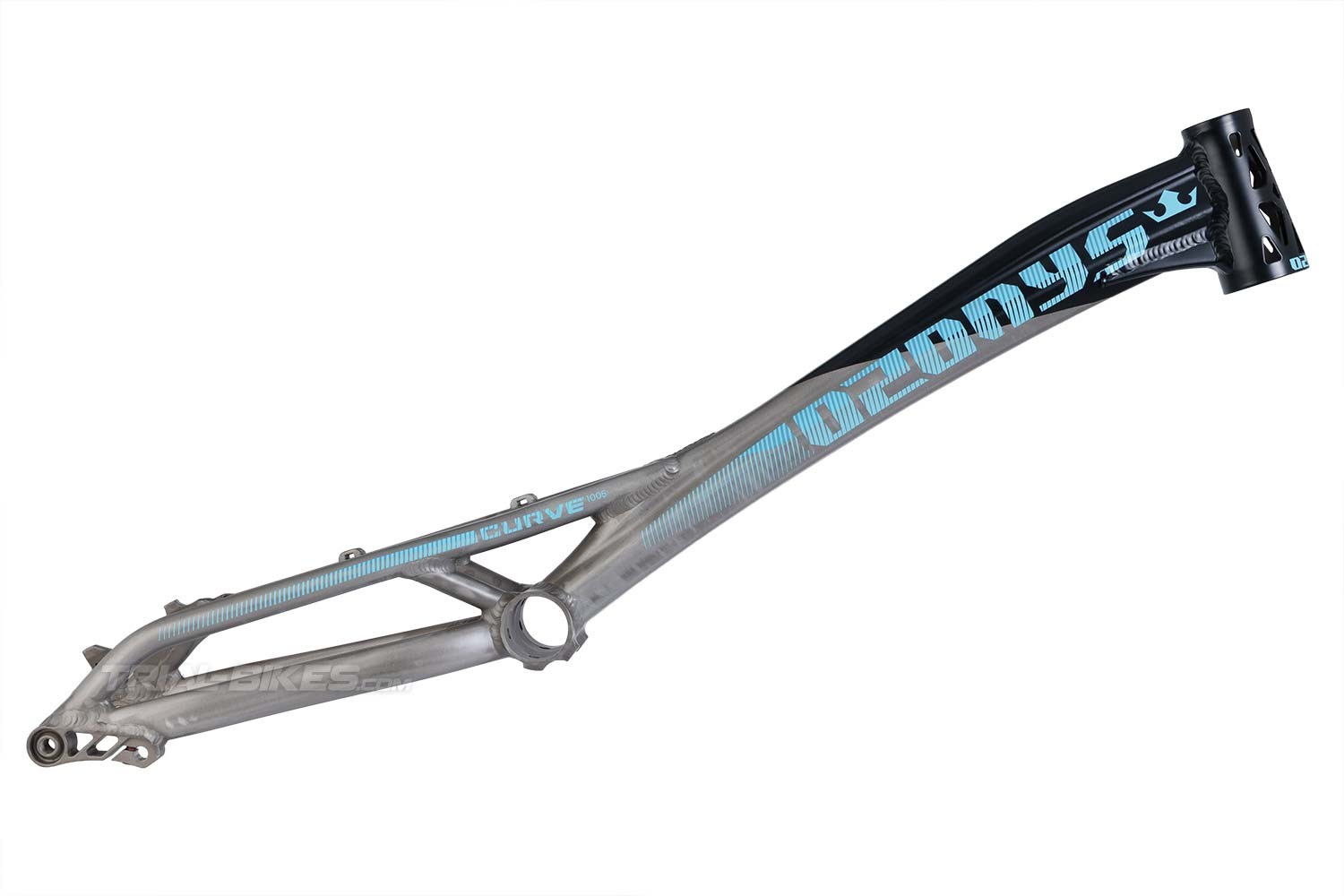

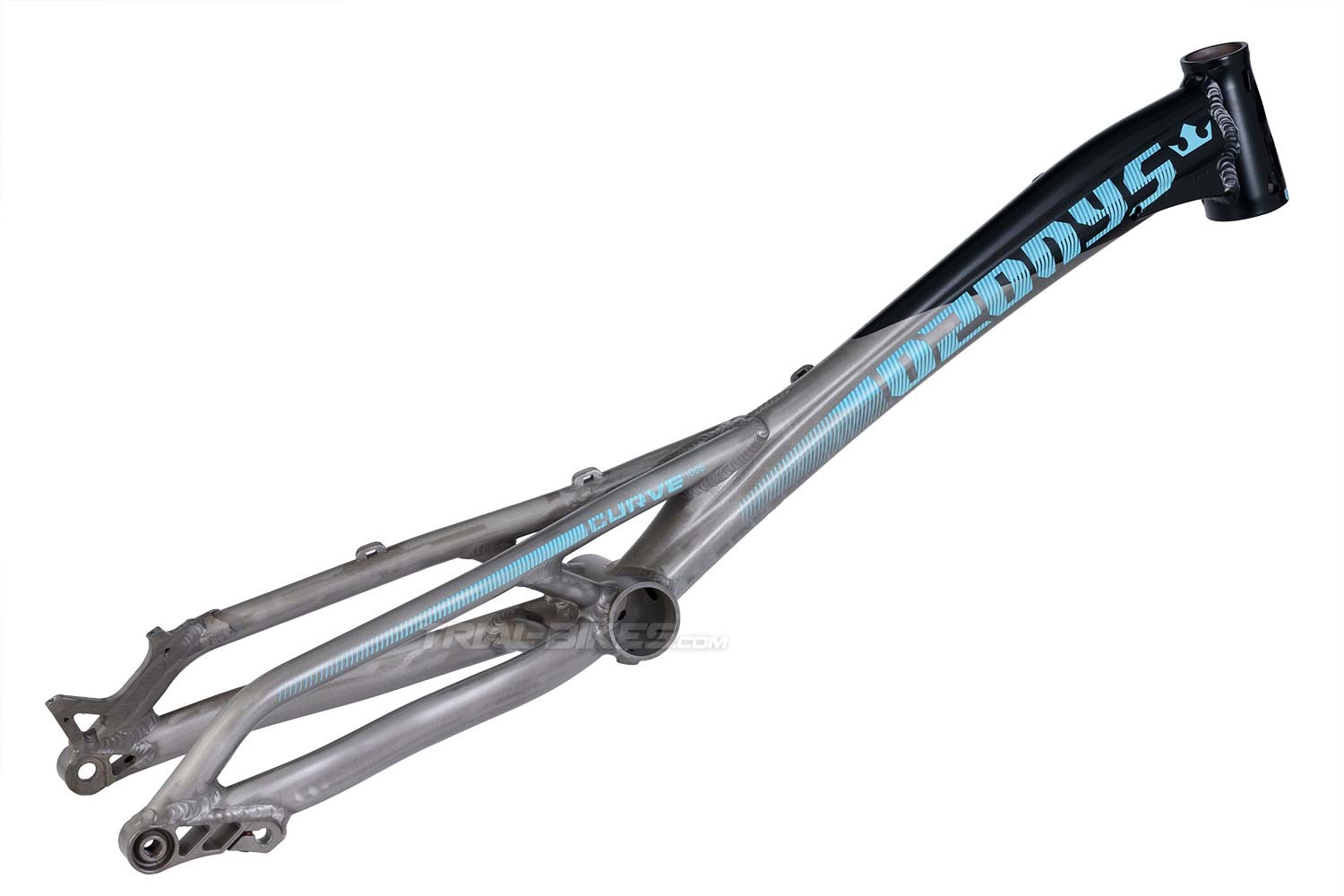

The Ozonys Curve 20" 2026 frame represents the new evolution of the well-known competition chassis from the French brand for bike trials. For this new season, Ozonys updates both the design and construction of the frame, bringing back the classic blue graphics over an elegant black and grey finish that reinforces its racing aesthetic.

Among the main new features of the 2026 model is the direct integration of the headset bearings, eliminating traditional cups to achieve a cleaner, lighter and stiffer assembly. In addition, the frame receives a complete revision of its hydroformed tube design, optimized to improve structural stiffness and resistance in the areas that experience the highest loads during riding.

The result is an extremely responsive frame designed for modern trials, offering excellent power transfer, great precision in technical movements and high durability for intensive competition use.

Description and materials
- New 2026 version of the well-known Ozonys Curve 20" frame for bike trials.
- Manufactured from high-quality aluminium with hydroformed tubes to optimise weight, stiffness and strength.

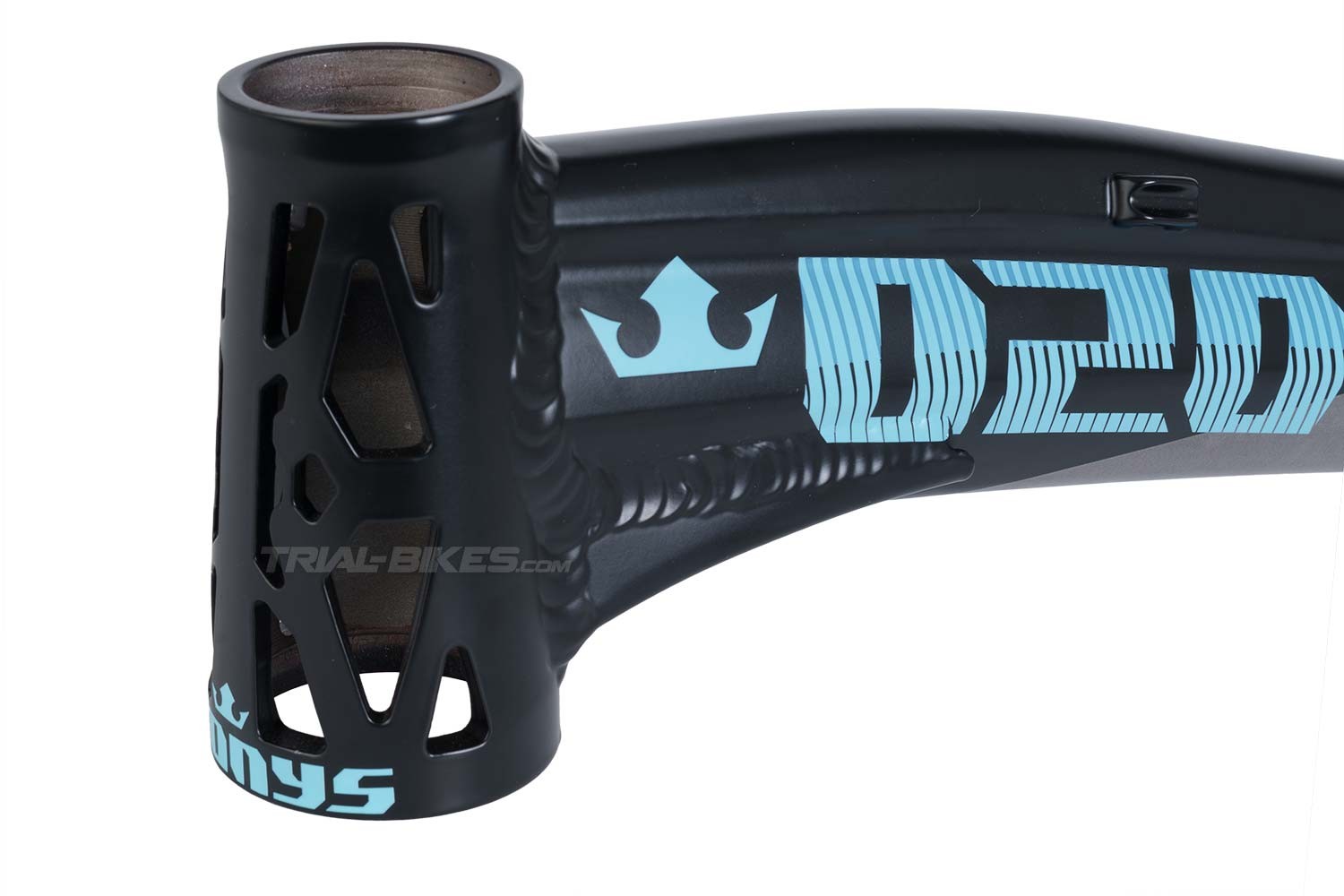

- New integrated headset system with direct bearings, without the need for cups.
- Oversized down tube that increases overall rigidity and improves precision during jumps and landings.
- Curved top tube with structural reinforcement that improves the strength of the main triangle.

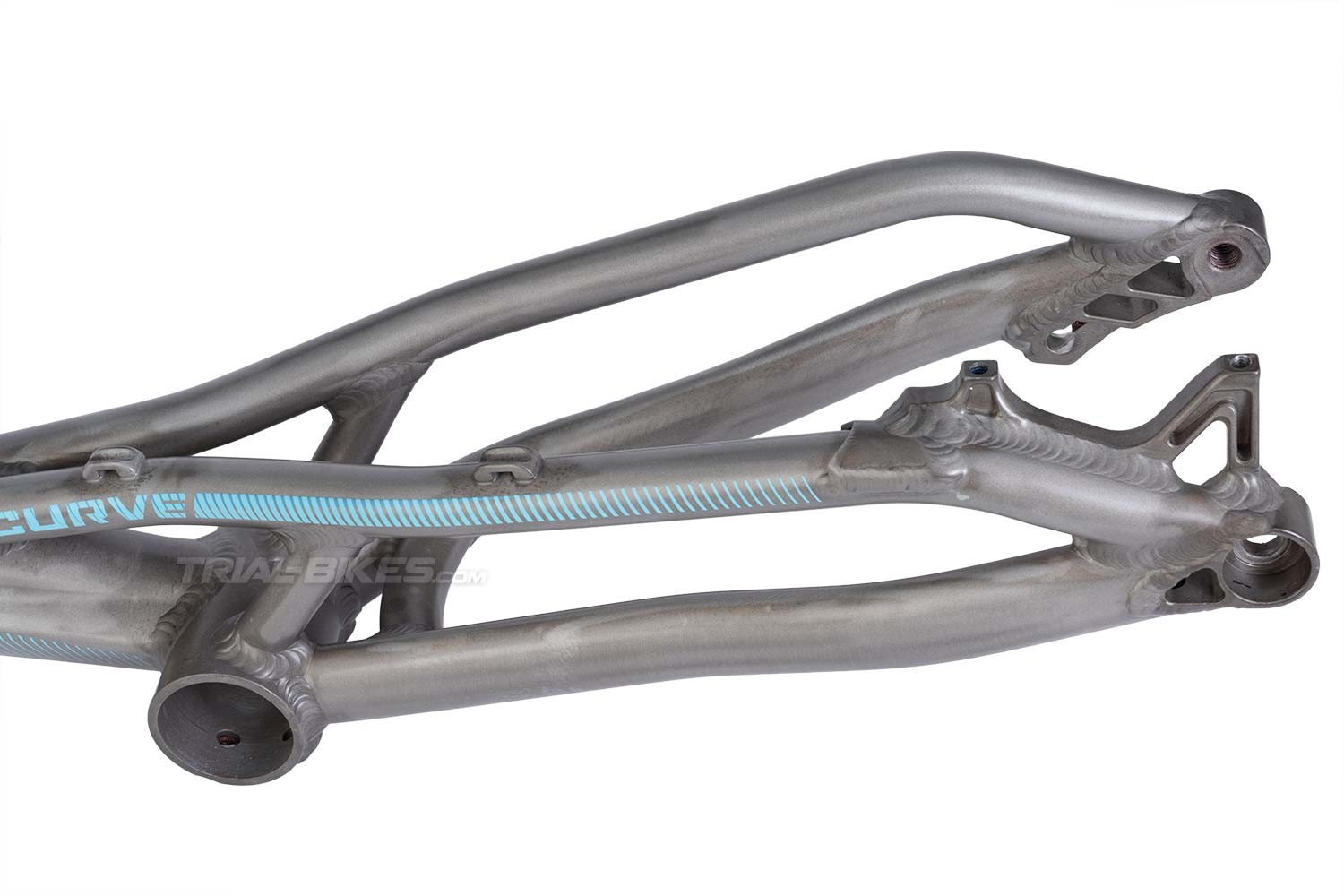

- Optimised rear triangle design that improves power transfer and bike responsiveness.
- CNC machined rear dropouts ensuring precise wheel alignment and high strength.
- Rear disc brake mount integrated into the left dropout.
- Cable guides located on the top tube for a clean rear brake installation.
- New black and grey finish with the classic blue Ozonys graphics returning for the 2026 range.

The 7 Compatibility Keys

Below you can find the main details to consider when building this frame:

- 1) Headset. This frame uses a tapered headset design 1 1/8’’ - 1.5’’, integrated without cups, such as the Crewkerz Integrated Headset 1 1/8" - 1.5", Clean K1.2 Integrated Headset 1 1/8" - 1.5"...

- 2) Bash plate. This frame includes mounts for a 4-bolt mini bash plate on the bottom bracket shell. It is compatible only with Crewkerz, TMS and Clean Strong bash plates.

- 3) Bottom bracket. Compatible with AS30 type bottom brackets with 91 mm width, such as the Crewkerz or Clean Press Fit 3P.

- 4) Rear brake. This frame features Post Mount disc brake mounts, therefore a rear disc brake of this type must be used. Post Mount brake calipers sit vertically on the mount instead of laterally (as is the case with IS calipers).

- 5) Chain tensioner. This frame requires a double pulley chain tensioner (Crewkerz, Clean…), so it is not necessary to use eccentric systems or other types of tensioners.

- 6) Rear hub. A hub with a 12 mm diameter thru axle and 135 mm dropout spacing must be installed (such as Crewkerz, WAW).
In addition, as this frame has disc brake mounts only, it is important that your rear hub includes mounts for a brake disc.

- 7) Fork. As the head tube of this frame is tapered, with a top diameter of 1 1/8” and bottom diameter of 1.5”, it is compatible with tapered forks (1 1/8” – 1.5”). If you wish to use a standard 1 1/8” fork, a reducer ring can be installed for the lower headset cup, available in our catalogue here.

The steerer tube of your fork must be long enough to extend at least 2 mm above the upper bolt of the stem base.
To ensure this, you must add the length of the frame’s head tube (in this case, 125 mm), the portion of the headset cups that protrude from the head tube, the headset spacers (if used) and/or dust caps placed below the stem, as well as the height of the stem base you intend to use. Once these calculations are made, you can check if your fork is long enough to extend 2 mm above the upper bolt of the stem base.


Geometry (with a 370 mm x 35º fork)
- Chainstay spacing: 135 mm.
- Bottom bracket shell: 91 mm.
- Head tube: 120 mm, tapered design 1 1/8” to 1.5”.

- Wheelbase: 1005 mm (1010 mm with a Clean or Comas fork).
- Rear end: 350 mm.
- Bottom bracket height: +85 mm.
- Head angle: 71.5º.

Finish
- Black / grey colour with blue Ozonys graphics.

Weight
- 1.760 kg, verified by TrialBikes!

Additional information
This frame includes a 1-year warranty covering manufacturing and material defects. Damage caused by improper use or impacts against obstacles will completely void the warranty coverage.

If you have any questions, please contact us at info@trial-bikes.com.
