Bonz Pro Light Tapered 20" Fork

Bonz Pro Light Tapered 20" Fork

Description and materials
- New edition of the popular Bonz Pro Light 20” tapered trials fork.
- Tested and developed by UCI Trials World Runner-Up Dominik Oswald.
- Made of high quality 7075-T6 aluminium alloy, with the exclusive design by Bonz featuring optimized leg curvature and thickness to increase strength and stiffness.

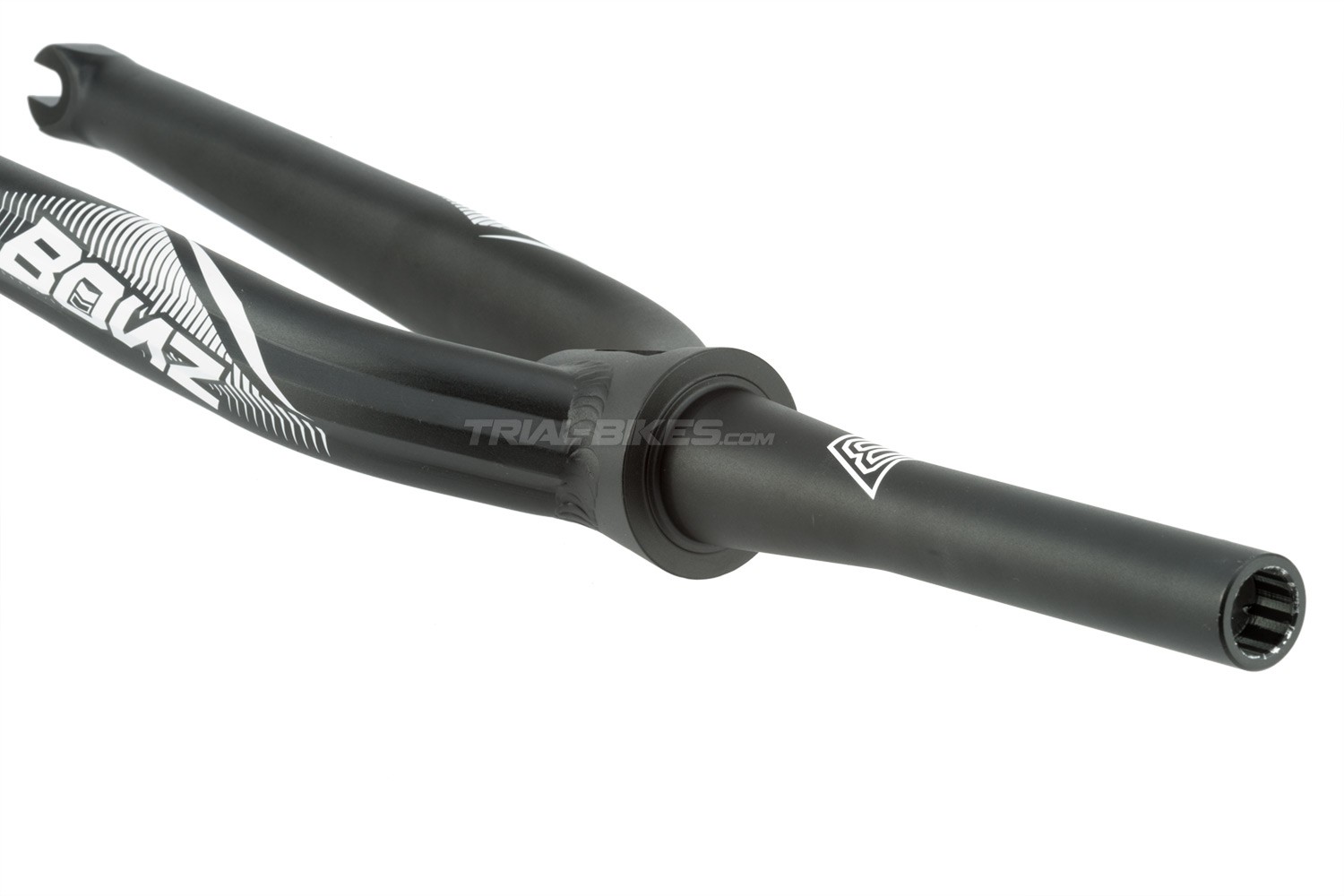

- Tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom, for use with tapered headsets.
- Robust construction, with a one-piece machined steerer tube to optimize stiffness, with holes at the base to remove any excess material.
- 4mm thick steerer tube ensures a great balance between moderate weight and high strength.

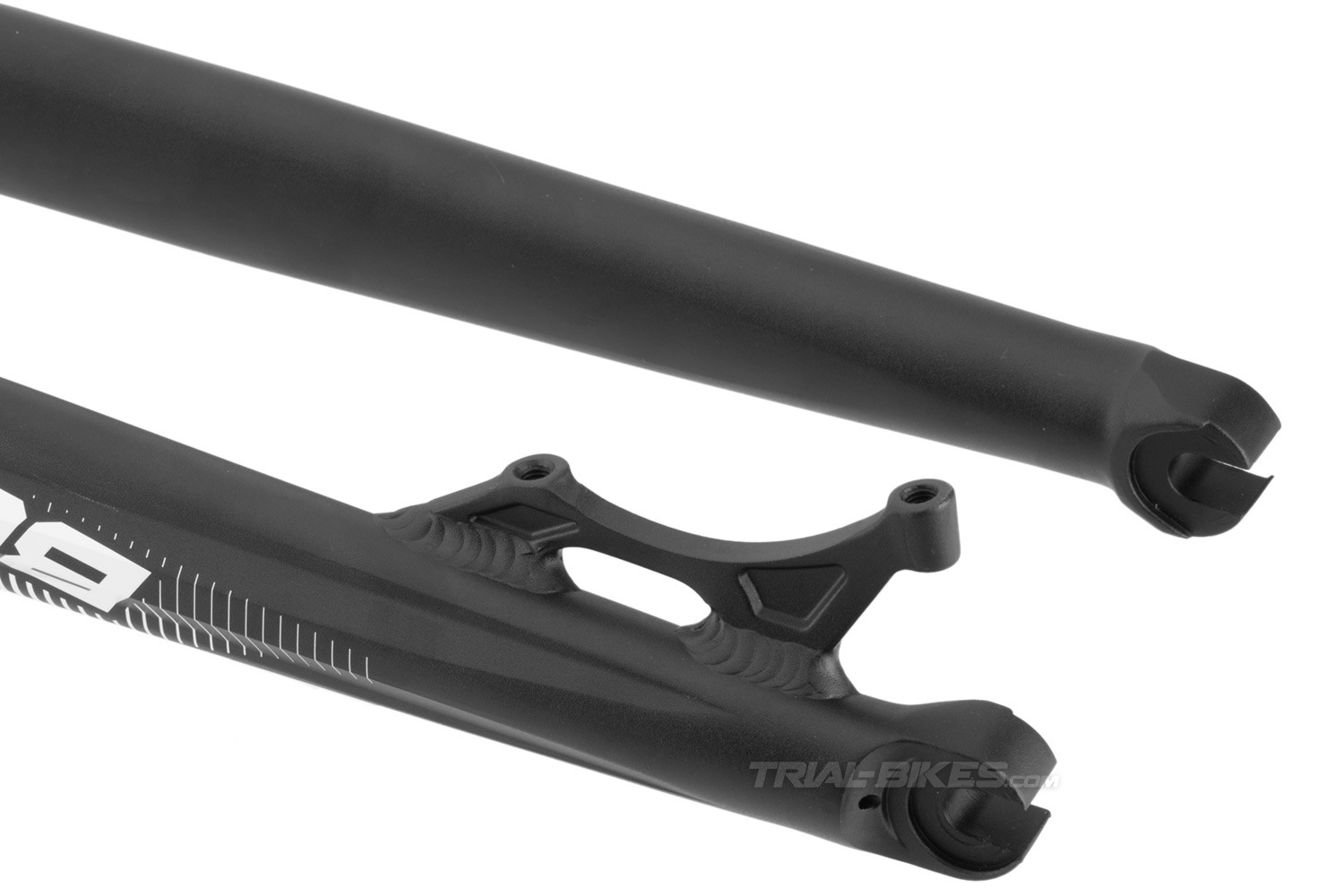

- Post Mount disc brake mounts, for 160mm rotor, redesigned to increase reliability.

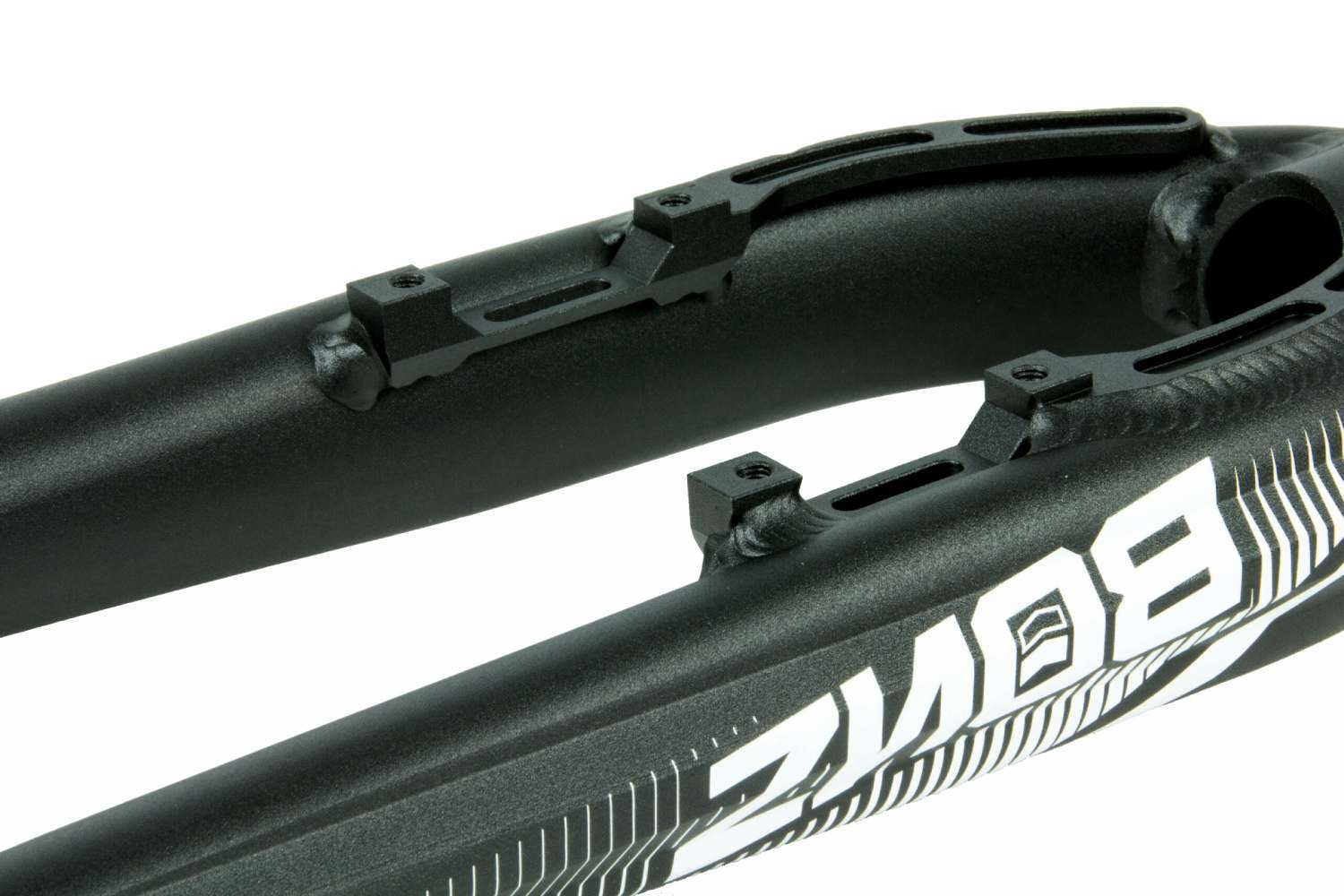

- The rim brake version has brake mounts spaced at 88mm at the back of the legs, and they’re integrated in built-in brake booster to guarantee increased stiffness and durability.
- CNC machined dropouts, spaced at 100mm.
- Supplied with the star nut already installed.

Compatibility
- This fork has a tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom, so it’s not compatible with frames with standard 1 1/8” headtube. A tapered 1 1/8” – 1.5” headset or a headset adaptor must be used with this fork.
- Compatible with most front trials hubs (with 100mm spacing).

Dimensions
- Length: 365mm
- Offset: +40mm
- Steerer tube: 200mm

Colour
- Anodized black, with white Bonz graphics.

Weight
- 840.74g (star nut included), with a 184mm long steerer tube

Additional information
Important: The steerer tubo has been cut at our workshop, and now it's 184mm long.
