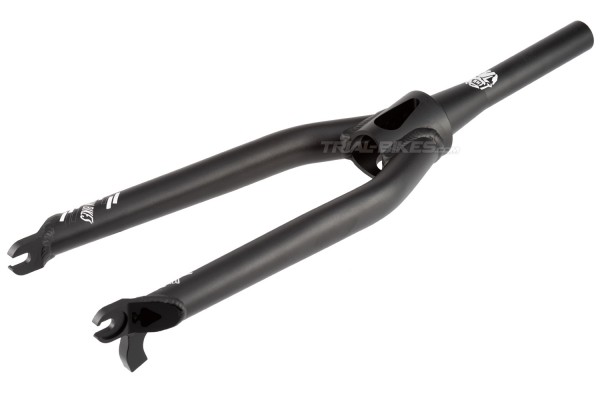

Rockman Tapered 20" Fork

Rockman Tapered 20” Fork

Description and materials
- High-end Rockman Tapered 20” bike trials fork.
- Developed and tested for months by Rockman team rider Sam Oliver.
- Made of 7005-T6 aluminium alloy for high strength and low weight.

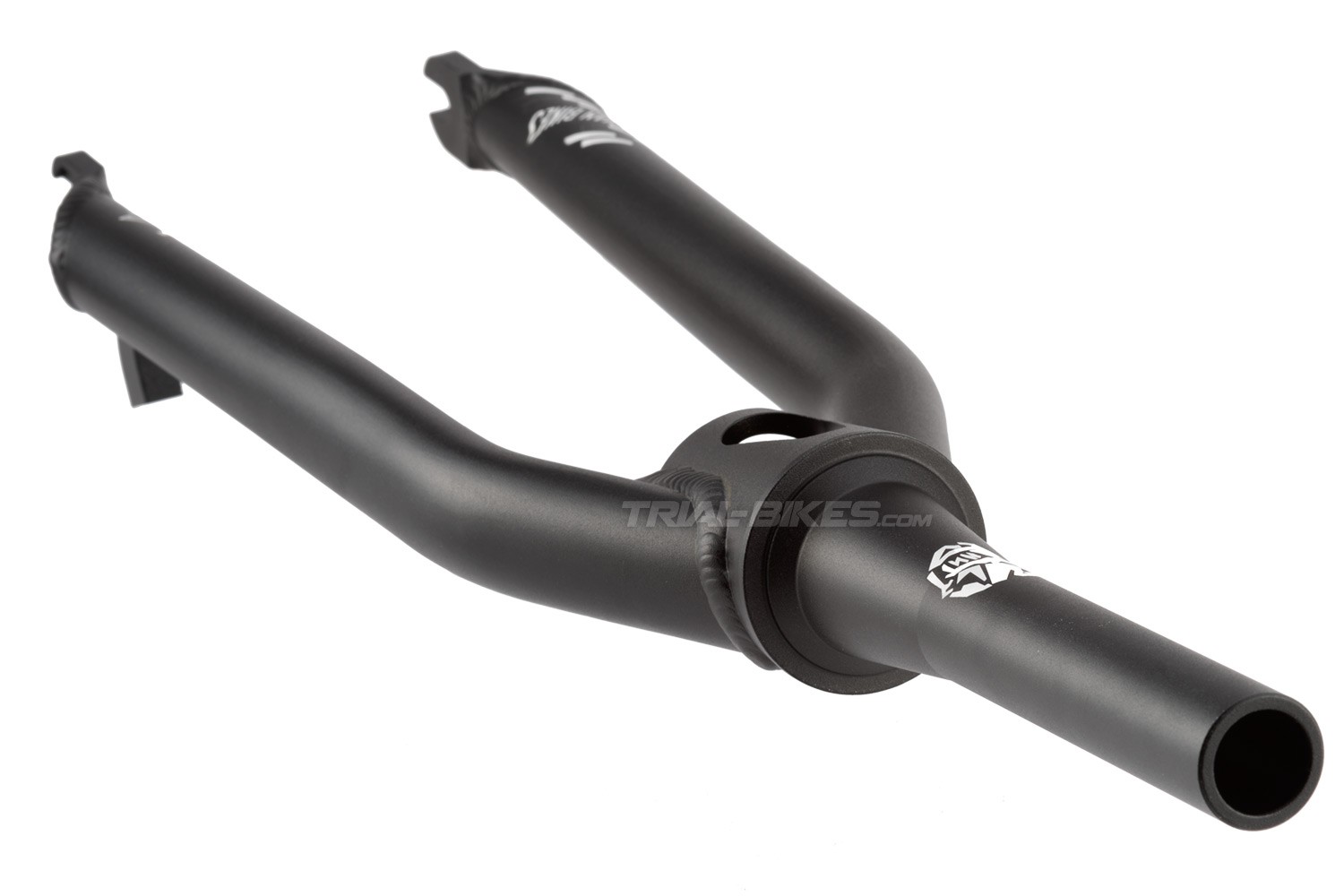

- Tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom.
- The steerer tube is machined in one piece to optimize stiffness and prevent cracking.

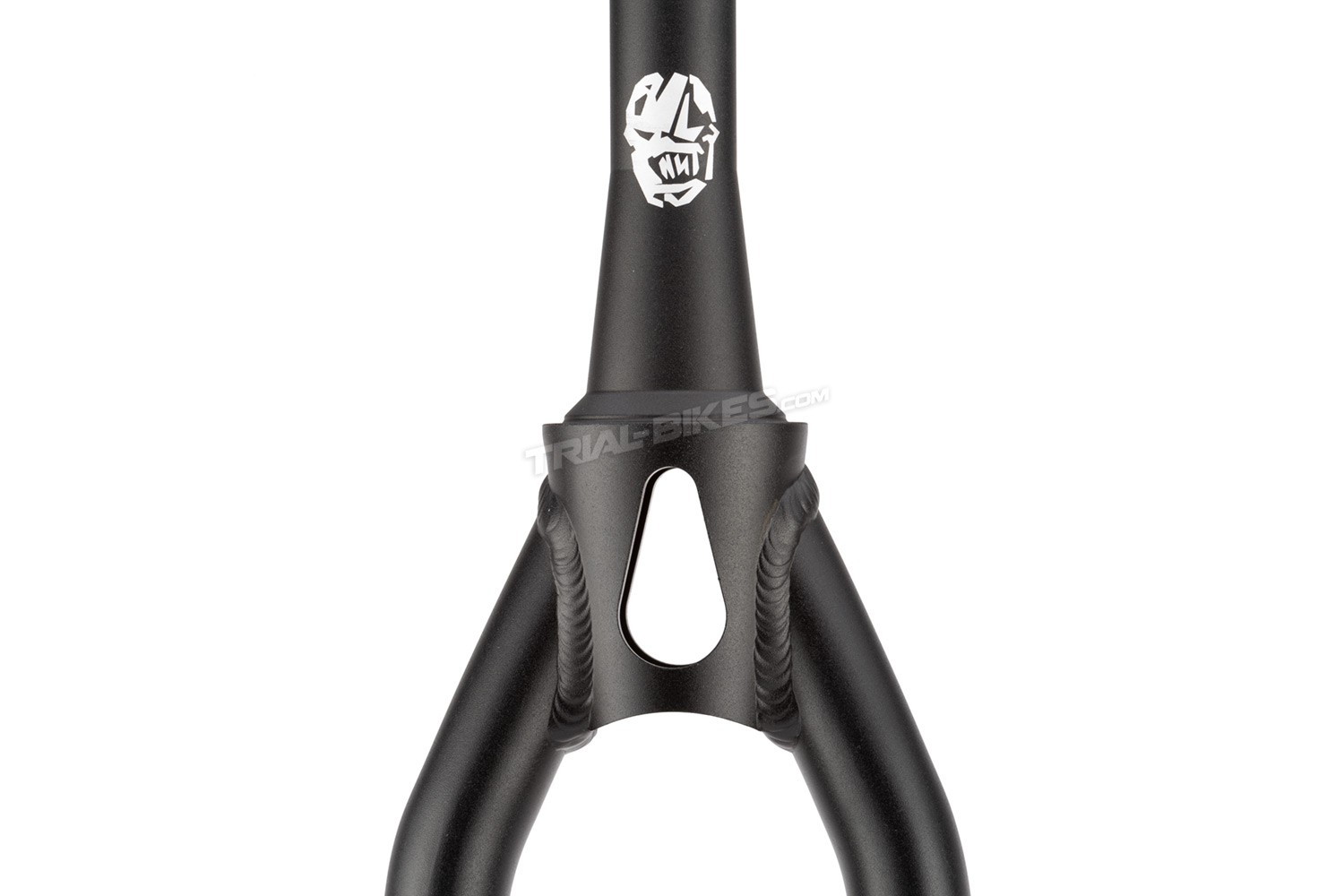

- Moreover, the bottom has 2 large cut-outs that remove any excess material.
- The steerer tube features an integrated crown race recess for the lower bearing, so there is no need to install one.

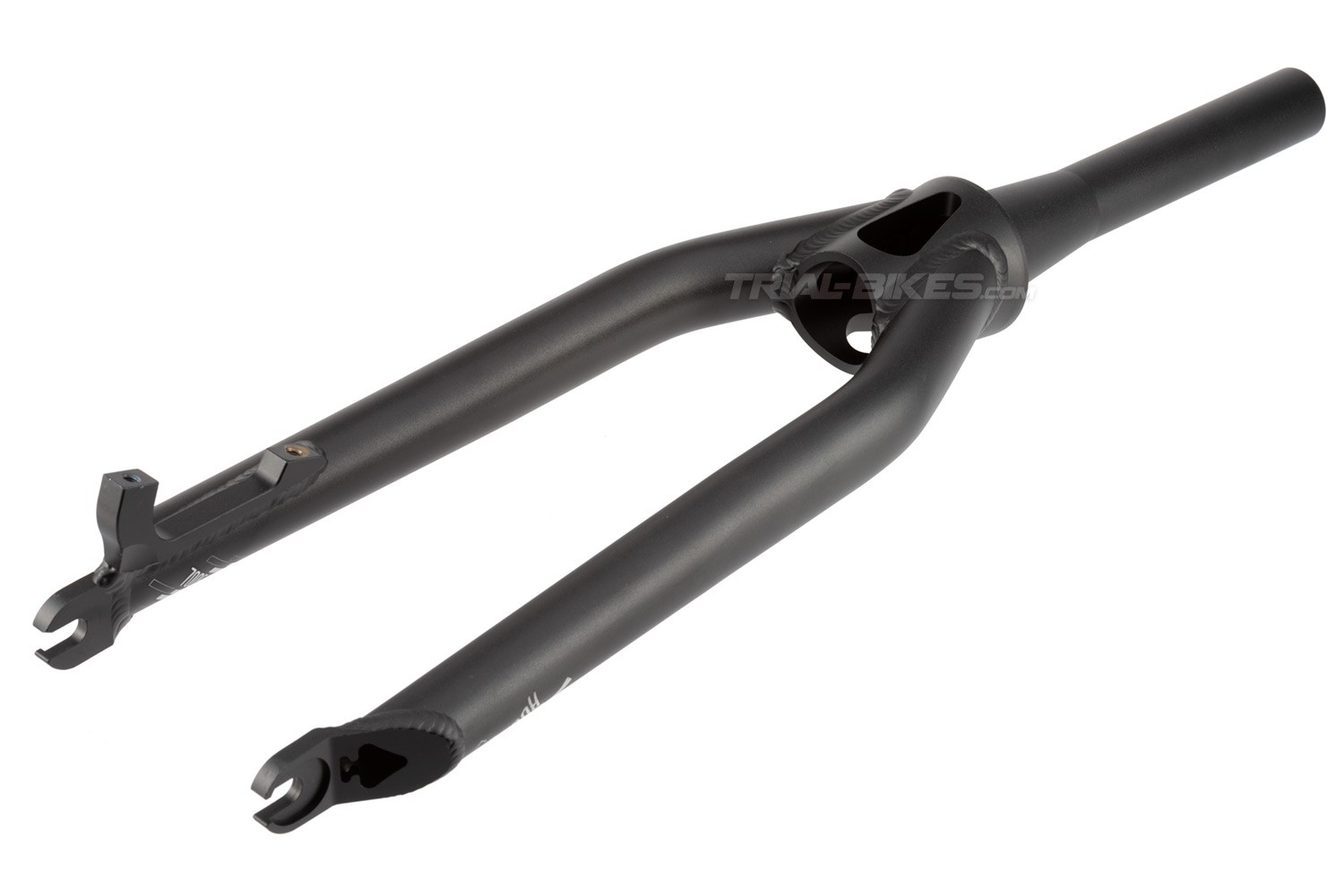

- Available with Post Mount 160 mm disc brake mounts, neatly integrated on the left leg.
- Dropouts spaced at 100 mm, compatible with most front hubs for bike trials.

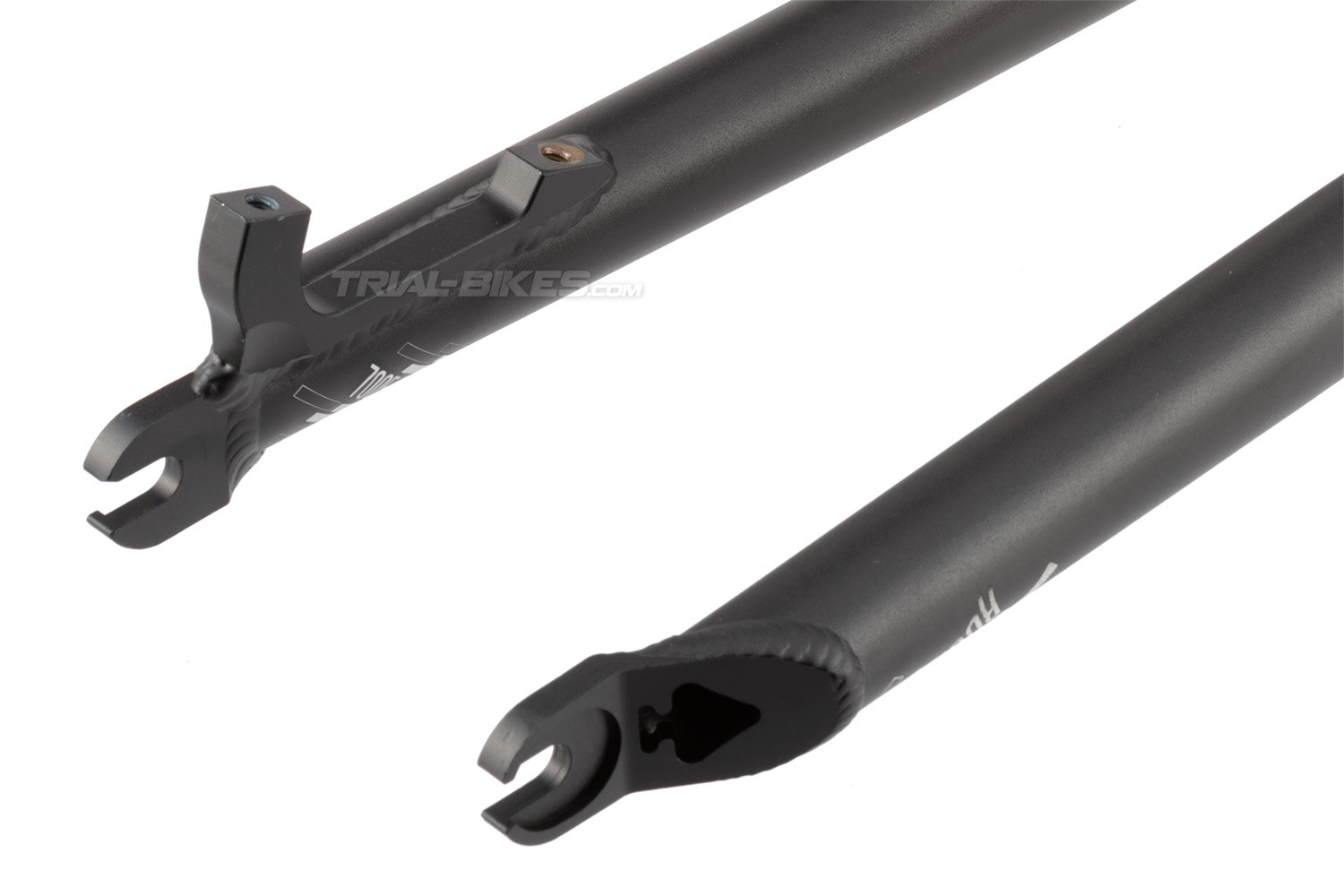

- Each dropout has a spades-shaped hole that helps save weight and gives a unique look.
- Comes with the star nut already installed.

Compatible with:
- Frames with tapered 1 1/8” – 1.5” head tube.
- Front hubs with 10 mm diameter axle and 100mm spacing.
- Note: in case you’d like to install this fork on a frame with 1 1/8” head tube, an adaptor must be used.

Dimensions

(1) Length: 370 mm.

-----------------------------------------------
(2) Offset: +35 mm.
-----------------------------------------------
(3) Steerer tube length: 190 mm.
-----------------------------------------------

- Steerer tube thickness: 4 mm.

Colour
- Anodized black, with white Rockman graphics.

Weight
- 783.14 g.
