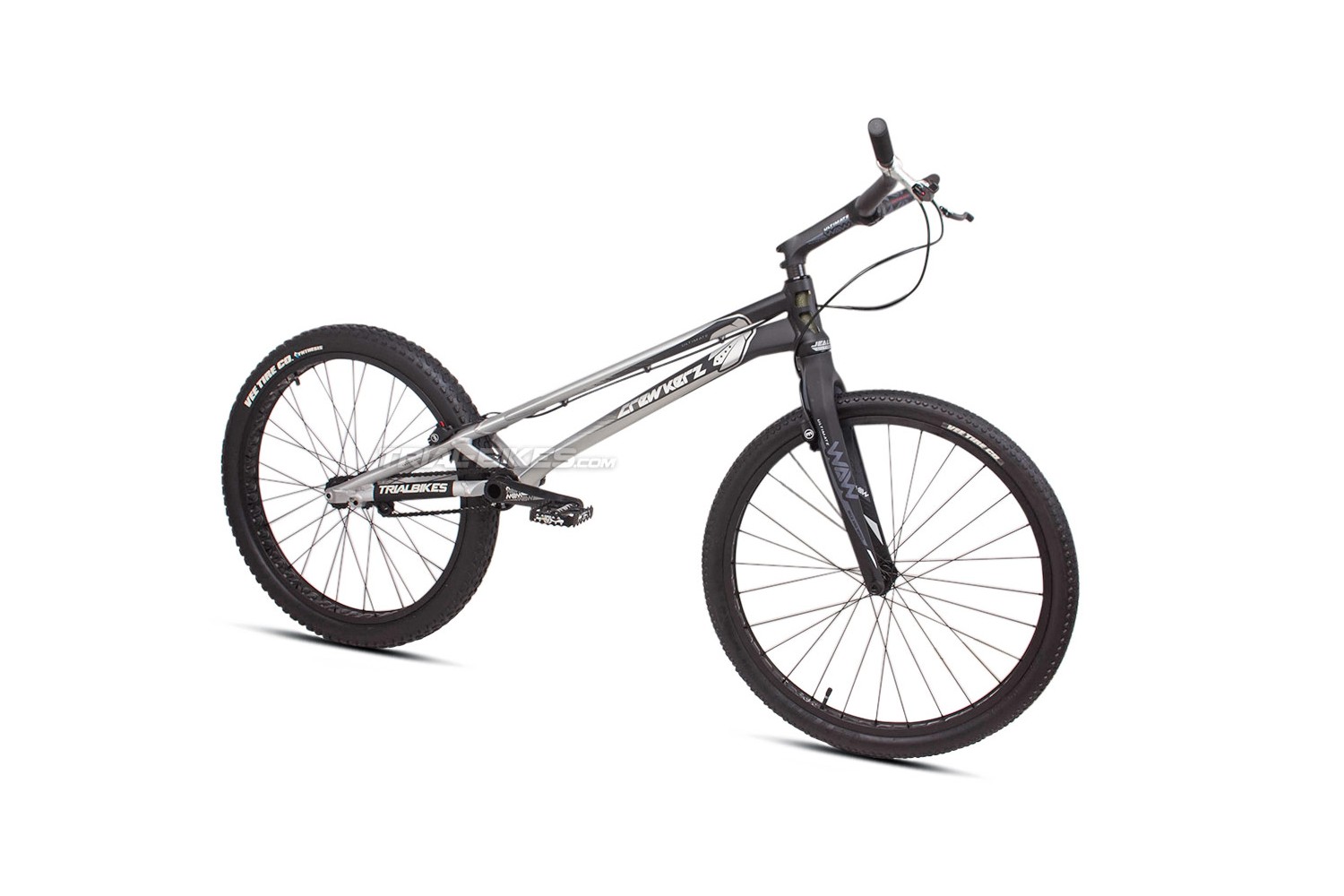

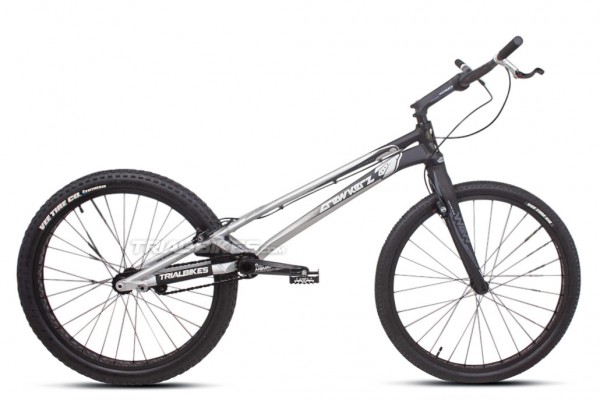

Crewkerz Jealousy Ultimate 26" 2024 Bike

Crewkerz Jealousy Ultimate 26" 2024 Trials Bike Jack Carthy

The new Crewkerz Jealousy 2024 Ultimate 26” bike, developed and used by UCI Trials World Champion Jack Carthy, is updated with a new ATS (Anti Torsion System) front yoke, which improves performance. And it’s built with through-axles, Crewkerz WAW carbon fork and handlebar, Trialtech Carthy Signature Series 2022 Rim Brake, AS30 bottom bracket…

Frame and fork
- Frame: Crewkerz Jealousy Ultimate 26” 2022 1 1/8” – 1.5” tapered, polished aluminium finish
- Forks: Crewkerz Carbon 26”, with 1 1/8” – 1.5” tapered steerer tube

Wheels
- Front hub: Crewkerz Waw HS 100 mm HS 32H, with 9mm thru-axle
- Rear hub: Crewkerz Waw HS 135 mm 32H, with 12mm thru-axle
- Chain tensioner: Crewkerz Integrated, with two 11T plastic wheels
- Front rim: Crewkerz 26”, 32 spoke holes
- Rear rim: Crewkerz 26”, 32 spoke holes
- Rim stickers: TrialBikes
- Spokes: Crewkerz 1.8 mm
- Spoke nipples: Aluminium, anodized red
- Rim tape: Ultralight, black
- Front inner tube: Crewkerz 26”
- Rear inner tube: Crewkerz 26”
- Front tyre: Vee Rubber WAW Edition 26’’x2.0’’
- Rear tyre: Vee Rubber WAW Edition Kevlar 26’’x2.5’’

Brakes
- Front brake: Trialtech Carthy Signature Series 2022 Brake lever, Magura HS33 slave cylinders
- Rear brake: Trialtech Carthy Signature Series 2022 Brake leve, Magura HS33 slave cylinders

- Brake pads: Crewkerz, red
- Brake clamps: Crewkerz, anodized red and black

Drivetrain
- Crankset: Crewkerz WAW AS30 crankset, CNC machined from 7075-T6 aluminium alloy. Comes with 170mm cranks and Shimano HG splines, black
- Freewheel: Crewkerz 135.9, with 18 teeth, red
- Chain: KMC 610HX, black
- Rear sprocket: Crewkerz 15T splined, made of steel
- Pedals: Crewkerz WAW Single-cage 7075-T6
- Bashring: Crewkerz WAW, anodized red

Steering
- Headset: Crewkerz Internal Tapered 1 1/8” – 1.5”, anodized black
- Stem: Crewkerz WAW RS 155 mm (1060 mm) and 145 mm (170 mm and 1080 mm) x 20º
- Top cap: Crewkerz WAW RS, anodized red
- Grips: TrialBikes super-thin foam, black
- Handlebar: Crewkerz Waw Carbon, 102 mm high, 720 mm long

Geometry

(1) Wheelbase: 1060 mm (S), 1070 mm (M) and 1080 mm (L)
-----------------------------------------------
(2) Rear End: 380 mm
-----------------------------------------------
(3) Bottom Bracket Height: +65 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 680 mm
-----------------------------------------------
(6) Reach: 496 mm
-----------------------------------------------
(7) Stack: 433 mm
-----------------------------------------------

Weight
- 8.100 Kg

Additional information:
The parts listed may be subject to change. Any changes on the setup will be notified to the customer before delivering the bike, and the replacement part will be of the same or superior quality to the one listed above.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.

If you have any doubts, please contact to info@trial-bikes.com .
