Echo SL 2015 Splined Cranks

Reduced price! Echo SL 2015 Splined Cranks Expand

Echo SL 2015 Splined Cranks

ECHO ECHO

New

82,69€

119,83€

-31%

Length .
 160mm

 165mm

 170mm

 175mm

Ask a question

Description and materials

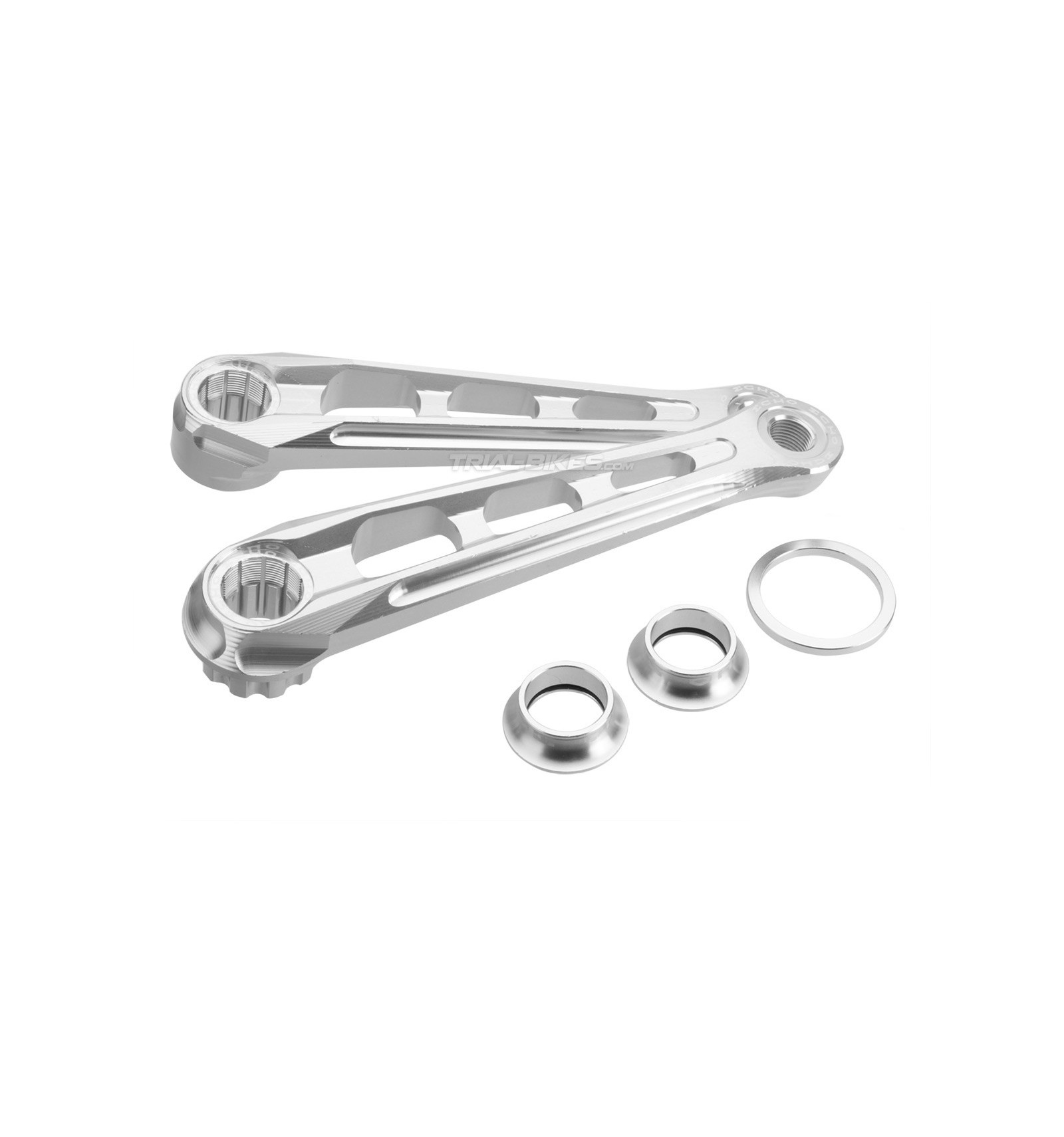

- New Echo SL 2015 cranks, the top-of-the-range cranks  from Asian manufacturer Echo.
- 3D CNC mechanized from a single piece of high quality 7075-T6 aluminium alloy.
- Now, these cranks feature a splined design, so the freewheel sits in place thanks to some special spacers (included) and the crank bolts pressure (therefore, these cranks won’t fit traditional threaded sprockets/freewheels).
- This design allows for more precise chain alignment, but also eases the freewheel set up/removal, thus being much simpler to replace the freewheel.
- Suitable for most press-fit type bottom brackets (like the Echo Spanish ones, available at our website here).
- Due to the Echo-specific splines design, they will only fit the new Echo SL 2015 Splined freewheel, available at our website here.
- Includes a ring spacer that must be used in case you’re not running a bashring. Otherwise, a bashring with a 4mm base width must be used.
- Features 3 large, CNC-machined recesses at the centre of the crank arm, which help save a considerable amount of weight whilst still being reliable.
- 4 sizes available: 160mm, 165mm, 170mm and 175mm.
- Only available in anodized silver finish, with white Echo graphics around the pedal thread and BB bolt.

Sizes
- Length: 160mm, 165mm, 170mm and 175mm.
- Offset: 36mm

Finishes
- Only available in anodized silver finish, with white Echo graphics around the pedal thread and BB bolt.

Weight
- 398g (160mm), 403g (165mm), 410g (170mm),  416g (175mm).

Additional information
Please bear in mind these cranks won’t fit traditional threaded freewheels. Furthermore, due to the Echo-specific splines design, they will only fit the new Echo SL 2015 Splined freewheel, available at our website here.


WEIGHT 0.398
LENGTH 165mm
LENGTH 175mm
LENGTH 160mm
LENGTH 170mm
