Description and materials

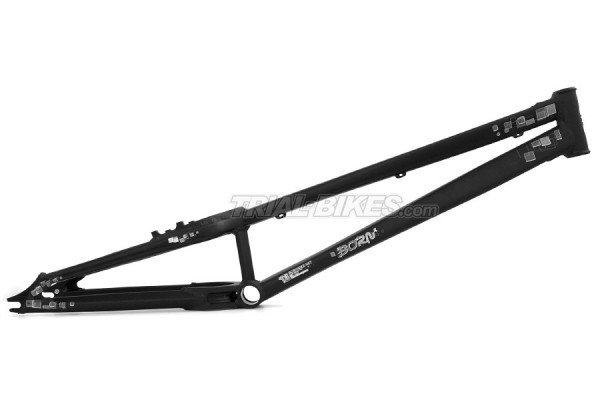

- New superlight 26" frame from Asian brand Mist.
- Made from high quality 6061-T6 aluminium.
- Triangular tubes give more strength and resistance against dents.

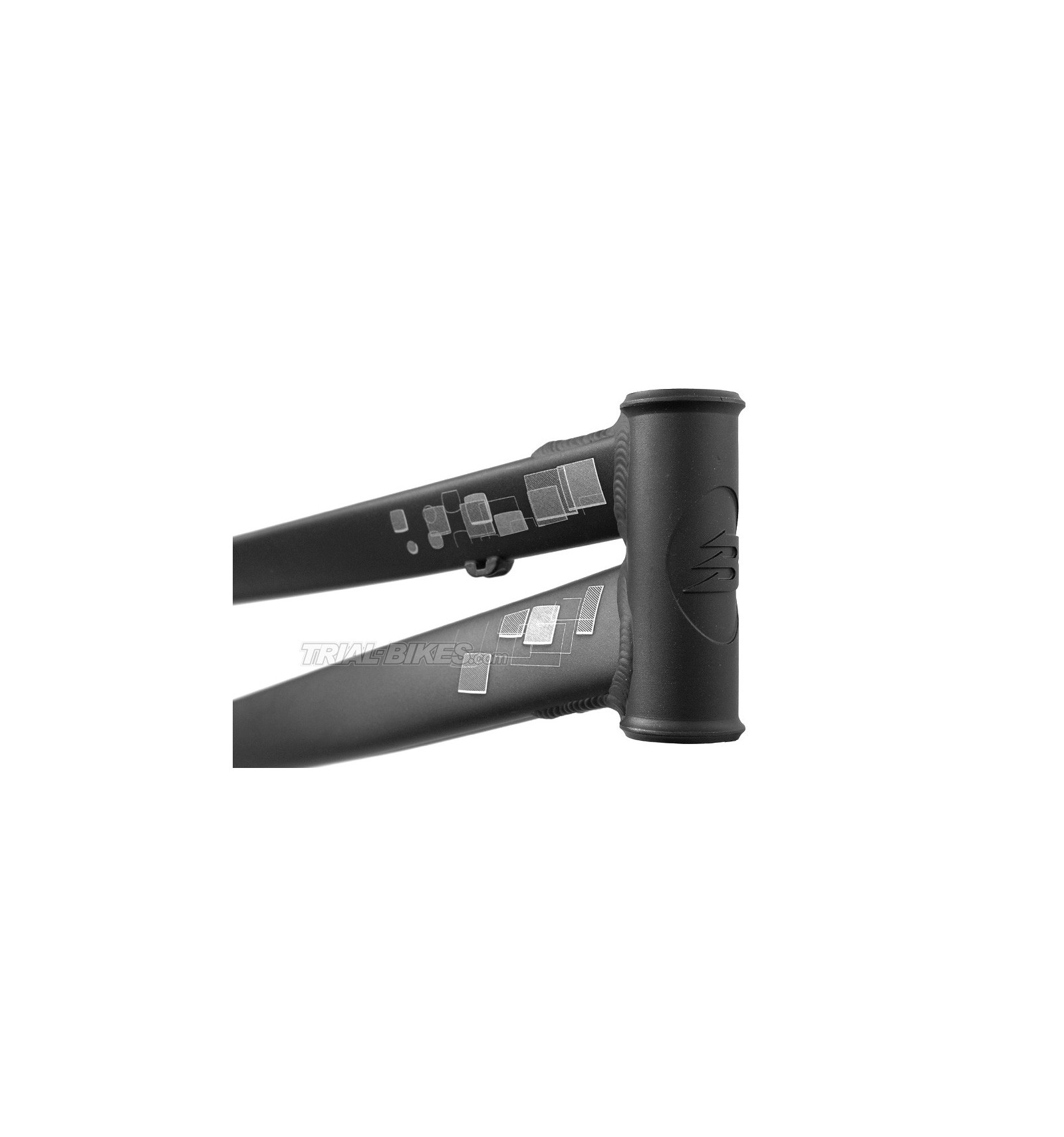

- 120mm head tube and 1 1/8 in diameter, with 3D CNC Born logo.
- Reinforcement on the top and head tubes.
- 4-bolts brake mounts, for HS33 rim brakes.
- 68mm BB shell, suitable for 128mm bottom brackets.
- Chainstays spaced at 135mm.
- Stunning anodised black finish with gray and white laser etched Born graphics.
Geometry (measured with Echo Sl 26" forks):
- Space between dropouts: 135mm
- Wheelbase: 1100mm
- Chainstay Length: 380mm
- BB Rise: 60mm
- Head angle: 70,5º
- Head tube: 120mm 1 1/8"
- BB shell: 68mm
Finishes
- Anodised black
- Gray and white Born graphics
Weight  Â
- 1,595kg
Additional information:
This frame comes with 1 year warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us.
| WEIGHT | 1.595 |
| TYPE OF HEADSET | Standard 1 1/8" |
Hello Rob,
Thanks for your question!
The Born Light 26'' frame requires an external 1 1/8'' headset, just like the ones you can purchase here: https://www.trial-bikes.com/en/bike-trials-external-headsets/
These headsets include compatible bearings as well.
Don't hesitate to get back in touch if you need any further help!
