Ozonys Roxxor 20'' Frame Expand

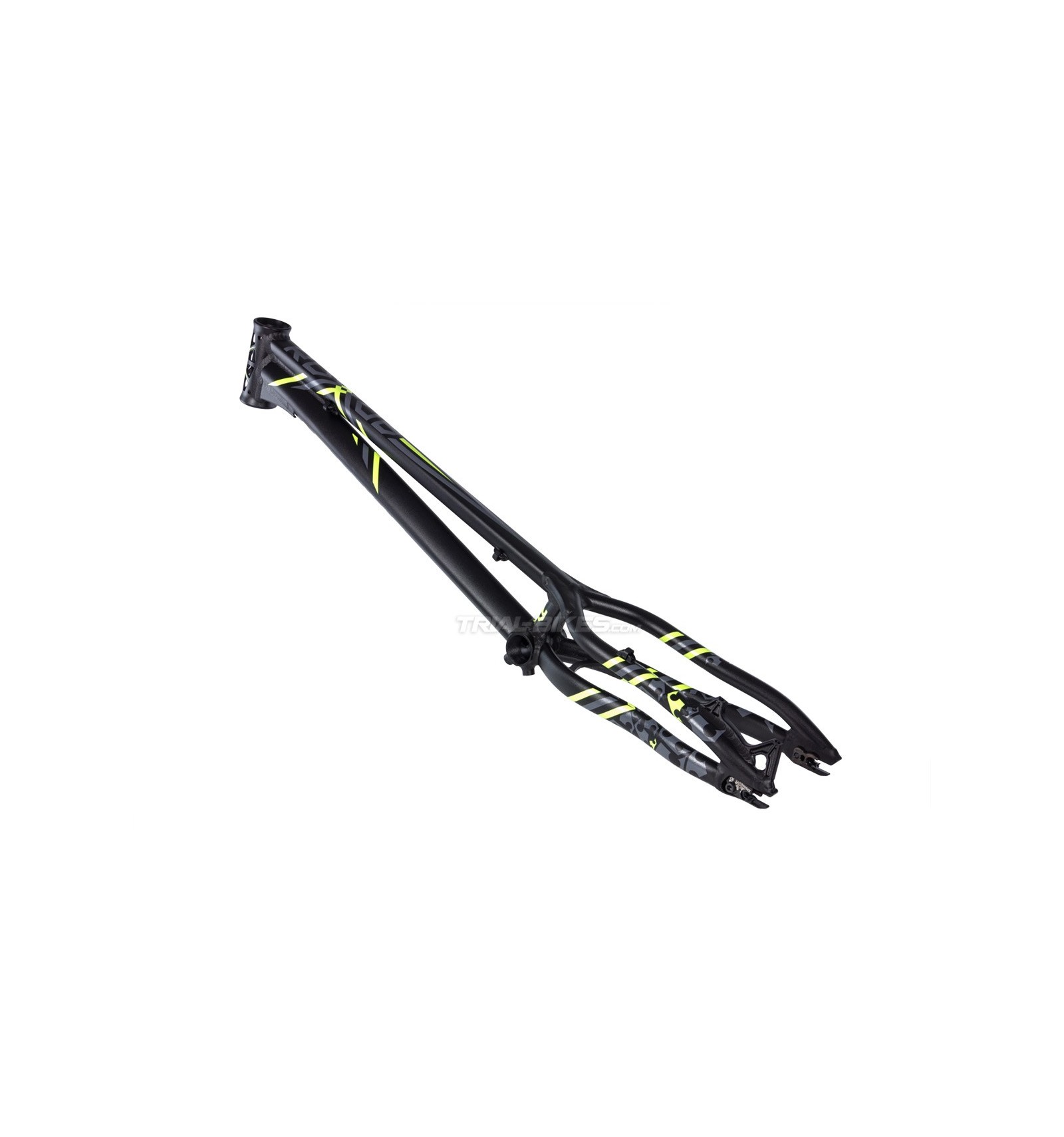

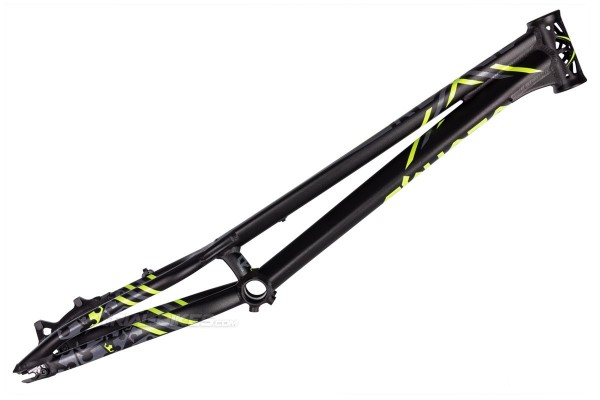

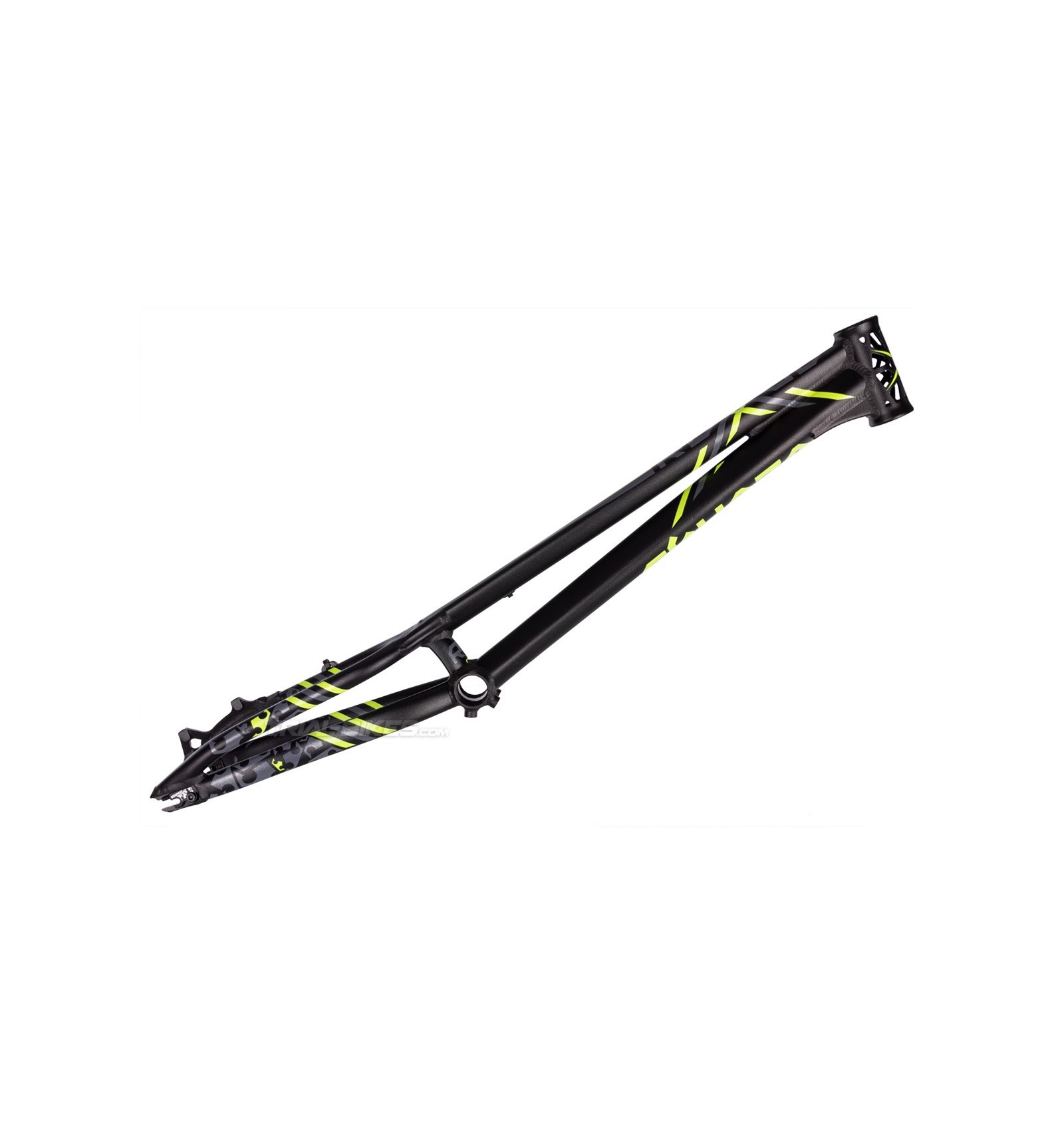

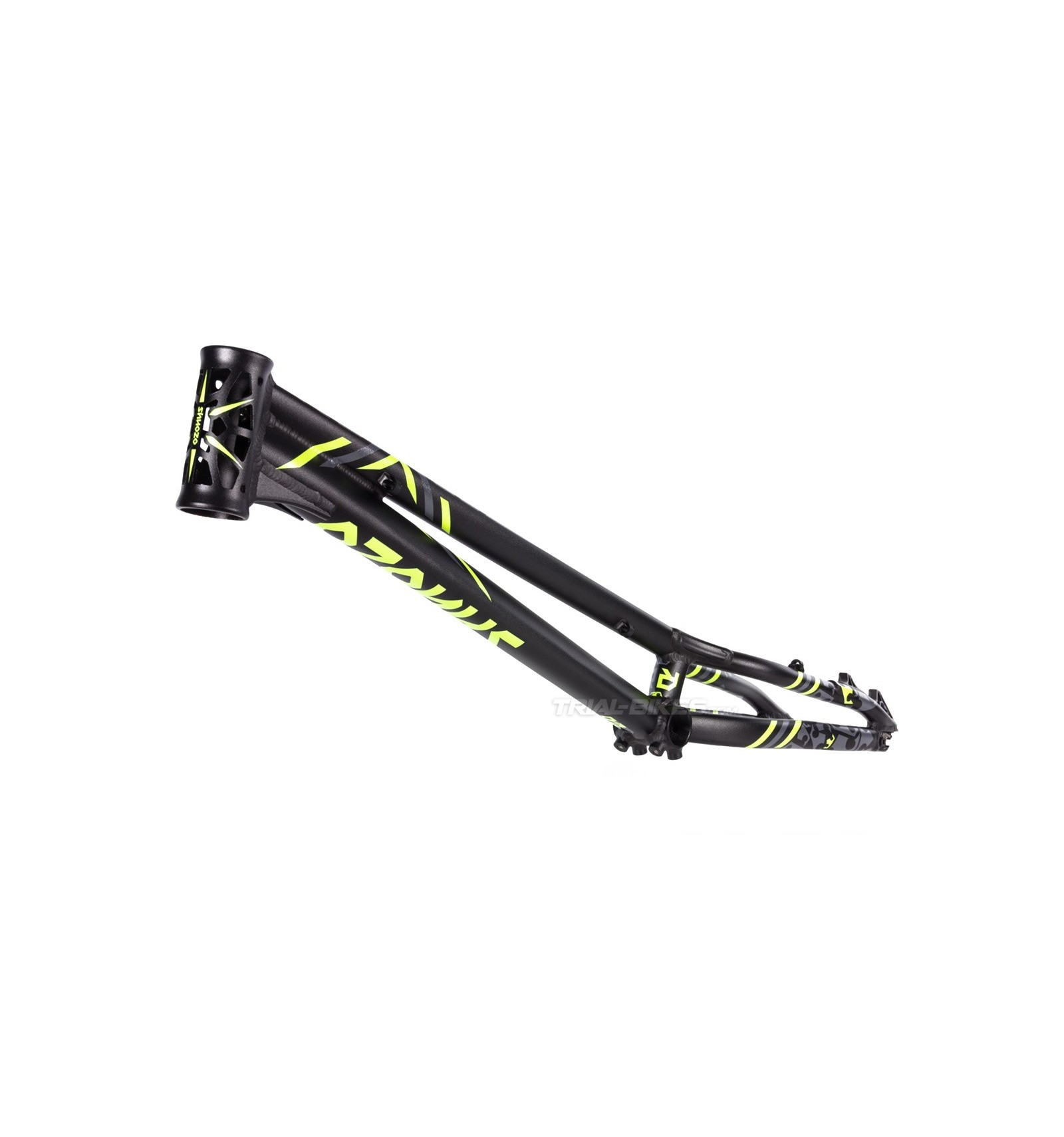

Ozonys Roxxor 20'' Frame

OZONYS OZONYS

New

Description and materials

More details

This product is no longer in stock

570,25€

Length .
 970mm

 1005mm

Ask a question

Description and materials
- New Ozonys Roxxor 20” frame, a completely new frame developed by French brand Ozonys for the 2015 season.
- This new frame combines the technology applied in the successful Ozonys Curve frames with a straight main-tubes design, thus being unique and top quality.
- Made from high quality 6061-T6 aluminium.

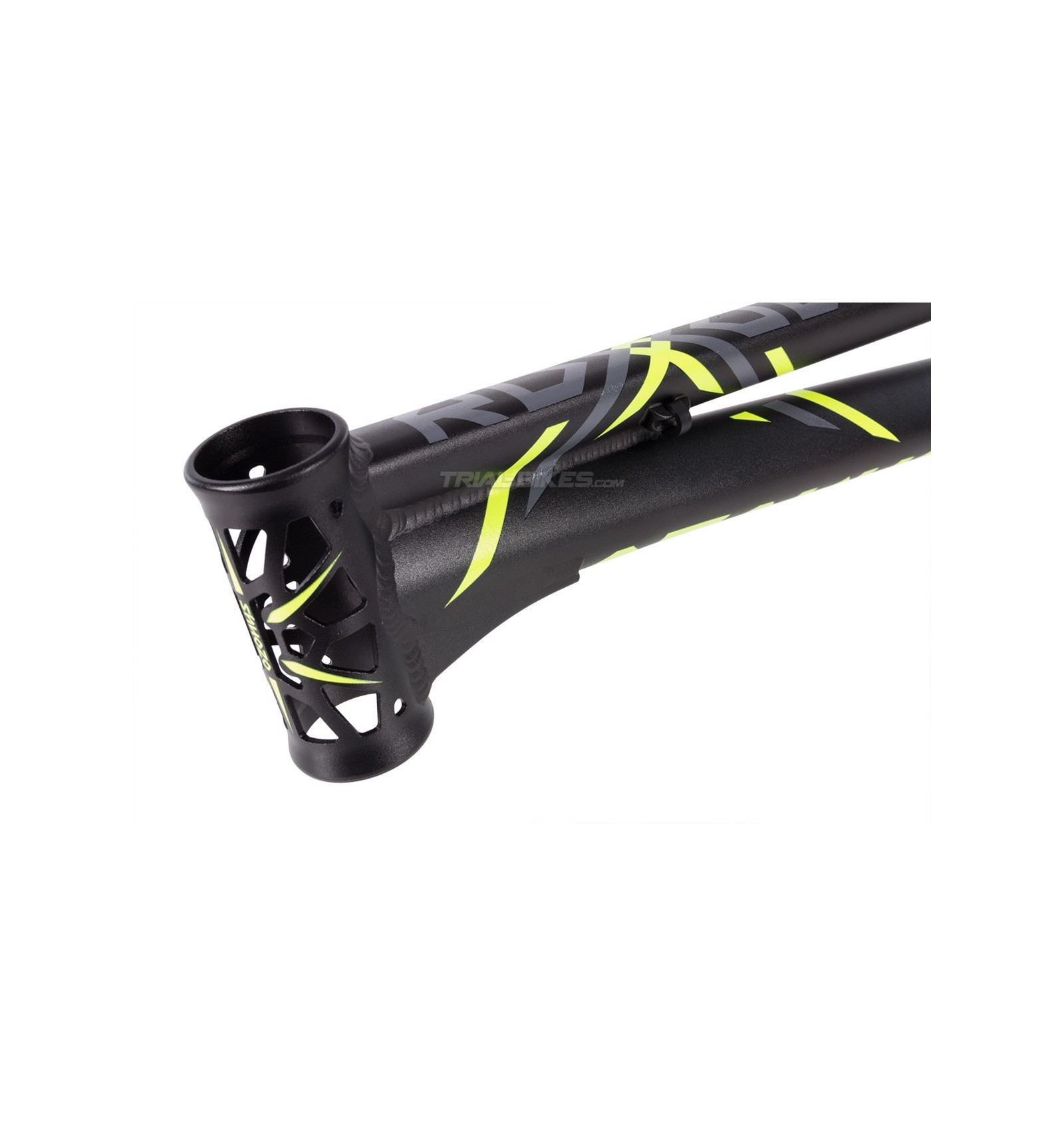

- Like in the 2015 Ozonys Curve v6 frames, the head tube design is completely new, with astonishing little cut-outs that help save weight whilst making it look awesome.
- Suitable for 1-1/8” internal headsets.
- 3D-machined main tubes allow for the most accurate dimensions and optimum thickness. They’re joined to the head tube via a gusset that increases strength and stiffness.

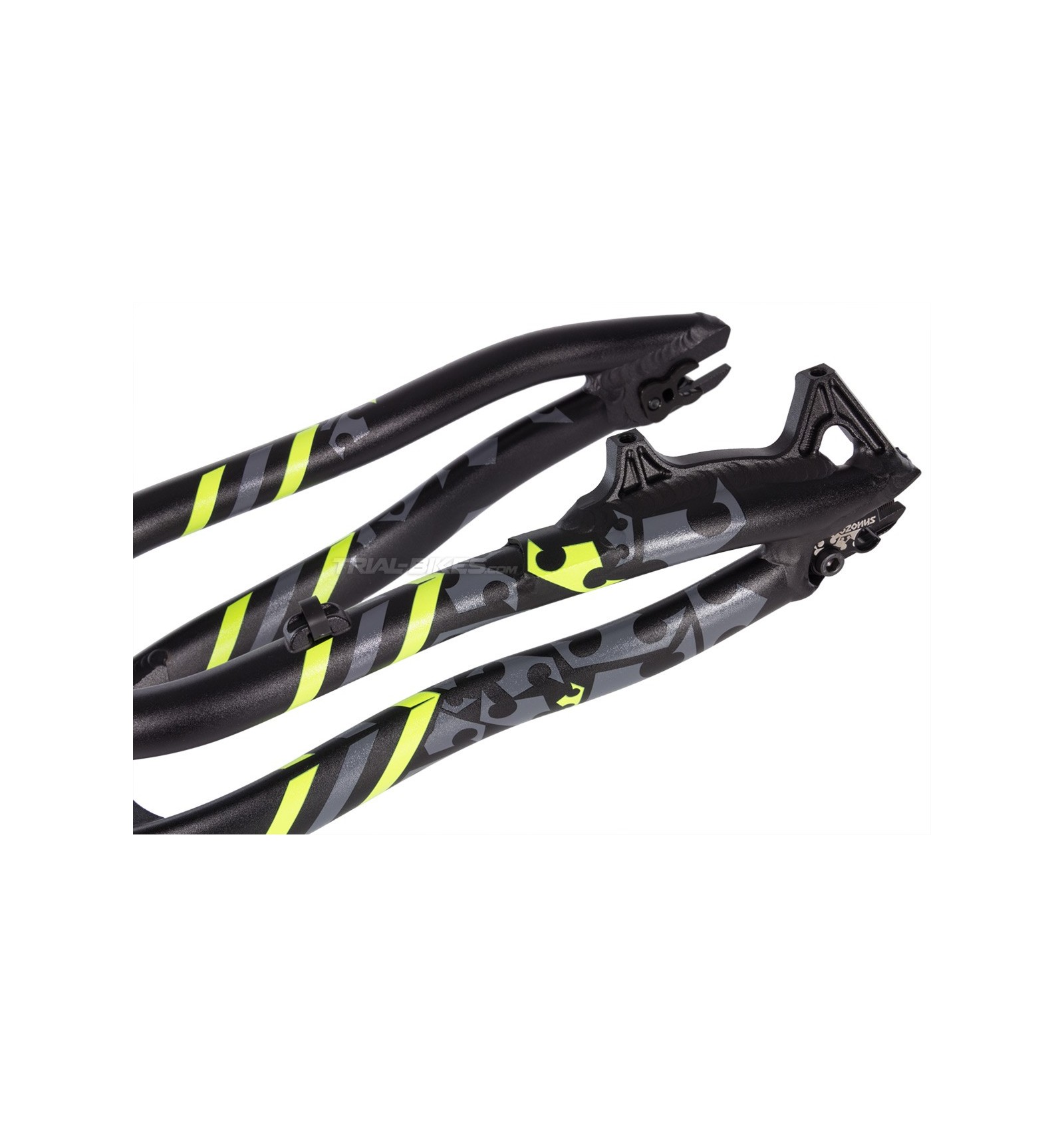

- The top tube joins the seat stays via two reinforcement gussets that avoid the need for an integrated booster in order to stiffen the rear end.
- Designed to use with 116mm rear hubs.

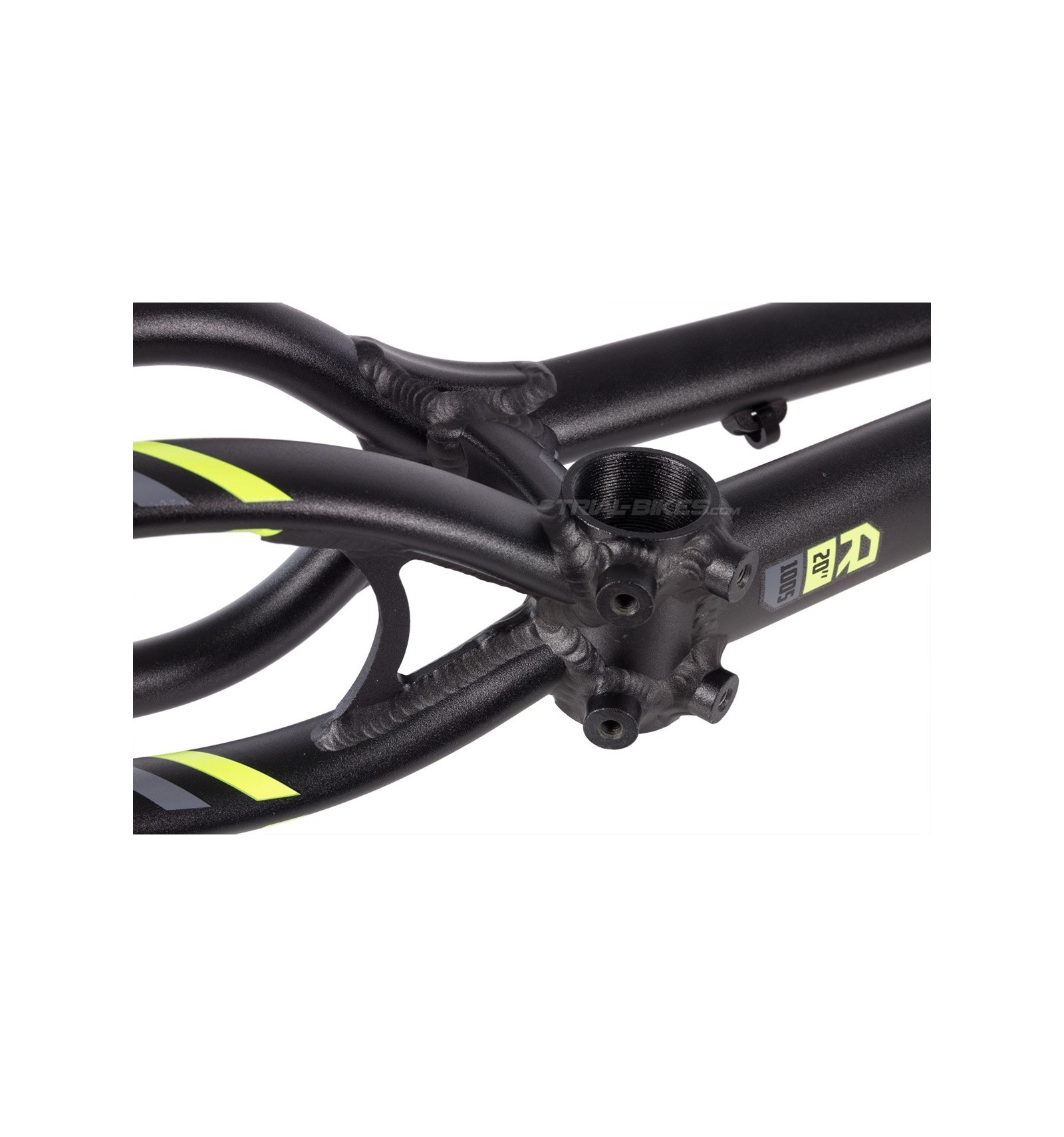

- It features an integrated chain tensioner (supplied with the frame), like the Ozonys Curve frames, which avoids the need for snail cams. Now, it’s made from steel instead of aluminium to allow greater strength.
- To tension the chain, once the axle bolts are loose, undo the M6 bolt a bit. Now you can adjust the chain tension by using the M5 rear bolt. Afterwards, tighten the M6 bolt and the axle bolt to keep everything in place.
- Contoured seat and chain stays guarantee more than enough tyre clearance, but also help increase overall strength and stiffness of the rear end of the bike.
- Only suitable for the Bonz bash plate (not included), available here.
- Anodized black finish, with Ozonys Roxxor graphics, in fluro yellow/silver.

Versions
- Available with Post Mount disc brake mounts.
- Two versions available: 970mm or 1005mm long.
- CNC machined disc brake mount (160mm), with a large gusset to reinforce this critical area.

Geometry (measured with a 370mm x 45mm fork)
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 115mm, 1 1/8’’

- Wheelbase: 970mm or 1005mm
- Chain stay length: 350mm
- BB Rise: +80mm
- Head Angle: 71.5º

Finishes
- Anodized black finish
- Ozonys Roxxor graphics, in fluro yellow/silver

Weight
- 1.360g (970mm version), 1.383g (1010mm version), including chain tensioners

Additional information
This frame comes with a 1 year  warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.

If you have any doubts, please contact us on info@trial-bikes.com


WEIGHT 1.360
BRAKE MOUNTS Post Mount Disc
TYPE OF HEADSET Standard 1 1/8"
