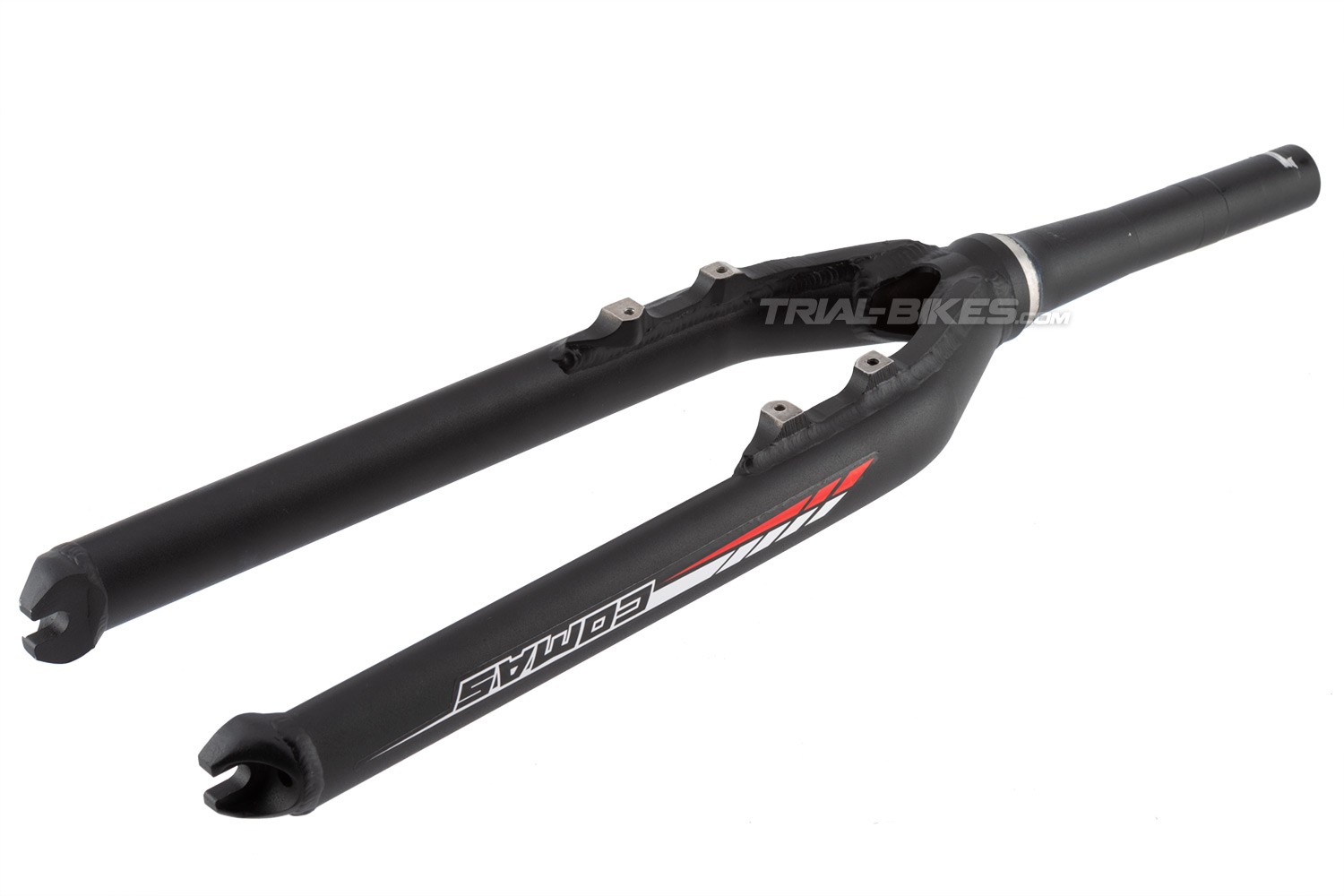

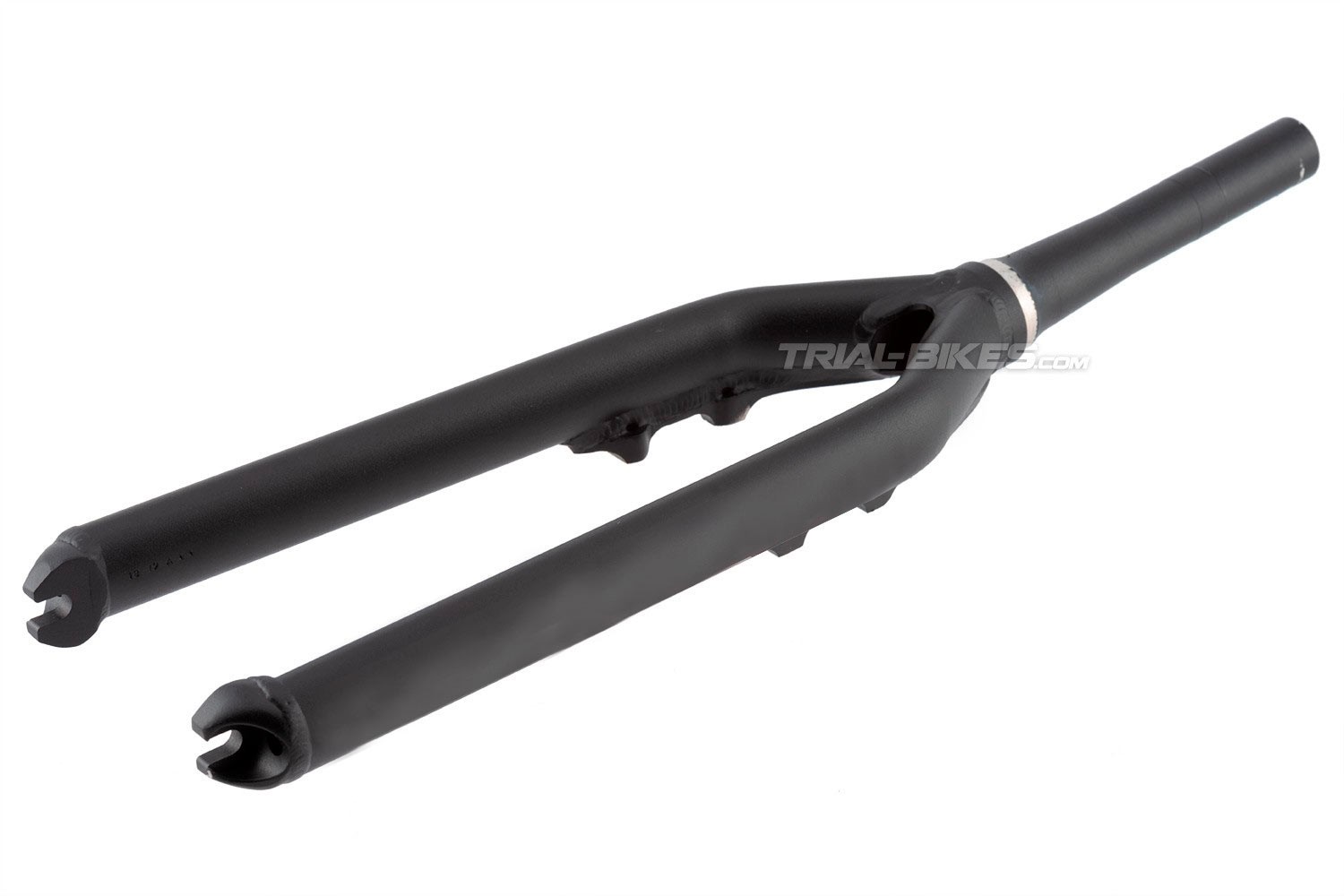

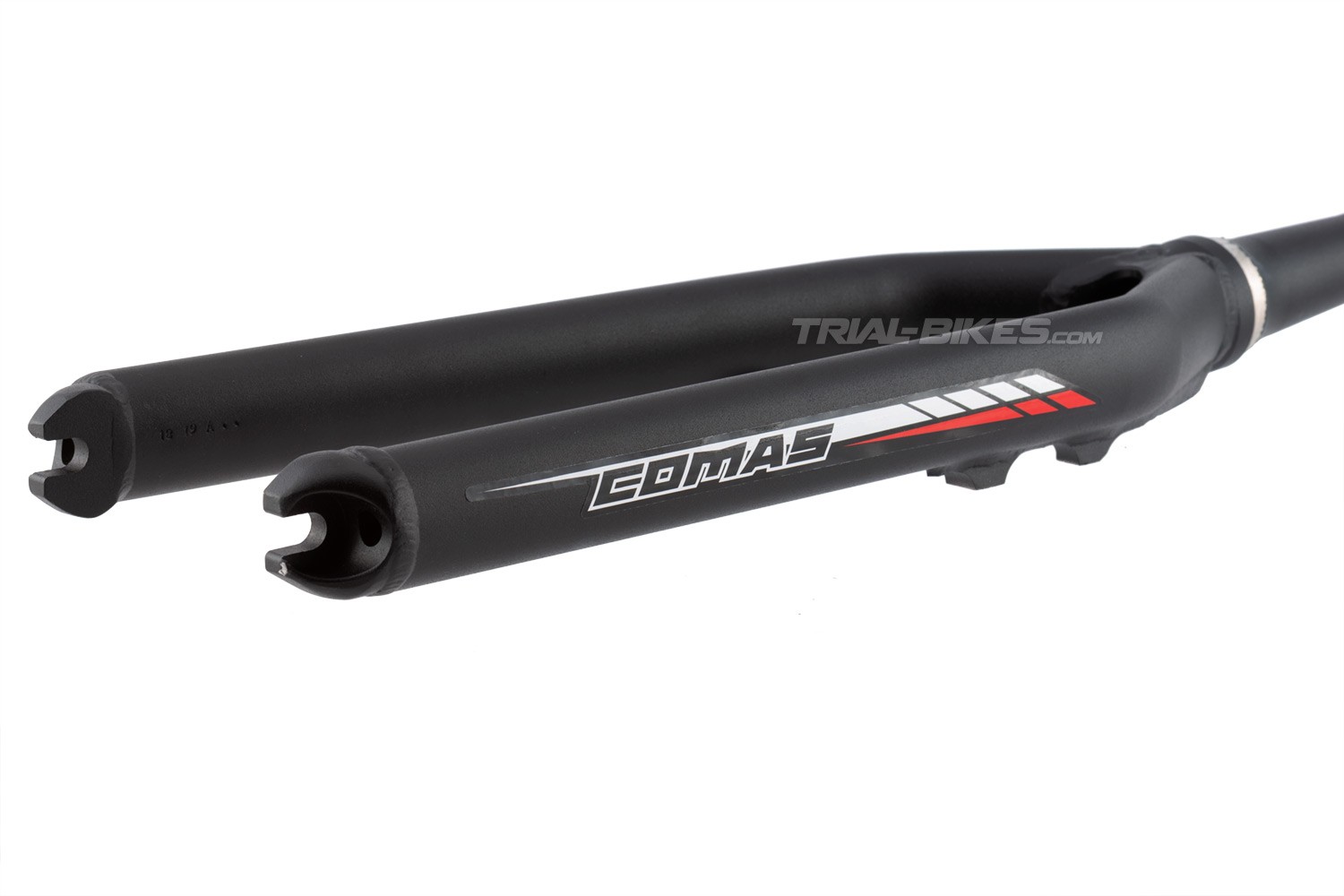

Comas R400 Tapered 26" HS Fork

Comas R400 Tapered 26" HS Fork

Description and materials
- Comas R400 high-end 20” tapered disc fork.
- Developed and tested from months by Comas’ bike trials team rider Sergi LLongueras.
- Exclusive Comas design, with optimized tubing thickness for higher resistance and low weight.
- Made of 6082-T6 aluminium alloy for the best strength to weight ratio.
- Tapered steerer tube, with 1 1/8” top diameter and 1.5” bottom diameter.
- Oversized, rectangular section legs help increase stiffness.

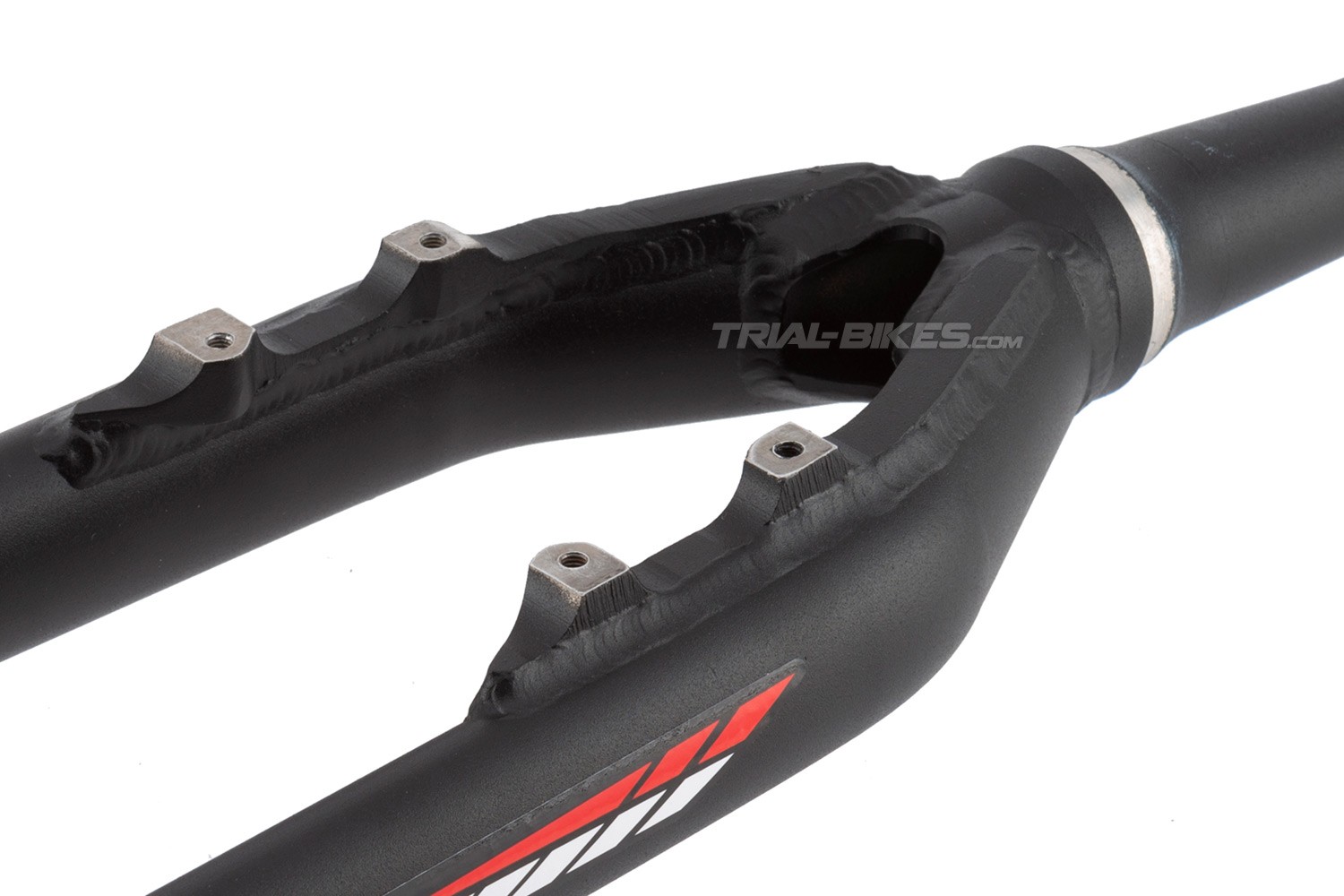

- Features 4-bolt rim brake mounts, spaced at 87 mm at the back of the legs.
- Open dropouts spaced at 100 mm, designed for a 9 mm diameter front hub.
- Sold singly, does not include a star nut.

Compatible with:
- Frame with tapered 1 1/8” – 1.5” head tube.
- Front hub with 9 mm diameter axle and 100 mm spacing.
- Note: in case you’d like to install this fork on a frame with 1 1/8” head tube, an adaptor must be used.

Dimensions

(1) Length: 400 mm.
-----------------------------------------------
(2) Offset: +25 mm.
-----------------------------------------------
(3) Steerer tube length: 177 mm.
-----------------------------------------------

- Steerer tube thickness: 3.5 mm.
- 4 bolts mounts spacing: 87 mm.

Colour
- Black, without graphics.

Weight
- 784.80 g
