Rockman Tapered 20" Carbon Fork Expand

Rockman Tapered 20" Carbon Fork

ROCKMAN ROCKMAN

538147

New

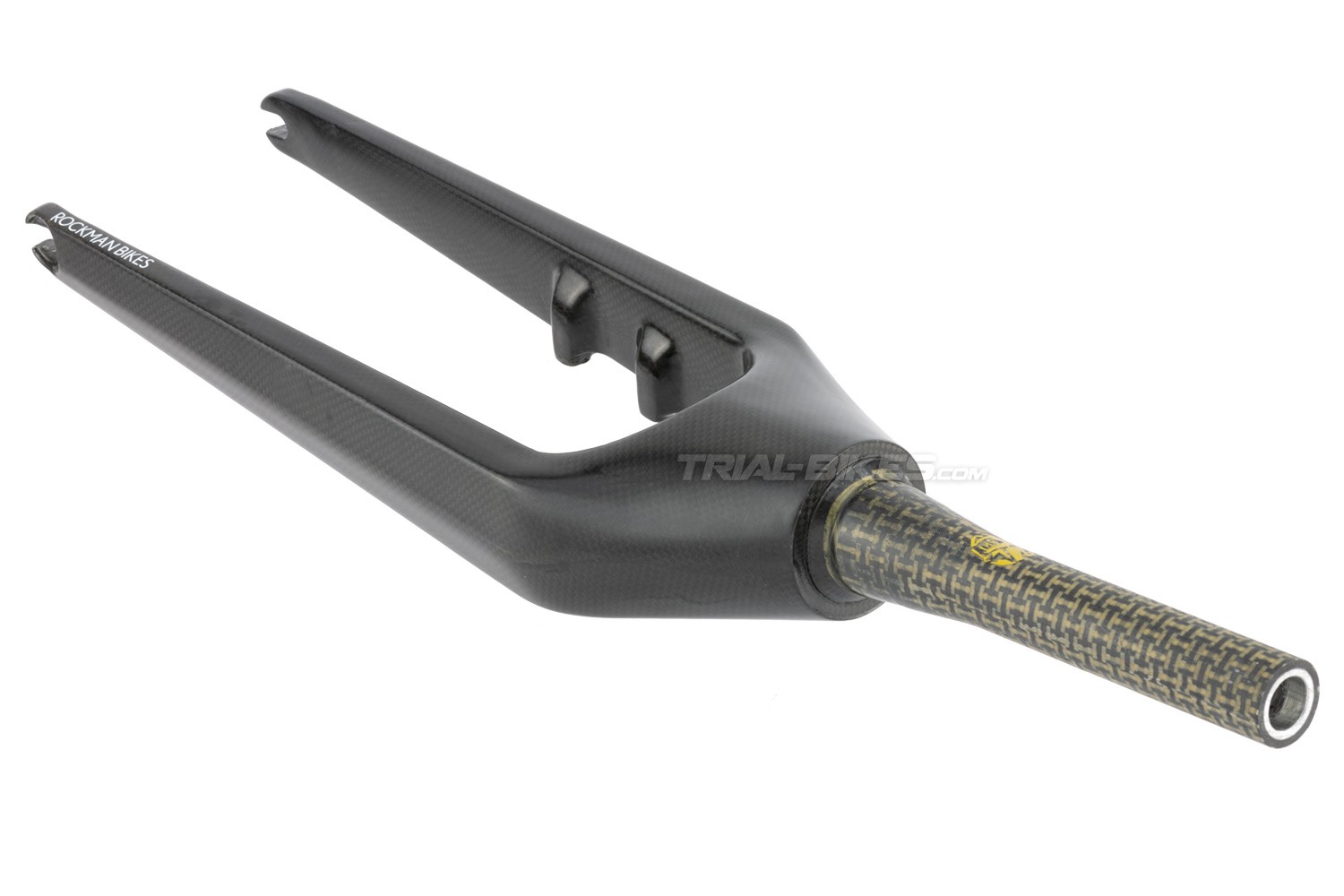

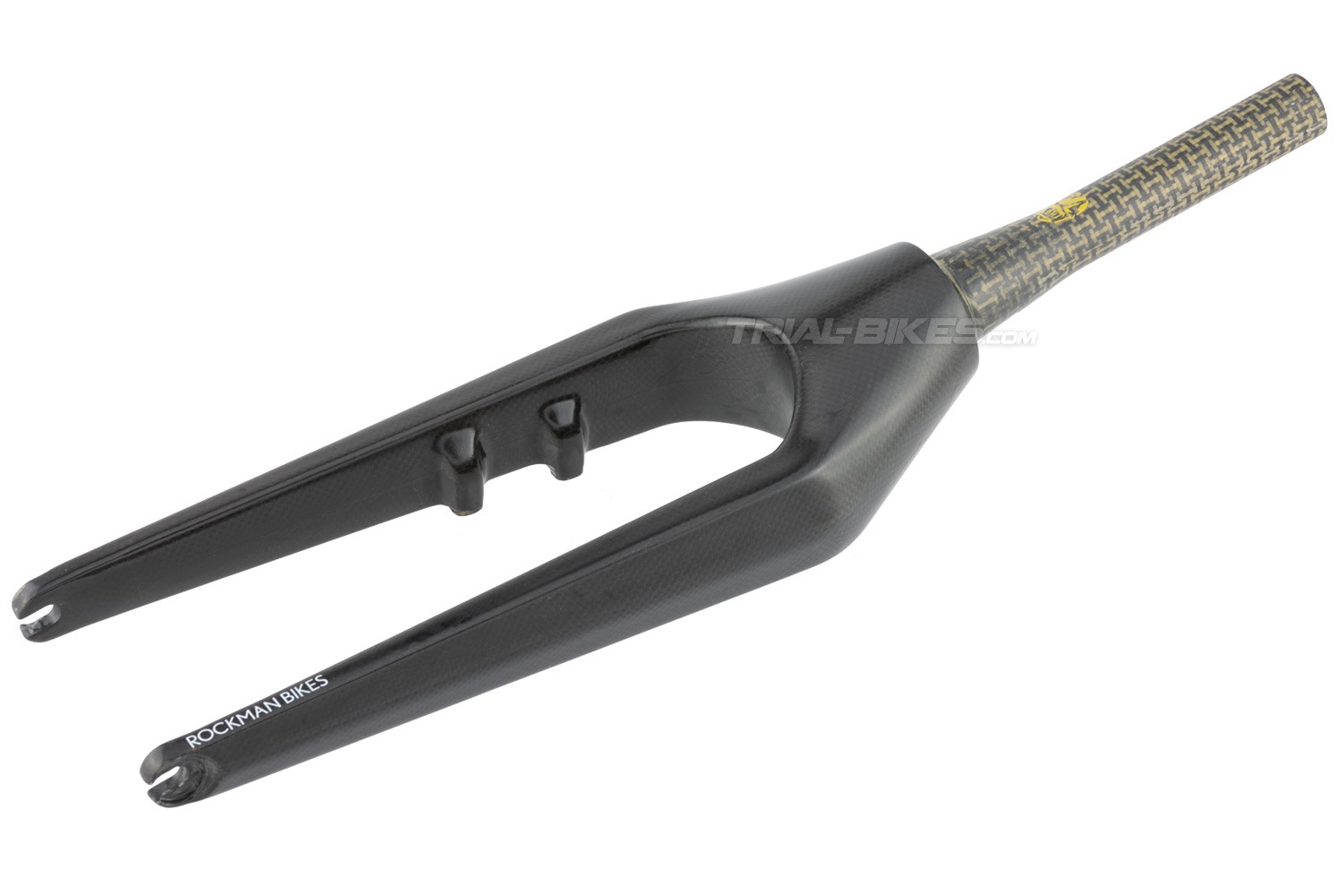

Rockman Tapered 20” high-end carbon trials fork. This is an ultralight yet very stiff and strong fork that’s been tested and developed for months by the Rockman Team riders.

More details

This product is no longer in stock

329,75€

Ask a question

Rockman Tapered 20" Carbon Fork

Description and materials
- High-end Rockman Tapered 20” bike trials carbon fork.
- 100% exclusive design by Rockman, based around the original, reliable versions of their Rockman carbon fork, now featuring a tapered steerer tube for improved strength and stiffness.
featuring closed dropouts to fit a 9mm diameter thru-axle.
- Made of high-quality, ultra-light carbon fibre.

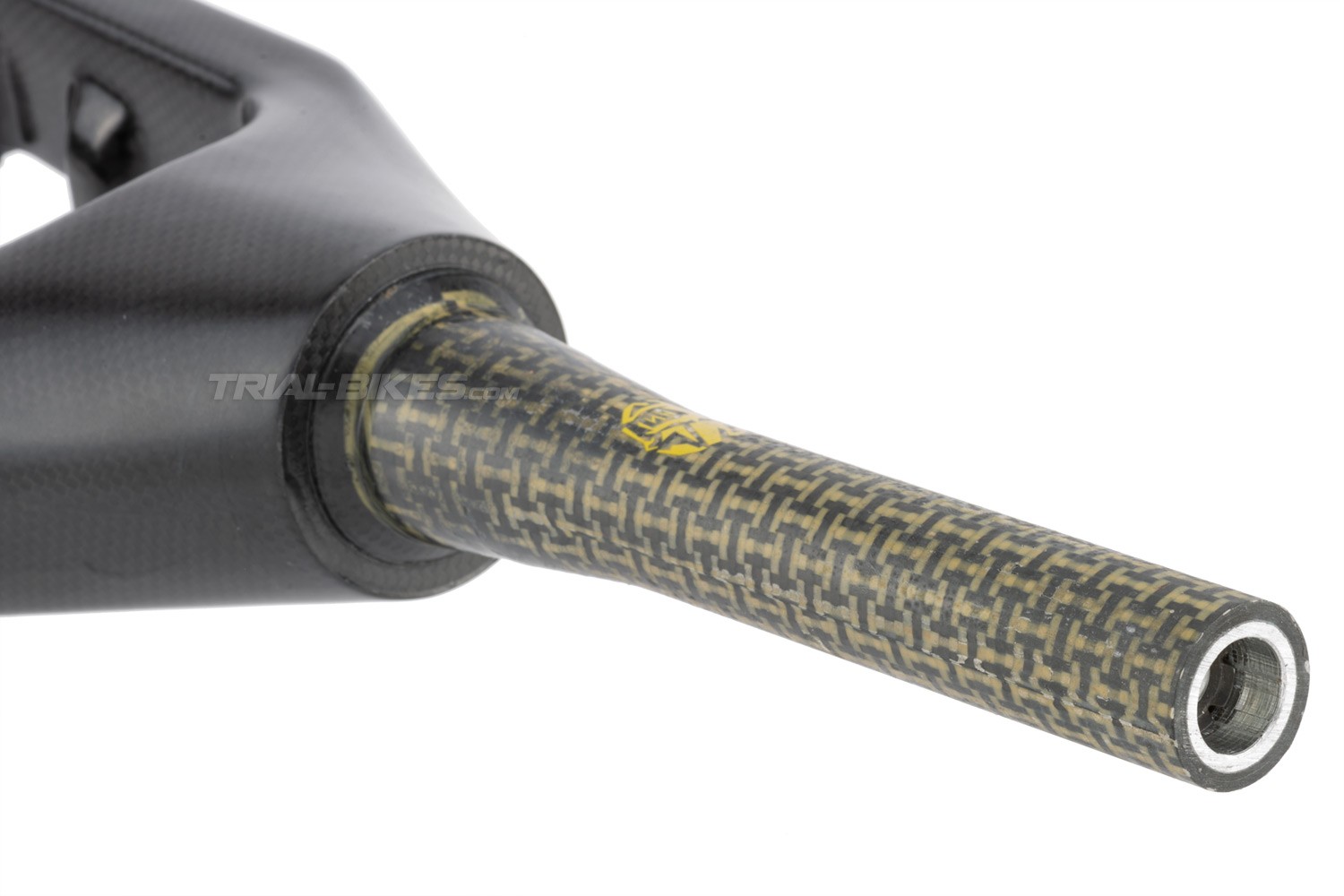

- Tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom.
- The steerer tube is made of Kevlar, and it’s reinforced with an inner aluminium tube.
- The steerer tube features an integrated crown race recess for the lower bearing, so there is no need to install one.

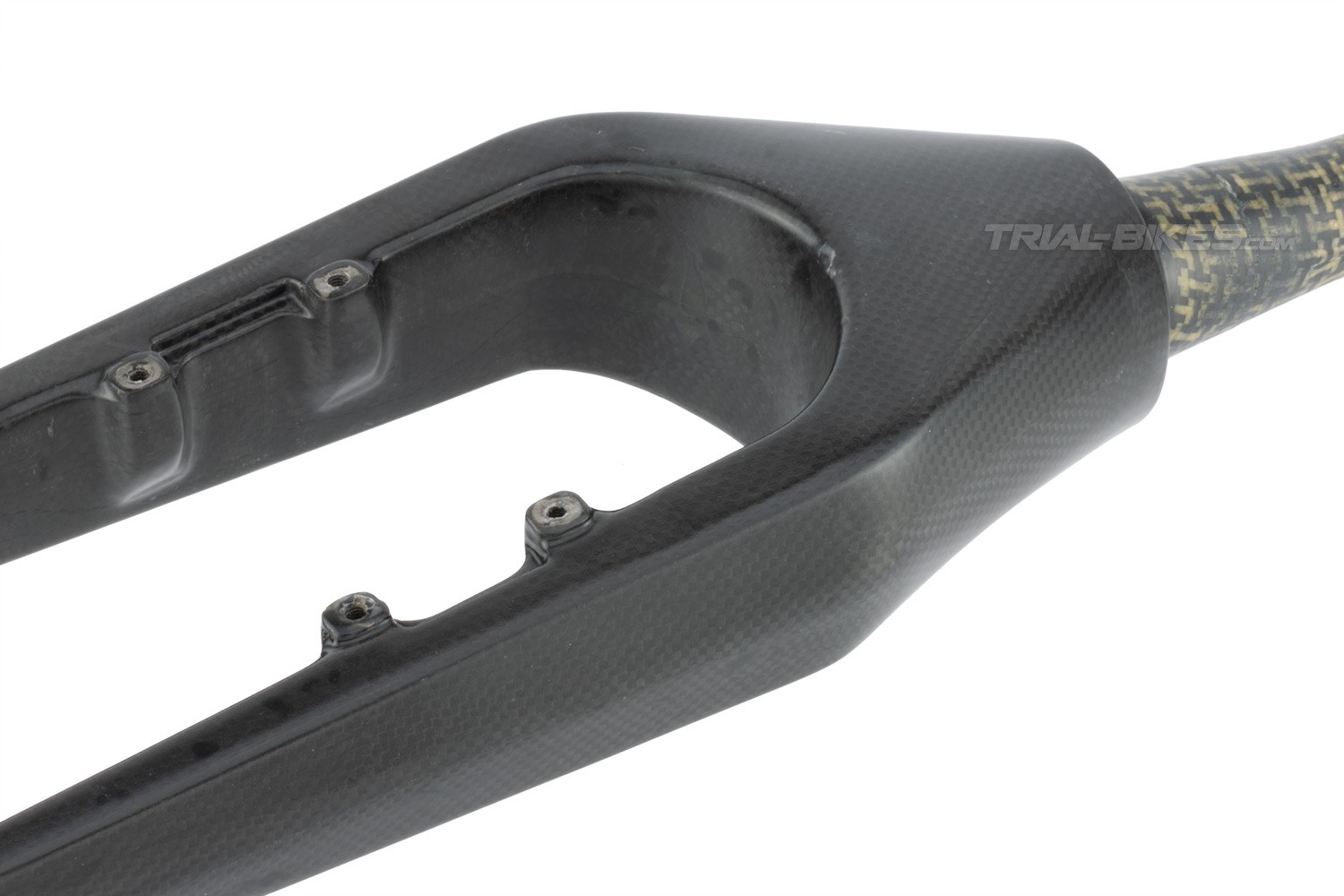

- Features 4-bolt rim brake mounts, spaced at 98 mm at the back of the legs.

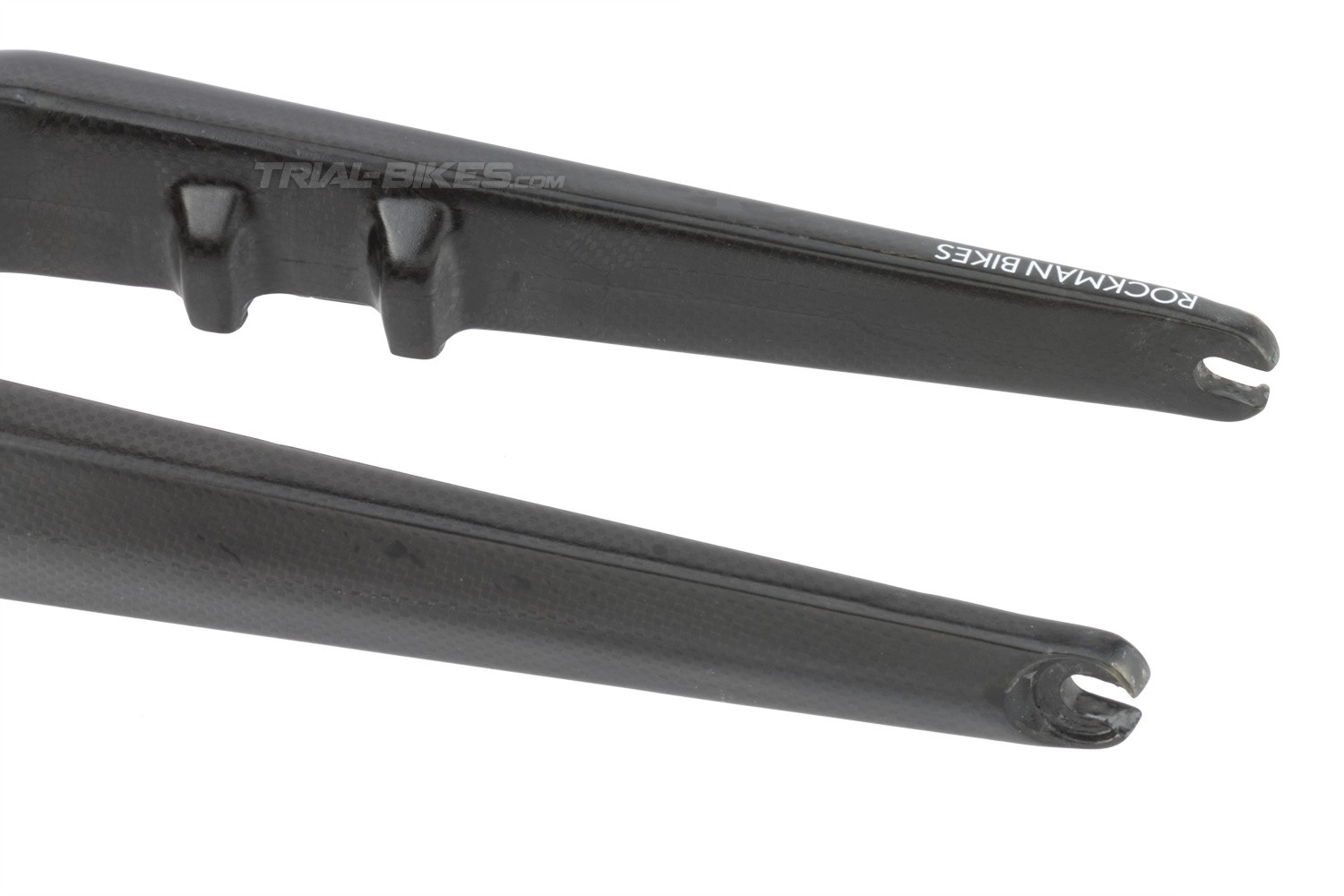

- Dropouts spaced at 100 mm, compatible with most front hubs for bike trials.
- Comes with the star nut already installed.

Compatible with:
- Frames with tapered 1 1/8” – 1.5” head tube.
- Front hubs with 10mm diameter axle and 100 mm spacing.
- Note: in case you’d like to install this fork on a frame with 1 1/8” head tube, an adaptor must be used.

Dimensions

(1) Length: 370 mm.
-----------------------------------------------
(2) Offset: +35 mm.
-----------------------------------------------
(3) Steerer tube length: 190 mm.
-----------------------------------------------

- Steerer tube thickness: 6 mm.
- 4 bolts mounts spacing: 98 mm.

Geometrias horquillas de trial bici

Colour
- Black with white and yellow Rockman graphics and carbon effect.

Weight
- 511.18 g.

MATERIAL Carbon
BRAKE MOUNTS HS
STEERER TUBE Tapered 1 1/8” - 1.5”
