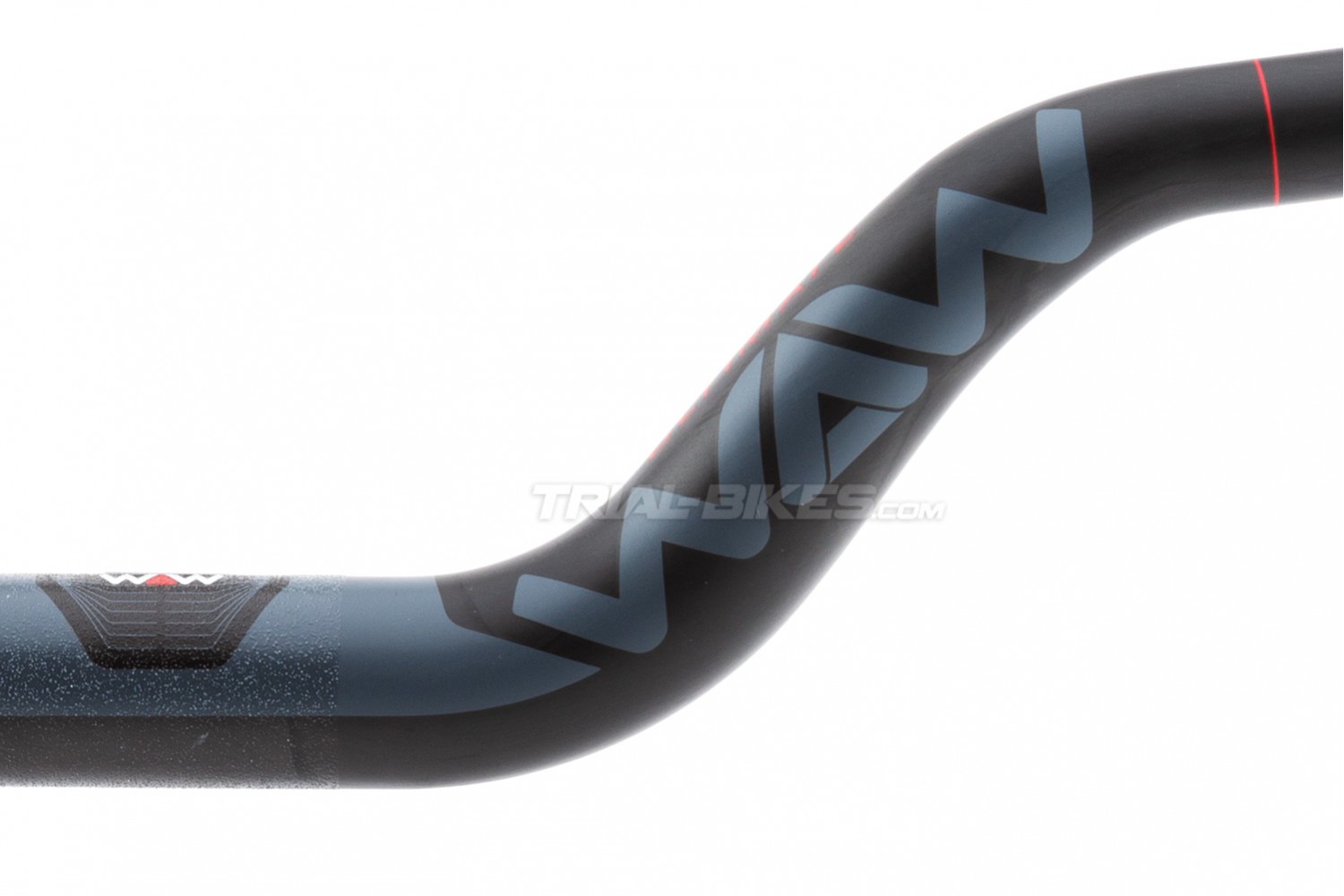

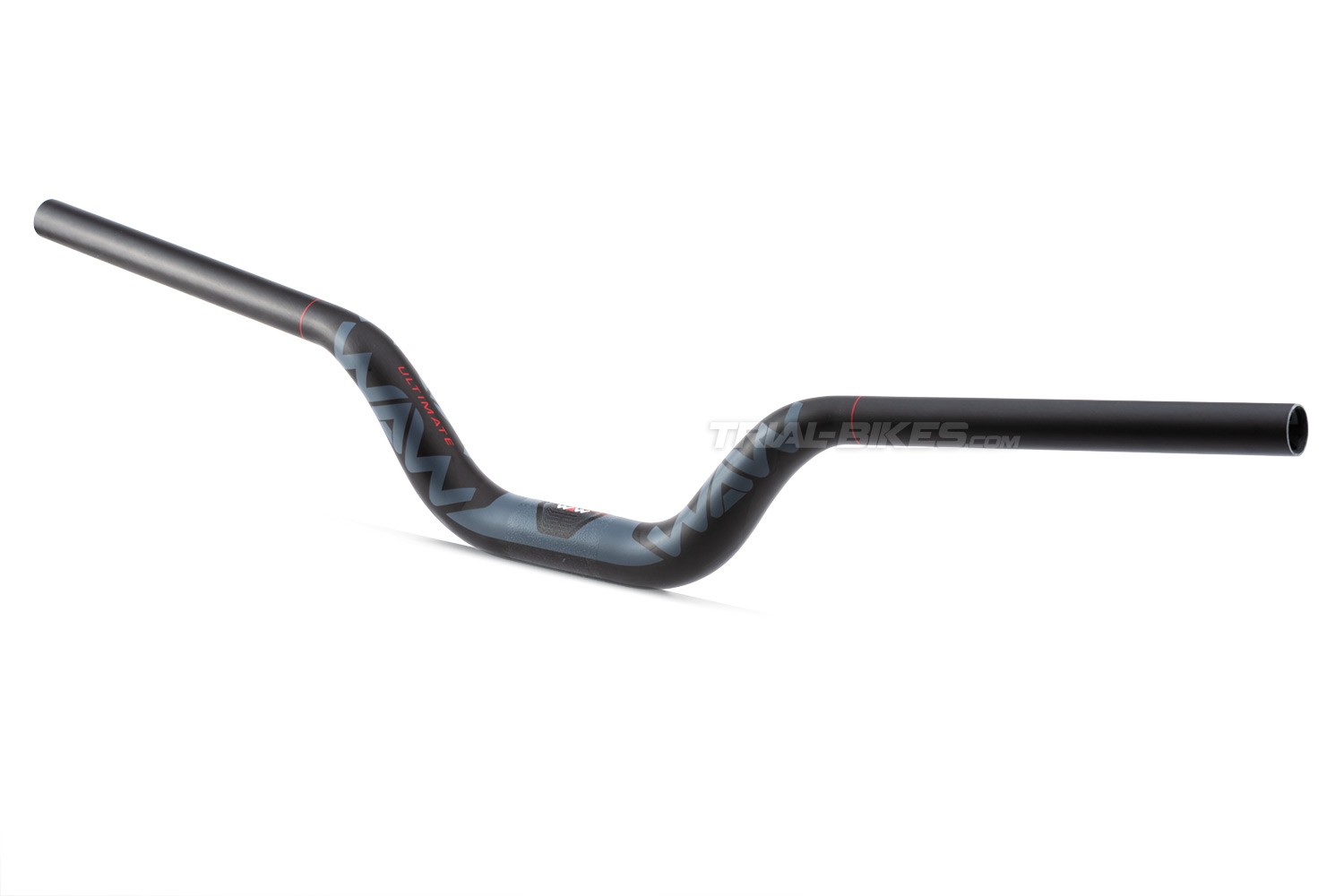

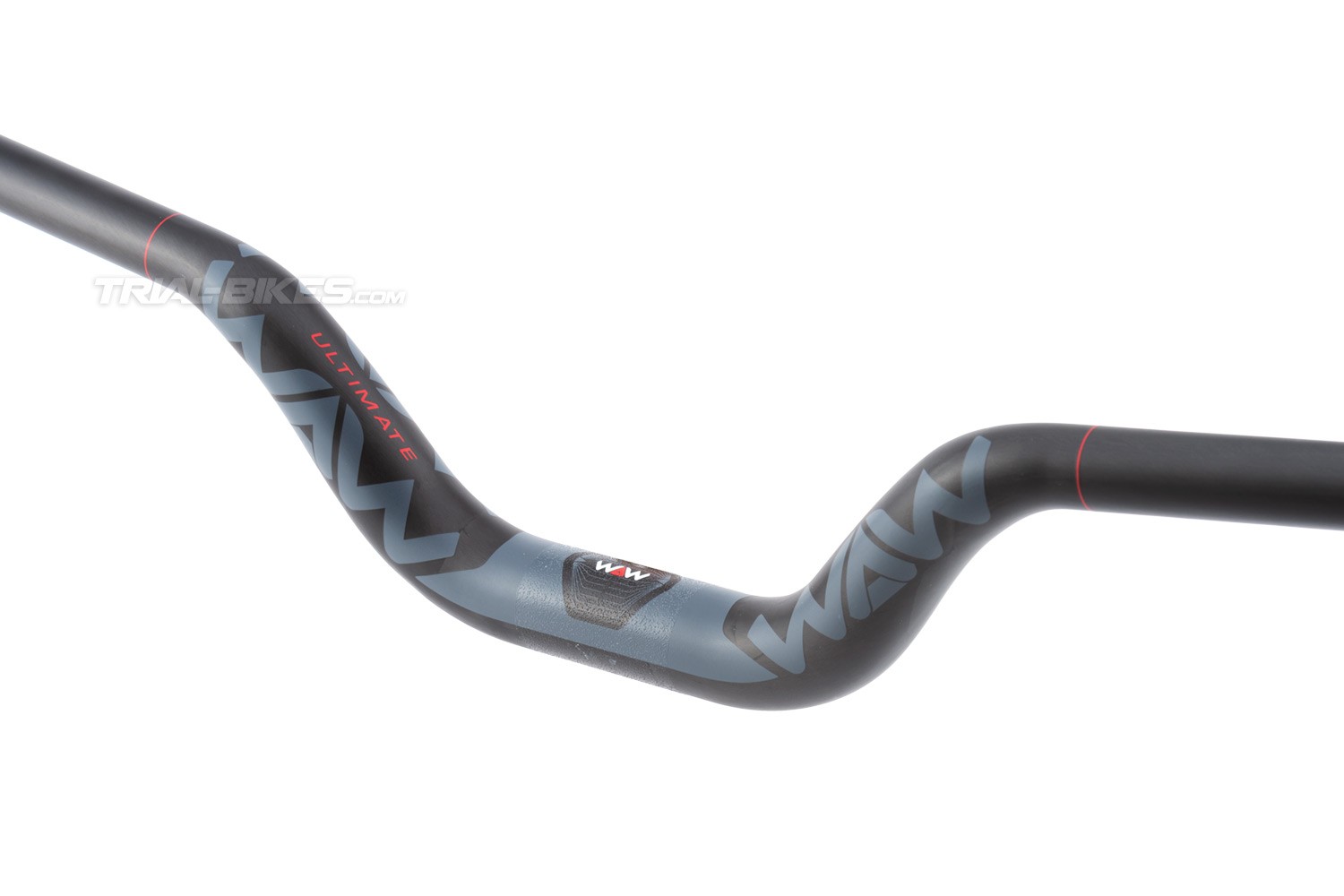

Crewkerz Waw Ultimate Carbon Handlebar

Crewkerz Waw  Ultimate Carbon Handlebar

- New Crewkerz WAW Ultimate bike trials handlebar, made of high-quality UD carbon fibre.

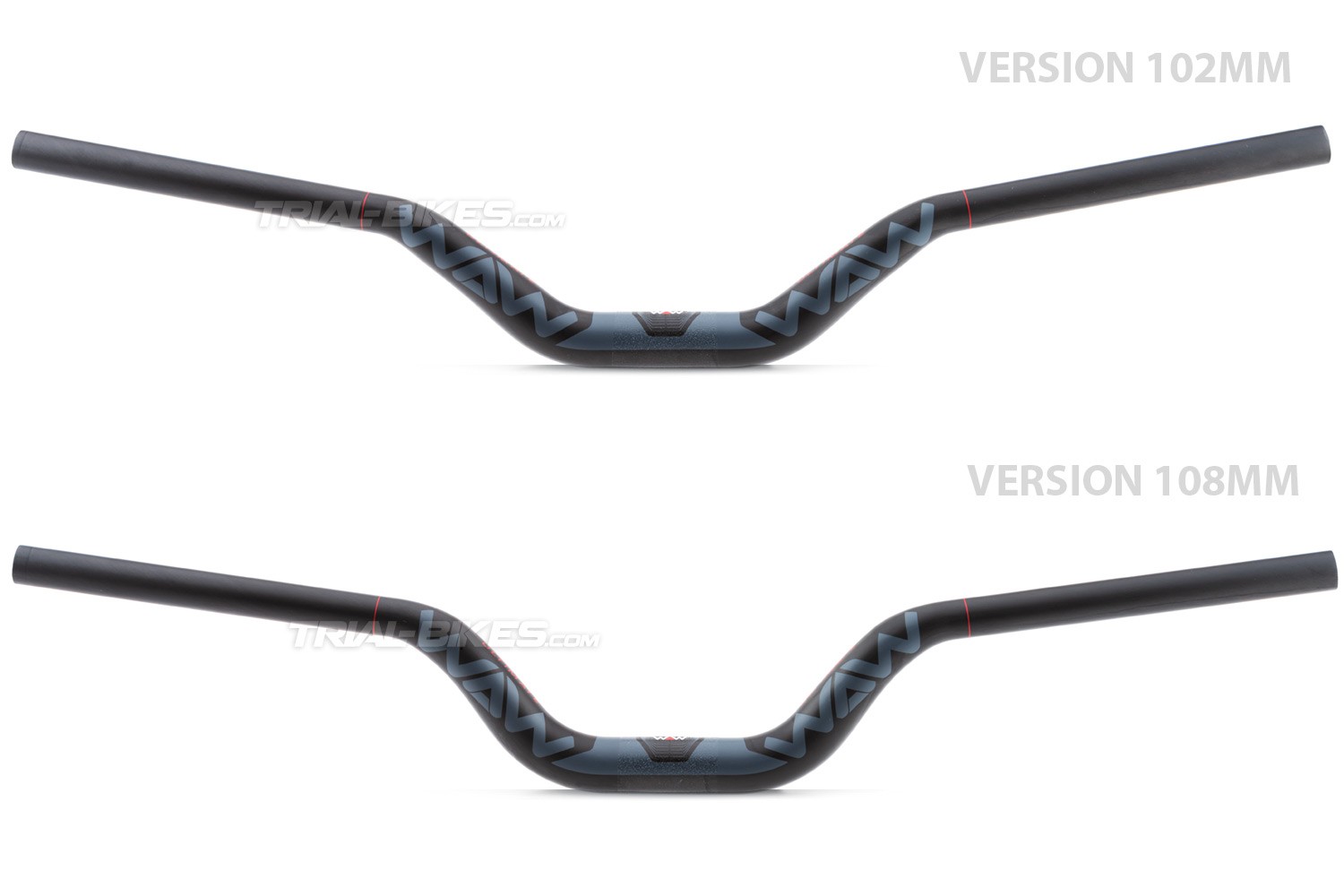

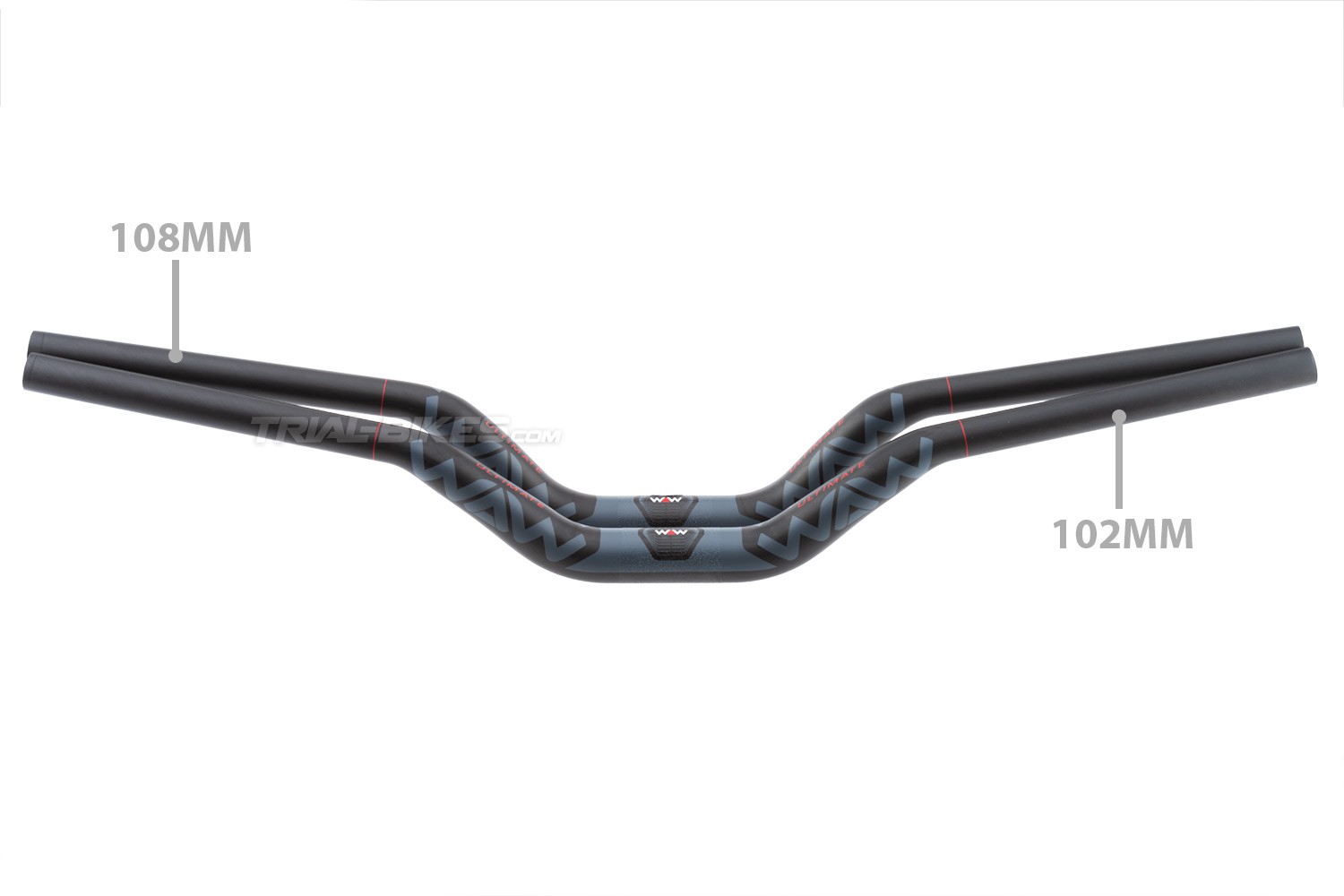

- 2 versions available: 102 mm rise, ideal for 20” bikes, and 108 mm rise, ideal for 26” bikes. *Any of those two versions can fit 20” and 26” bikes depending on each rider’s preferences.
- Tested for months and currently used by Crewkerz trials team riders Jack Carthy and Charlie Rolls.
- High upsweep and rise create a modern geo that allows for the use of shorter, lower stems while keeping a natural handlebar position.
- Variable inner thickness is ideal to distribute material where it’s needed and save weight.
- Anti-slip texture at the stem clamp for safer fixation.
- Central Ø31.8 mm Oversized diameter, compatible with most trials stems.
- Due to its high curvature, this handlebar is only compatible with 4-bolt stem clamps.
- 2 versions available: 102 mm rise, ideal for 20” bikes, and 108 mm rise, ideal for 26” bikes. *Any of those two versions can fit 20” and 26” bikes depending on each rider’s preferences.

Geometry

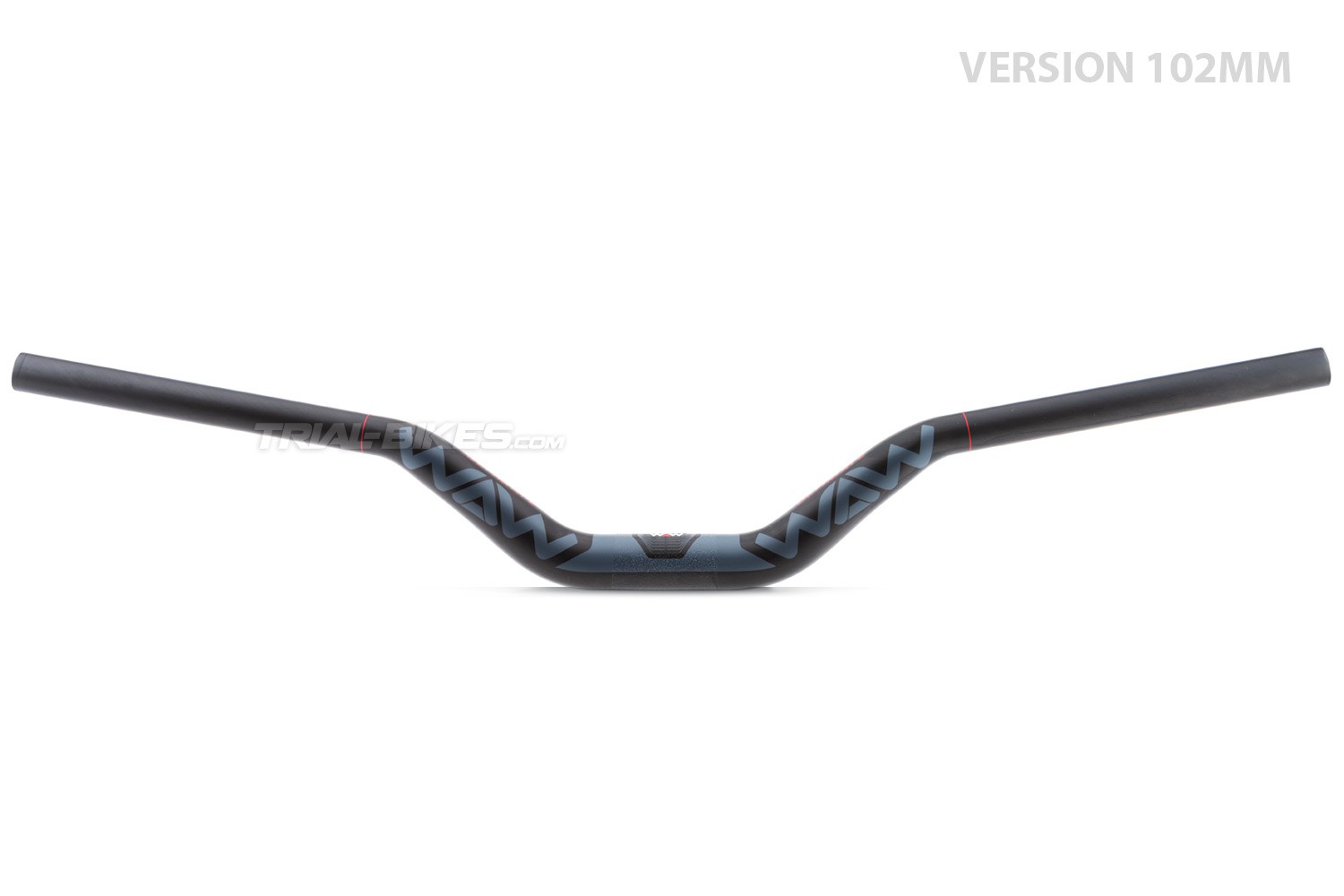

102 mm version
- Length: 720 mm
- Upsweep: 9º
- Backsweep: 8º
- Total rise: 102 mm (measured by Crewkerz, equivalent to a traditional measurement of 106 mm)

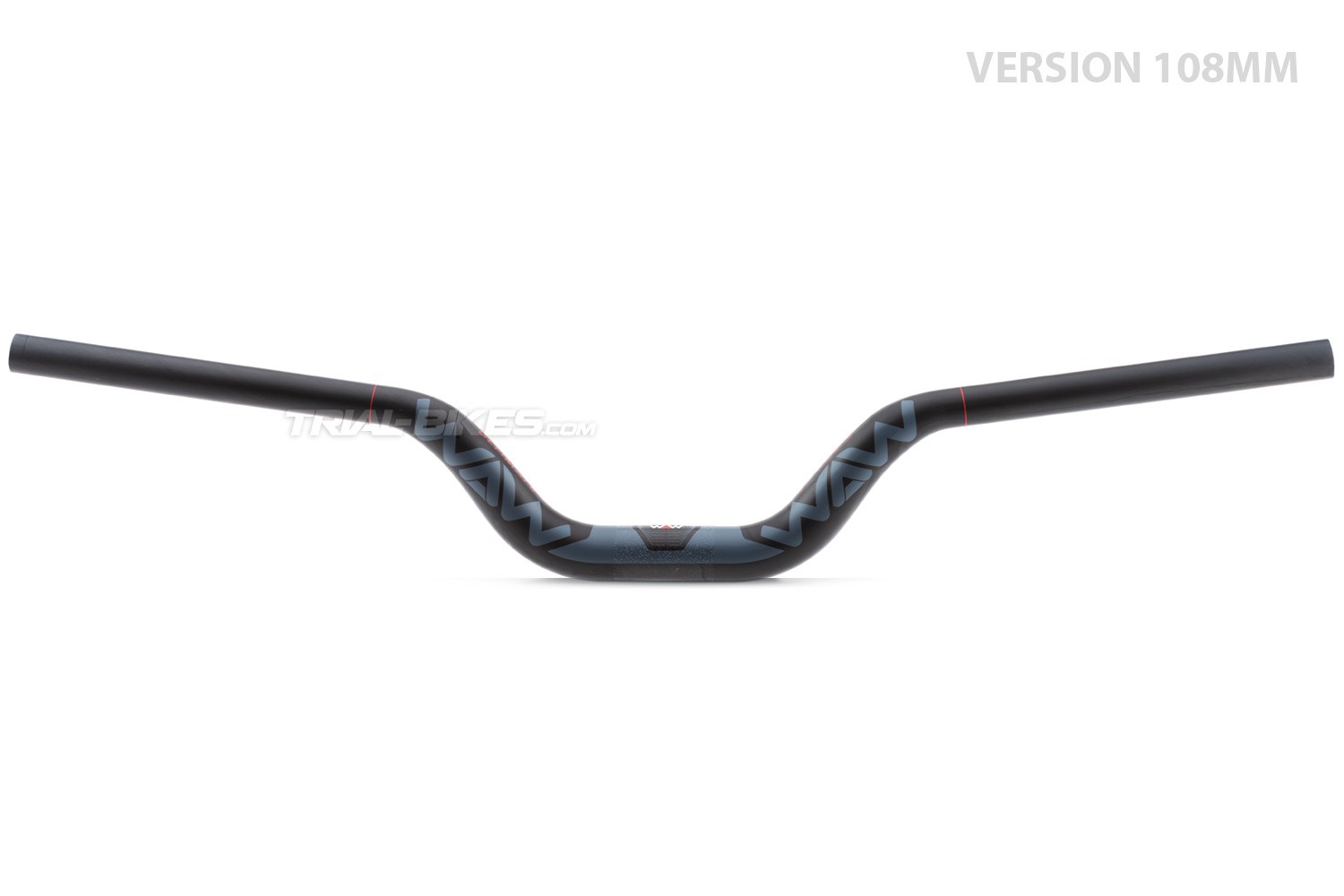

108 mm version
- Length: 720 mm
- Upsweep: 7º
- Backsweep: 4º
- Total rise: 108 mm (measured by Crewkerz, equivalent to a traditional measurement of 110 mm)

Color
- UD Matt black, with red and grey WAW graphics.

Weight
- 206g (102 mm version) and 208g (108 mm version)
