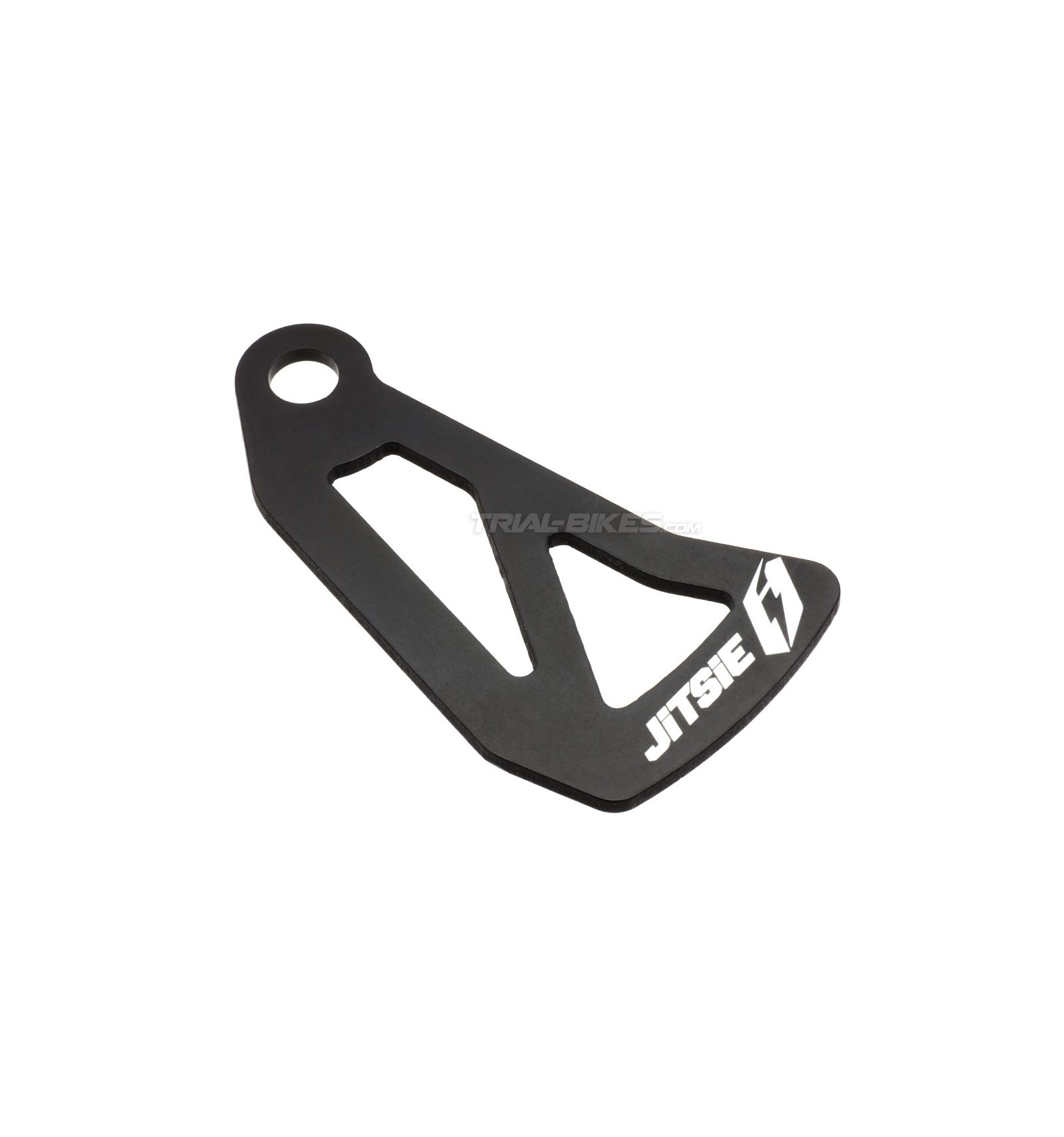

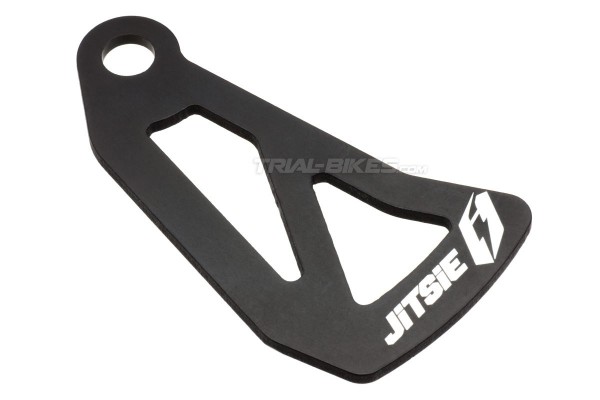

Jitsie rear disc brake rotor protector. It fits on the inside of the dropout and prevent the rotor from being hit and bent.

✅ Two versions available: for 160-162mm and 180-182mm rotors.

More details

20,66€

Fill in the quantity for the Diameter / Color .


 Black  Red
 160/162mm


 180/182mm


Ask a question

Description and materials
- New 2014 Jitsie disc protector, specifically designed for BikeTrial.
- Made from high quality 7075 T6 aluminium.
- With this simple part, which goes inserted between the hub and frame, you can now protect your rotor from impacts and accidental collisions.
- With this new, super-light protector, the nightmare of bent disc rotors will be a thing of the past.
- Ultra light, neat 3mm thick design, for using with 10mm axles in diameter.
- Two versions available: for 160-162mm and 180-182mm rotors.

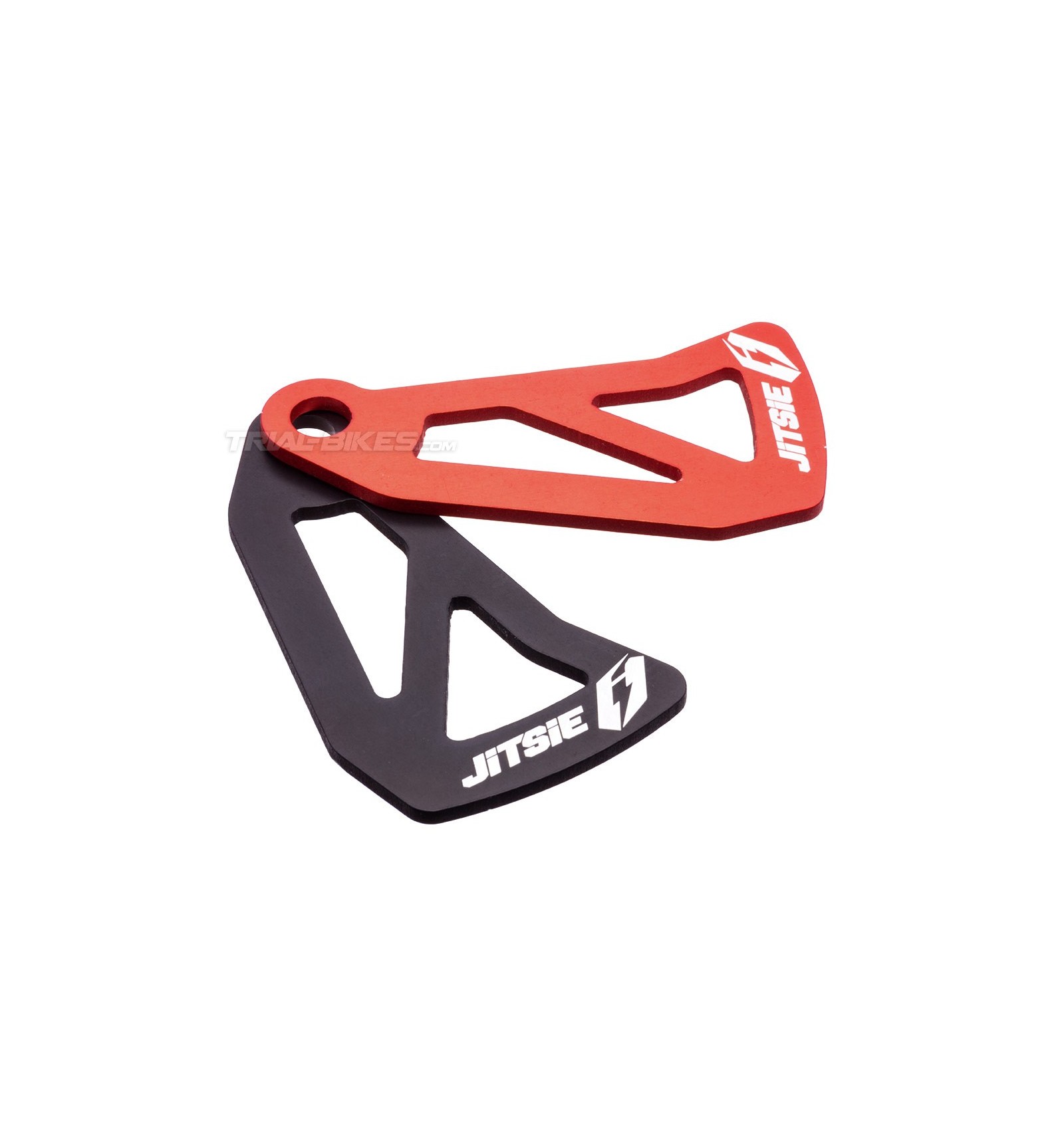

- Two finishes available: anodized red or matt black, with silver laser etched Jitsie logo.
- Please note: check the Installation guide for more info. The disc-side hub spacer must be shortened 3mm, which is the thickness of the Jitsie disc protector.
Also, you can remove the disc-side hub spacer and then insert a 2-3mm washer so that the the total thickness is the same as before.

Installation guide
1. Remove the rear wheel.
2. Measure the total thickness of the hub spacer.
3. Replace the hub spacer with the protector and add some washers (as many as needed) between hub and protector so that the total thickness is the same as before. It mustn’t be direct contact between hub and protector.
4. Install your wheel back.

Dimensions
- Length (from axle hole to end): 85mm (160-162mm version) and 96mm (180-182mm versión).
- Thickness: 3mm

Finishes
- Anodised red or matt black finish
- Silver laser etched Jitsie logo

Weight
- 19.5g (160-162mm version) and 20g (180-182mm version)

Important note
: Some hubs have a thinner spacer than the 3mm-thick protector. Therefore, if the protector was to be inserted between frame and hub, the protector is not suitable for these hubs. However, if it was to be inserted outside the frame, the protector might suit, so please contact us to ensure it will work fine.
