Clean X1 WC Edition 20" 1010mm 2022 Bike

Reference: CL0065

Condition: New

Ask a question

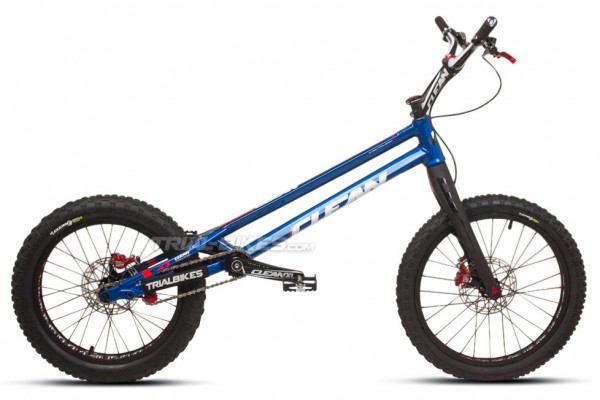

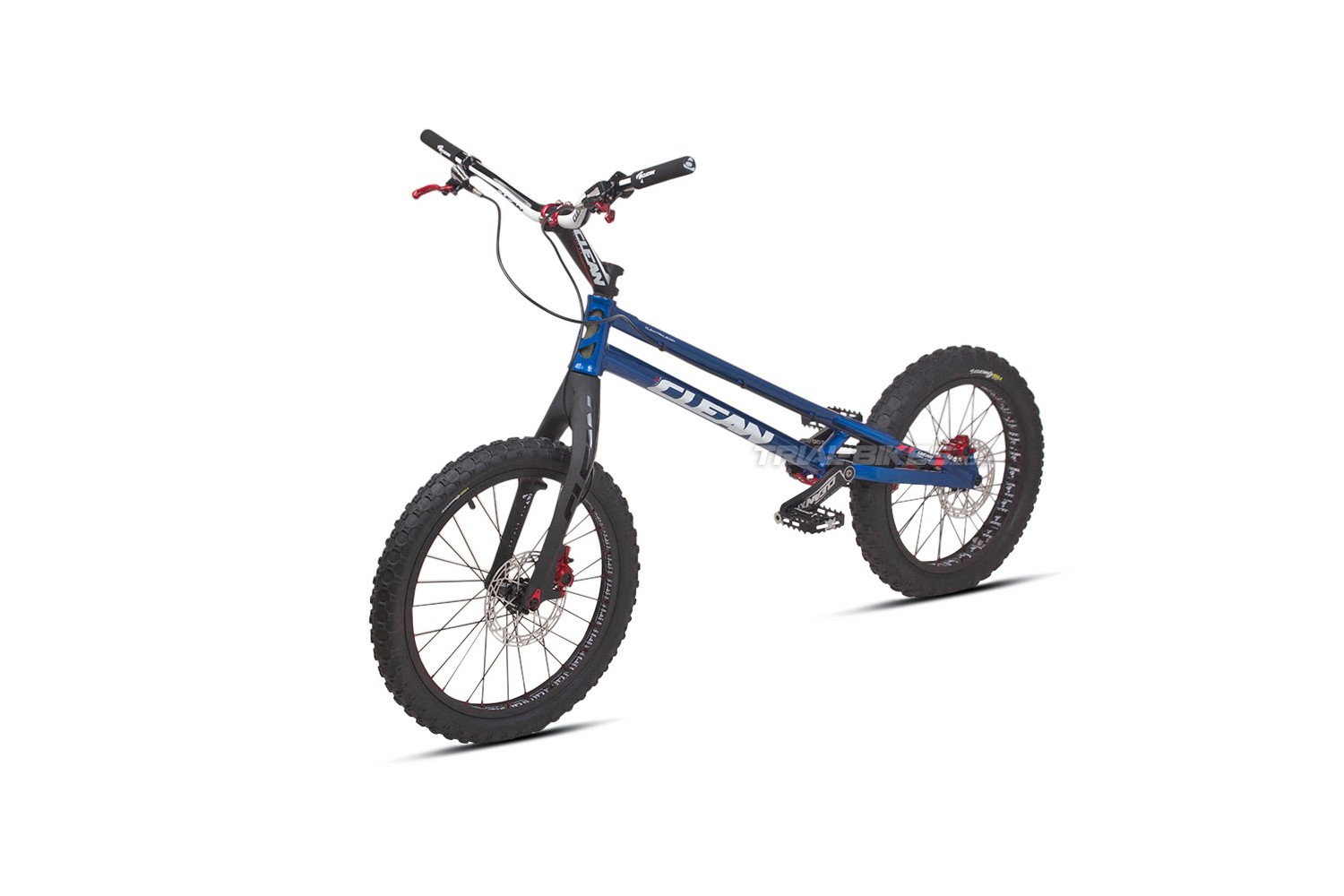

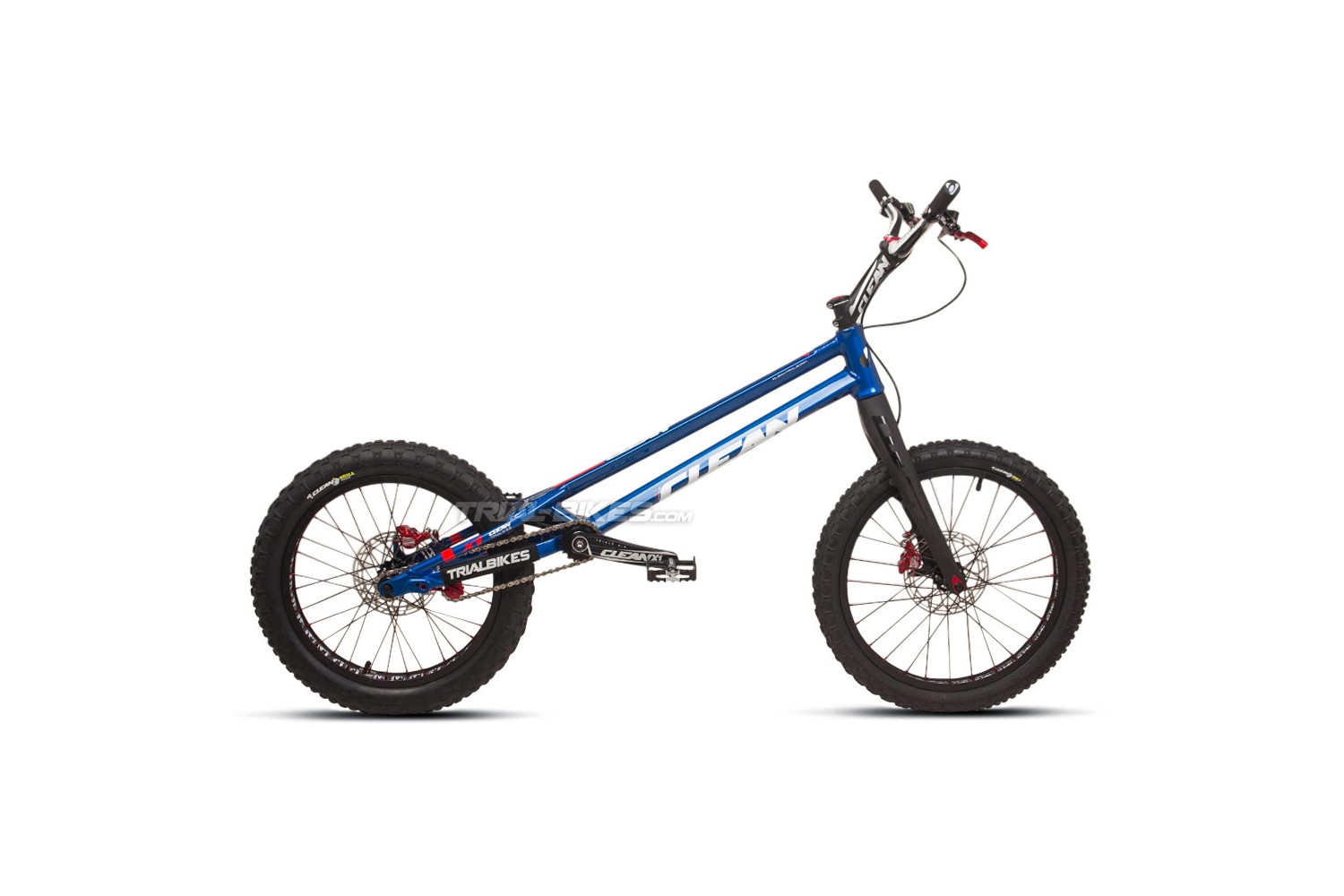

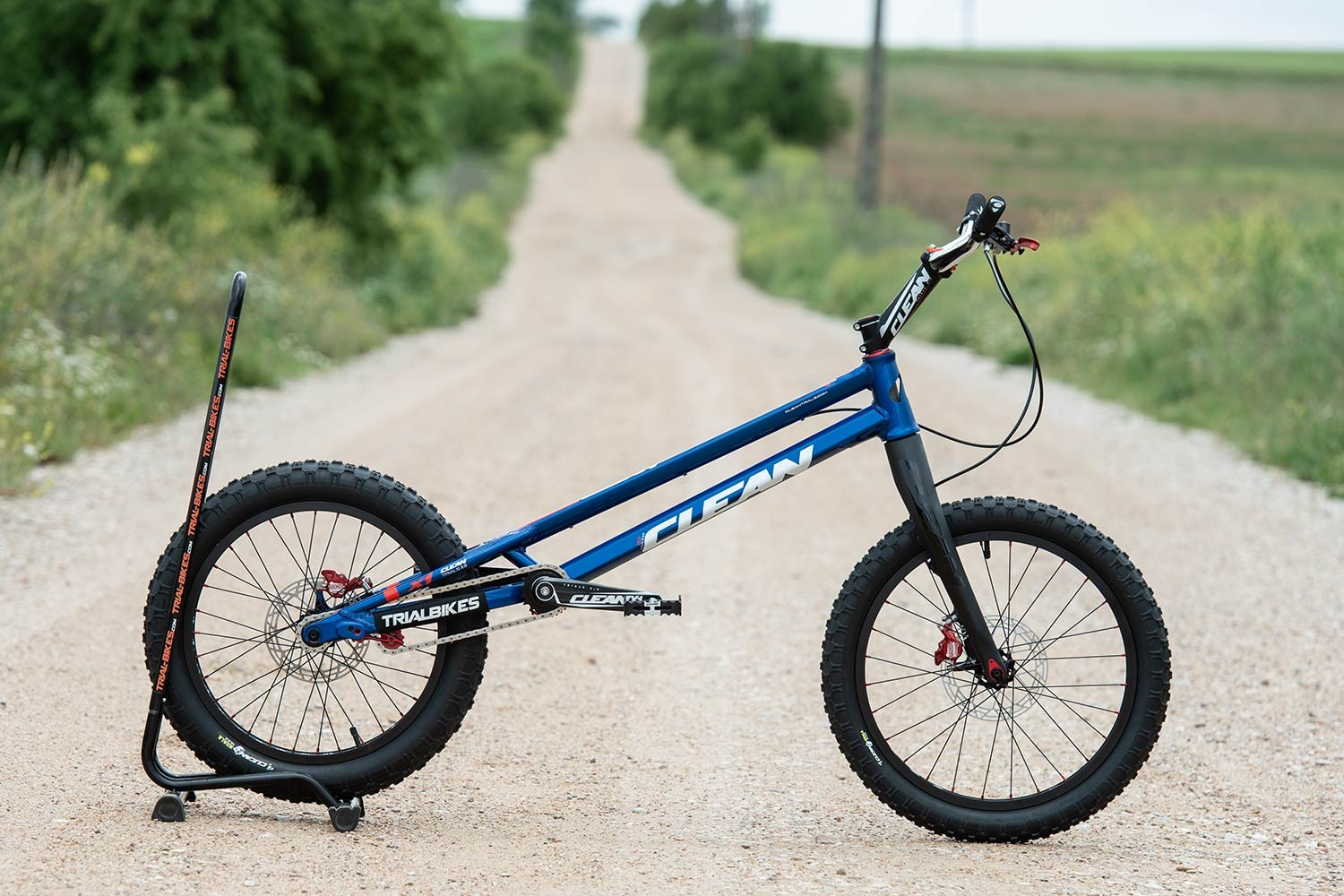

Clean X1 WC Edition 20" 1010mm 2022 Trials Bike

The new Clean X1WC 20" 1010 mm 2022 is the high-end aluminium bike from Clean’s range. Thanks to the Clean carbon fork and handlebar, combined with the best brakes for bike trials, the Hope Tech3 Trialzone, it is very light and easy to ride: it is the perfect bike for any riding level. No matter if you are trying to learn bike trials or competing at a high level, this bike provides great performance for your skills and abilities.

✅ New geometry with 1010 mm length.
✅ New 2022 finish, in anodized blue colour.
✅ Built with Clean carbon fork and handlebar, KMC X9 chain and Hope brakes.

Frame and fork
- Frame: Clean X1 20" 1010 mm, made from 6061-T6 + 7075-T6 aluminium alloys, with Post Mount disc brake mounts
- Forks: Clean K1 20" Carbon tapered 1 1/8" – 1.5" frame, made from Carbon with Post Mount disc brake and HS mounts.

Wheels
- Front hub: Clean X2 28 spoke holes, with rotor mounts.
- Rear hub: Clean X2 32 spoke holes, with rotor mounts.
- Chain tensioner: Clean X2 integrated, with two 10T jockey wheels made of plastic, black
- Front rim: Clean V2 20", single wall, 34 mm wide, 28 spoke holes, anodized black
- Rear rim: Clean 19", single wall, 48 mm wide, 32 spoke holes, anodized black
- Spokes: 1.8mm spokes, black
- Rim tape: Clean, grey
- Front inner tube: Maxxis Extra Light
- Rear inner tube: Maxxis Extra Light
- Front tyre: Clean Koala 20"x2.00"
- Rear tyre: Clean Koala 19"x2.60"

Brakes
- Front brake: Hope Tech3 / Trialzone disc brake
- Rear brake: Hope Tech3 / Trialzone disc brake

- Rotors: Clean RS, 160 mm (front), 162.5 mm (rear)
- Disc protector: Clean

Drivetrain
- Cranks: Clean ISIS 7075-T6 160 mm, black with silver Clean graphics
- Bottom Bracket: Clean 123 mm, BSA 68 mm, 1.37"x24tpi, thread
- Freewheel: Clean X2 108.9 18T screw-on, with 108 engagement points, 9 pawls and 18 teeth
- Chain: KMC X9-73, silver
- Rear sprocket: Clean 12T Screw-on, made steel, black
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red

Steering
- Headset: Clean Internal Tapered 1 1/8" - 1.5", sealed bearings, cup anodized red
- Stem: Clean 150 mm x 35º, 31.8 mm Oversized handlebar diameter, black with silver Clean graphics
- Grips: Clean foam, black
- Handlebar: Clean X2 Carbon 103 mm, 31.8 mm Oversized handlebar diameter, black finish with black Clean graphics.

Geometry

(1) Wheelbase: 1010 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +87 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
Geometrias en bicicletas de Trial

Weight
- 7.72 Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.

If you have any doubts, please contact to info@trial-bikes.com .
